EPON FTTH optical fiber terminal box ftb 48 port
- Category: >>>
- Supplier: Shenzhen Foclink Communication Tech. Co. Ltd.
Share on (60685202954):
Product Overview
Description

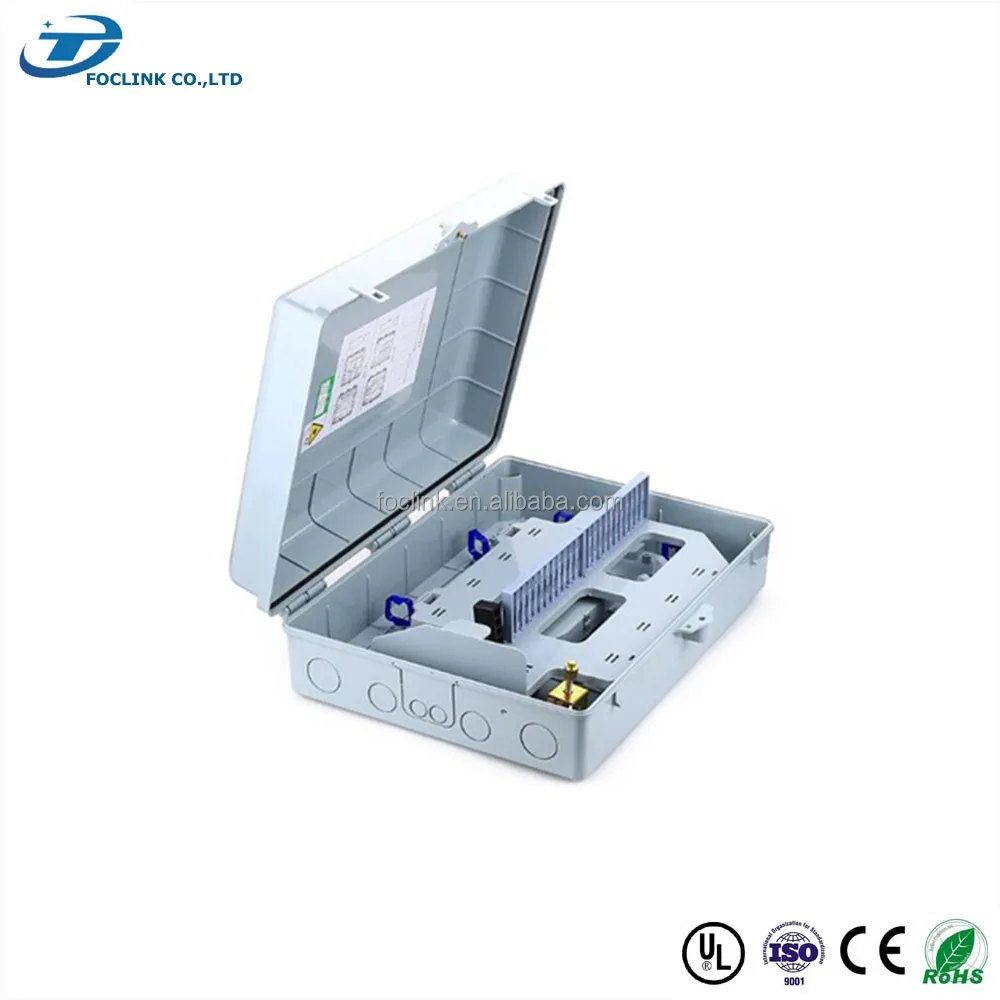

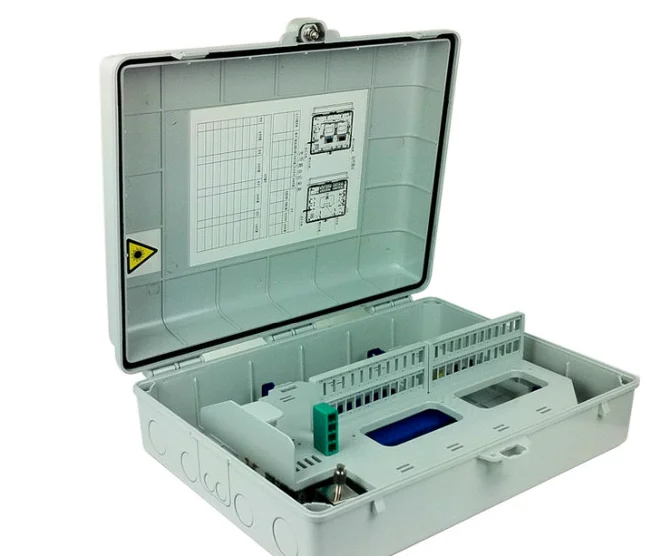

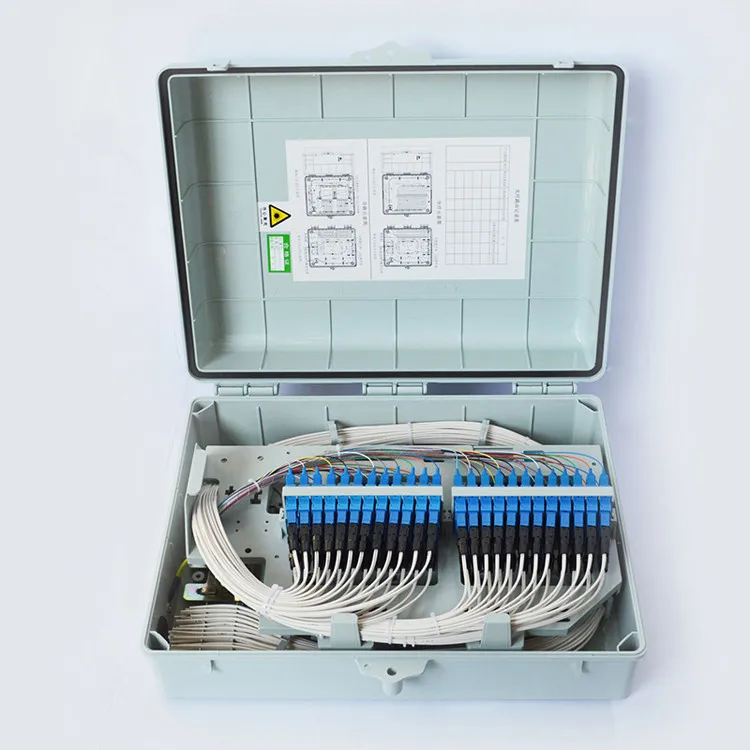

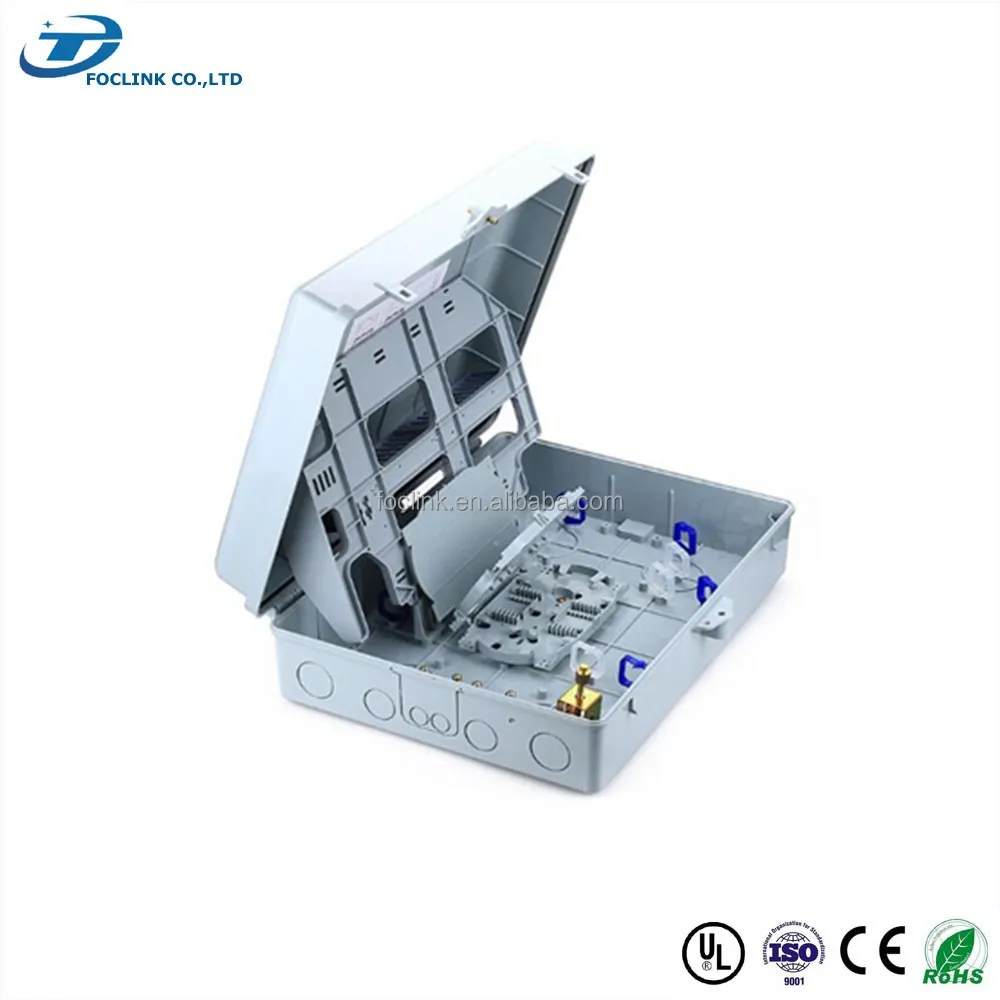

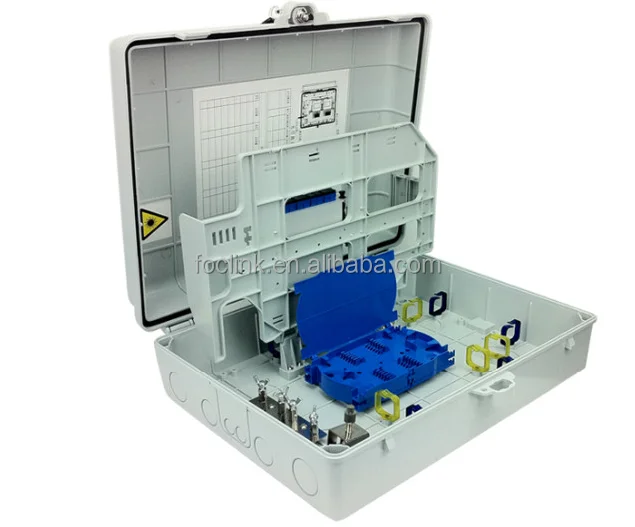

EPON FTTH optical fiber terminal box ftb 48 port
Foclink FTTH terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected.
Feature
1.Non-sealed type, fixed by bolt.
2.Two cable ports for indoor cable connection
3.Easy for operation, has high containing ability for surplus pigtails
4.Can connect/reconnect to adapters more than 200 times
5.Connector for FC, SC, ST or LC

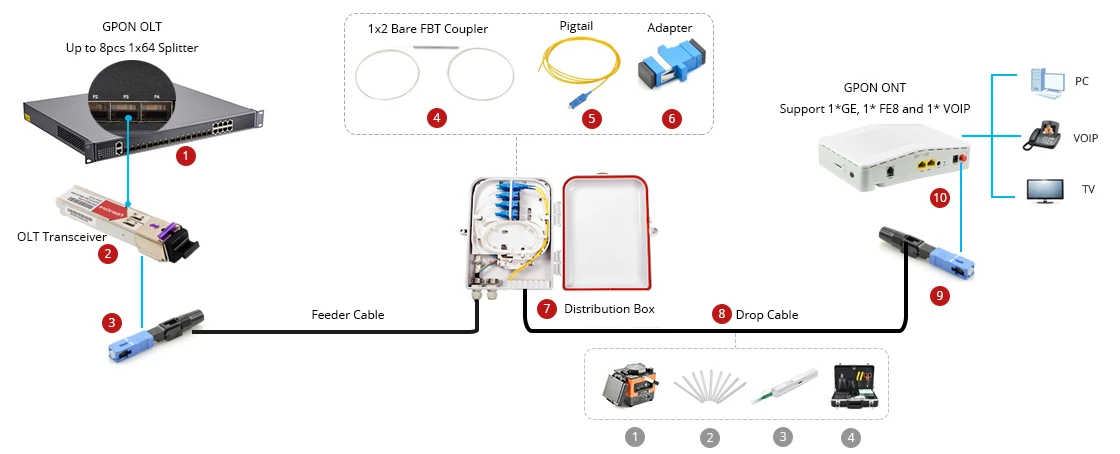

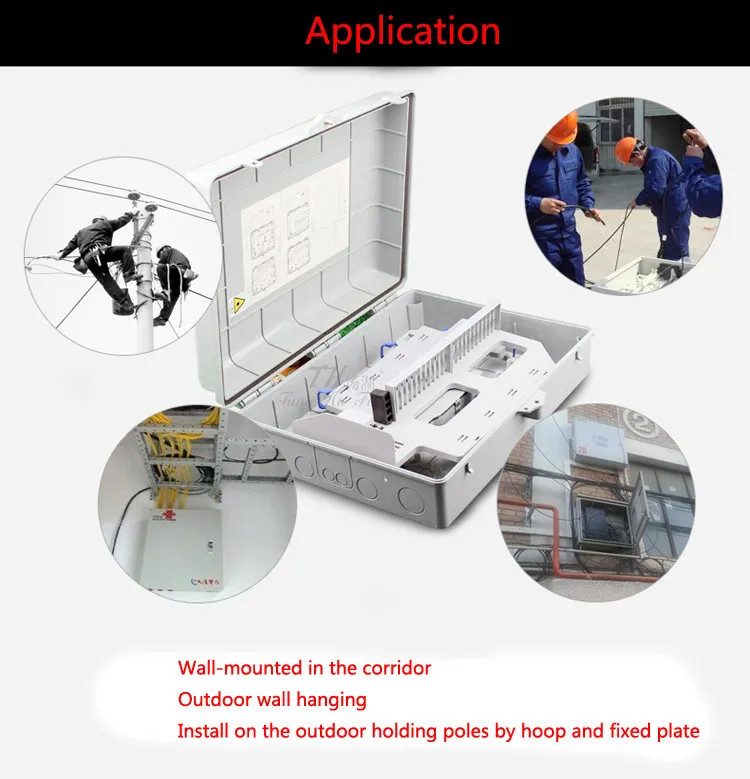

Application
1.Optical LAN & WAN & CATV
2.FTTH project & FTTX Deployments
3.Broadband High-bit rate data transmission
4.Active device terminations
5.Testing instruments
6.Optical fiber communication networks
7.PON Networks
8.Optical Signal Distribution
Product Specification
Item | 4 port | 8 port | 12 port | 24 port | 48port |
Dimension(mm) | 205*140*40 | 220*215*50 | 520*470*370 | 610*580*520 | 700*620*420 |
Weight | 0.3kg | 0.58kg | 1.04kg | 1.5kg | 2.5kg |
Fiber capacity | 4 fibers | 8 fibers | 12 fibers | 24 fibers | 48 fibers |
Lateral pressure-resistance | 500N | ||||
Shock-resistance | 750N | ||||
Working temperature | -40°C ~ +80°C | ||||
Our Company

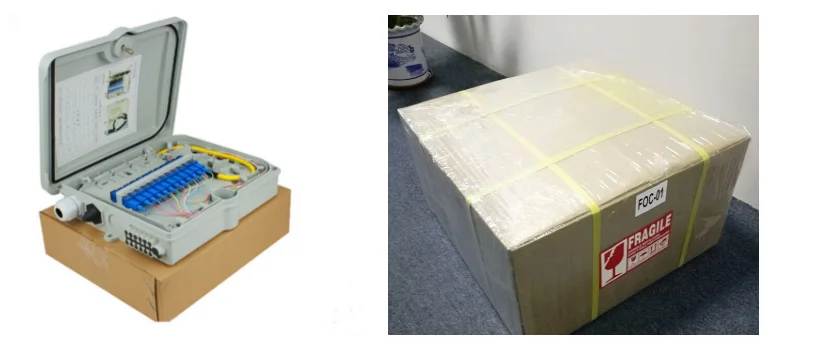

Packing and Delivery
The package will be packed according to standard export requirements, customer satisfication is our target.
Label printing : Customer logo or Foclink brand are available
Inner packing: 5pcs in a carton ,610x520x580mm
Outer packing: the carton will be packed with sack, well protect carton from dust and wet.
FAQ
1,Free samples -- we can supply free products for testing
2,Brand --FOC/OEM/ODM service are acceptable
3,Quality Level --High quality as per your requirements
4,Competitive price --We have our own factory,Competitive price can be provided
5,Payment terms --Nice payment. Like T/T, Western Union, Paypal, LC etc
6,Shipping way --By Sea,By Air or By Express(DHL,Fedex,UPS,EMS etc)
7,Delivery Time --Usually 3-5 days,Less than a week.
Relative products
We sincerely welcome all interested buyers to visit our factory and contact us directly for further information,we will reply you as soon as possible!
Overseas Sales: Nancy
Skype: nancyfoclink
Mob/whatsapp: +86 189 7951 3276
Email: nancy at foclink dot com
