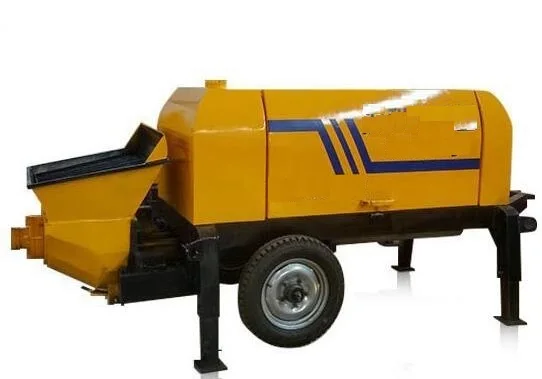

2017China hot sale S tube valve small electric portable concrete pump for fine stone with delivery pump
- Category: >>>
- Supplier: Xingtai Dingyuan Energy Saving Technology Development Co. Ltd.
Share on (60685242352):
Product Overview
Description
We established in 10years of experience in design and development .creating various new products to meet the need of the market and clients.Our Machine with great quality ,Competitive price ,Profession technique ,and life time afer-sales . We provide Engineers Available to Service Machinery Overseas!!!
Items
| Units
| Parameters | ||
DYHN-40 | ||||
Whole performance of machine |
| Max.theo. concrete output (L./H.)
| m3/h | 40/26 |
Max.concrete pumping pressure(H. /L.)
| MPa | 10/7.6 | ||
Distribution valve type |
| S Valve | ||
Concrete cylinder diameter×stroke
| mm | 160×1300 | ||
Hopper capacity×feeding height
| L×mm | 400×1100 | ||
Outlet diameter | mm | 125 | ||
Power system |
| Diesel engine model |
| dy4105ZD |
Electrical engineering power
| kW | 62 | ||
Rotate speed | r/min | 1800 | ||
Hydraulic system |
| Circuit type |
| Open circuit |
Pumping system pressure | MPa | 28 | ||
Mixing system pressure | MPa | 6 | ||
Capacity of oil tank | L | 370 | ||
The biggest transportation is away from vertically (/Level) | m | 160/600 | ||
Other parameters |
| Max.aggregate diameter
| mm | Scree:30 20 |
Inside diameter of delivering pipe
| mm | 125 | ||
Dimensions:length×width×height
| mm | 5000×1850×1700 | ||
Total weight | kg | 4500 | ||
![16R)8ID4{K]308GYLJ5FK(O_](http://sc02.alicdn.com/kf/HTB1kh37mWQoBKNjSZJn761w9VXa8/230617987/HTB1kh37mWQoBKNjSZJn761w9VXa8.png)
