Professional custom carbide end mill cutter ball nose for cnc cut
- Category: >>>
- Supplier: LIN TONG SHENG CUTTING TOOLS CO. LTD.
Share on (60685253617):
Product Overview
Description
Detailed Images
Make Your Process Smooth and Efficient.

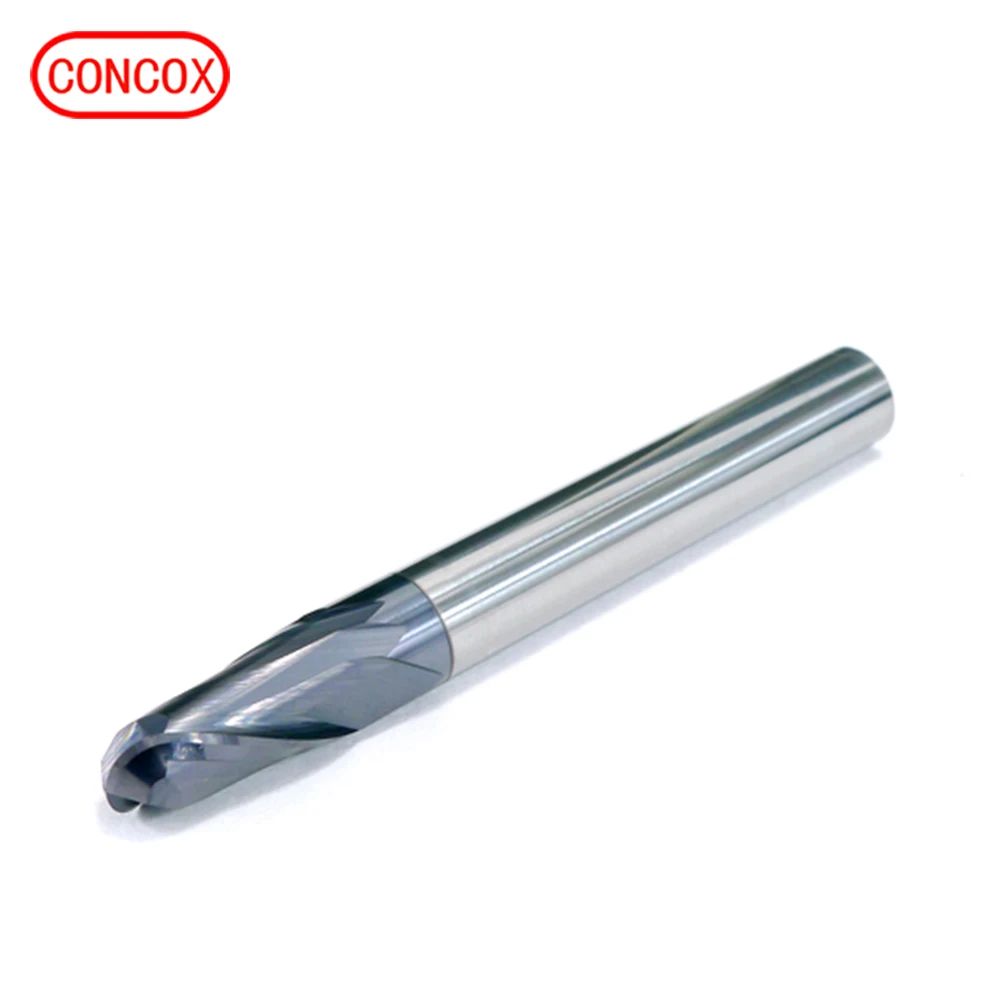

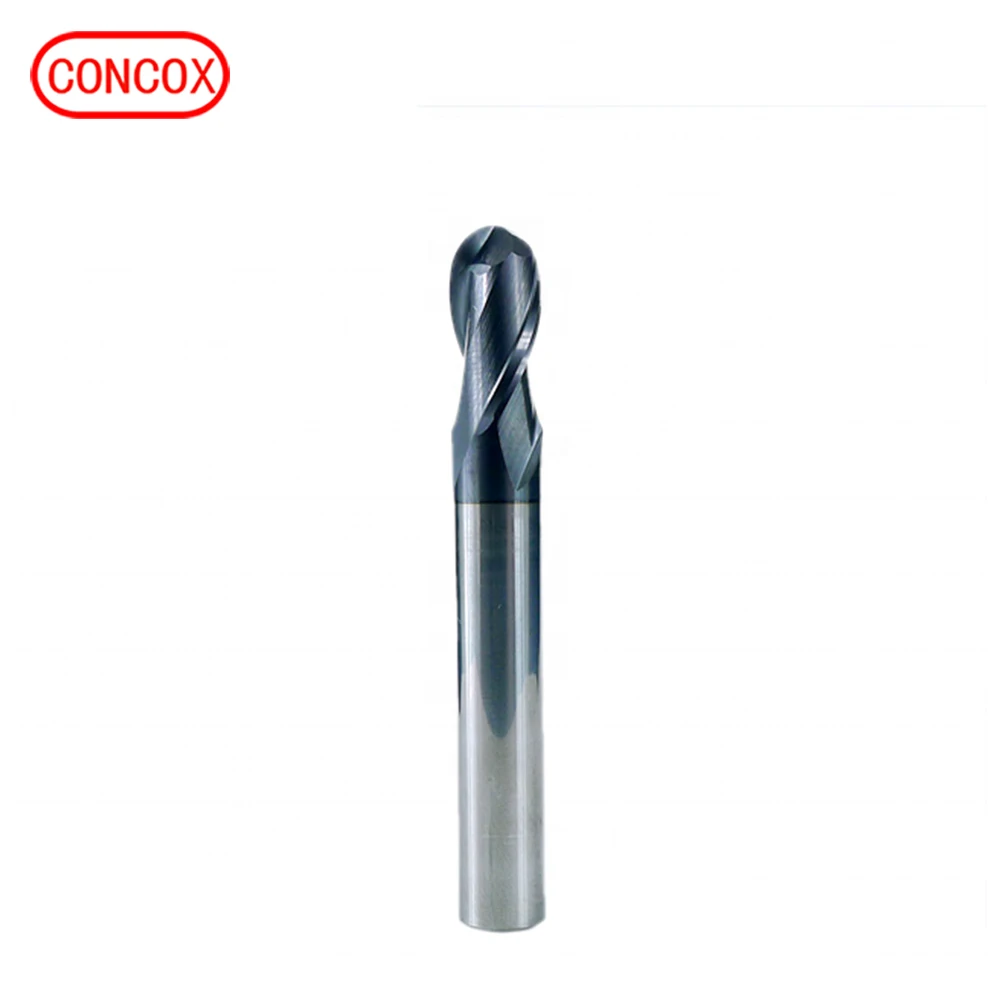

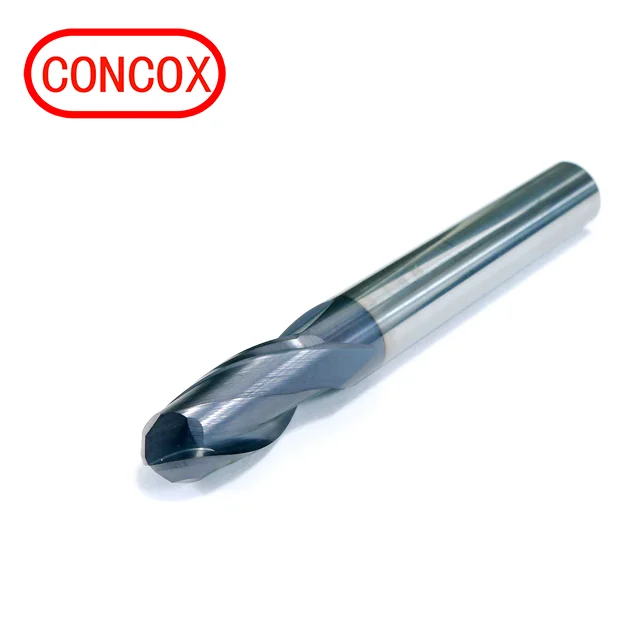

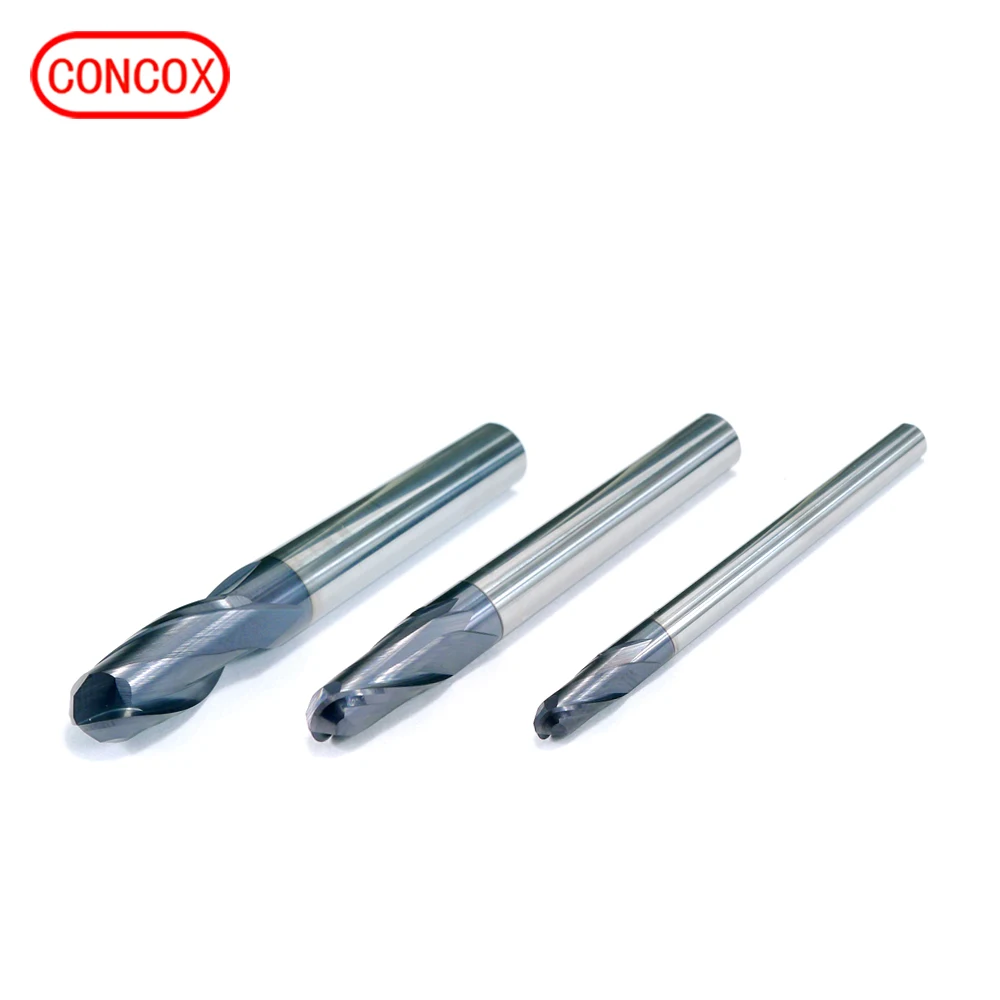

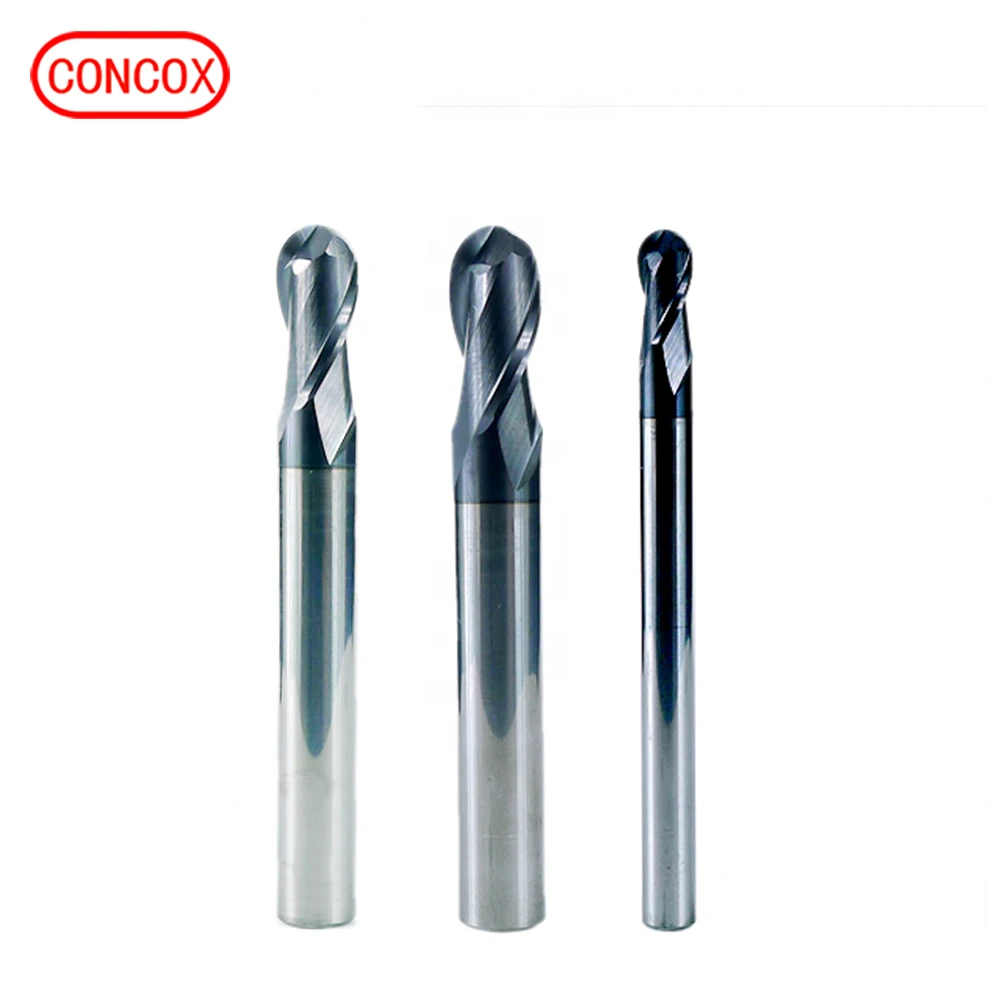

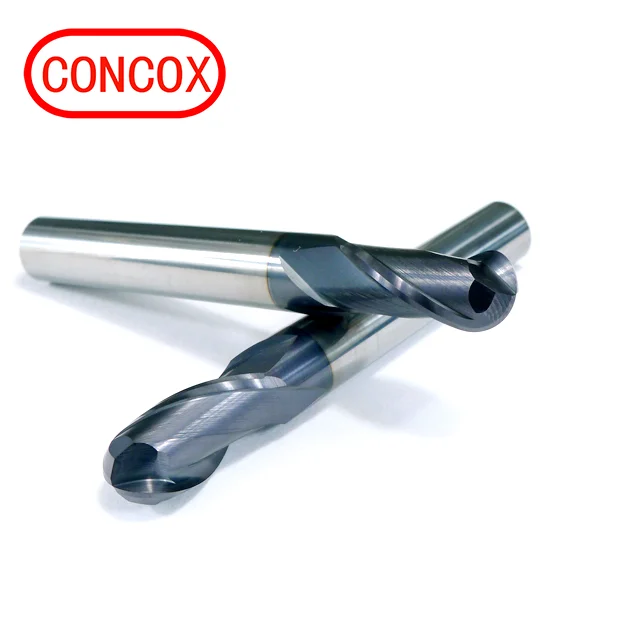

2 Flutes Carbide Ball Nose End Mill
● Carbide Tungsten End Mill with 2 Flute
● Superior Quality for long time process
● HRC55 Ball nose end mill with TiAIN Coating
● provide a quite wide range of specification
● Taiwan manufacturers with years of experience
100% Made in Taiwan
CONCOX END MILL Series
Welcome to contact us for customizing your inquiry.
CONCOX End Mill | WL-- series | WR-- series | ** You can find WR series or more features of CONCOX end mills in our Alibaba home page. | |
Type | __AV: Square End Mill __BC: Ball Nose End Mill __CV: Corner Radius End Mill | |||
Hardness | HRC55 | HRC65 | ||
Coating | TiALN (Black) | HELICA (Gold) | ||
Features | long time process | super hard process | ||
Products Description

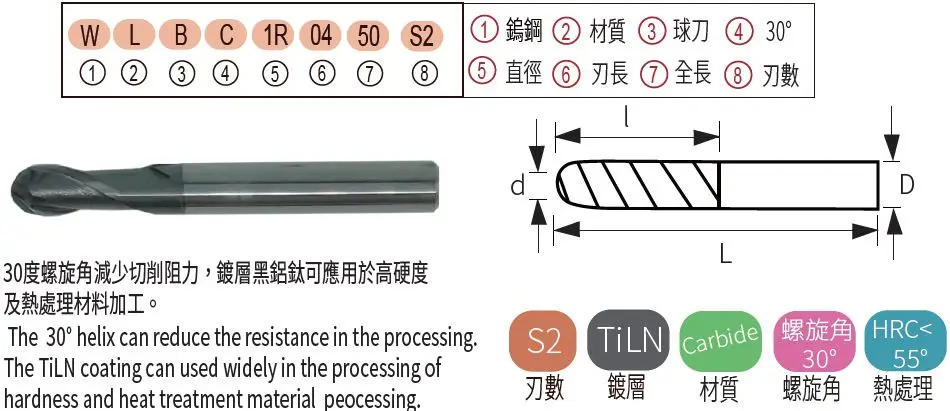

Type No. TIALN | Dia | Flute Length | Overall Length | Shank Dia |
2 Flutes | D | H | L | D2 |
WLBC0.5R0250S2 | 0.5R | 2 | 50 | 4 |
WLBC0.75R0350S2 | 0.75R | 3 | 50 | 4 |
WLBC1R0450S2 | 1.0R | 4 | 50 | 4 |
WLBC1.25R0550S2 | 1.25R | 5 | 50 | 4 |
WLBC1.5R0650S2D | 1.5R | 6 | 50 | 3 |
WLBC1.5R0650S2 | 1.5R | 6 | 50 | 4 |
WLBC2R0850S2 | 2.0R | 8 | 50 | 4 |
WLBC2.5R1050S2 | 2.5R | 10 | 50 | 6 |
WLBC3R1250S2 | 3.0R | 12 | 50 | 6 |
WLBC3.5R1450S2 | 3.5R | 14 | 60 | 8 |
WLBC4R1660S2 | 4.0R | 16 | 60 | 8 |
WLBC4.5R1875S2 | 4.5R | 18 | 75 | 10 |
WLBC5R2075S2 | 5.0R | 20 | 75 | 10 |
WLBC6R2475S2 | 6.0R | 24 | 75 | 12 |
WLBC8R32100S2 | 8.0R | 32 | 100 | 16 |
WLBC10R40100S2 | 10.0R | 40 | 100 | 20 |
