8 дюймовый судовой навигатор OVA, морской gps Графический Плоттер
- Category: >>>
- Supplier: Nantong Saiyang Electronics Co. Ltd.
Share on (60685260414):
Product Overview
Description

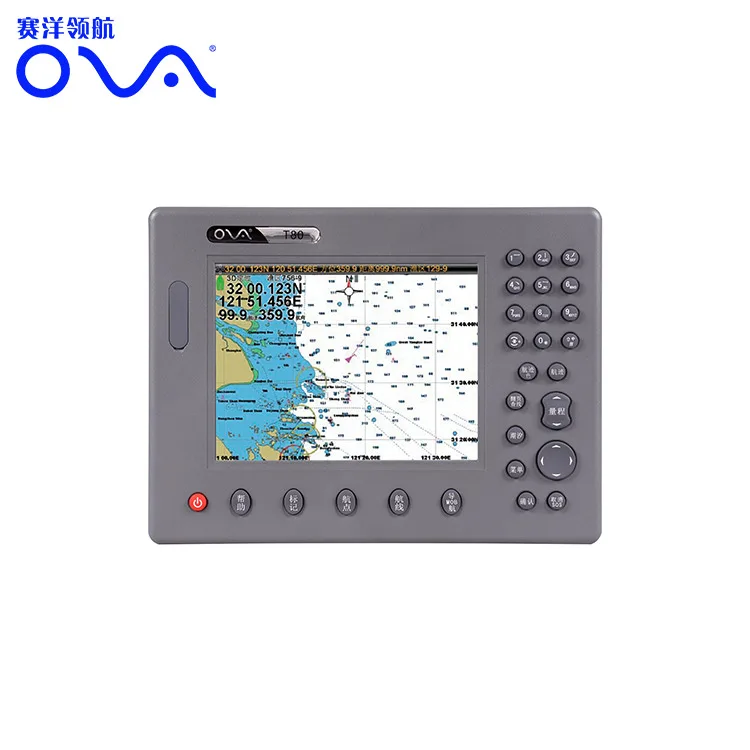

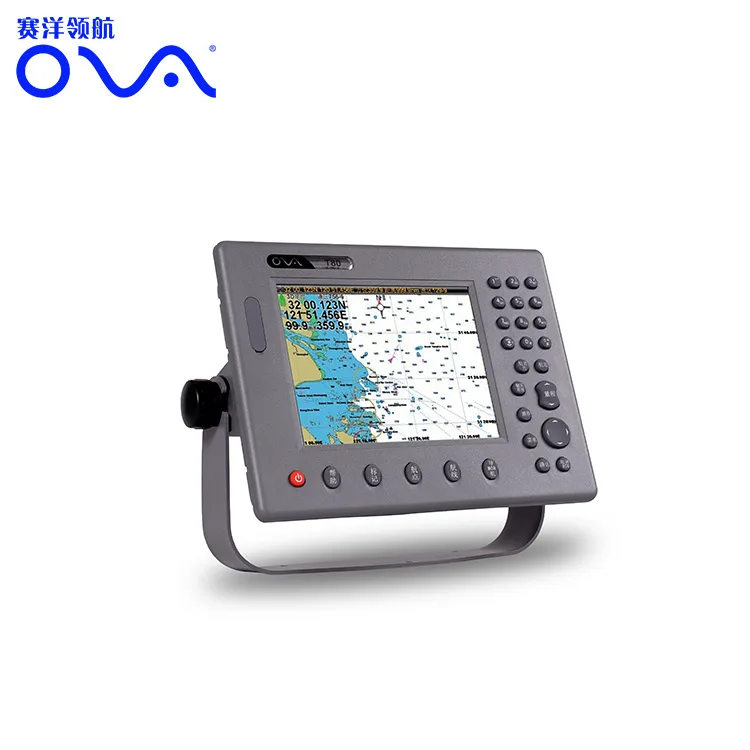

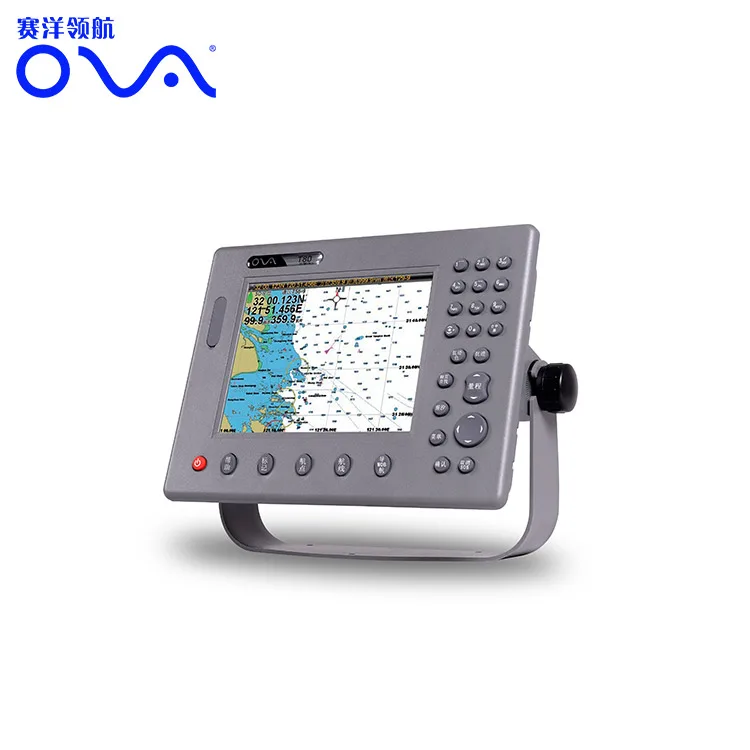

OVA 8 Inch marine gps chartplotter & Ship Navigation
| Model | T80 | ||||||
| Display Size | 8" | ||||||
| Resolution | 640x480 | ||||||
| External dimension | 283mmx217.65mmx84.45mm | ||||||
| Language | Simple Chinese,English | ||||||
| Voltage Range | 11~35V DC | ||||||
| Display mode | TFT LCD COLOR Display | ||||||
| Operating mode | Adjustable backlight button,shortcut button,T9keyboard | ||||||
| Power dissipation | ≤15W | ||||||
| Environment | Temperature -10°C~50°C | ||||||
| installation | embedded installation/Scaffolding installation | ||||||
| GPS function | Receive Frequency 1575.42MHz together with 12channels,C/A | ||||||
| Adopt high speed stable technology | |||||||
| Positioning accuracy:<15m,95% accuracy | |||||||
| Antenna:external connect | |||||||
| positioning time:cold start 45s,warm start15s | |||||||
| Navigation performance | Way points:6000 points | ||||||
| signs:6000 points | |||||||
| route:200 routes,each route contains 99 way points | |||||||
| track:≥200 routes(way points≥60000 points per route) | |||||||
| float data:the ship'position,fishing zone,direction and information of date | |||||||
| include the tide and compass | |||||||
| Equipment List | Display Unit T80 1unit | ||||||
| Installation material | |||||||
| Operation Manual | |||||||
| GPS Antenna | |||||||
| Sonar function (option) | DPS (digital processing system),High resolution to the continuous sampling | ||||||
| auto,hand measuring range;auto,hand gain | |||||||
| operating power:50KHz,200KHz,50/200KHz (optional) | |||||||
| transmitting power:300W/600W/1000W/1800W (optional) | |||||||
| AIS function (option) | AIS target,name,MMSI,distance,location,speed | ||||||
| AIS cursor information inquire,AIS listing inquire | |||||||
| AIS alarming circle setting,AIS-SOS alarming | |||||||
| Interface | GPS output:RS-232,NMEA0183,4800bps | ||||||
| AIS input/output:RS-232,NMEA0183,38400bps | |||||||
| sonar input/output:RS-232,NMEA0183,115200bps | |||||||
| SD card interface | |||||||
FAQ
Q: Where is your company located? How can I visit it?
A: Our company is located in Nantong, which is about two hours from Shanghai and half an hour by car from Nantong Airport.
Q: How can I get the sample?
A: Samples could be sent within 3-5 days if there is in stock. Generally, sample is not free.
Q: What's the lead time?
A:If we have stocks of the item you need, we can send goods to you within 3-5 working days after 100% payment into our bank account. If we don’t have enough stocks, different products will take different days. Generally, it need around 30-35 days.
Q: How does your factory control product quality?
A: ISO9001 Certificated, independent quality control team with inspectors in our factory.
Q: What is your Minimum Order Quantity?
A: We sell you at least 10pcs for each item in normal order, but we also accept the sample order.
Q: What’s about shipping?
A: Small order can be shipped by air and large quantities can be shipped by sea, no matter your assigned agent or ours, Our best advantage is that we’re located in Nantong that is close to Shanghai and Nantong Port.
Q: What’s your agency/distributor policy?
A: We have too many different policies according to target markets, so please send email for detailed discussion or talk face to face.
