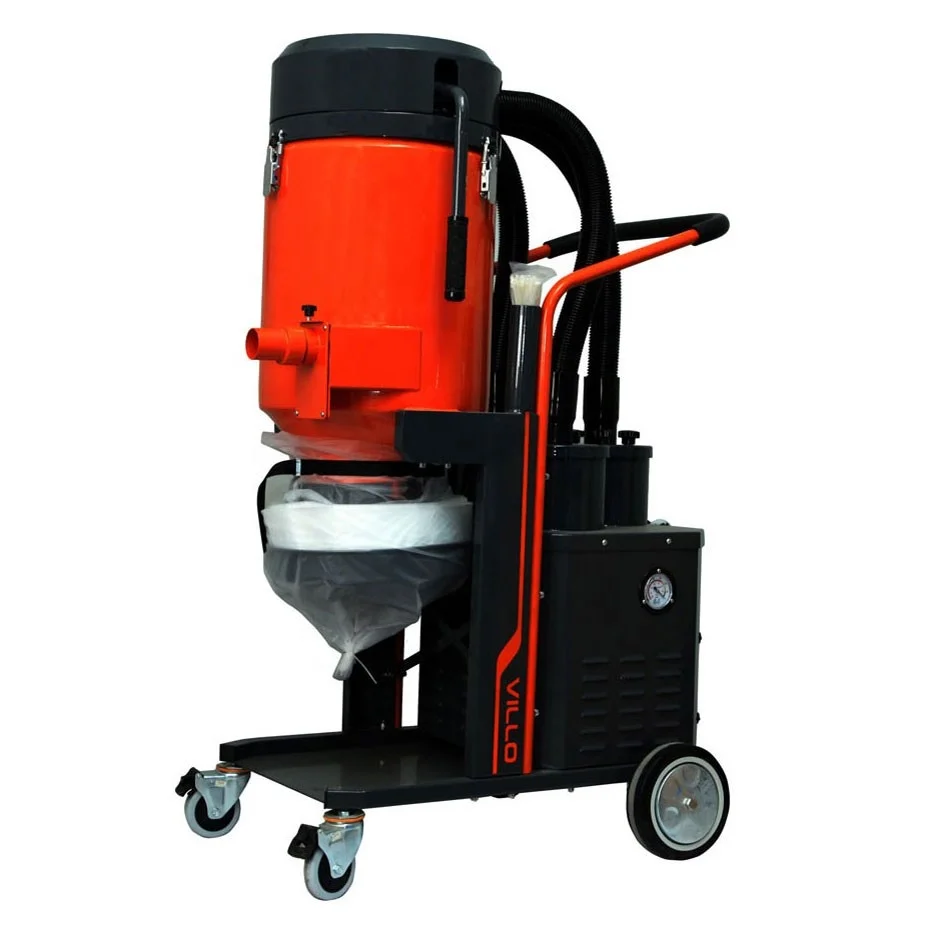

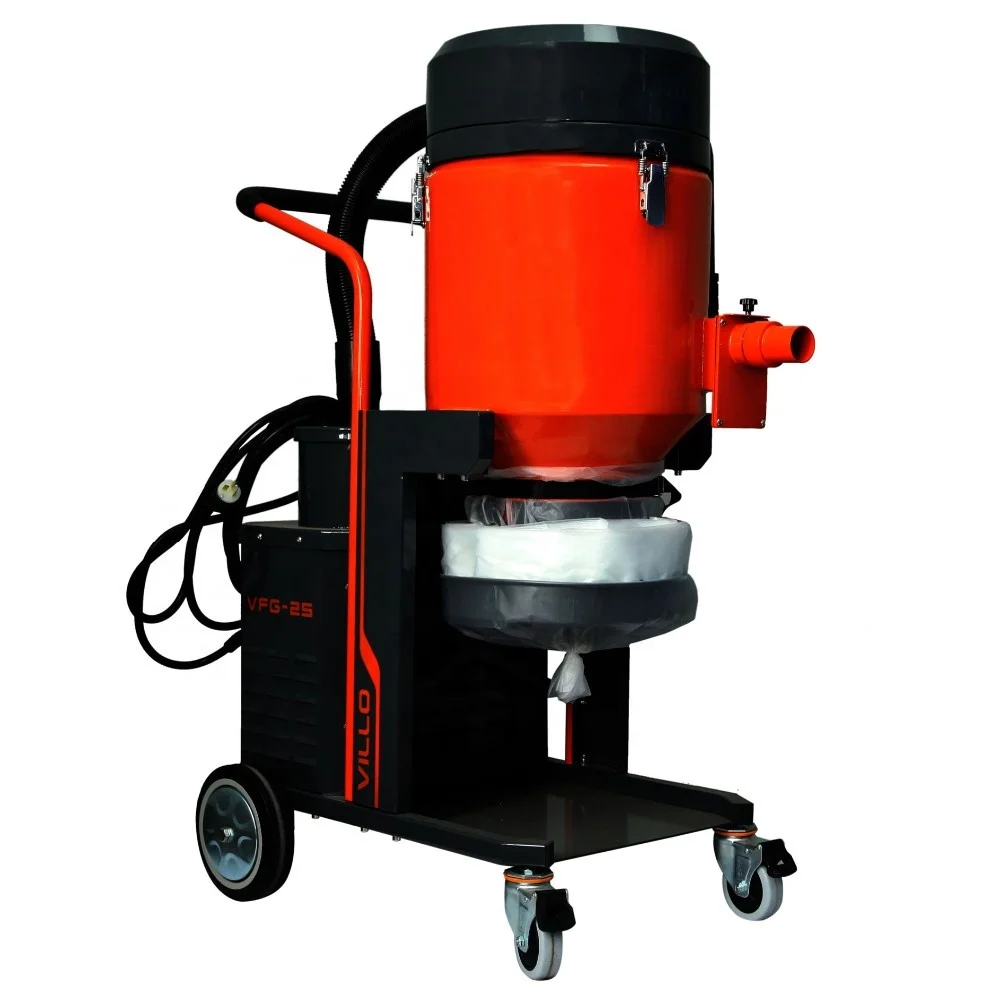

VFG-SA Auto Pulse Jet Two-stage Filtration Industrial Vacuum Cleaner



Product description
VFG-SA Series uses carbon brush motor with high pressure and adjustable air flow, auto air pulse jet cleaning device, Suitable for single phase high precision applications.

Applications
* Suitable for single phase working conditions.
* Suitable for hazardous dust (e.g. chemical dust (non-flammable and explosive), Silicon powder (concrete dust), carbon powder, fine metal dust), can effectively reduce the risk of secondary dust pollution.
* Suitable for precious metal dust collection, can effectively improve the efficiency of dust recycling.



Features


* Compact and mobile structure.
* Two-stage filtration for high filtration accuracy.
* Two stage filtration with tapered filter cartridge and HEPA filter cartridge, which can filter 99.95% dust at 0.3 microns.
* Equipped with auto filter cleaning device for easy filter cleaning.
* Powerful carbon brush motors with independent controller
* Pressure gauge to detect filter clogging.
* Cassettes for easier dust cleaning. Avoid secondary pollution. (Length:22m)


Right elevation
Left elevation
Front elevation




Technology Parameters


Model
VFG-2SA
VFG-3SA
VFG-40SC
VFG-75SC
VFG-86SC
Voltage(V / Hz)
230 / 50
230 / 50
380 / 50
Power (kW) / (HP)
2.4 / 3.4
3.6 / 5.1
4.0 / 5.5
5.5 / 7.5
7.5 / 10
Max air flow
(m³/h) / (CFM)
420 / 258
600 / 353
420 / 247
530 / 312
700 / 412
Max vacuum
(mmH₂O) / (kPa)

2400 / 23.5

2400 / 23.5

2600 / 25.5

3000 / 29.5

2700 / 26.5
Noise dB (A)
85±2
88±2
78±2
83±2
83±2
Dia. air inlet
(mm) / (in)
Ø 50 / 2
Ø 50 / 2
Ø 50 / 2
Ø 75 / 3
Ø 75 / 3
Filter area
(m² )/ (sq.ft)
2.4 / 25.8
2.8 / 30.1
1.9 / 20.5
2.1 / 22.6
2.1 / 22.6
Filter efficiency
>99.9%
>99.9%
>99.9%
Dimension [L*W*H]
(mm) / (in)
860*580*1220 /
33.8*23.0*48
940*580*1370 / 37.0*23.0*55.0
980*650*1550 / 38.6*25.6*61

1270*730*1620 / 50*28.7*63.8
1270*730*1620 / 50*28.7*63.8
Weight (kg) / (lb)
80 / 176
90 / 198
139 / 306
170 / 375
180 / 397


Product Configuration


Tapered filter cartridge
HEPA filter cartridge
Electric Vibration Cleaning Device
