4G wifi wireless home burglar security alarm

Product Overview

Description



Part 1:

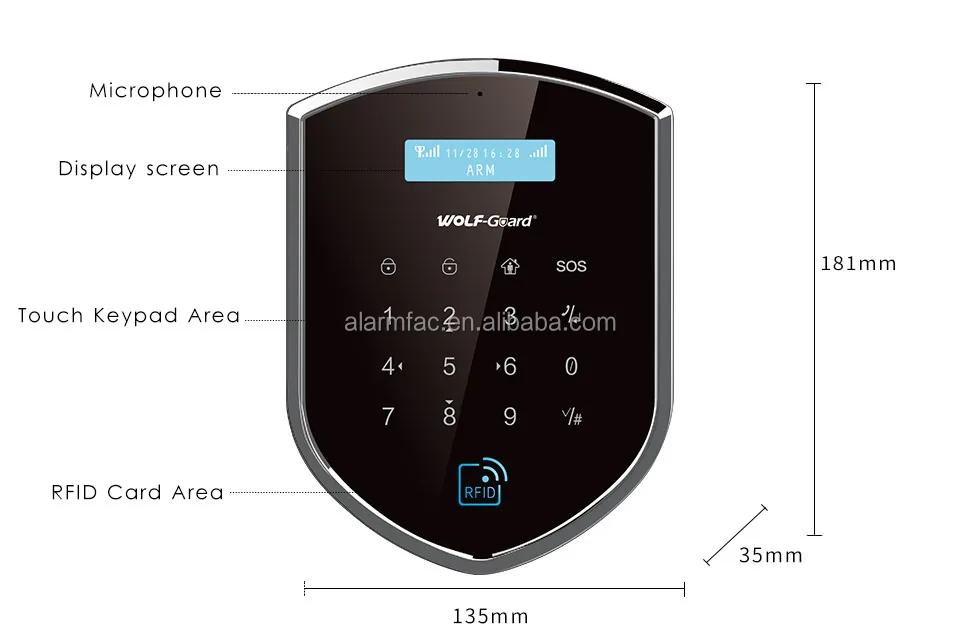

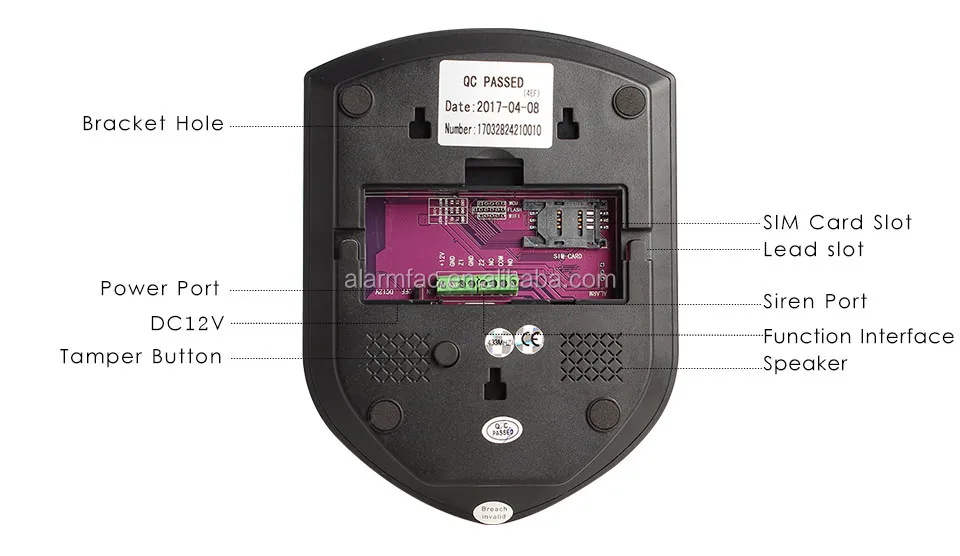

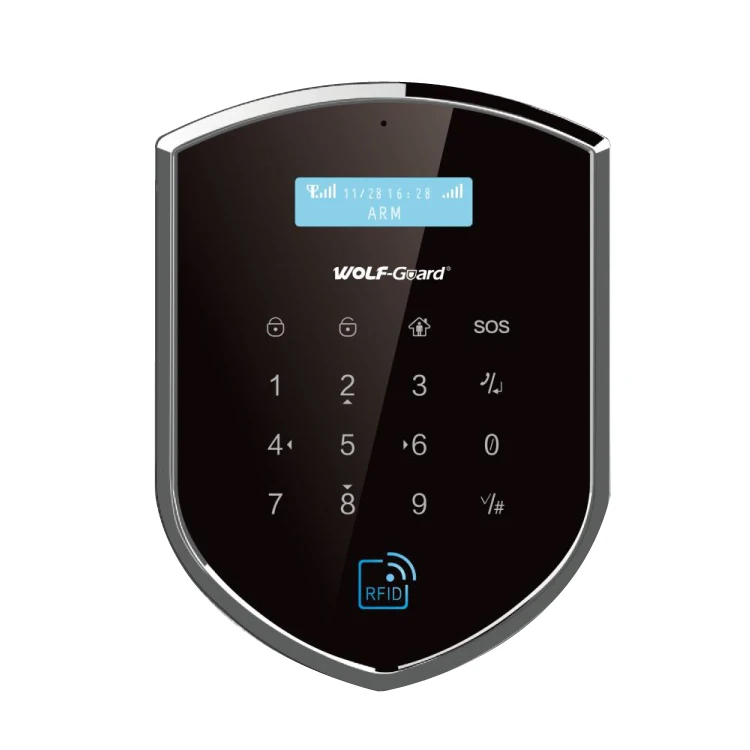

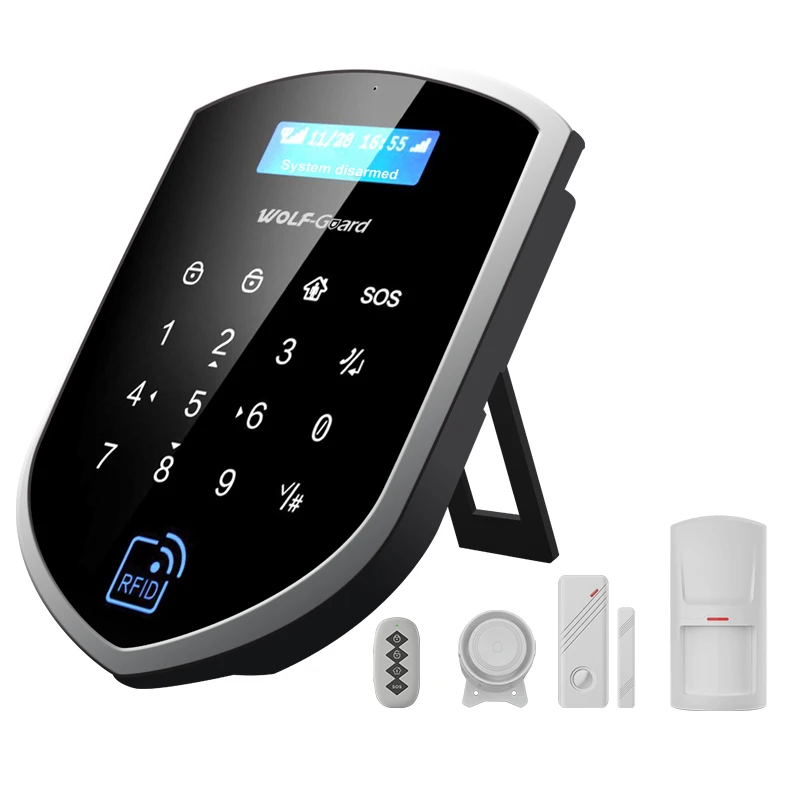

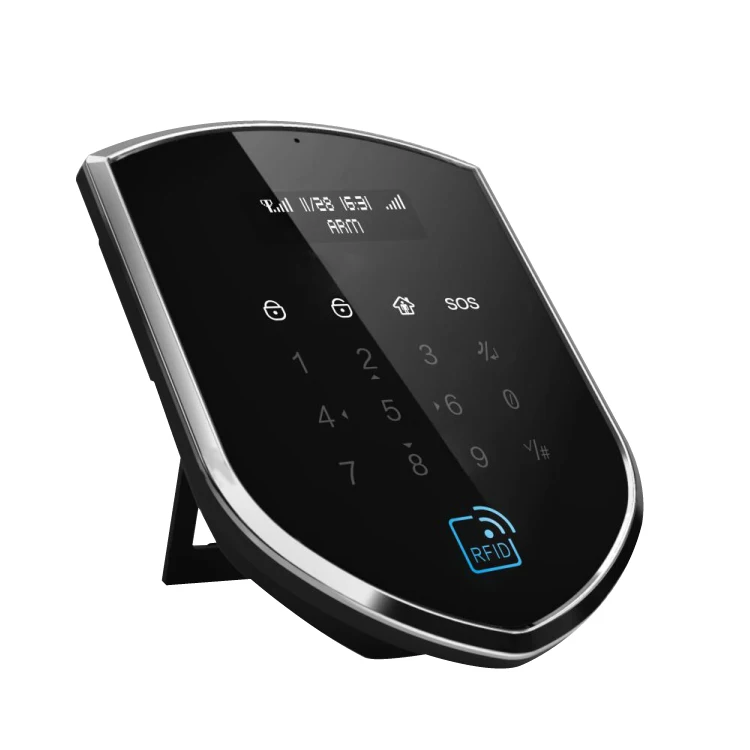

Main control panel WM3GR







Function Instruction]

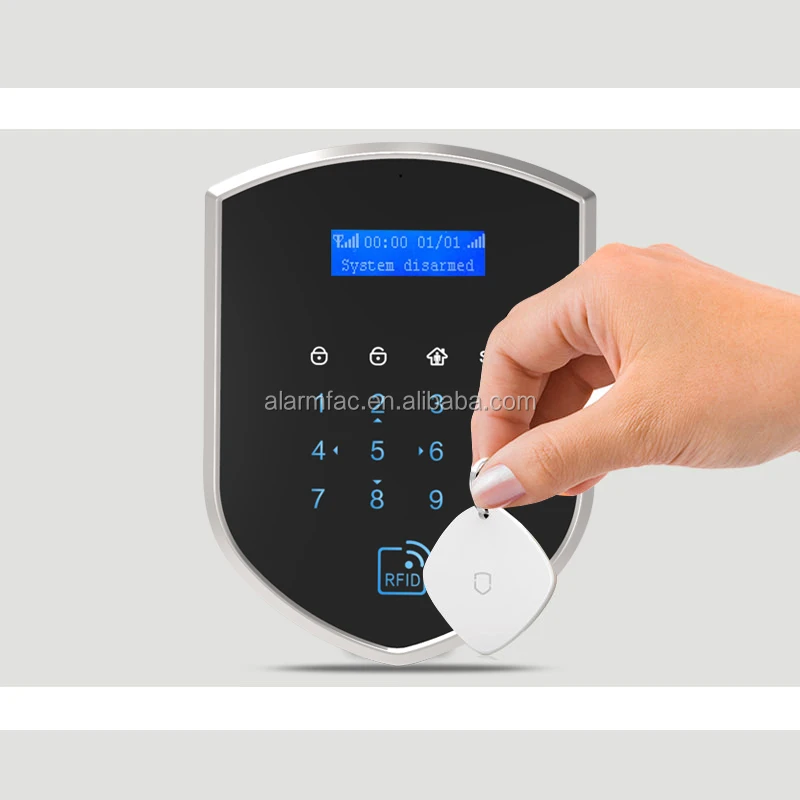

           99 RFID cards to arm, disarm, and control the relay;

•


  ²SMS notification for disarm by RFID card; SMS content (of the first 10 cards) is editable;




  ²12-second voice message: by control panel or remotely;




  ²Broadcast system time and play voice message;




  ²Use panel as a telephone to make calls;

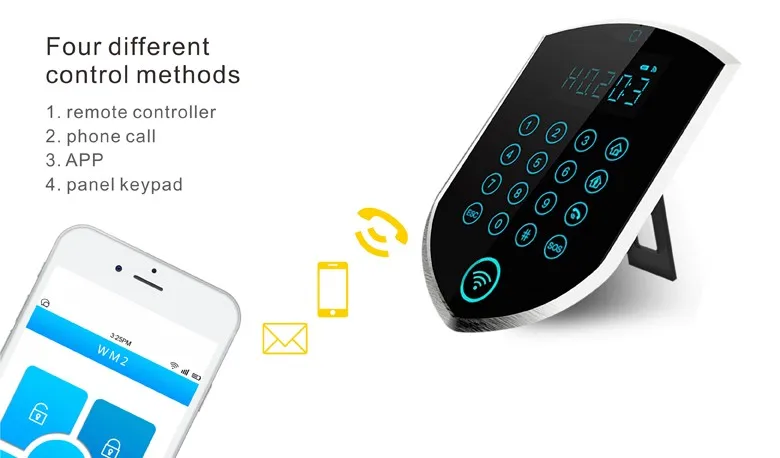

  ²Set the system by control panel, SMS or remote calls;




  ²10 remote controls, 99 wireless and 2 wired defense zones;




  ²Sensor low power alert and tamper alert;




  ²Some of SMS alarm contents are editable;




  ²SMS alert for control panel tamper, low power, power failure/ recovery;




  ²Remote control the relay.






[Technical Parameters]

Power supply: AC=100V~240V, DC=12V, 1.2A

Built-in battery: 7.4V, 1000mA LI battery

Standby current: <70mA

Alarming current: <450mA

GSM band: 850/900/1800/1900MHz

Wireless frequency: 433MHz ±0.5MHz

Wireless modulation: ASK

Anti-interference: 1V/m (frequency range: 20~1000 MHz)

Wireless sensors: 99pcs

Remote controls: 10pcs

RFID card: 99pcs

Working temperature: 0℃~+40℃

Humidity: ≤90% (no fog)

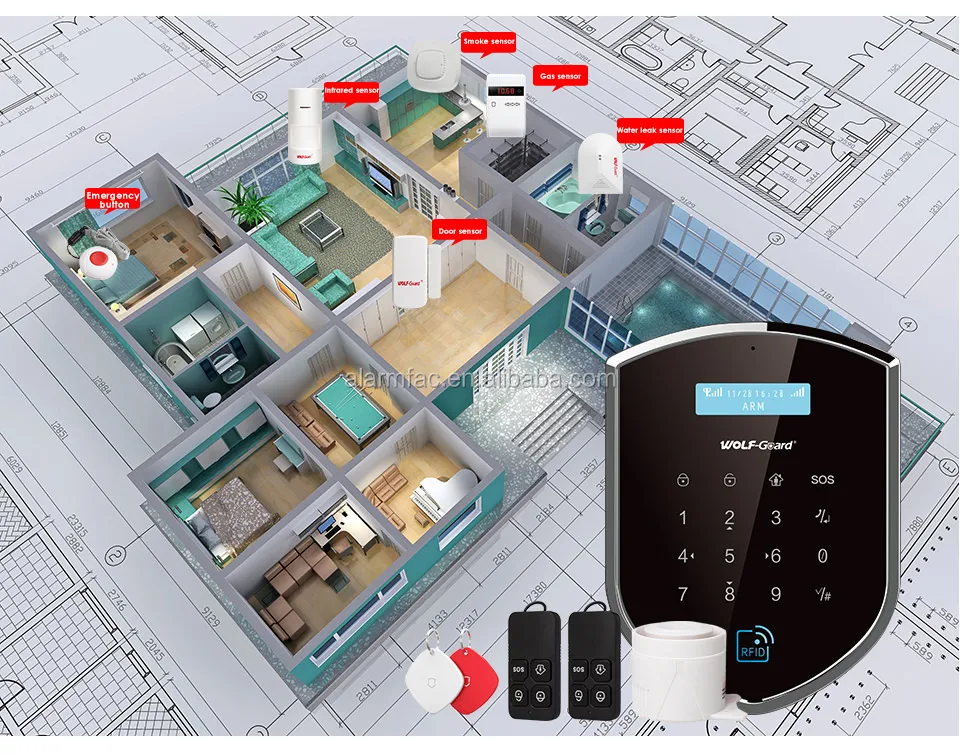

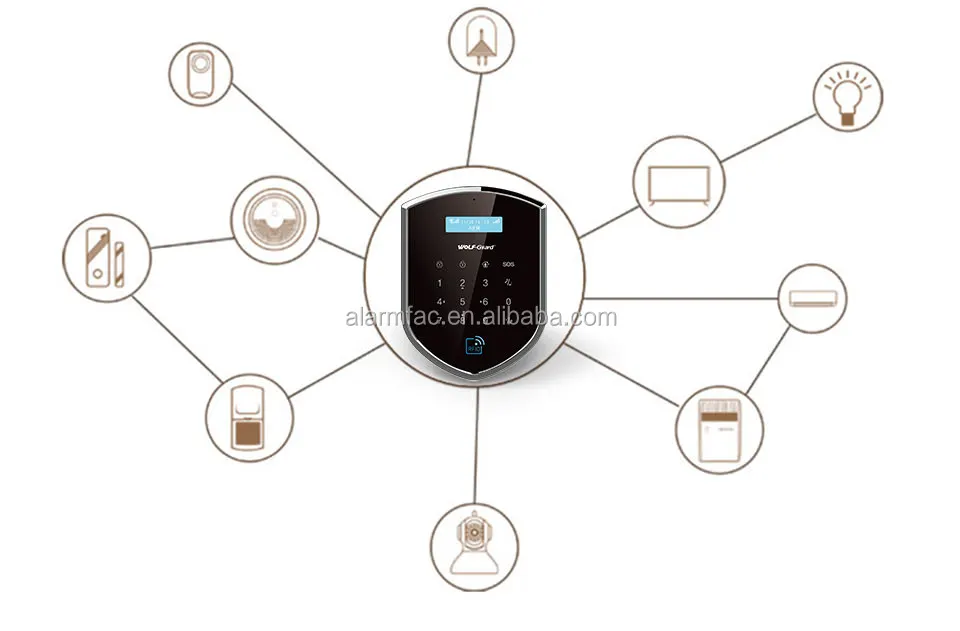

What can the alarm YL-007WM3GR do?
