PABX telephone switching system with 32 extensions
US $193.00-$215.00
Экономичная система связи Yeastar IP PBX, Yeastar S100 VoIP PBX
- Category: PBX >>>
- Supplier: Shanghai Harmuber Technology Development Co. Ltd.
Share on (60685458212):
Product Overview
Description
S100
Product Description

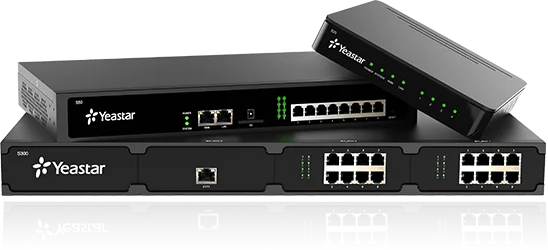

Yeastar S-Series VoIP PBX
Performance and Power
Designed with the small and medium sized enterprises in mind, supporting up to 500 users and built using the very latest technology, the Yeastar S-Series delivers exceptional cost savings, productivity and efficiency improvements, delivering power, performance, quality and peace of mind.
The all new S-Series is engineered for the communications needs of today and tomorrow, and with the Yeastar unique modular design future proofs your investment choice.
Appreciate the Easy-to-use Solution
The S -Series features fast installation with comprehensive auto provisioning, advanced plug and play capability, together with an intuitive Metro UI driven by point -and-click configuration, from any location.
Your Choice of Technologies and Features
With a unique modular design, the S-Series will install into the most demanding of environments. You can also take advantage of advanced enterprise grade features with the fullest and most complete software versions.
Telephone System without Risk
S-Series is built with the future in mind, utilizing the latest technology advances, from Freescale industrial grade Quad Core processors, TI DSP voice processors, and long-life power units and lightning protection.
Play Safe and Expect Reliability
With advanced failover, security, monitoring and reporting capabilities as standard, combined with an internal firewall and with support for TLS and SRTP encryption, there has never been such a robust system.

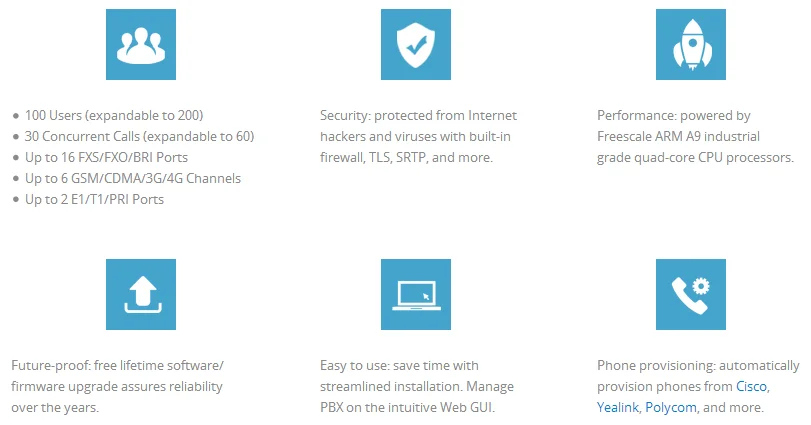

Key Features and Benefits
l Works with SIP/IAX2, PSTN lines, ISDN BRI, E1/T1/PRI, and GSM/3G
l Built-in call recording capability
l Powerful Apps (add-ons) include Auto Provision, LDAP, Conference Panel, VPN Server, and more coming soon
l Free lifetime software/firmware upgrade and above all, it’s super easy
l Connect multiple sites and remote users instantly
l No hidden charges and extra licensing fees
l Low power consumption (1.8-59.1 watt)
Features

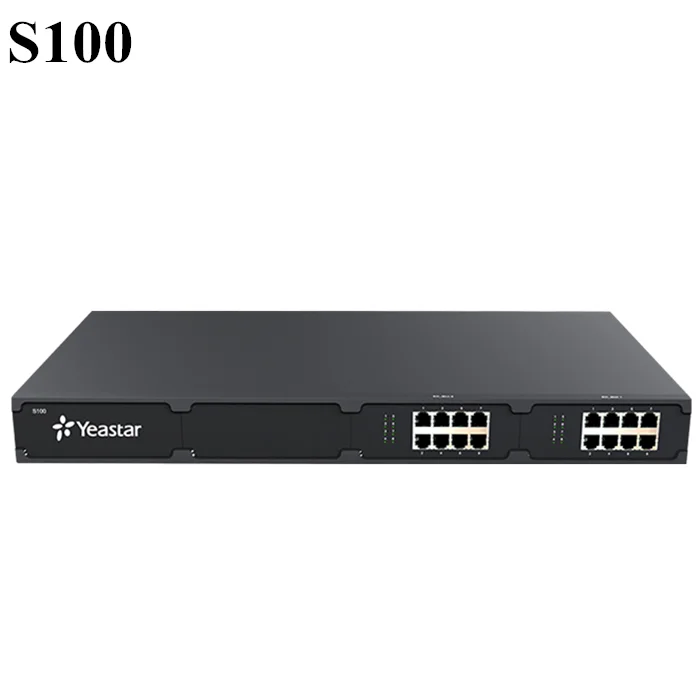

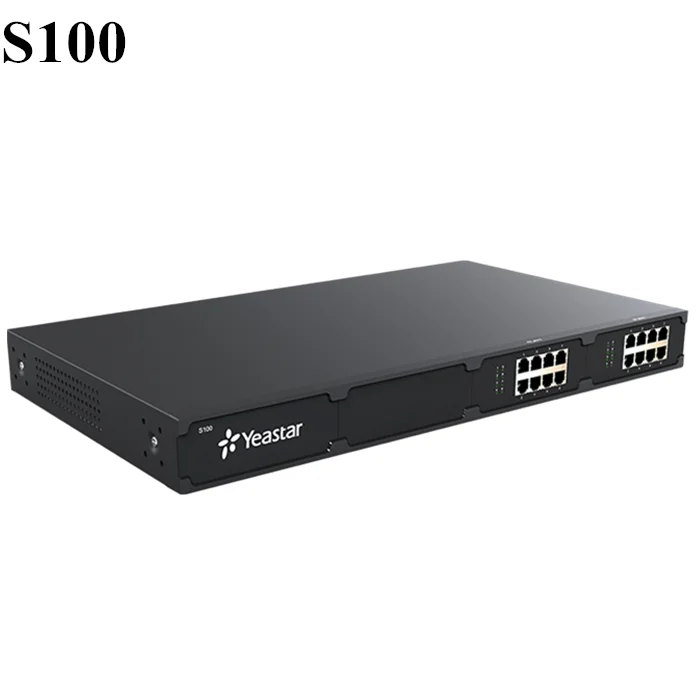

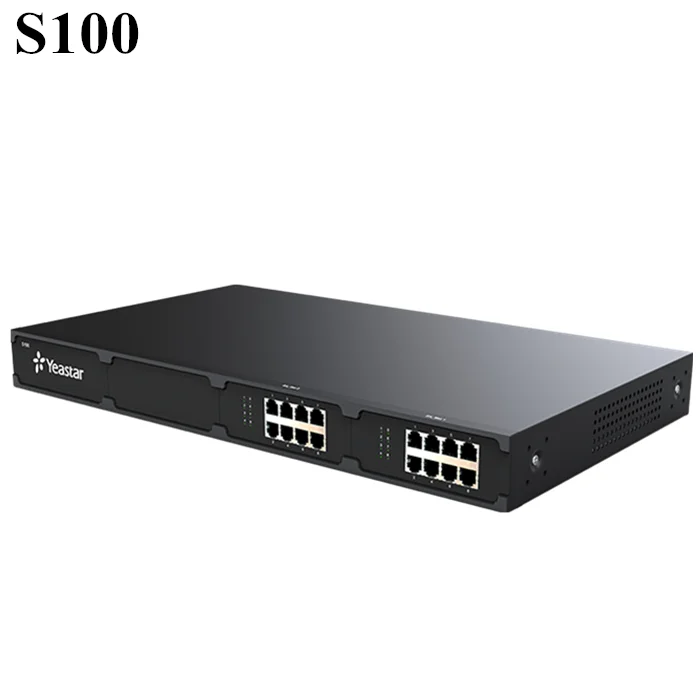

Yeastar S100 VoIP PBX
S100 is a cost-effective business communication system with a base configuration of
100 users and 30 concurrent calls and can scale up to 200 users and 60 concurrent calls.
Fast Installation
Specifications
|
| S20 |
| S50 |
|
| S100 |
| S300 |
|
| ||||||||||||||
Users | 20 |
| 50 |
|
| 100 (up to 200) |
| 300 (up to 500) | |||||||||||||||||
Max Concurrent Calls |
| 10 |
| 25 |
|
| 30 (up to 60) |
|
| 60 (up to 120)* |
| ||||||||||||||
Max Analog Ports | 4 |
| 8 |
| 16 |
| 24 |
| |||||||||||||||||
Max BRI Ports | 4 |
| 8 |
| 16 |
| 24 |
| |||||||||||||||||
Max GSM/3G Ports |
| 1 |
| 4 |
|
| 6 |
|
| 6 |
| ||||||||||||||
Max E1/T1/J1 Ports | – | – | 2 |
| 3 |
| |||||||||||||||||||
VoIP Trunks | 20 |
| 50 |
| 100 |
| 100 |
| |||||||||||||||||
T.38 Fax |
| Yes |
|
| Yes |
|
| Yes |
|
| Yes |
| |||||||||||||
Hot Standby | Yes |
| Yes |
| Yes |
| Yes | ||||||||||||||||||
App Center | Phone Provisioning, LDAP Server, Conference Panel, VPN Server | ||||||||||||||||||||||||
External Storage |
| TF Card |
|
| SD Card |
|
| SD Card |
|
| SD Card & 2.5 inch SATA HDD |
| |||||||||||||
USB | – |
| – | 1 |
| 1 |
| ||||||||||||||||||
Power | DC 12V 1A |
| AC 100-240V |
| AC 100-240V 50/60HZ 1.8A max | ||||||||||||||||||||
| 50/60HZ 0.6A max |
| |||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
| |||||||||||||||
Size (L x W x H) (cm) |
| 16 x 16 x 3 |
|
| 34 x 21 x 4.4 |
|
| 44 x 25.2 x 4.4 |
|
| 44 x 25.2 x 4.4 |
| |||||||||||||
Weight | 0.3 kg |
| 1.48 kg |
| 2.5 kg |
| 2.6 kg | ||||||||||||||||||
Power Consumption | 1.8-10.6 W |
| 2.1-18.5 W |
| 5.5-41.2 W |
| 6.2-59.1 W | ||||||||||||||||||
Environment | Operation Range: 0°C to 40°C, 32°F to 104°F; Storage Range: -20°C to 65°C, -4°F to 149°F; |
| |||||||||||||||||||||||
|
|
| Humidity: 10-90% non-condensing |
|
|
| |||||||||||||||||||
|
|
|
|
|
|
|
| ||||||||||||||||||
Mounting | Desktop & Wall-mount |
|
|
|
| 1U Rack-mount | |||||||||||||||||||
