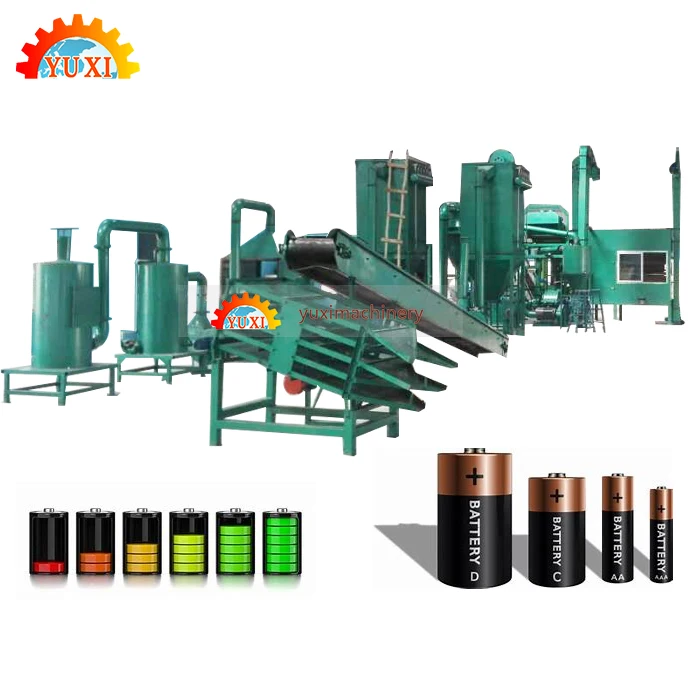

Lithium Ion Battery Recycling Machine

Product Overview

Description

Good Proformance Lithium-ion Battery Recycling Machine

We can offer the whole production lines of 200-1000kg/h capacity!!!

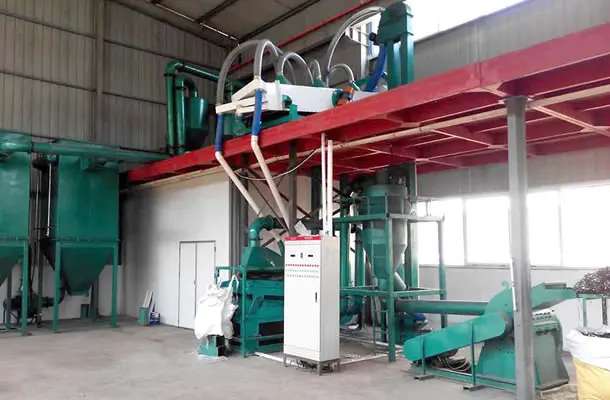

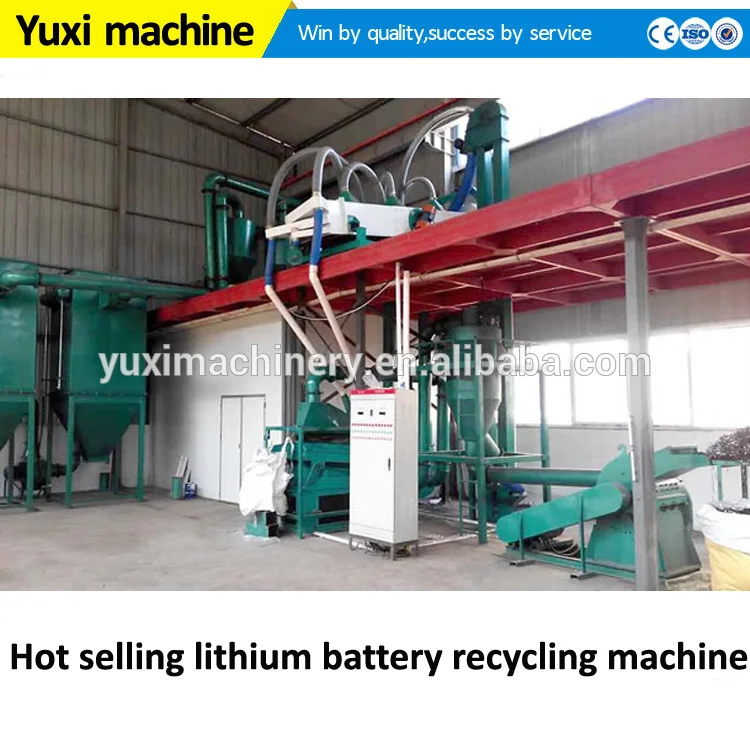

Part 1: Brief Introduction of lithium battery recycling plant

Battery torn by conveyor to the primary shredding machine, torn material through the conveyor into secondary multiple blade crusher in the second crushing, the secondary crushing of material into the conveyor at the same time and set in the magnetic separation equipment, material of iron can be sorting out.After separation,the material by a conveyor into air separator.



Part 2: Product description of lithium battery recycling plant

Economic and efficient waste lithium battery separation recovery equipment

Product details:

Product name	Waste Lithium Battery Recycling machine
Application	Waste Lithium Battery Recycling
Production capacity	0.2-1ton/hour
Overallsize	26311*6121*6350mm
Total power	≤129.25kw
Power	three-phase alternating current 380V/50Hz,200KVA.
Maximum size of waste battery(mm)	600*600
Iron recovery rate(wt%)	99%
Copper recovery rate(wt%)	98%
positive negative material recovery rate(wt%)	99%

Cobalt,Lithium,Copper and plastics in waste lithium batteries are valuable resources and have high recovery value,Therefore,the scientific and effective treatment and disposal of the waste lithium battery not only has obvious environmental benefits,but also have good economic benefits.

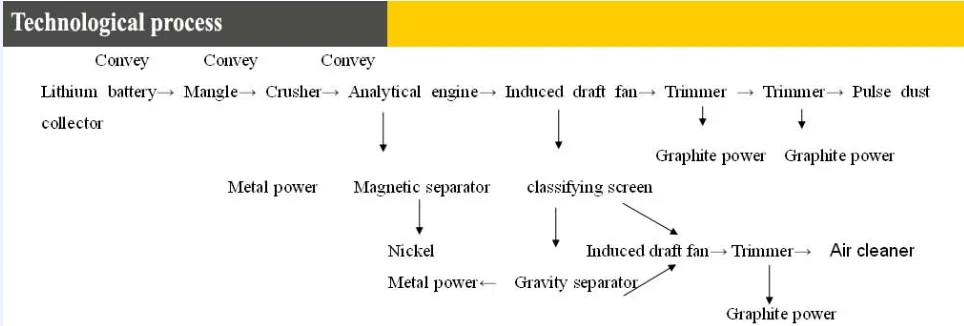

Part 3: Technological process of lithium battery recycling plant

Part 4: Flow diagram of lithium battery recycling plant

1.Rolling machine:Spent the lithium battery tearing up.
2.Crusher:Completely break the batteries after rolling.
3.Grinder:Put the broken materials crushing.
4.Analytical engine:Shredded material separated in pieces through air separation.
5.Induced draft fan:After the winnowing graphite powder are collected.
6.Trimmer:The dust emissions are collected through induced draft fan.
7.Pulse dust catcher(Air clean):Put the dust of whole equipment to purify.
8.Classifying screen:Sorting the filtered material by analyzing machine,picking out the big metal material.
9.Magnetic:Separate the nickel of metal.
10.Gravity separator:Specific gravity separated after sorting the material,separate metal thoroughly.
