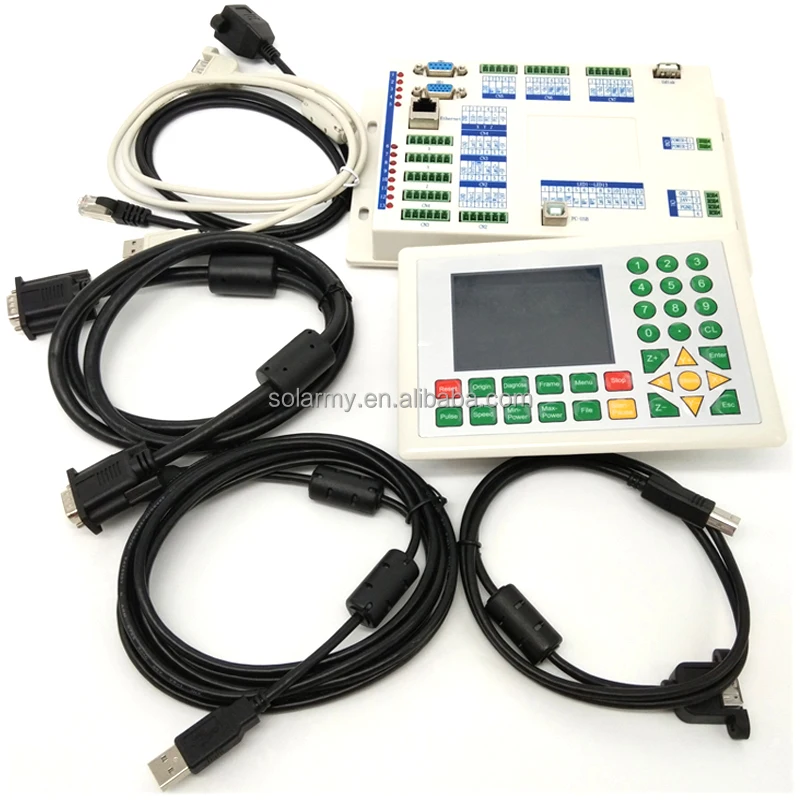

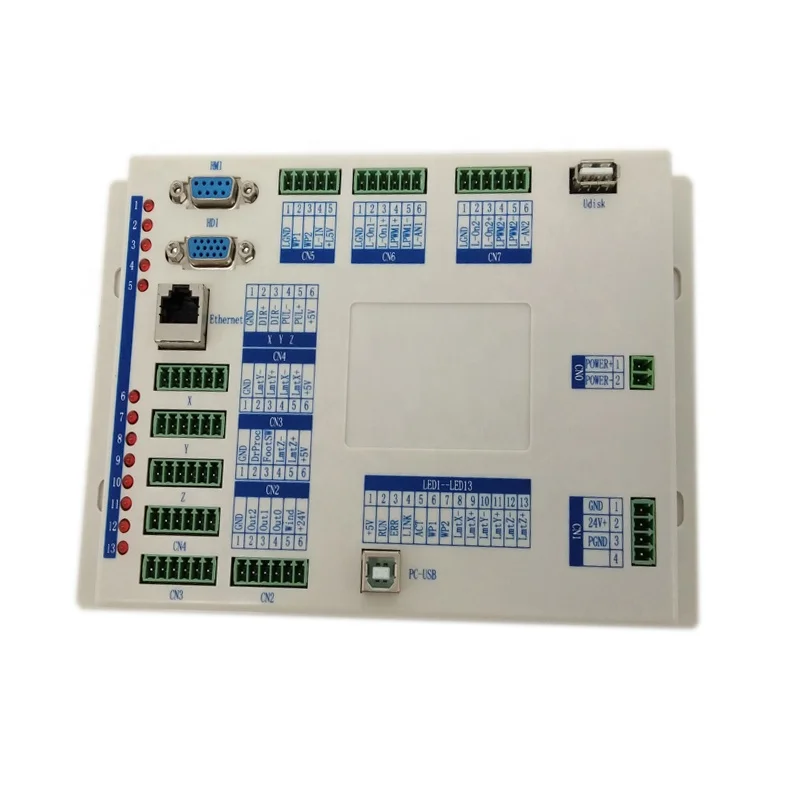

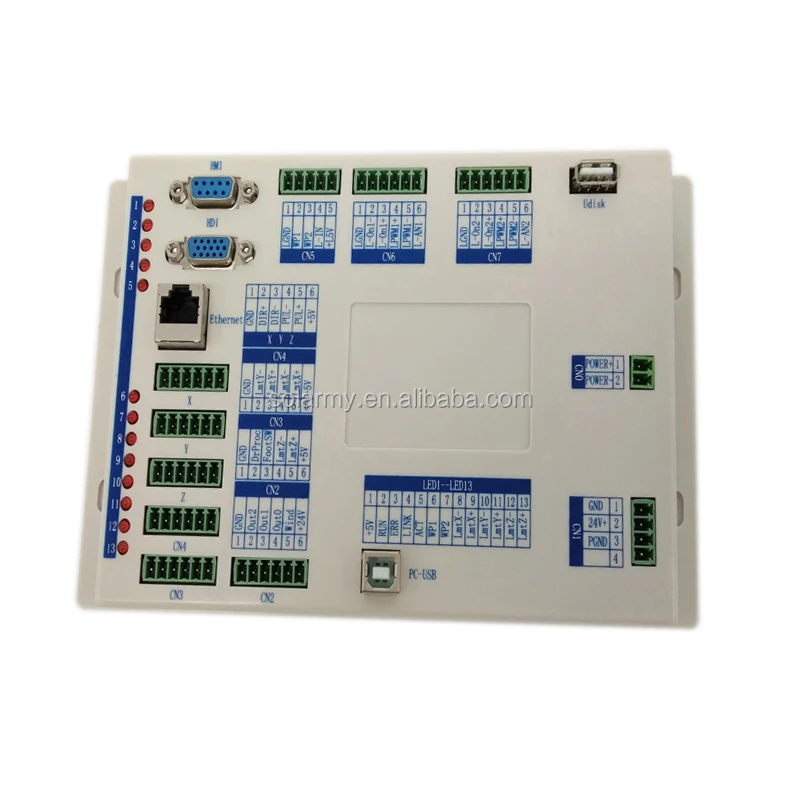

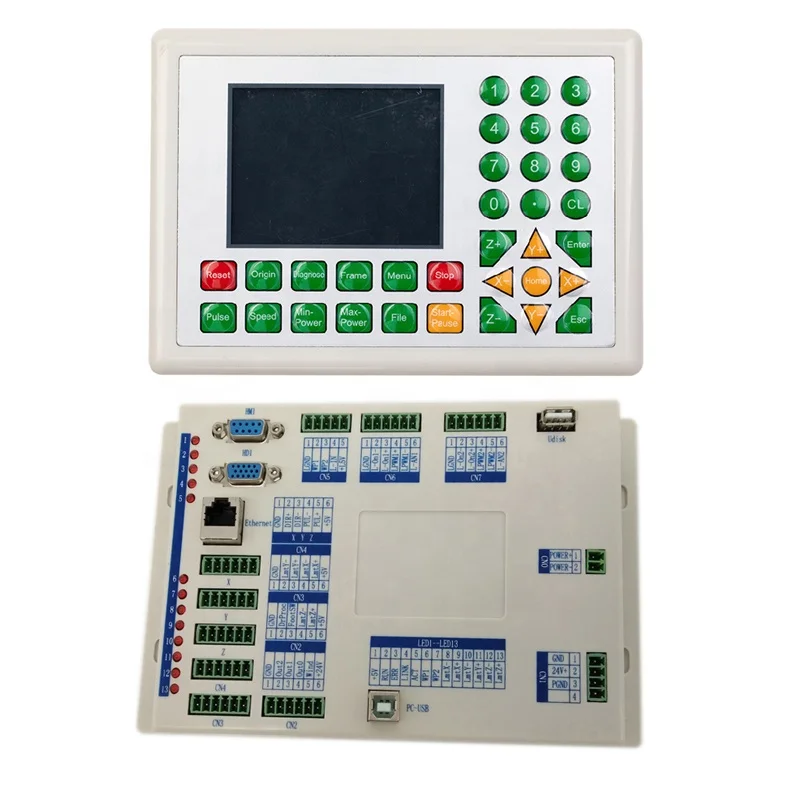

Ruida 3 Axis CO2 Laser Cutting & Engraving Control Card RDC6332G

Digital laser control signal

(1) Differential output, TTL level, 20mA Driving ability

(2) PWM frequency 2.5K ~ 100K for adjustable

(3) PWM duty ratio 2% ~ 98% for adjustable

Analog laser control signal 0 ~ 5V automatically tracing adjust

Motor control signal differential output, TTL level, 20mA driving ability

Motor control pulse frequency maximum 500KHZ

USB maximum transmission rate 12M, the longest distance is 5 meters

Line/arc/B spline interpolation accuracy +/- 0.5 pulse

4 –way general photoelectric isolation OC gate output, the maximum 600mA driving ability

4 –way General photoelectric isolated input , TTL level

1 Ethernet(10/100M) and USB2.0 transmission (transmission speed is 3 times more than RDLC320 – A product ) ;

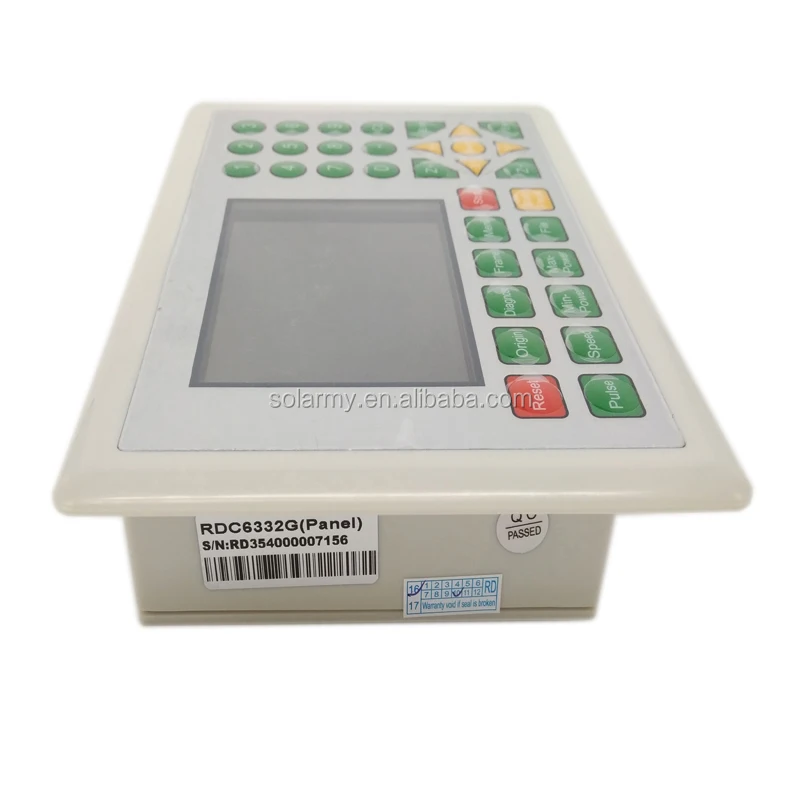

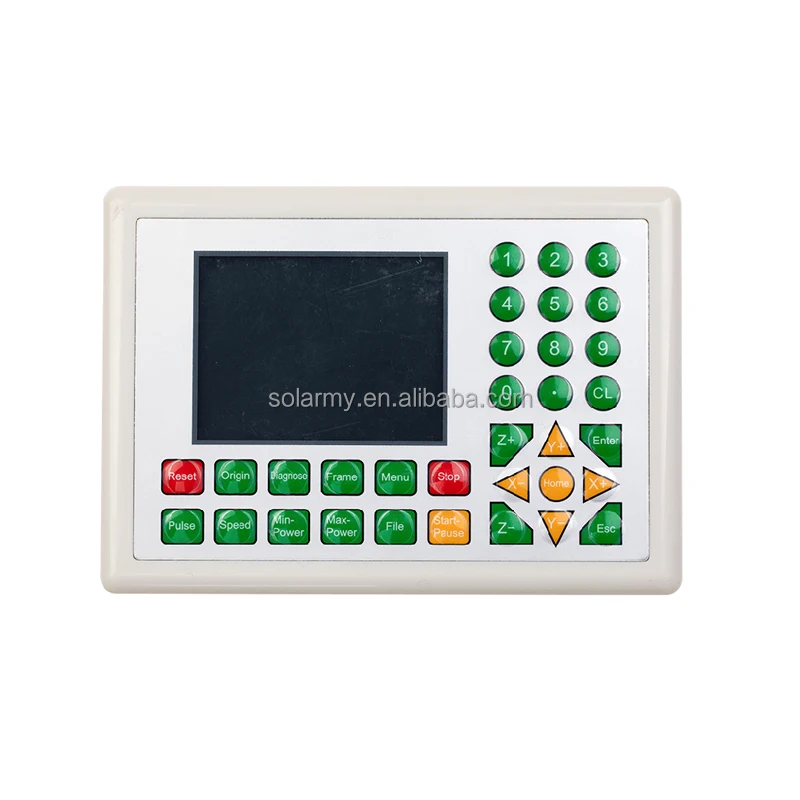

2, True Color TFT screen, can display the true color processing graphics on the panel, and can exactly learn the coordinate position of laser head machining on the panel;

3, can preview file graphs saved in the memory on the panel, no one can reach Its brush screen speed in domestic manufacturers;

4, Dynamic display path processing process and coordinate point;

5, can modify processing parameters of each layer (such as speed, power, etc.) on the panel directly, also can automatically save the modified layer parameters for subsequent use (this function cannot be achieved from other manufacturers) .

6, Support mouse operation.(can use the mouse to operate in the panel directly, this function the other manufacturers can’t be achieved, at the same time, the foreign customers like this function very much.) .

7, Support Power-off restart for engraving, work time preview (correct to millisecond, preview value and the actual working time is quite the same, this function cannot be achieved from other manufacturers.) .

8, Support feeding, lifting, rotating engraving, pushing board left and right, etc functions.

9, RDC6332G system is the latest generation of laser engraving/cutting control system develop by RuiDa Technology, the system has better hardware stability, resistance to high pressure and antistatic properties.

10, the man-machine operating system is developed based on LINUX platform, has more friendly operation interface and more powerful functions.

11, the controller use more perfect, more optimized motion control algorithm, its processing speed and efficiency, the previous version system is unable to reach.

 All the products was package in a standard box with sponge ,Make it sure in good condition ,

We will ship out the goods within 1-2 days after confirm your payment , We mostly used DHL . Fedex and TNT  UPS etc

We also offer some special line to some country ,like brazil and Fedex Russia  .each shipping way depend on customer 's Choice ,If you have any recommend or question ,please kindly tell us . we help you to check the best way ,

Estimated Delivery time

Q:What’s your MOQ?

A:Normally is 1 PCS, You can mix it with other laser machine parts freely.

Q:Why choose your company?

A:We’re professional laser machines supplier . We’re more familiar with customer’s marking or engraving application so we’re in a position to recommend a more suitable model to customers.

Q:What’s delivery time?

A: We have them in stock. We can ship it immediately after receive payment.

Q:What’s your payment terms?

T/T, western union or money Gram .paypal and credit

Q: special products if can be customized ?

A :We can customized some products according  customized size

we have a professional  R&D team in making and sale co2 laser machine and parts , We offer high quality product and reasonable price for customer .and best service for each customer .We are 24hours online to give service for customer ,

Any question or required please feel free to contact us
