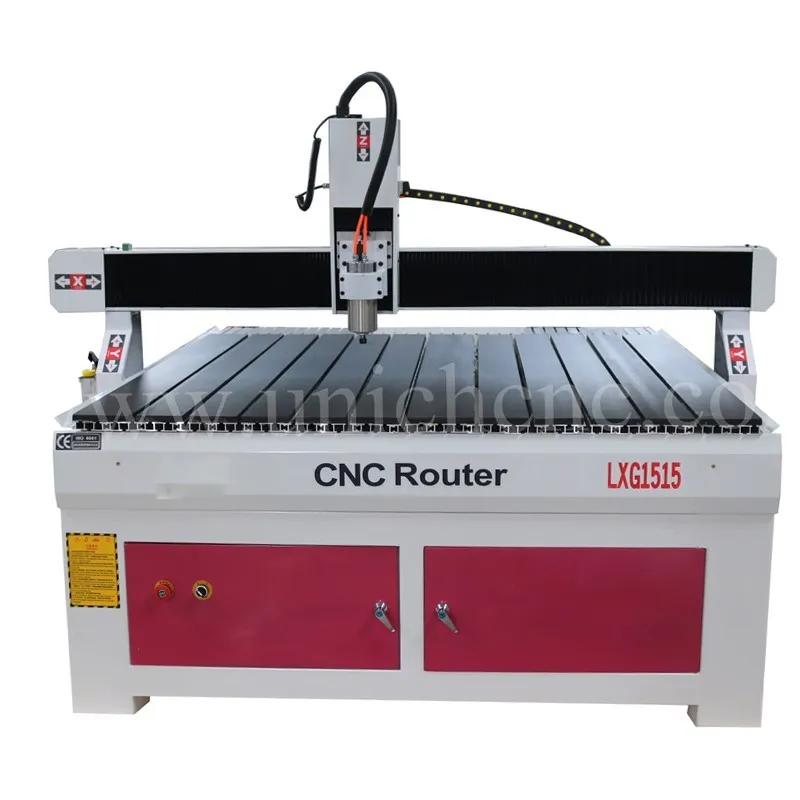

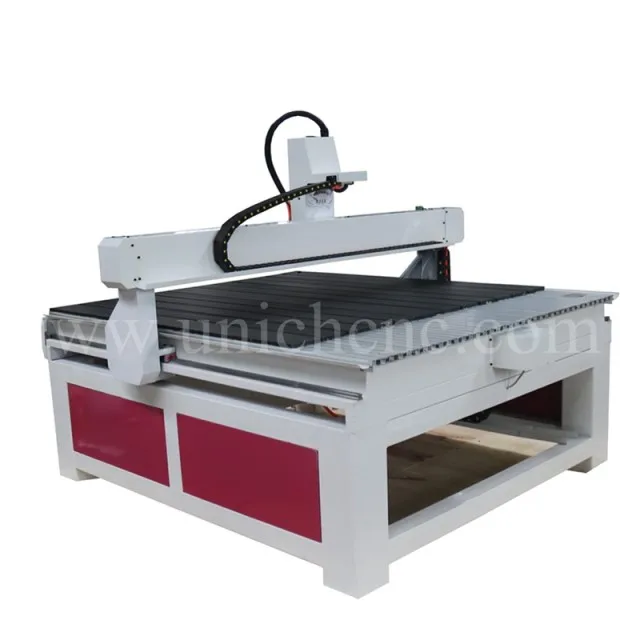

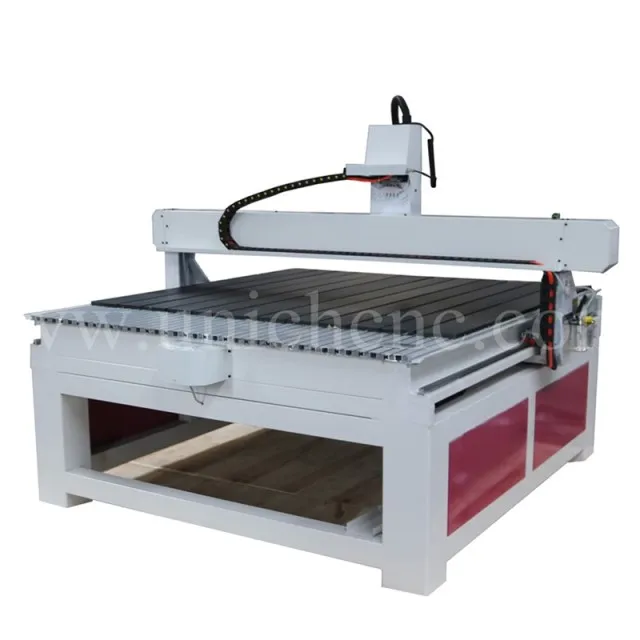

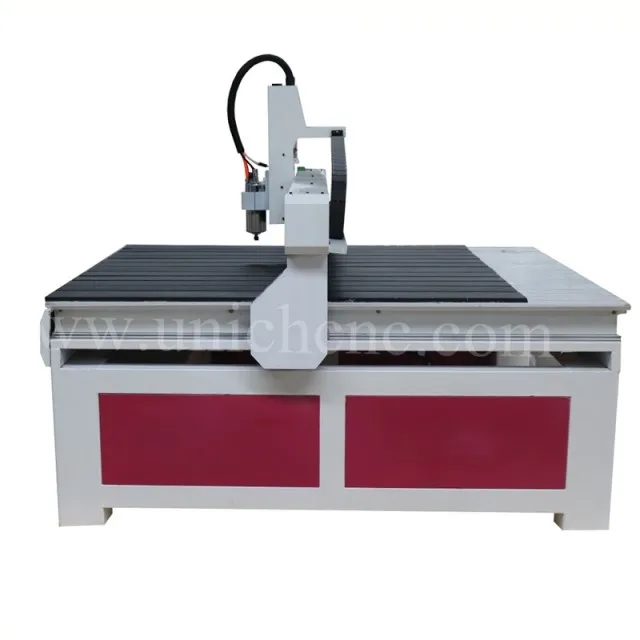

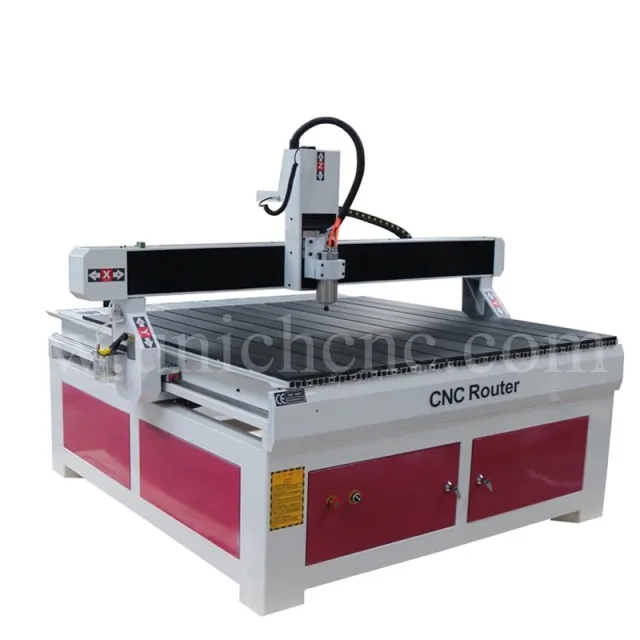

Plastic/Acrylic/ MDF/PVC/Metal/Stone making processing cutting engraving machine/1515 wood carving cnc router

Machine Features

1

Whole cast iron machine structure, tight and strong, can ensure the machine runs smoothly.

2

Best choice for wood, advertising materials, with dust proof on all three-axis, it can stop dust away from the rails and ball screws and to keep the machine working for longer time.

3

Imported high precision Hiwin rail linear bearings, smooth movement to ensure the machine tools high precision.

4

Low noise, 1.5KW water cooling system, high rotated speed 24000RPM, can realize only diameter 1mm tools engraving on the hardness materials.

5

Processing metal materials can add water cooling system, which can cool the tools, avoiding the high temperature breaking tools.

6

Continuing working after the break point or power failure, lower the rejection rate.

7

Good software compatibility can compatible with Artcam/Type3/Ucancam/JDPaint such as CAD/CAM, 2D/3D processing, more convenient to using

Technical Parameter

Model

Advertising CNC Router LXG1515

X, Y axis           working area

1500*1500mm

Z axis height

150mm

Table type

T-slot table

Machine structure

Cast iron machine structure

Spindle power

1.5kw/2.2kw/3.0kw water cooling spindle

Spindle speed

0-24000RPM

Inverter

Fuling inverter

Traveling speed

25m/min

Working speed

12m/min

Motor and driver

450A stepper motor; M542 Leadshine driver

X, Y, Z guide

Taiwan Hiwin rails

X,Y, Z axis transmission

ball screw

Control system

NC-STUDIO

Command language

G code, HPGL

Working voltage

220V/380V, 50/60Hz

Processing accuracy

+/-0.025mm

Reposition accuracy

<0.025mm

Optional parts

 1. Vacuum table

 2. Rack transmission

 3. Rotary attachment

 4. DSP controller

 wooden doors, cabinets, plate, office and wood furniture, tables,

chair, doors and windows.

voice box, game cabinets, computer tables, sewing machines table,instruments.

wood,wax, wood, gypsum,foams,wax

tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed

compounds.

Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals

such as copper, aluminum plate engraving and milling process.

Our Service

Technical Support

1. Professional technical suggestion before you order a machine

2. Professional instruction for the operation of machine

3. Completed machine manual and CD will be provided together with machine

4. 24-hour technical support by email or calling

Warranty

1. 18 months for machine

2. we will provide the consumable parts at cost price after warranty period

Delivery Time

Machine can be delivered from factory within 7 working days after receiving payment.

Company Show

  JINAN UNICH MACHINERY CO., LTD. is located in Jinan, China. Our company focuses on research, production and sale, maintenance service. We depend on high technology and high quality product to build the world brand.

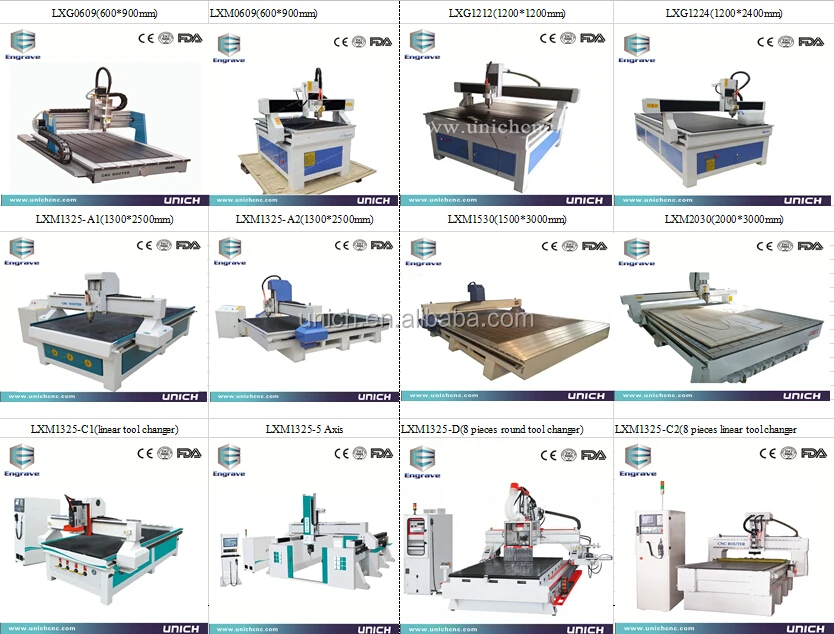

Our main product includes Advertising CNC Router, Stone CNC Router, Woodworking CNC Router, Plasma cutting machine, Laser engraving machine, Laser cutting machine and Laser marking machine.
