RoHS Custom Made TN Segment LCD Screen Monochrome TN/HTN/STN/FSTN VA LCD Display

Product Overview

Description

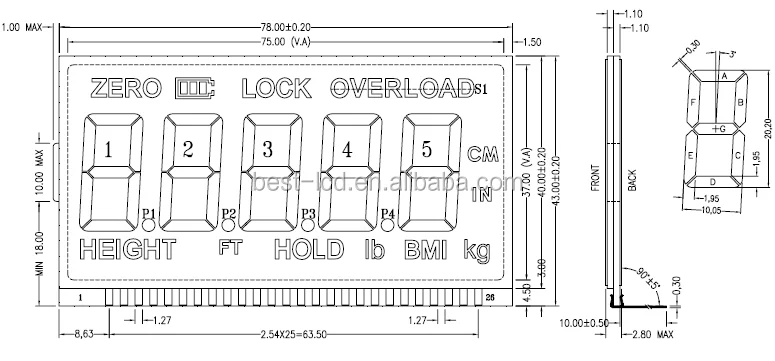

1. Professional Mechanical Drawing:











2. Precisely Technical&Mechanical Parameters FYI:



Application	Electronic Scales
Display Type	TN/Positive
Polarizer Type	Transflective
Outline Dimension	78.0*40.0/43.0*1.1mm
Viewing Angle	6 O'clock
Connector Type	Metal Pin
Driver Method	1/3Duty, 1/2Bias
Pitch	2.54mm
Operate Temp.	0~50degree
Storage Temp.	-10~60degree
Operative Vol.	3.0V







3. Appropriate Application: 3.0V Transmissive 5 Digits 7 Segments TN LCD Display For Physician/Weighing /Industrial Electronic Scale.













4. Qualified Packaging:













5. Trusted Shipping:











6. Outstanding Capabilities&Services:

Customizing & designing segment, character, graphic LCD Display and LCD Module(Including LED Backlight, IC) with different sizes, shapes, display icons for clients.



Product Type:

1. LCD Type:  TN, HTN, STN, FSTN, VA, COB, COG etc.....

2.  Any digitals, Icons, graphic can be customized and designed according to customers' requirements.

3. Polarizer type: Transmissive, Transflective, Reflective

4. Connector Type: Metal Pins, Zebra, Heat-seal, FPC...

5. ITO Glass thickness: 1.1mm, 0.7mm, 0.55mm

6. The range of operating Temperature: -40~90°C





Our products are widely and well accepted in North America such as USA,Canada; European countries such as UK, Germany, France, Netherlands, Greece, Russia, Sweden, Ireland, Swiss, Austria, Luxembourg, Belgium, Italy, Spain, etc. ; Asia countries such India, Singapore, Malaysia etc..









7. Contact us:

If it arouses your interests or if you want to learn more details and get the latest updates, pls add my trademanager/Skype or send inquiry to me, I'll be glad to answer!





Trademanager: cnbestlcd

Skype: helenwang7708

QQ: 627807171
