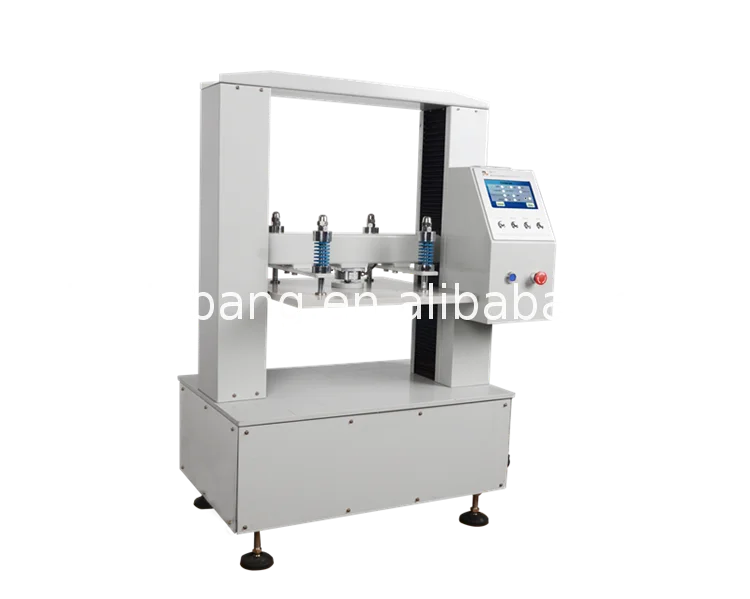

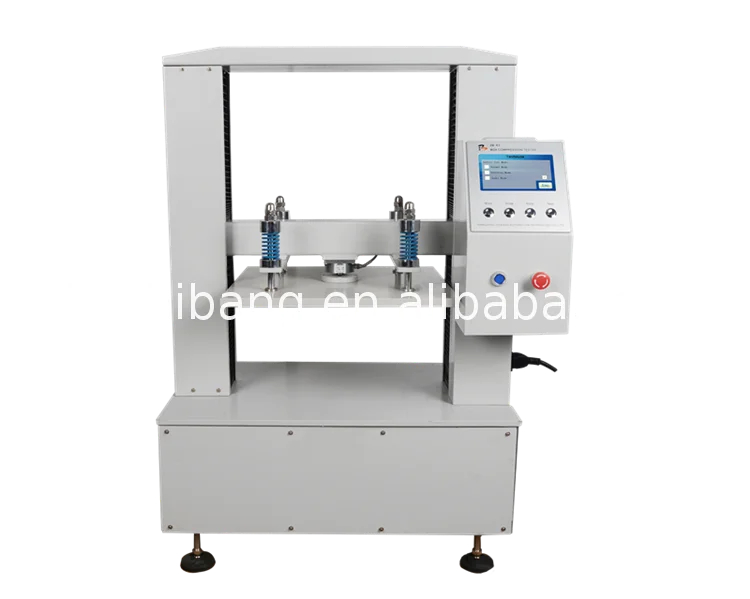

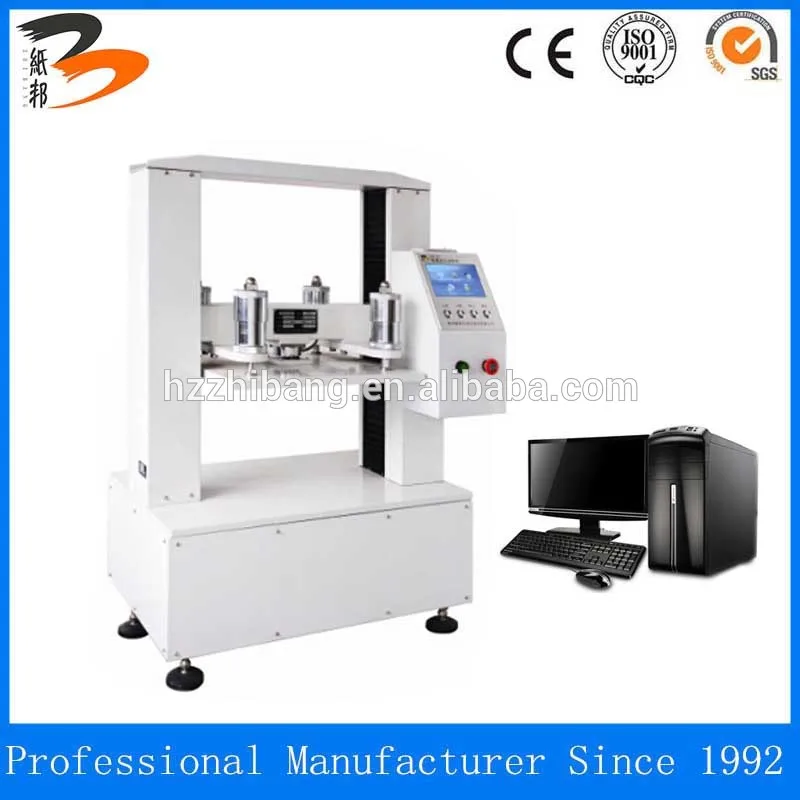

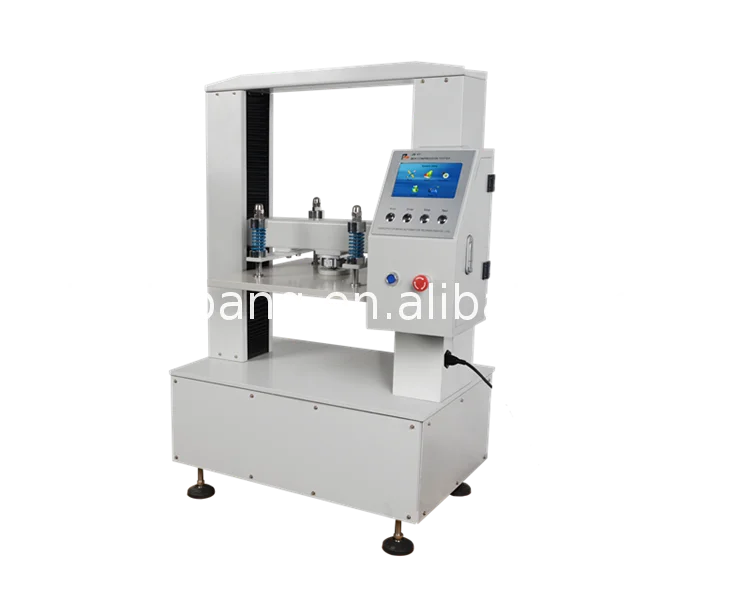

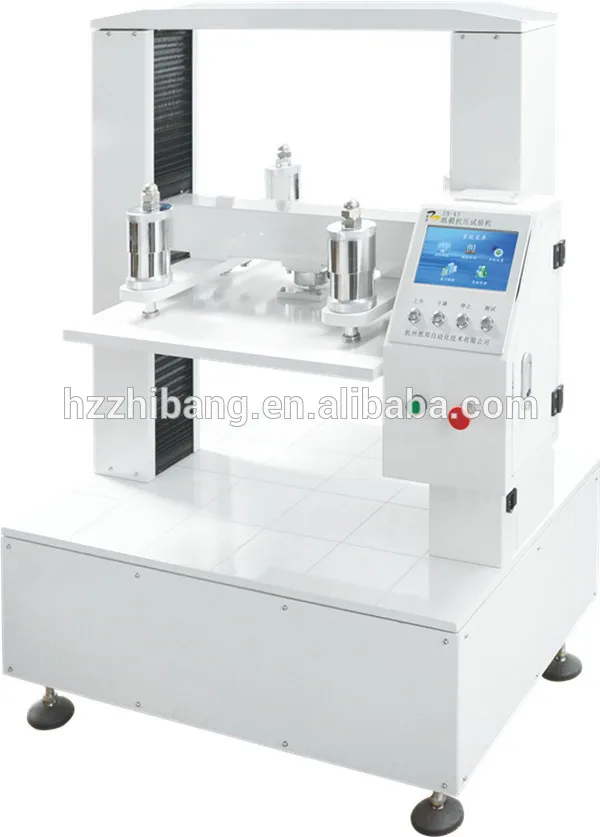

China manufacturer Computer type carton compression test apparatus box compression testing equipment

Standards

ISO 12048  GB/T 4857.3  GB/T 4857.4

Main characters

(1)Strength test :to test the maximal strength of carton

(2)Definite value test: the data can be preset to test the strength and variant of the carton

(3)Stacking test :can have the stacking test within 12 or 24 hours

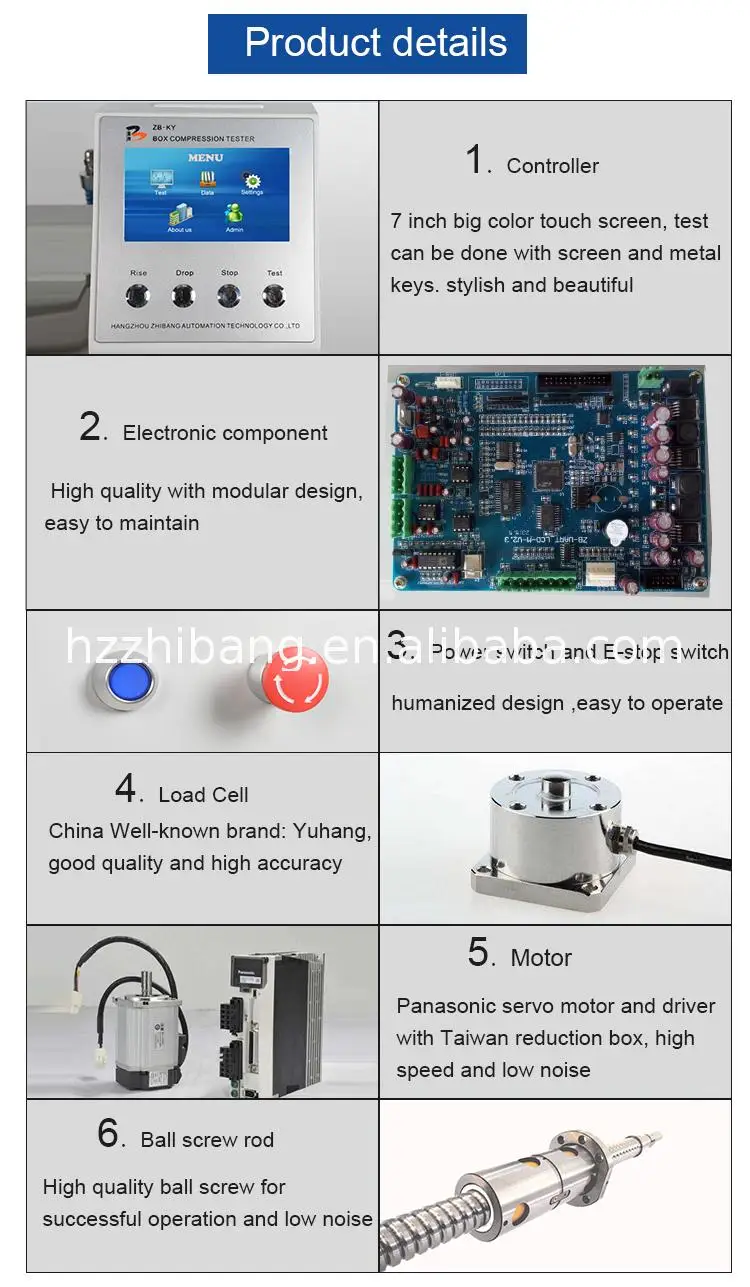

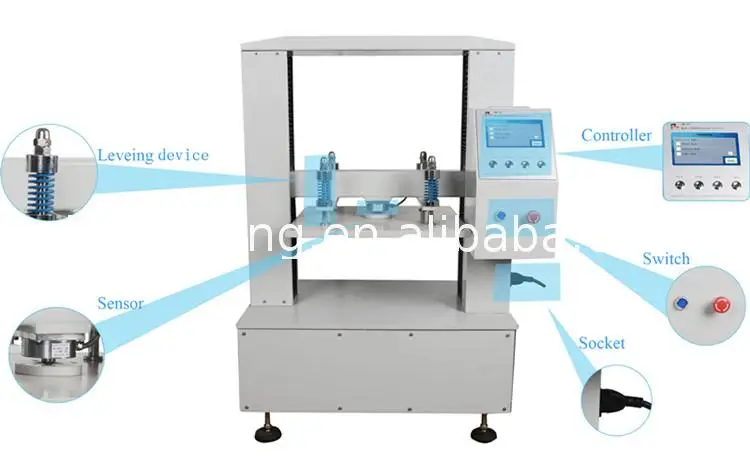

(4)Precision machine design:Adopted precise whorl and guide pillar can assure the stability

(5)Motor control:Used new frequency technology to have the pinpoint.high speed.pressing speed is 10mm/min and the maximum return velocity can be 60mm/min

(6)Sensor:use the sensor to make the measurement accurate

(7)Specification inspection: according to the user's need to design

(8)Man machine integration:Big screen made it clear

Main technical parameters

Introduction

package box compression testing equipment is a mechanically and electrically integrated intelligent test instrument,which is composed of the mechanical system and control system that takes the single-chip micro-computer as the core module,with advanced technology,abundant functions, stable performance,and convenient control and operation,as the ideal instruments in the compressive strength and performance test of various

packing containers.Besides, it is the essential instrument in the compressive strength and performance test of packing containers and specially corrugated box.
