High Quality Computer Rotogravure Printing Machine,Used Rotogravure Printing Machine

Product Description

Use:
9 Color Rotogravure Printers Machine is suitable for various materials roll to roll printing, such as different films(BOPP, OPP, PET, PVC, PE), Coated Film, Aluminum foil, paper, etc.

Characteristics:

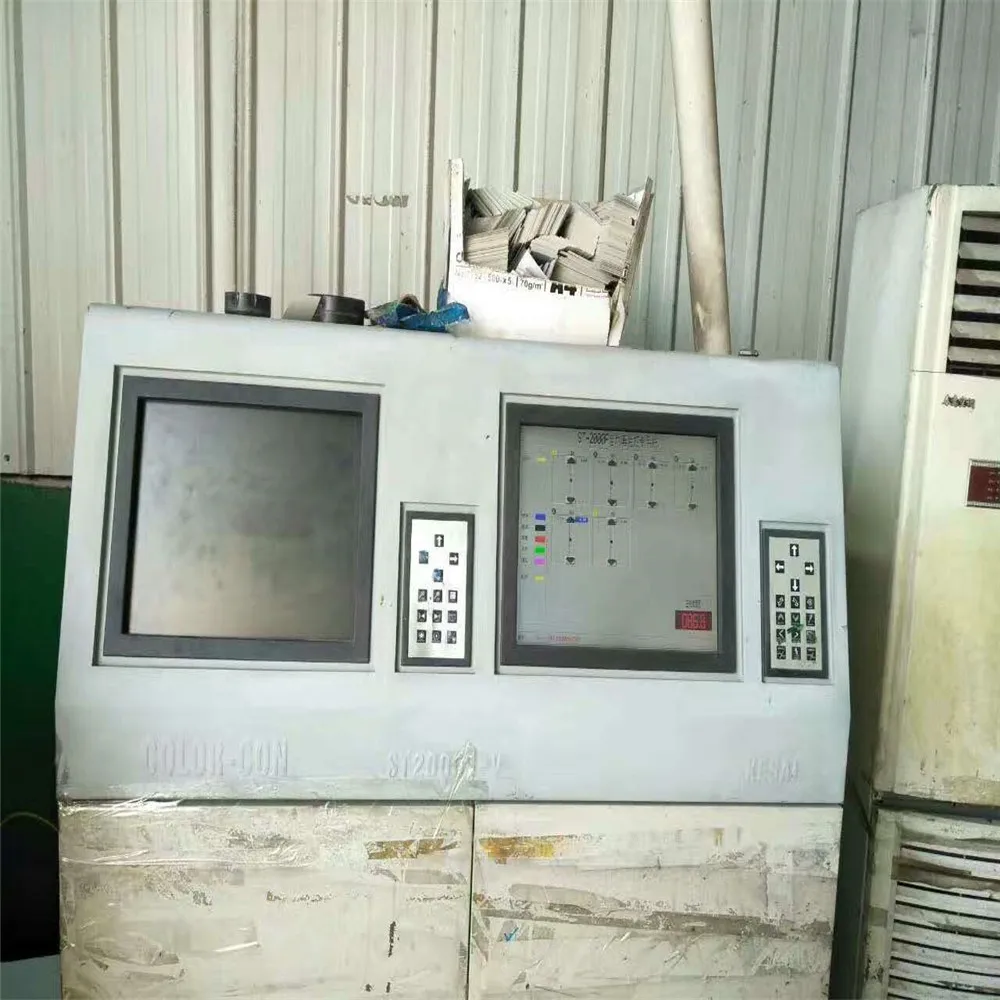

1) Every control module of the automatic color register system is equipped with microprocessor and can correct the deviation of color register quickly and accurately
2) The main machine adopts frequency control of motor speed
3) Releasing tension adopts full-automatic tension controller and magnetic powder brake
4) Rolling adopts full-automatic constant tension and traction coordinated with torque DC motor, double-station automatic turnover, replacing the material without stopping the machine
5) Closed oven and independent heating send the breeze system
6) Pneumatic pressing system and pneumatic ink-scraping system
7) Automatic ink circulation system is provided
8) Air shaft is used for unwinding and rewinding shaft providing convenient assemble and unassembled possibilities
9) It is provided with display of press line speed and accumulated length in meter
10) Quality cast-iron structure for the whole set provides good stability and vibration absorbing capability
11) Pneumatic back preesure shifting blade
12) It can elect different computer flashed boundary and stationary checking figure.

Main Technical Parameter
Effective Printing Width 850mm
Max.Width of Base Material 800mm
Max.Printing Speed 10-110m/min
Max.Mechanical Speed 120m/min
Max.Diameter of Roll Core of Base Material φ600mm
Inside Diameter of Roll Core of Base Material φ76mm
Diameter of Printing Plate Roller φ120-φ300mm
Modified Accuracy of Computer Registration ±0.2mm(whole Machine)
Control Range of Tension 0-25kg/Full Width
Heating Power of Oven 15kw
Total Power of Machine 20kw
Weight of Machine 7000kg
Overall Dimensions(L*W*H) 2400×2600×2550mm

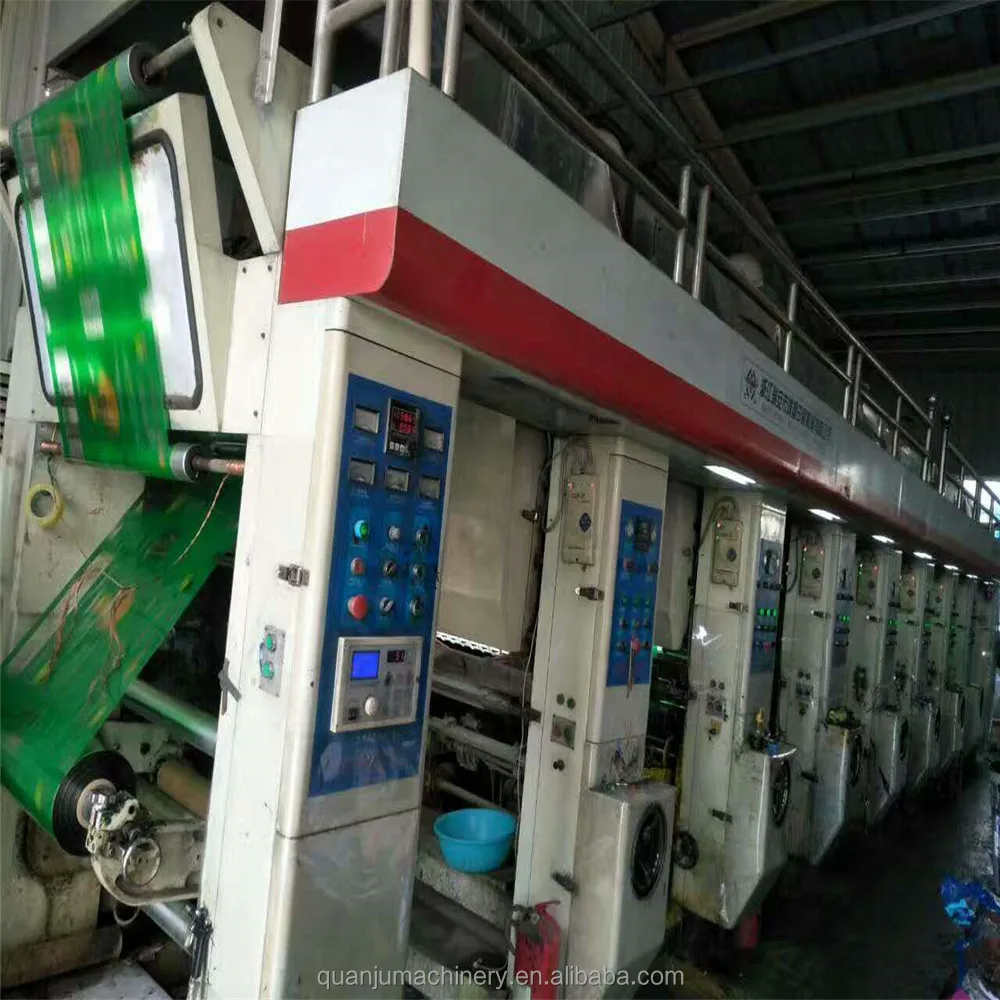

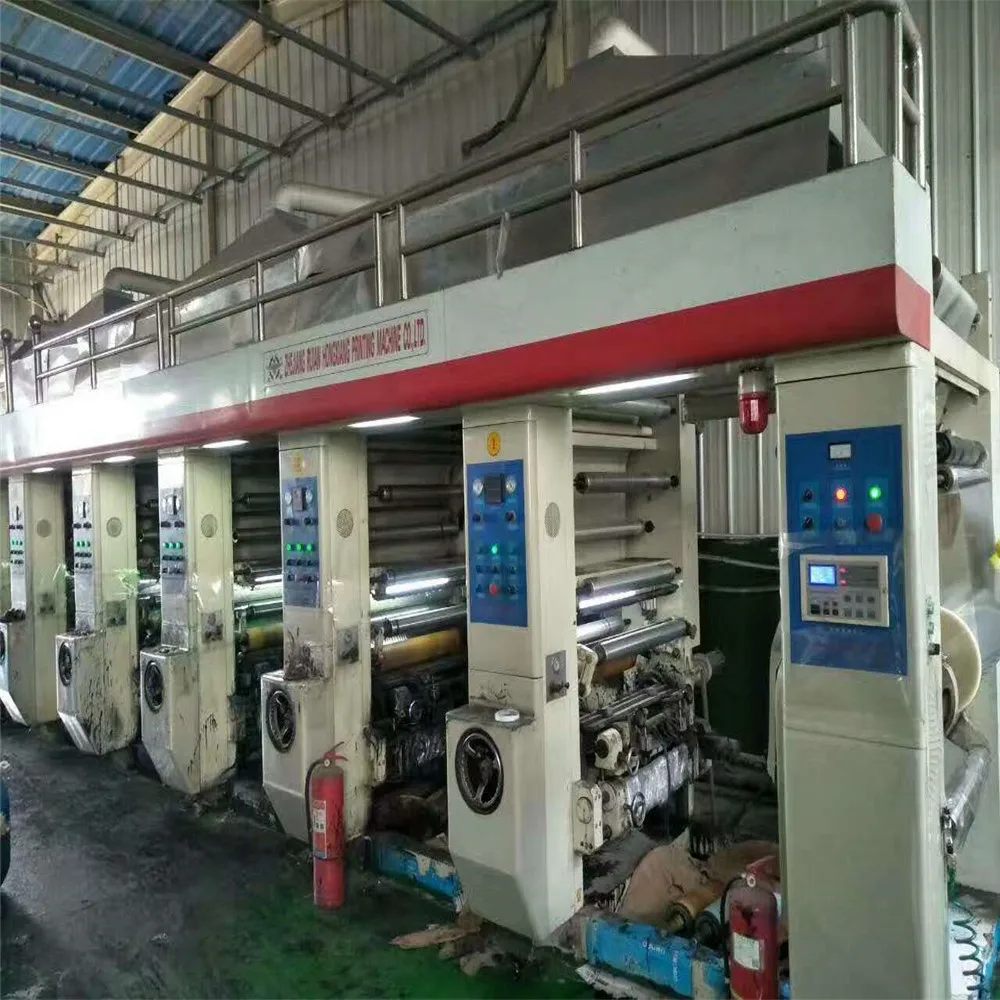

Detailed Images

Packing & Delivery

Title goes here.

Package with Wooden box

Delivery:7-8days after paying
