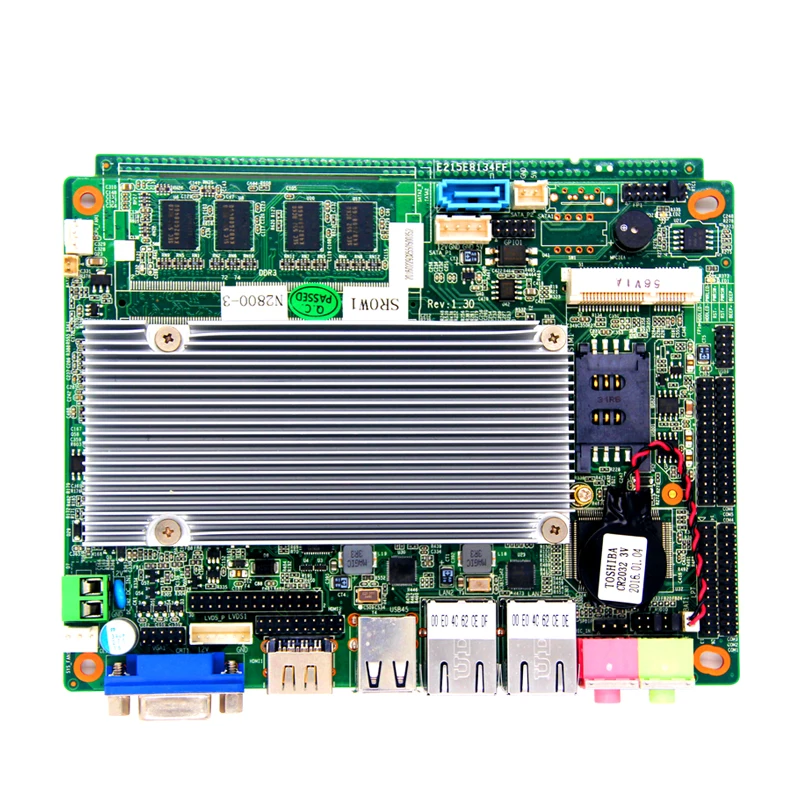

wholesale dc12v 3 sata intel D2550 3.5inch motherboard with integrated processor

Processor

CPU

Intel® Atom D2550/N2600/N2800 dual core processors

CPU Package

BGA559

Chipset

Intel NM10 Express Chipset (Intel CG82NM10 PCH)

BIOS

AMI EMI 16MB SMT/DIP-SPI Flash ROM

RAM

Technology framework

Signal Channel DDR3 1066/1333MHz,maximum up to 4GB.

Capacity

2GB/4GB

Video

Graphic controller

Intel GMA3650 Graphics Core(DVMT Max 384MB)

LVDS

24bit Single Channel LVDS

VGA

Resolution maximum:1366*768

HDMI

Resolution maximum:1366*768

Double display support

VGA+HDMI/VGA+LVDS/LVDS+HDMI, Synchronous or asynchronous display

Network

Controller

RTL8111EL LAN,support RTL/PXE diskless booting

Radio

Controller

Realtek HD ALC662 chipset,provide 6 channels output(line-in,line-out,Mic)

Hardware monitor

Watchdog & Timer

0~255 timer  (Watchdog code optional)

Cooler

Aluminum alloy heat sink with fan

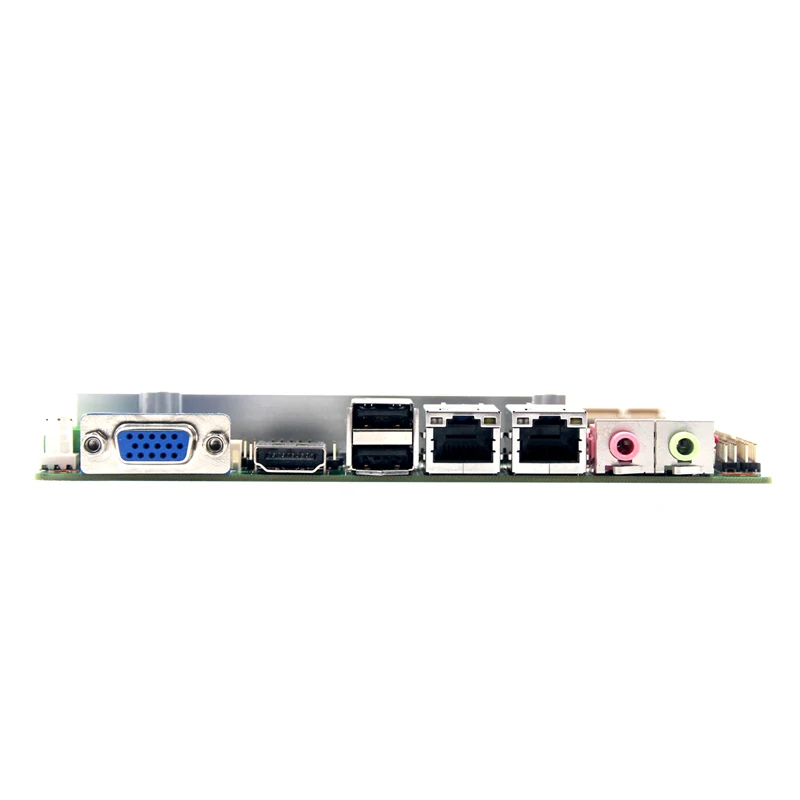

Input/Output Interface

USB

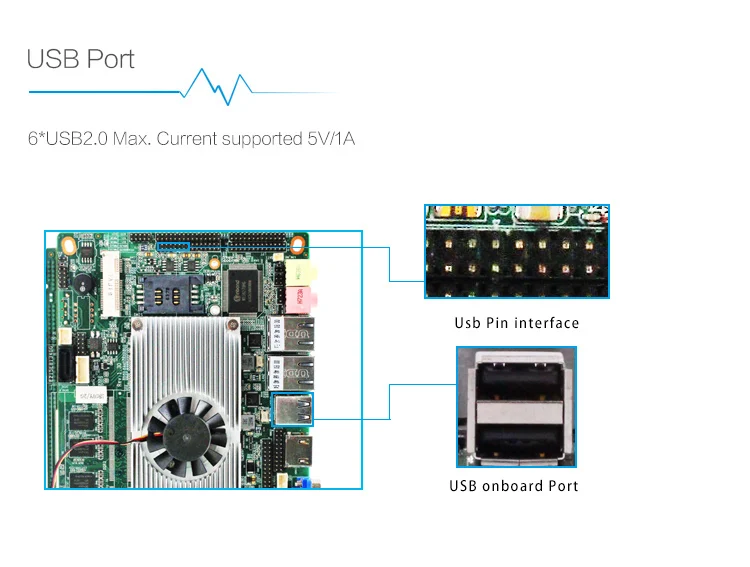

2*USB2.0 (compatible USB1.1)  6*USB2.0, Max. Current supported 5V/1A

Series

5*RS232 ,1*RS232/485 optional, RS485 supported automatic flow control

PS/2

1*PS/2 expansion header

GPIO

8bit (4pin in/4pin out)/ 3.3V@24mA / Sample code optional/Free definition of input/output

Extended bus

mPCle

1*miniPCIE socket ,supported PCIE and USB device

SMBUS

Storage

SATA

2*SATA2.0 Maximum transmission rate 3Gb/s

M-SATA

1*mSATA socket ,Supported SANDISK protocol ,Max. transmission rate 3Gb/s

Power Supply

Power Type

Single input DC power supply ,DC12V5A/7A

Power consumption

35W

Work environment

Working temperature

-20°C~60°C (-32°F~140°F)

Storage temperature

-40°C~85°C (-104°F~185°F )

Working humidity

10%~90% (non-condensing)

Storage humidity

10%~90% (non-condensing)

Measure

Size

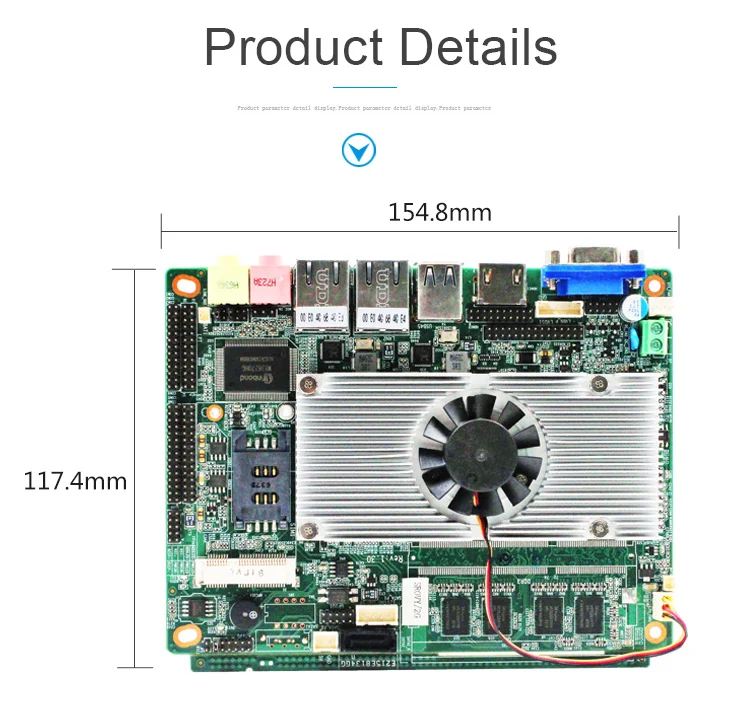

154.8 x 117.4 mm

Weight

 0.5KG

Certification

CE,FCC,ROHS
