Product Overview
Description
Product Description

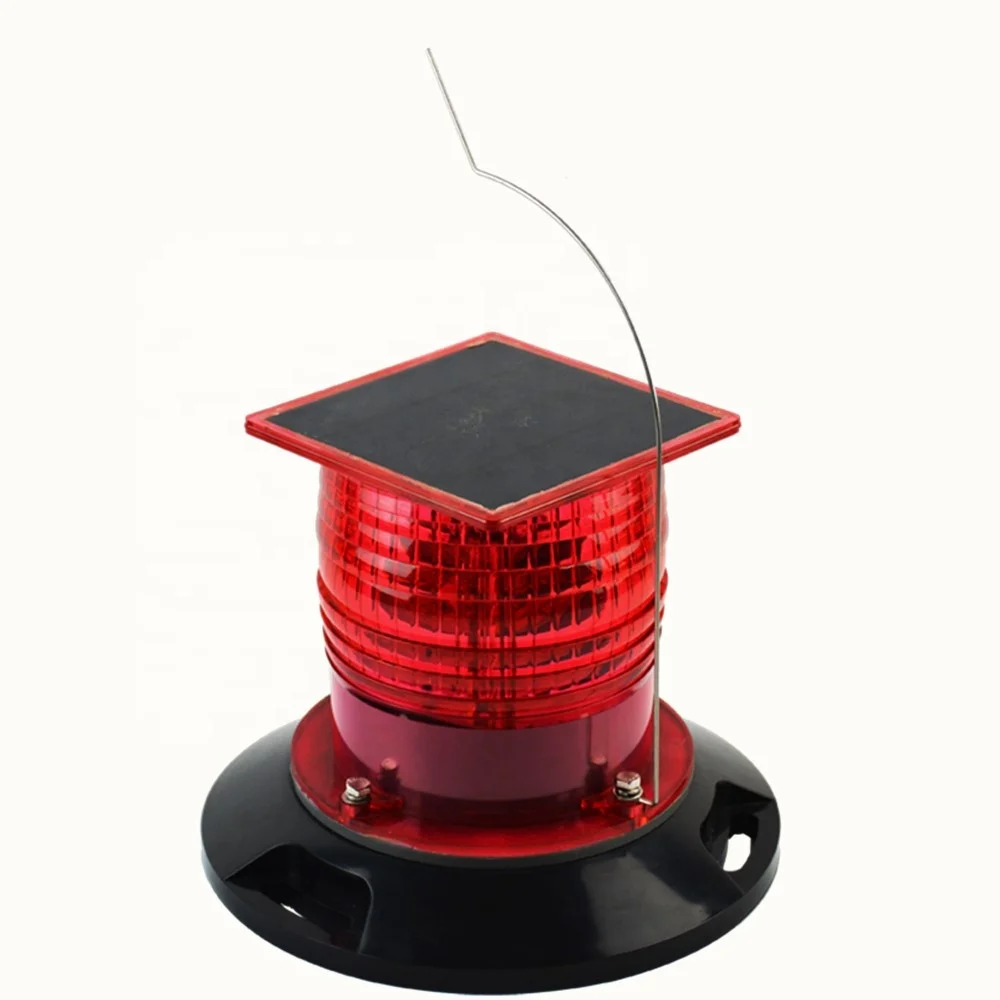

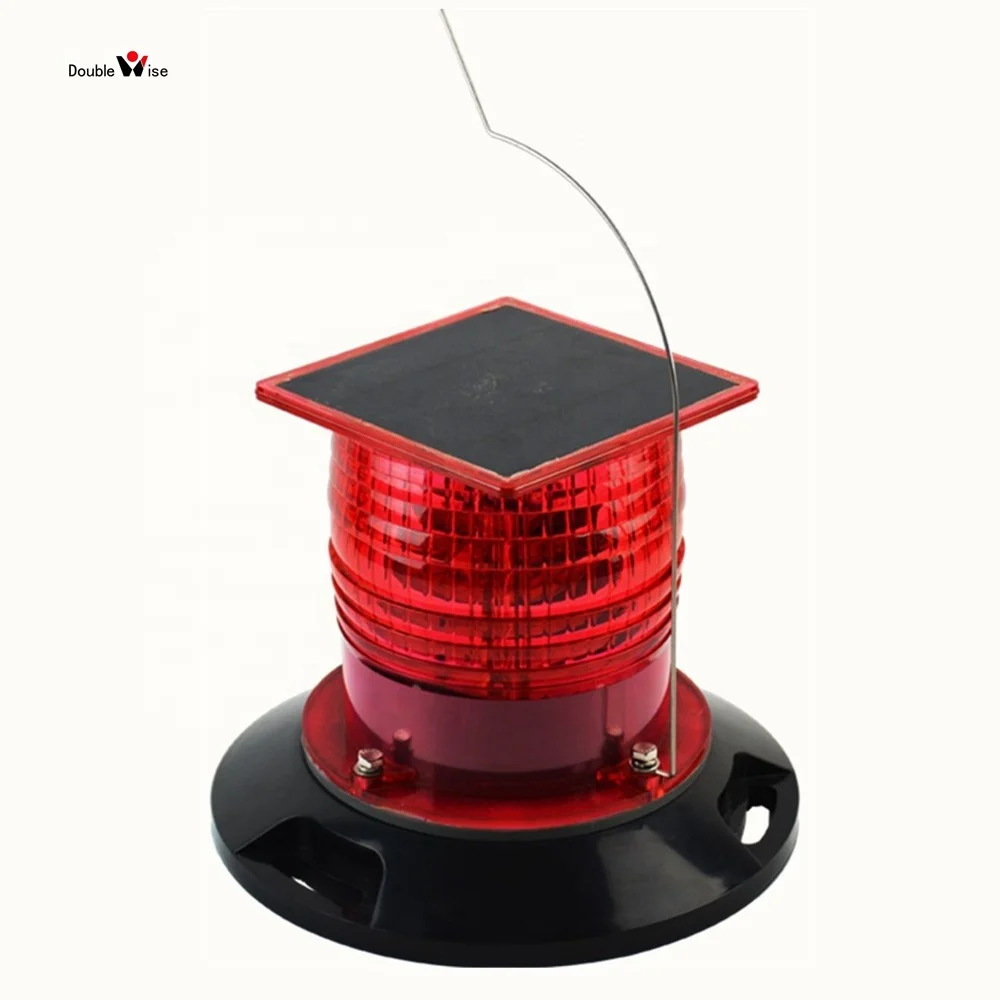

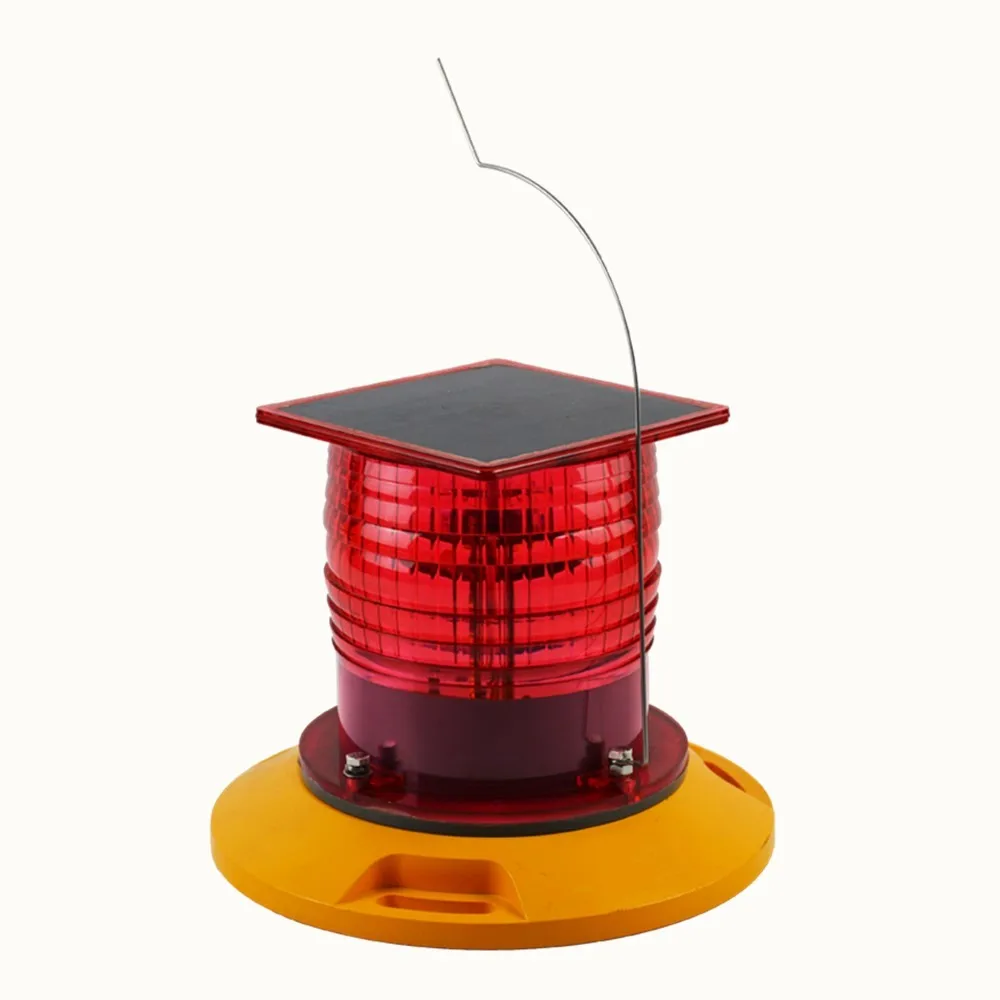

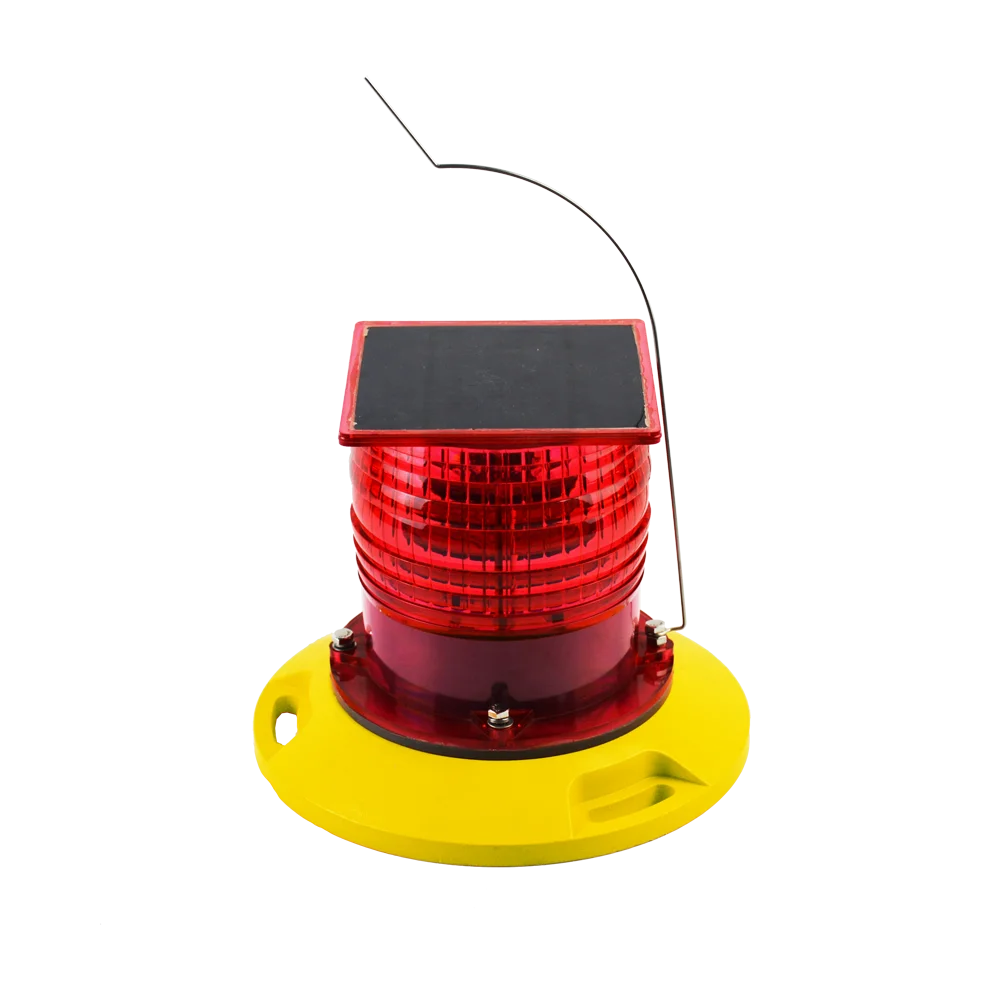

DWS501A ICAO FAA LED Solar Powered Aviation Obstruction Lights
with the characteristics of solar self-contained, durable and anti-UV .It is widely used in the Aviation Obstacle Warning of
Telecommunication or Power Towers, Chimneys, Cranes, High-Buildings and other dangerous Prominent Parts. The aviation obstruction light installs in minutes and requires no maintenance or servicing for up to five years.
Features and Benefits
Red,Steady-Burning and its intensity is more than 32cd.
Solar panel 2.7Wp, replaceable Ni-HM battery 5Ah/4.8V.
Turns on at dusk and off at dawn automatically.
To charge under nearly all weather conditions and has the 70 hrs autonomy from a full charge.
Completely solar self-contained and waterproof IP65.
Lens is polycarbonate with anti-UV which is produced by Bayer.
Manufactured to ISO9001:2015 QAS.

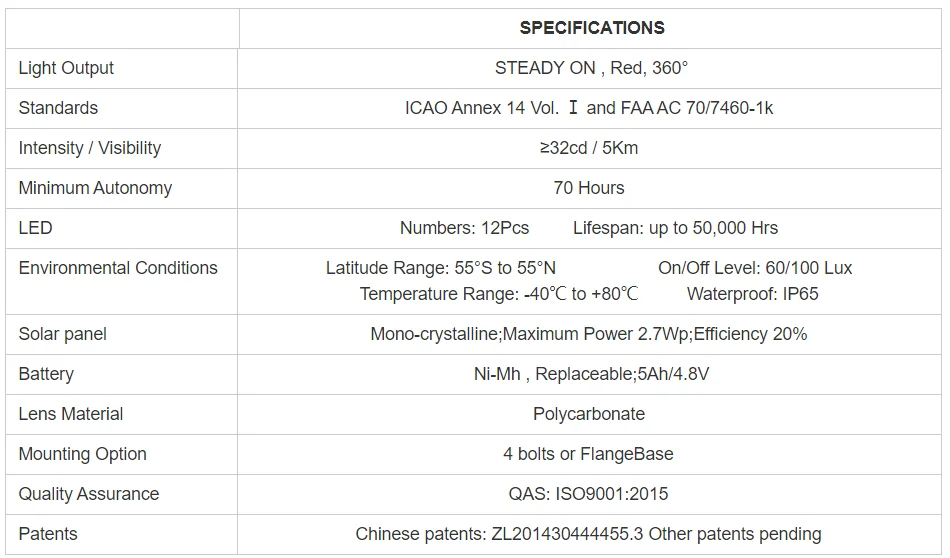

Product Parameters
Typical Applications
Solar Tower Obstruction Lighting Solution
Solar Red Obstruction lights are used to increase conspicuity during nighttime. The solar red obstruction lighting system is composed of flashing omnidirectional beacons (L-864) and/or steady burning (L-810) lights. When one or more levels is comprised of flashing beacon lighting, the lights should flash simultaneously.
Telecommunications or Power Towers are typically tall structures designed to support Antennas or Power lines. They are among the tallest man-made structures.
Telecommunications or Power Towers are typically tall structures designed to support Antennas or Power lines. They are among the tallest man-made structures.
BASIC RULES
* The number of light levels recommended depends on the height of the structure;
* The number and arrangement of light units at each level should be placed so the lighting is visible from every angle in azimuth;
* Lights are applied to display the general definition of the structure;
* Width and length of buildings determine the number of lights installed at the top and at each light level.
SELECTION OF LIGHTS
If the tower is needed to be lighted at night, please reference the following list.
* The number of light levels recommended depends on the height of the structure;
* The number and arrangement of light units at each level should be placed so the lighting is visible from every angle in azimuth;
* Lights are applied to display the general definition of the structure;
* Width and length of buildings determine the number of lights installed at the top and at each light level.
SELECTION OF LIGHTS
If the tower is needed to be lighted at night, please reference the following list.
NUMBER of LEVELS According to Height
Company Profile
Certifications
FAQ
1. How to install the solar obstruction light?
There are two installation methods:
1.1. Direct installation
The Drawing and Hole map of DWS501A are as follows:
1.2. With the Flangebase
The solar obstruction light DWS501A can also be connected to other structures via a Flangebase, as shown in the figure below.
The solar obstruction light DWS501A can also be connected to other structures via a Flangebase, as shown in the figure below.
Packing & Delivery
Packing | The package of DWS501A is a 540*360*200mm carton that can be loaded with 6 lights.Each light has a small carton 170*170*170mm.The weight of one light is 1.5Kg after packing,so the gross weight of 6 lights is 9Kg . |
Delivery | With years of export experience along with excellent quality, advanced services and competitive prices, DOUBLEWISE has provided lots of solar products to customers in more than 80 countries. |
