0 150C Capillary Pressure Temperature Gauge

Product Overview

Description

 Name: 0-150C Capillary Pressure Temperature Gauge



Capilalry Pressure Temperature gauge is used in most existing piping and tank applications, which are available as direct reading, or remote reading with stainless steel bulbs and armored capillary. The sensing bulb should be placed in a none-turbulent area of piping or ducting and as close the center of the flow as possible. In tanks, it shyld be placed in an area of the tank that will provide a good average of temperature of the fluid contained. The bulb should be protected from corrosive or abrasive media and excessively high pressures, the usual method of protection is the use of a thermowell. The series main contain follow general specification.





I. 0-150C Capillary Pressure Temperature Gauge Main technician parameter





Dial Size:	4" 5", 6"
Stem diameter:	Φ6.3, Φ8, Φ10
Temperature probe :	Φ14 x 60,100,150, 200, 250, 300mm
Connection:	Bottom, and back connection
Capillary length :	≤ 20 m
Connection thread:	1/4", 3/8", 1/2" BSP, BSPT, NPT
Case ring:	304 stainless steel
Window (lens):	Polycarbonate lens, tempered glass available
Accuracy:	1.6% full scale
Option Info:	Other materials, ranges, connections are available upon request





II.  Thermometer Capillary  More Specification for Choice







1. Dial Size?



2. Temperature Range?



3. Back or Bottom or Adjustable Type?



4. What is the thread size?



5. Display C&F or only C?



6.Capillary Length?

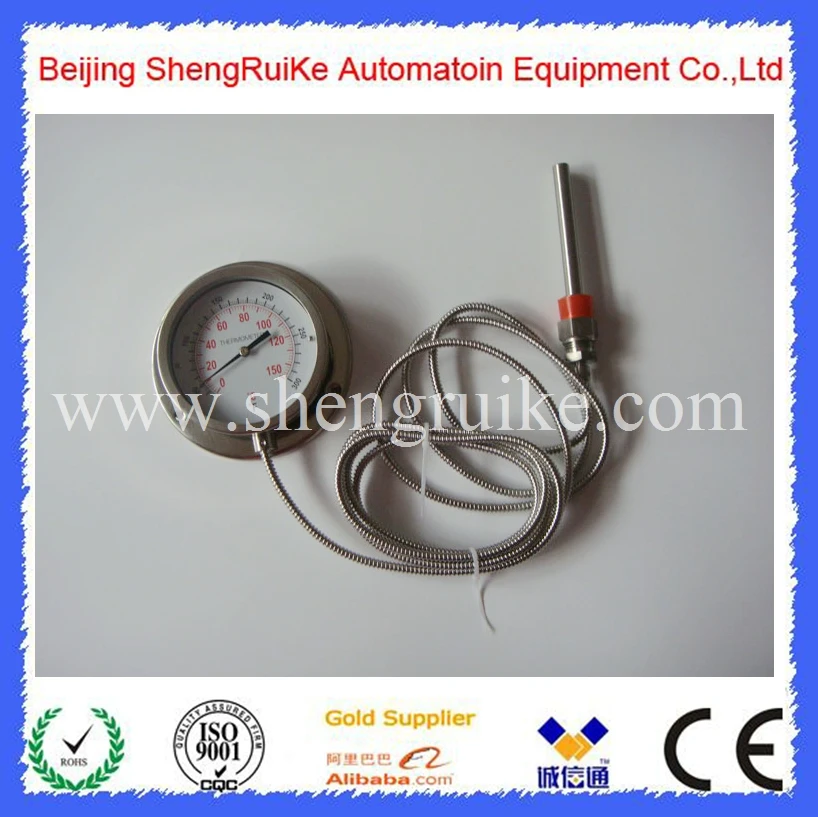

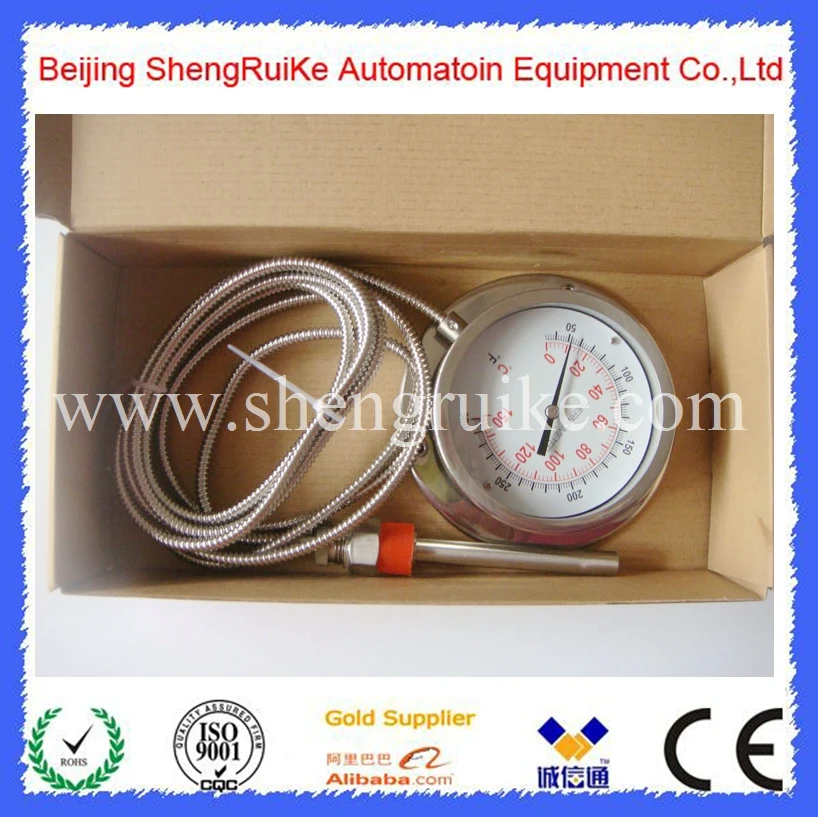

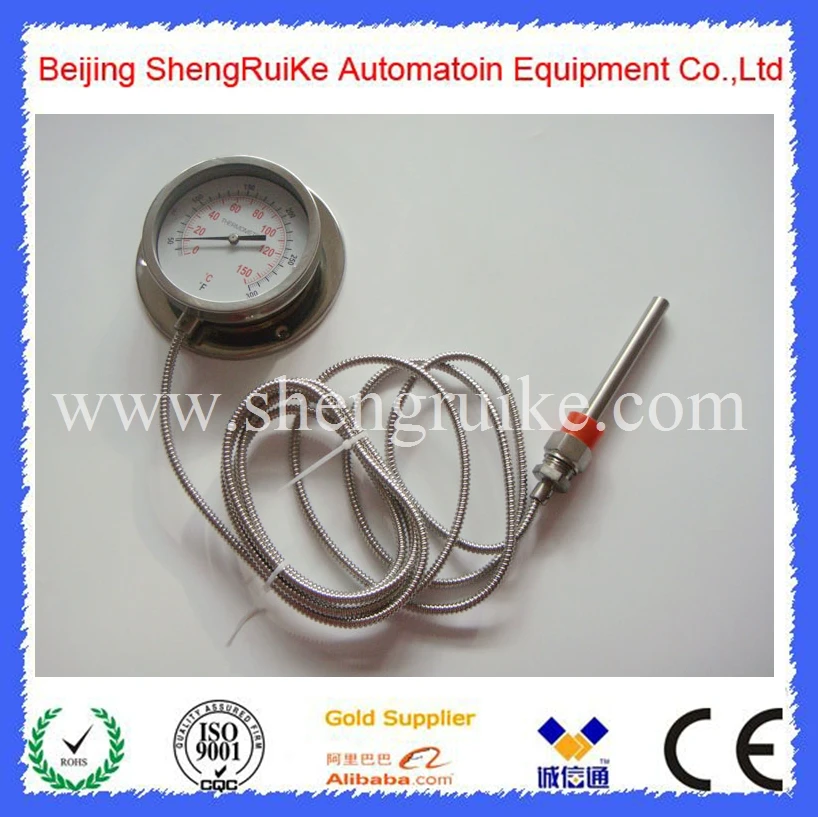

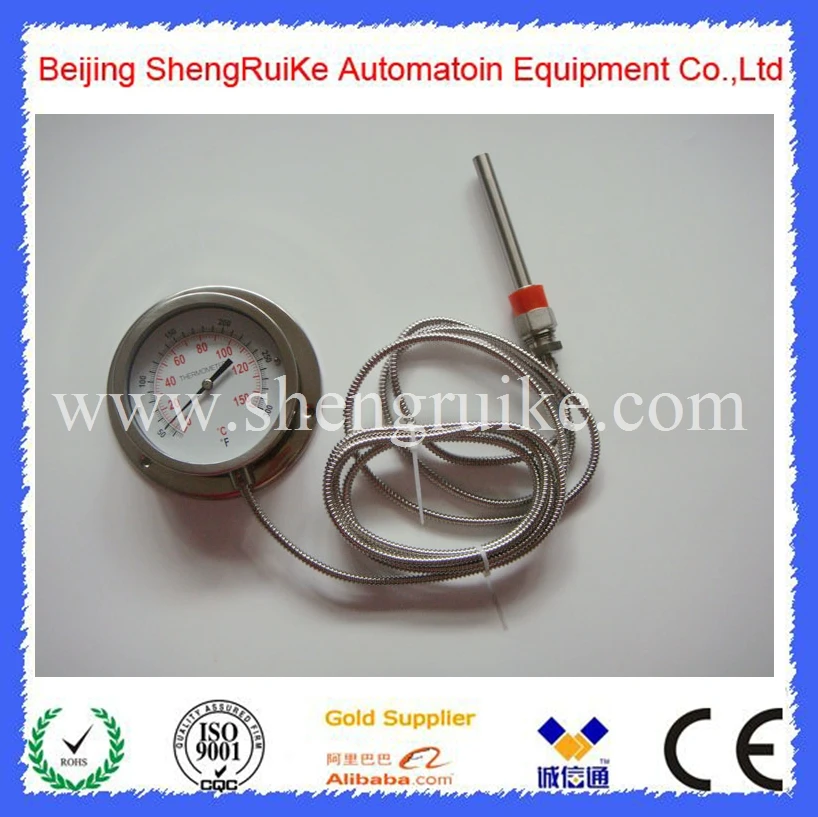

 III. Thermometer  capillary Show
