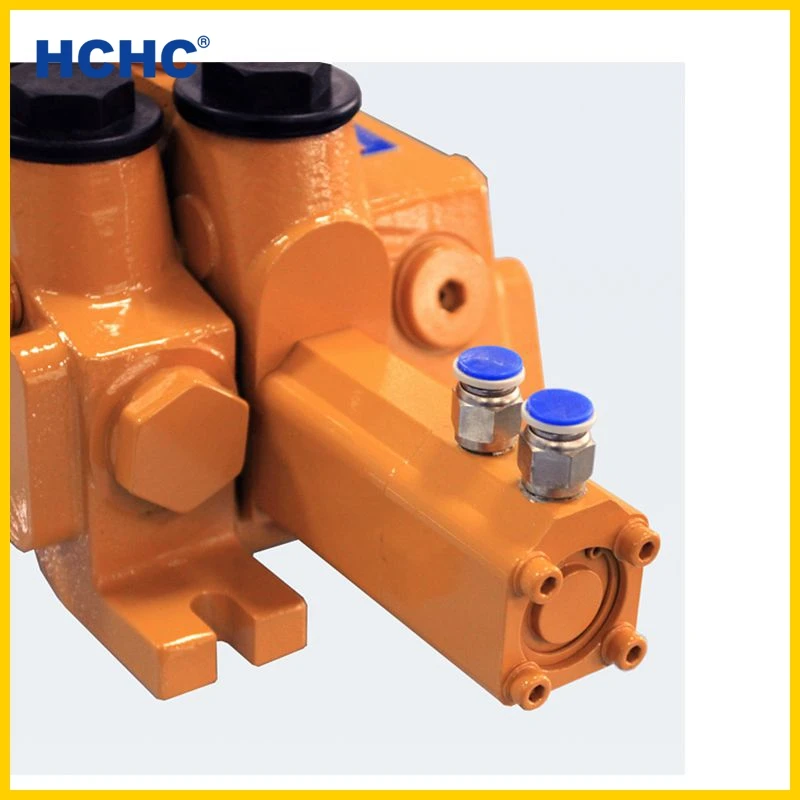

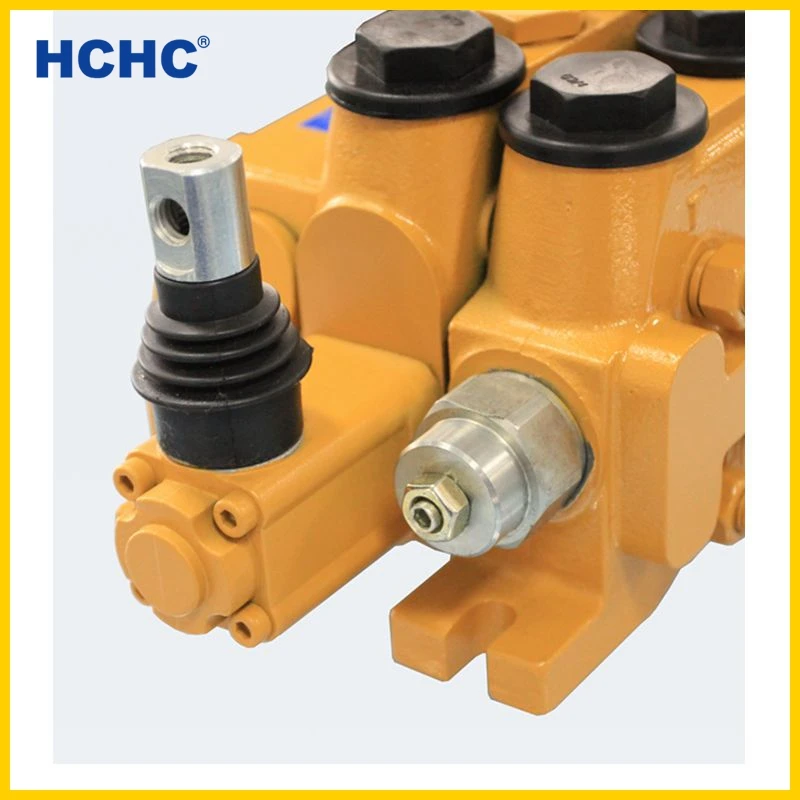

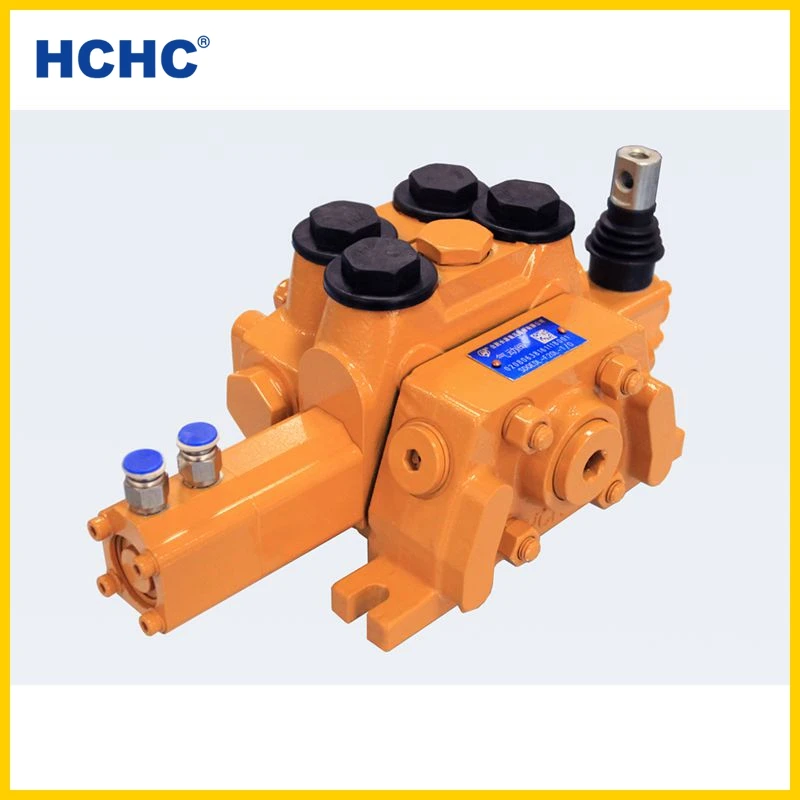

hot sell 12V hydraulic valve SDQEDL20 with multi-direction for forklift
Multi-direction valve SDQEDL*-20 is composed of oil inlet section, oil outlet section and valve sections, featured with compact structure, high pressure, advanced and reliable performance, able to implement near or remote control of variety working units.
It is widely applied to engineering machinery and the hydraulic system of other machineries.
Internal check valve: Each valve section has an internal check valve to prevent the oil backflow.
Internal overflow valve: the inside of oil inlet section is equipped with a pilot-operated overflow valve to control the system pressure.
Additional valve: according to the requirement, overload valve and oil filling valve can be added at both end of valve section.
Structure type: sectional valve, any 1-7 sections may combine upon customer's requirement.
Spool function at neutral position: A, O and Y.
Control method: manual, manual+pneumatic, hydraulic.

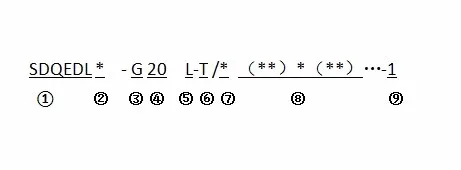

Specification
①\tProduct code:
EDL=standard manual type
SQEDL=manual+pneumatic type
XYEDL=hydraulic type
SDQEDL=manual+electro-pneumatic type
②\tDesign code
③\tPressure grade: G=250 bar
④\tNominal size: 20mm
⑤\tJoining port type: L=thread
⑥\tSpool control type:
T=spring, W=ball, U=hydraulic spring
⑦\tSpool function type of block 1
⑧\tAdditional valve
A=A port with overload valve, B=B port with overload valve
a=A port with oil filling valve, b= B port with oil filling valve
⑨\tPressure output, if no pressure output, it will be omitted.
Nominal pressure (bar) | 250 | ||||
Nominal size (mm) | 20 | ||||
Nominal flow (L/min) | 100 | ||||
Spool number | 1~9 | ||||
Valve shaft stroke (mm) | 8+8 | ||||
Weight (kg) | 9.6+5.2n | ||||

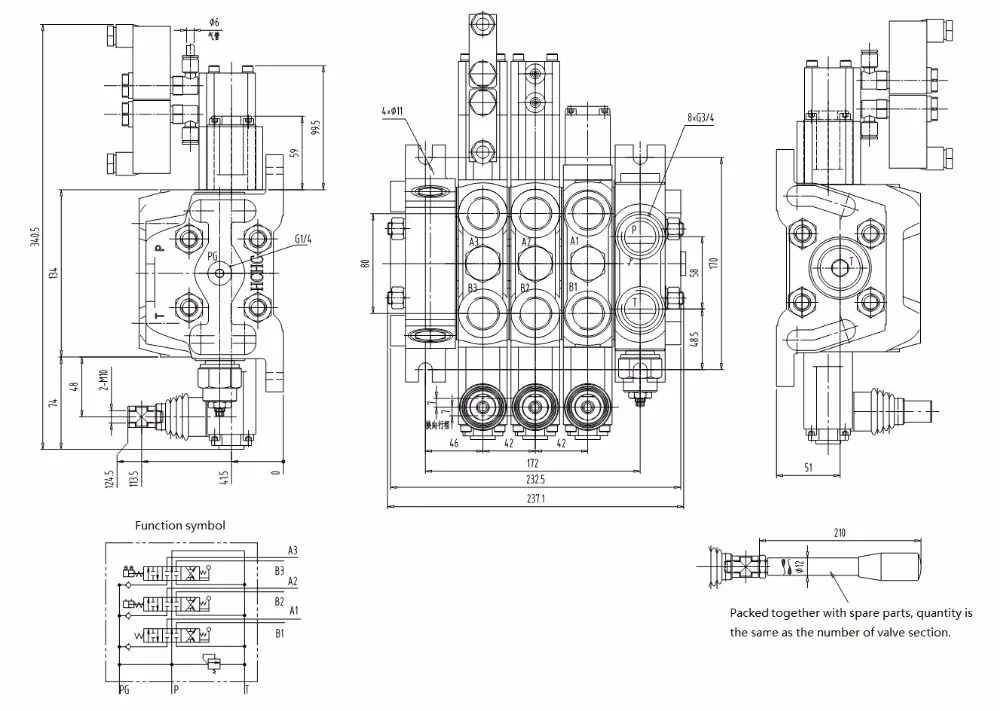

Outline Dimension
