Sinochip agriculture drone sprayer for crops GPS helicopter UAV
Product Description
DF-T4
Size Spreaded L*W*H
1760*1760*620 mm
Size Folded L*W*H
830*830*620mm
Diagonal wheelbase
1800mm
Material of Chassis
Carbon Fiber
Material of Propeller
Carbon Fiber
Motor
Brushless, 8318 120KV
Total Weight
14 kg (without battery)
Max Takeoff Weight
43 kg
Spray Flight Time
10-14 mins
No Load Flight Time
15-22 mins
Max Flight Speed
8m/s
Max Service Ceiling Above Sea Level
30 m(GPS mode)
Anti-wind
<8.0m/s (28.8km/h)
Operating Modes
Standard/Spray/GPS
Operating Temperature
0 ℃ to 50 ℃
Container Material
Rigid Plastic
Container Volum
18 L
Standard Operating Payload
18 kg
Spray droplet diameter
60~180μm

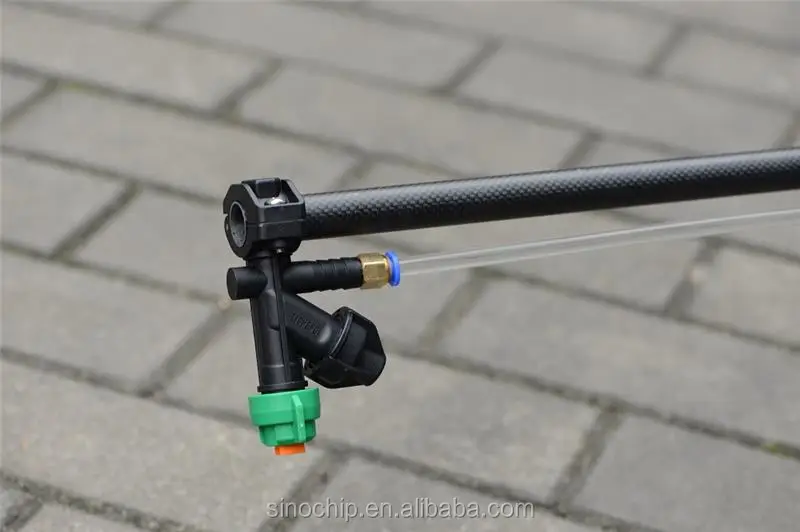

Nozzles
4 pcs
Spray Flow Rate
1.8~2.2 L/min
Spray Width
3~6 M
Spray Height
2~5 M
Work Efficiency
1200-2000 square meters per minute
Operating Frequency
2.4 GHz
Max Transmission Range
1 km (unobstructed, free of interference)
RC Battery
2200mAh 11.1V 3S Lipo
Operating Temperature
0 ℃ to 50 ℃
Packaging & Shipping
For large quantity, we should check with our factory, then we will respond to you the exact delivery; For small quantity, it can be delivered about 10 working days.
Company Information
Shenzhen Top-peak Electronics Co., Ltd. is located in Shenzhen City, Guangdong Province, the location, adjacent to the international metropolis of Hong Kong. The company was founded in 2011, he has been engaged in drone aircraft industry. Companies from research and development, sales, and after-sales service and so on, each dedicated to domestic customers with quality products and satisfactory service. DF UAV used in toys flying, aerial video, land monitoring, surveying and mapping exploration, field search and rescue, aerial data processing, forest fire prevention, urban planning, public security police fire safety, electrical safety protection and high-altitude operations, plant protection agricultural machine operation and collaboration , and industrial applications and other fields.
Shenzhen Top-Peak Electronics Co., Ltd. Please visit our website http://www.zksinochip.com or http://www.sinochip.cn for more information.
FAQ
Q: Can we place OEM orders?
Yes, OEM orders are acceptable, we can customize the machines according to your needs.
Q: What is the usual delivery terms?
FOB, CFR, CIF will be fine.
Q: Is the drone difficult to operate?
It is easy to operate, and we offer the user manual.
Q: What is your delivery time?
For large quantity, we should check with our factory, then we will respond to you the exact delivery; For small quantity, it can be delivered about 10 working days.
Q: What is your delivery port?
From the port of Shenzhen, Guangdong Province, China.
Q: What are the terms of payment?
We accept Western Union, T / T, L / C, Paypal.
Q: Do the machines have warranty period?
We offer the warranty for 3 years as below:
A. For the first year:
1) Clients only pay for the freight of the defective products sent to us, we pay for the accessories and the returned freight for our clients.
2) For the products damaged during transportation, not in the state of operation, clients should pay for the accessories and the two ways of freight.
B. For the second and the third year.
Clients pay for the cost of accessories and the two-way freights.
Q: Do you have other types of drones in your company?
Yes, at present, we have 3 series of products as below:
1) Drones for agriculture.
2) Drones for Photography.
3) Toy Drones
Q: Can I have a sample?
Yes, We will make samples based on your requirements and we will send the samples to you after we receive your payment.
