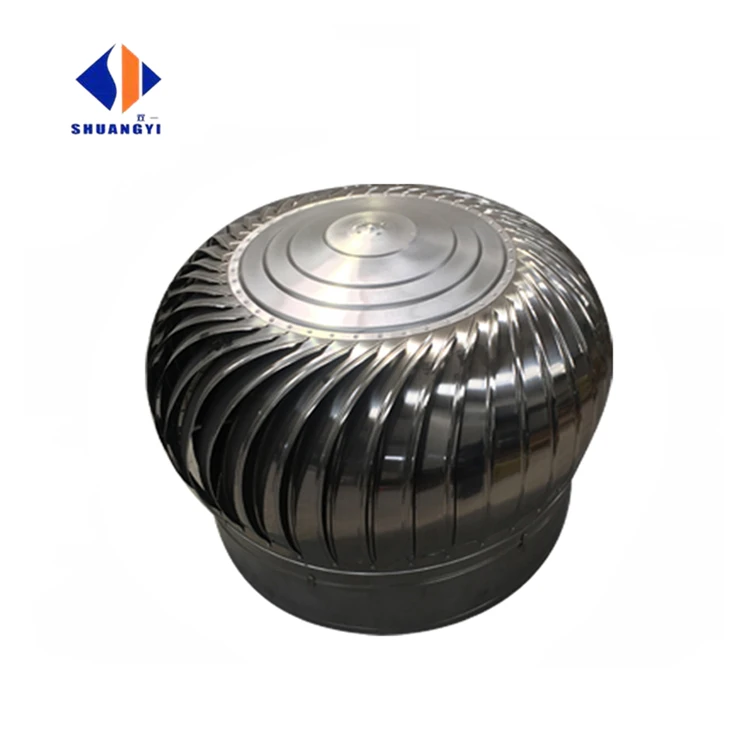

Wind Turbine Ventilators Stainless Steel Air Turbine Fan

Product Overview

Description

•

  It is low to operate the fee






•

  Selecting the large energy-efficient diameter air blower for use, the wind amount is heavy , the power is small, energy consumption is low, operate the expenses sparingly for users effectively; Can select many speed electrical machineries for use according to user‘s enquiry , can be according to the amount of wind adjusted of change of the environment temperature, reduce and operate the expenses further.
  Low noise of environmental protection




•



  Low rotational speed air blower , high to lure swimming skill eliminate noise cushion , streamline shape charge water device effective cooling tower impact on environment , DFN of control ,.




•

  Attractive and durable

  The shape of the tower is beautiful , merge with the building perfectly; Top layer is it import colored glue clothing to adopt, include ultraviolet absorbent inside, bright and clean such as the mirror, resist and wear out , it is difficult to fade. Customers can choose the body color of the tower according to user’s enquiry. The tower body is light and handy
  Adopt FRP composite in a large amount, fever for Israel soak zinc light-duty steel as skeleton, pass Solid Edge CAD optimization design.





Number of the machine	Arrange the draught foot-path(mm)	HIgh(m)	The blade counting	The blade arranges the area of wind(m2/slice )	Average wind speed throughout the year of vent(m/s)	Amount of wind arranged(m3/min)	Weight(kg)	Material	Color
3.6	360	300	24	0.0056	3.4(equivalent to the tertiary wind speed)	23	4.2	Stainless Steel, Aluminium Alloy, Color Stencil plate , FRP	True quality
5	500	390	30	0.0083		42	8.5		True quality
6.0	600	530	34	0.0995		56	10.8		True quality
6.8	680	640	38	0.0112		65	12.5		True quality



•

  Note: Generally speaking, the average wind speed is 3.4m/s (force 3 wind ) throughout the year, the internal and external difference in temperature of the room is 5 degrees Centigrade; If outdoor difference in temperature>, 5 can proper to increase the quantity of installing.
