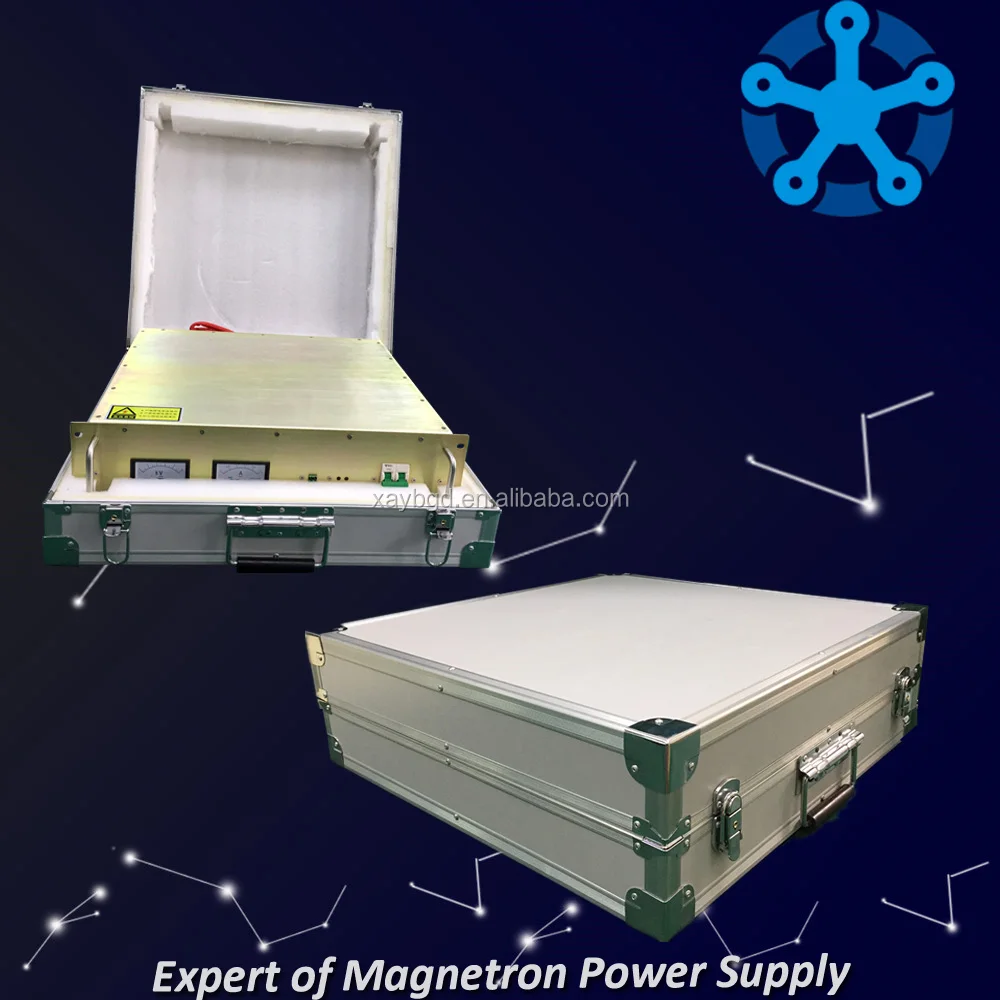

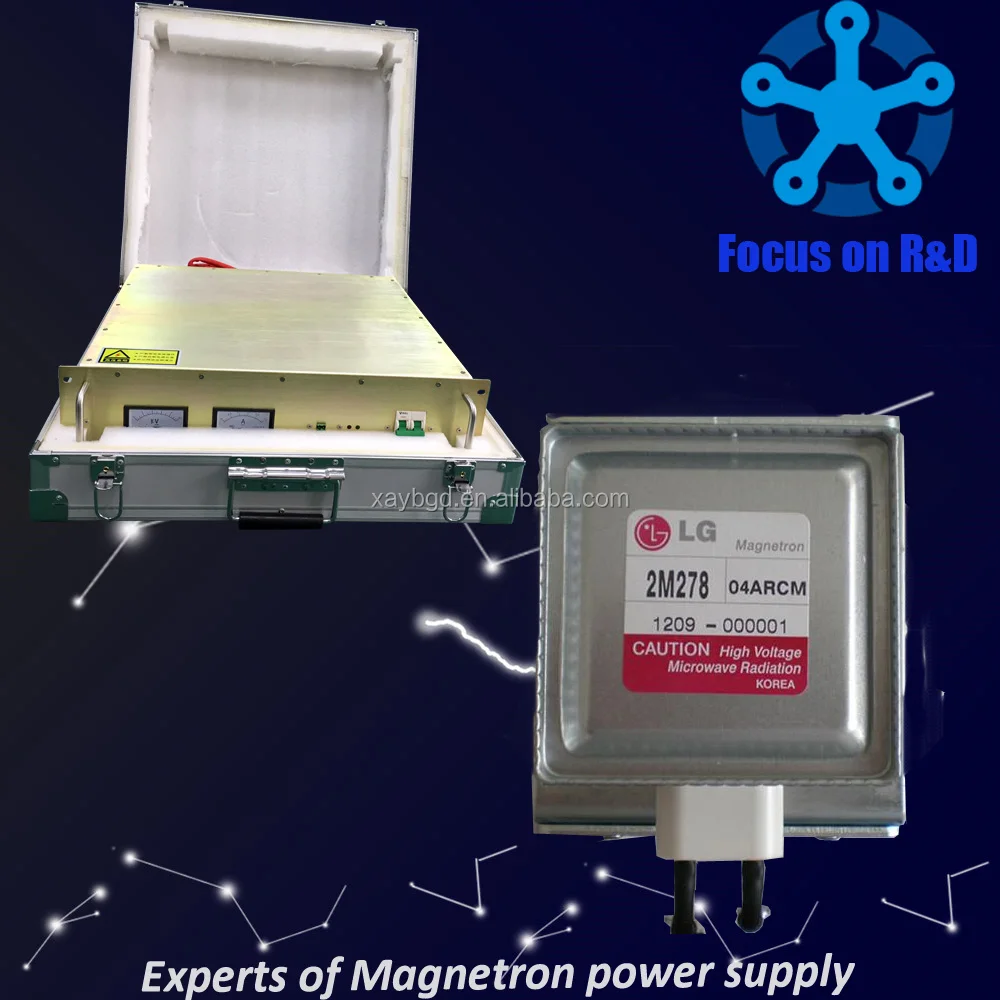

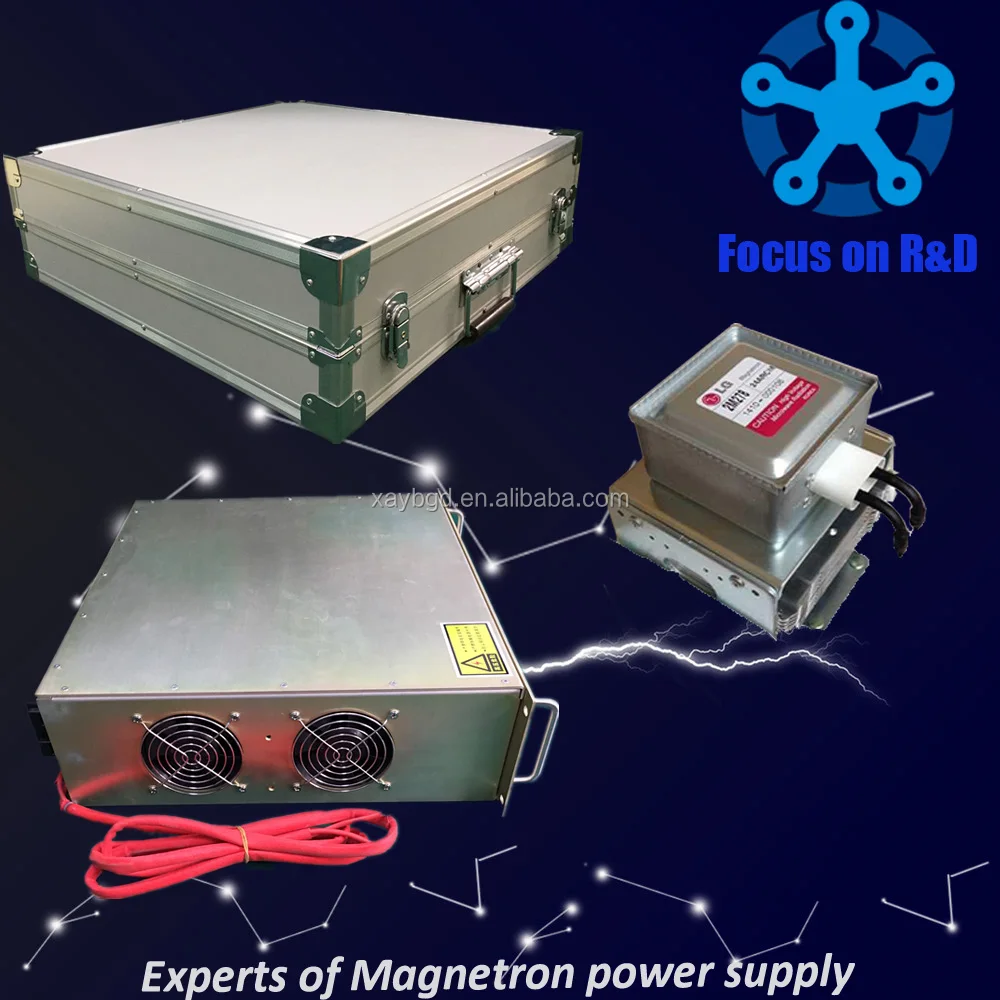

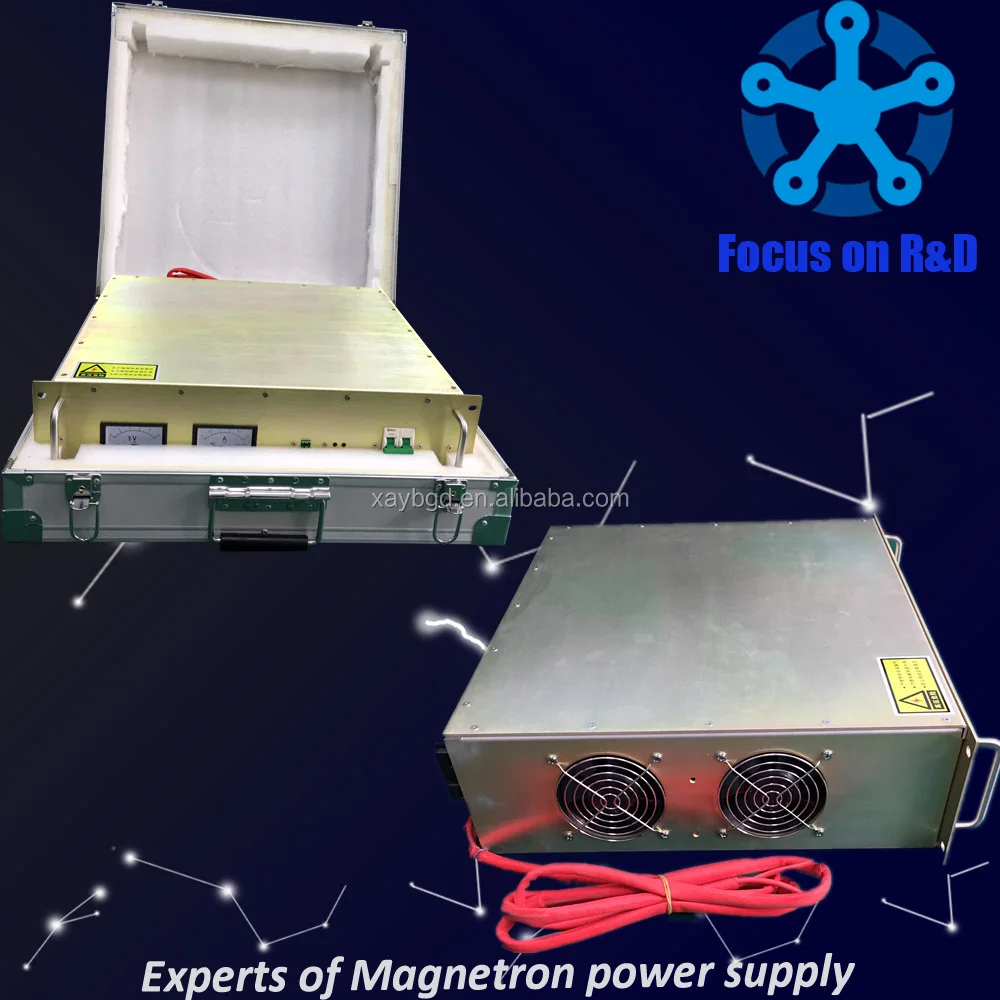

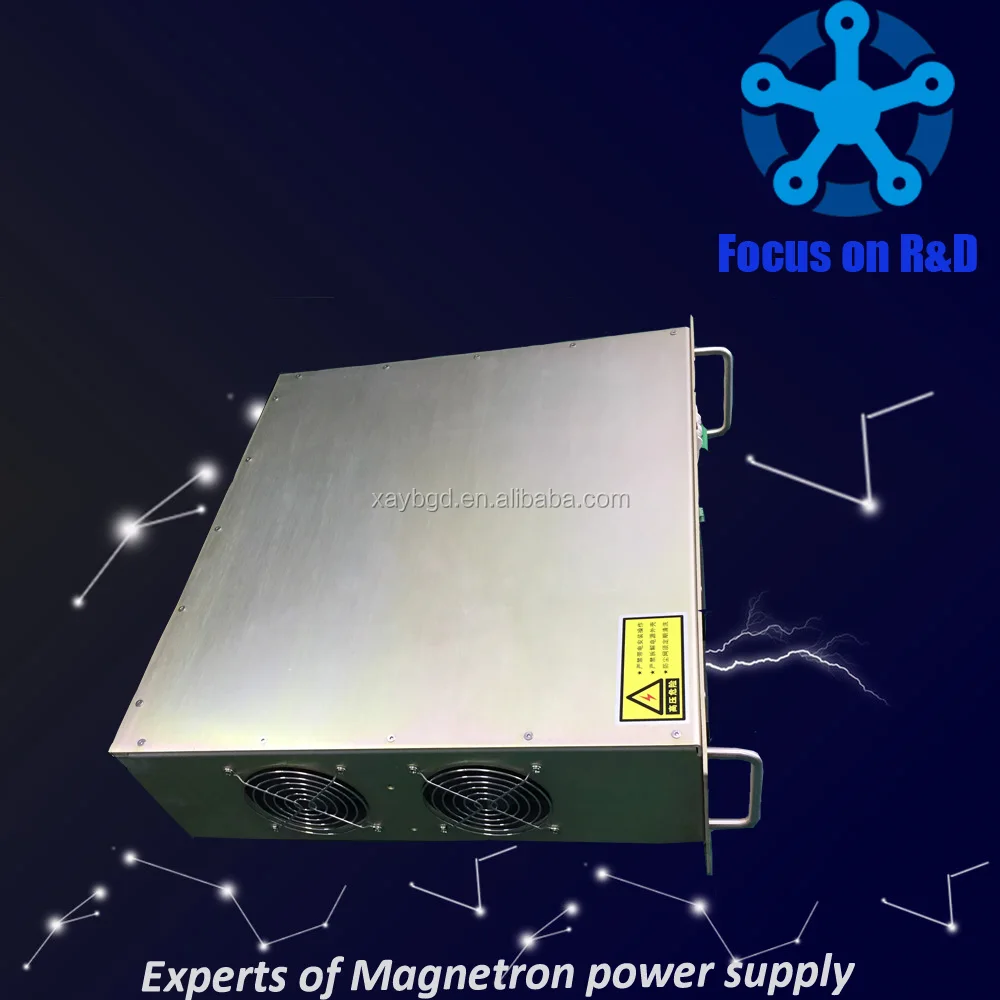

2000w 2kw magnetron power generator for microwave dryers

Product Overview

Description

2000w 2kw magnetron power generator for microwave dryers



Specifications

Model		YB-MP2000S	YB-MP2000V
Input	Input Voltage Range	185-265VAC	185-265VAC
	Frequency Range	50-60Hz	50-60Hz
	Input Current	0~15A	0~15A
	Input Power	0~3.8KW	0~3.8KW
Output	cathode Voltage	4200V/4600V (set according to magnetron)	4200V/4600V (set according to magnetron)
	Anode Current	750mA(Max)	750mA(Max)
	Filament Voltage	3.3V~5V/20A	3.3V~5V/20A
	Filament Current	18-20A	18-20A
	Output Power	0~3.2kW	0~3.2kW
	Efficiency	≥ 85%	≥ 85%
Power Control Mode		RS485 Communication,Software	0~5V Signal Control (0~100%)
Environment	Operating Temperature	-30~65℃ Recommended; OTP in 75℃
Cooling Method	Forced air cooling
Grounding Method	Shell + Wire Connection
Installation Forms	See the User Mannual
Fault Alarm	Indicator and Remote Alarm Interface
Size/Weight	443 (L) x 400 (W) x 130 mm (H) / 10 kg
Warning and safety	(1)Warnning:Over 8kV will be generated when YB-MP2000 operates.
	(2)All the connection, installation and operation of YB-MP2000 should be conducted by professional specialists following the instruction
	(3)Be aware that the power supply should be handled with the same as 8kV power line!
Note	(1)All the installation and connection operation of YB-MP2000 should be conducted only under power off condition. No direct or indirect contaction when operating!
	(2)Openning or destroying the case, accessory lines, terminals or others is forbidden.
	(3)It's forbidden to extend the output high voltage line!





Features

       Magnetron Adaptable:2M259G, 2M259-M12, 2M259-M10,2M130-70,2M130-71,2M262,2M278-24,MB2568

(1)Cost performance ,High efficiency, small ripple, unpollute for power grid;
(2) Conversion efficiency, compared to other power sources more energy-efficient;
(3)Allow the magnetron to achieve the best working point;
(4) Power adjustable, voltage signal control;
(5) Has a soft switching function, support multiple power and machine use.
(6) Can drive a variety of long-term work magnetron;
(7) Undervoltage, overvoltage, over-temperature protection;
(7) Wide input voltage range, 185-265V / 50-60Hz AC input stability;

(8)Forced air cooling by built-in 2 DC fan,Operating Tempreture :-30℃-65℃

(9)Protections: Short circuit / Overload / Over voltage/Under voltage ,moisture / corrosion / rust



(10)Small size, light weight, easy to install.
