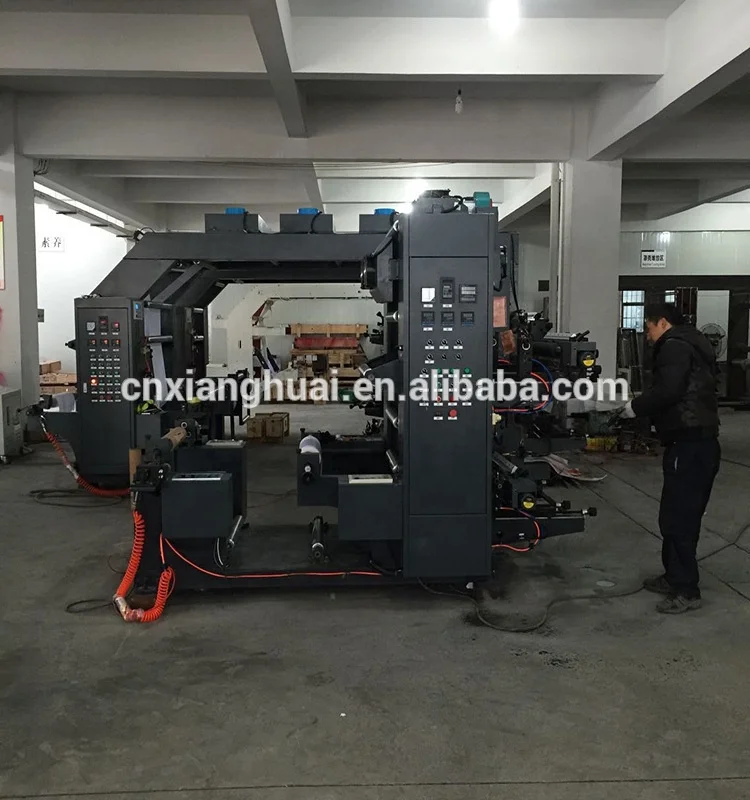

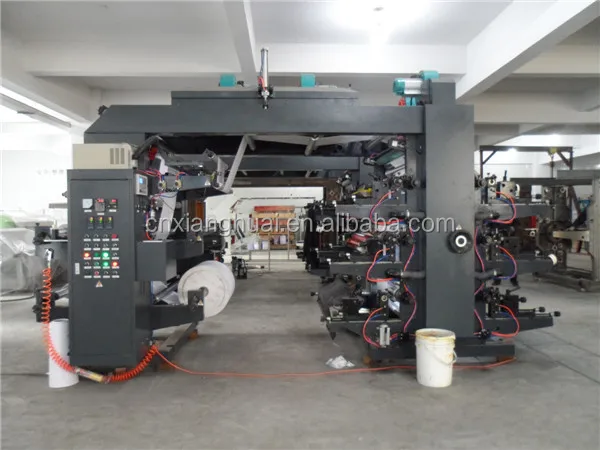

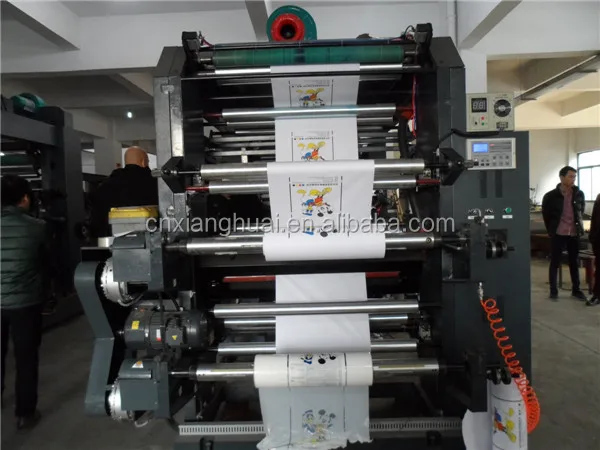

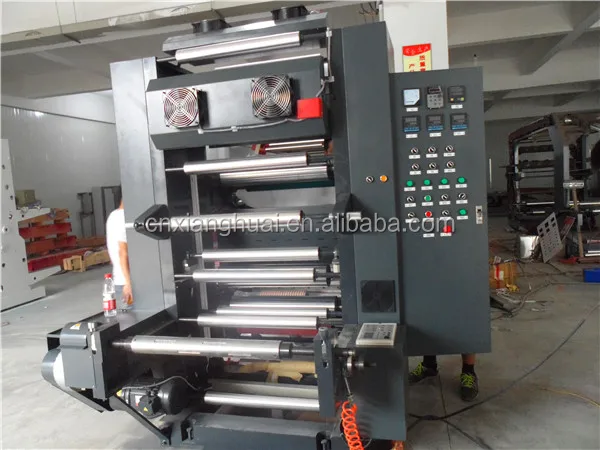

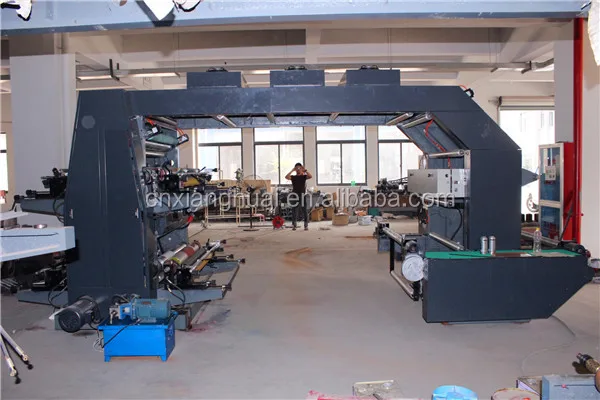

Paper Nonwoven Plastic Four Colors Shopping Bag Printing Machine Flex Printer

Product Overview

Description



Paper Nonwoven Plastic Four ColorsShopping Bag Printing Machine Flex Printer



1:Technical Parameter:

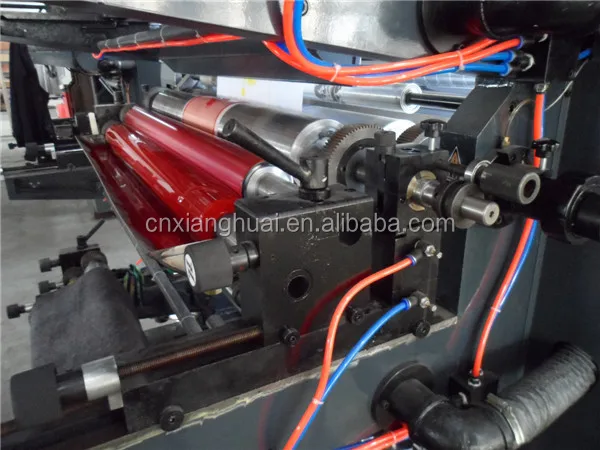

1) Ink Roller :Metal anilox roller

2) Ink :Adopt the automatic circle system ,running ink by single small motor

3) Timing :Adopt frequency speed control, small fluctuations running.

4) Unwinding and winding ways :Adopt magnetic powder tension control

5) Ink way :Ink input through the squeezing of Rubber roller and anilox roll

6) Up and down plate :Adopt the Hydraulicpressure rising and down the printing

   plate automatically

7) Smooth roller :Adopt the special steel processing ,and through the special

  technique treatment , and plating thickness of 8 silk protective layer of hard chromium, beat the following in the 0.03mm

8) Traction Rollers :Adopt Japanese production of small semi-enclosed bearings,

   with static balance and dynamic balance treatment, hard oxidation

   treatment, small resistance, small beating.

9) Drying device: Two sets with ventilation hair heating devices, which use a central heating temperature control system and the control group

10) Body: Thick wall ,  thick base, making the machine more stable.

2,Main Parameter:

1)Main Parameter
Model:	YT-42000mm
Max Width of Material	2000mm
Max.Width of Printing:	1960mm
Material:	Paper,Non-woven fabric,Woven Fabric ,Film(PE,PVC,OPP,BOPP,NY:15~120μm,PET:15~100μm,CPP)and so on
Printing color:	4colors
Max.Length of Printing	200-1100mm
Machinery mechanical speed	10-90m/min
Max.Speed of Material Printing	10-80m/min(according to the printing materials)
Thickness of Plate (including the glue)	2.28mm
machine weight	7500Kg
machine dimension (L×W×H)	6.0m×3m×2.5m

 printing sample
