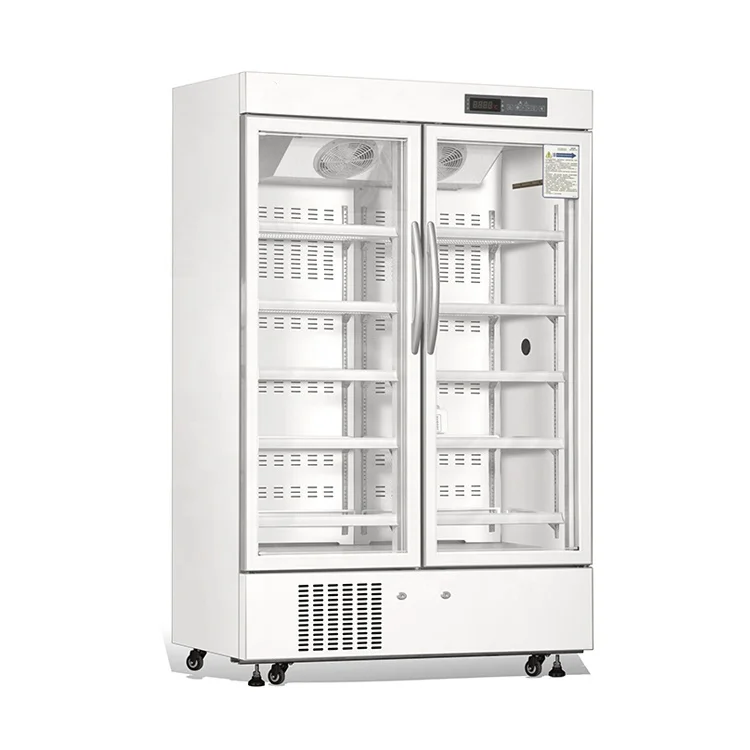

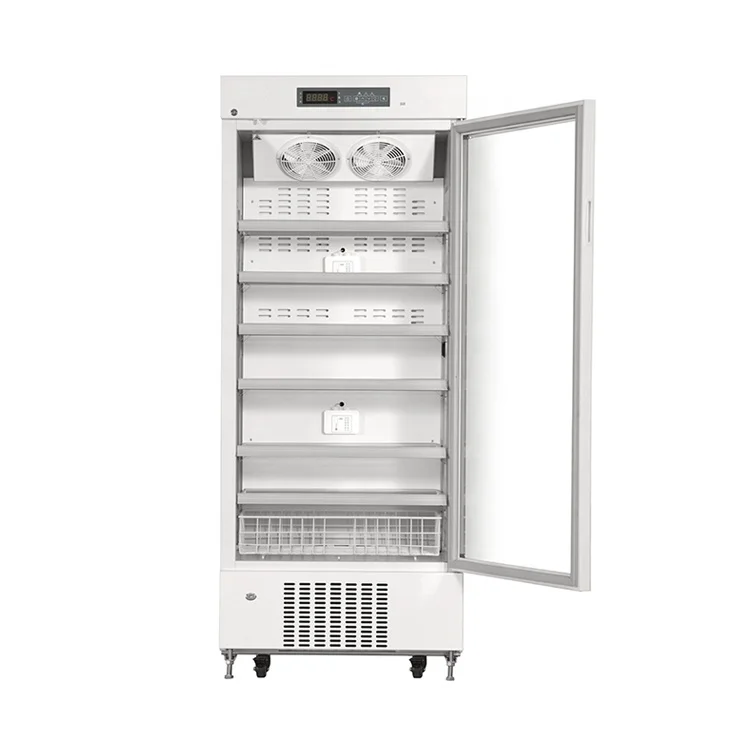

Drawell Freezer 2~8 Degree Upright Pharmaceutical Refrigerators
Drawell Freezer 2~8 Degree Upright Pharmaceutical Refrigerators
Drawell Freezer 2~8 Degree Upright Pharmaceutical Refrigerators
Drawell Freezer 2~8 Degree Upright Pharmaceutical Refrigerators
Drawell Freezer 2~8 Degree Upright Pharmaceutical Refrigerators
Drawell Freezer 2~8 Degree Upright Pharmaceutical Refrigerators
Drawell Freezer 2~8 Degree Upright Pharmaceutical Refrigerators

Drawell Freezer 2~8 Degree Upright Pharmaceutical Refrigerators

Share on (60685958109):


Price:

Quantity:


Product Overview

Description







Products Description

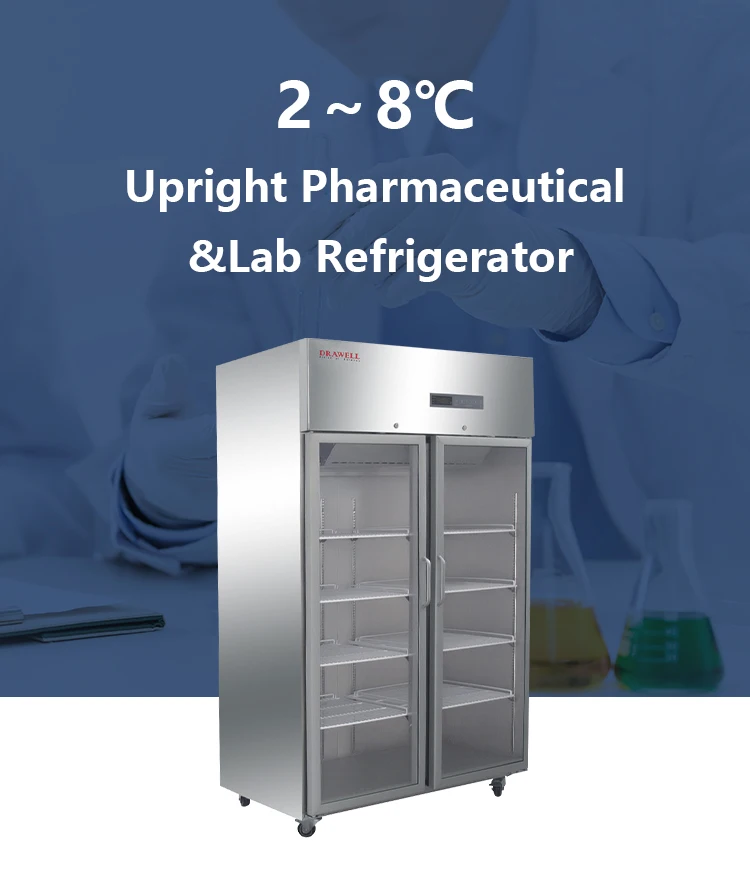

2~8°C Pharmacy Refrigerator
Features
Accurate temperature controller, ensure the inside temperature within 2~8°C and accuracy 0.1 °C.

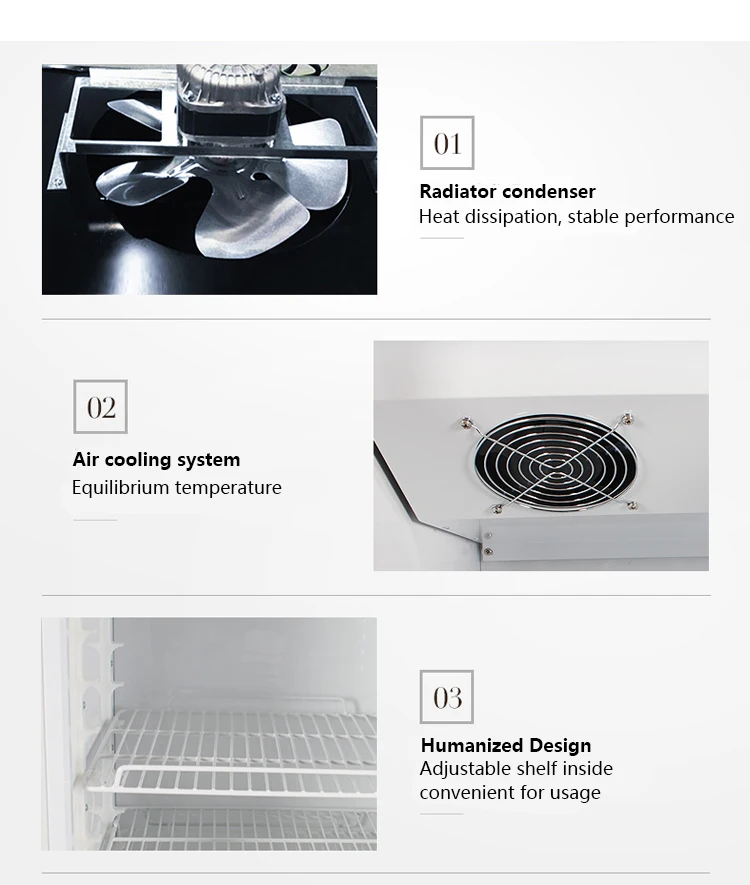

Specially designed forced-air cooling system, circulating air cold back blowing technology,ensure frost-free cabinet and good temperature uniformity.
Suggested ambient temperature: 10~32°C.
Double-layer hollow insulation LOW-E glass door,use light reflection to prevent condensation.
Color spray steel plate inner chamber for friendly using and easy cleaning.
Wide available voltage range: 187V~242V

Humanized design
4 Adjustable bottom foot design for easy adjustment of height and fixation
2 adjustable steel wire impregnated plastic shelf for easy storing.
Special designed service-free drainage system, ensure no water in the cabinet.
Auto on/off LED light with manual switch on control panel.

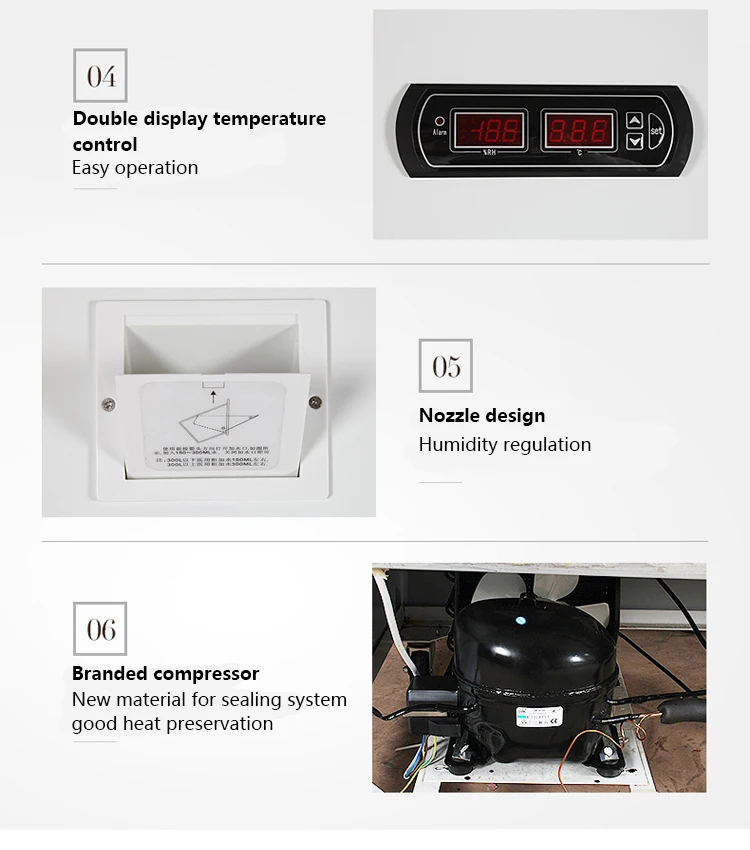

LED digital display can display inside the machine temperature and alarm information
1 Standard test holes for easy installation of temperature recorders

Warranty
Whole machine warranty for one year, provide free accessories and technical support


Model

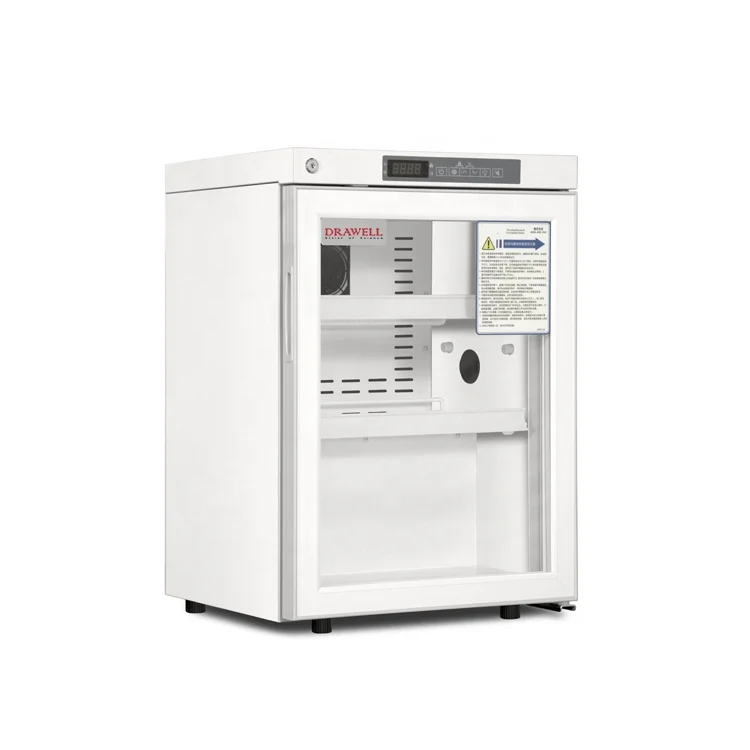

MPC-5V60G
MPC-5V100

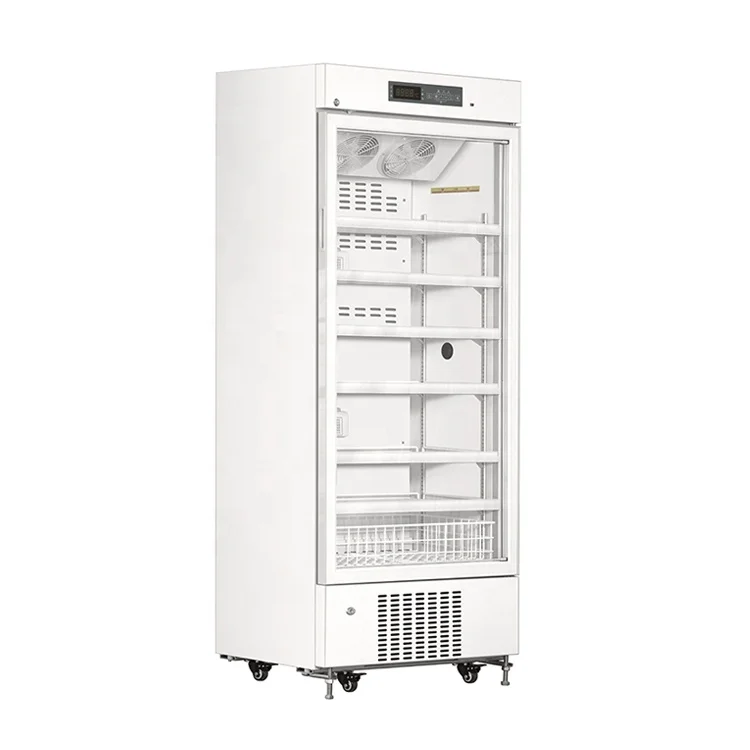

MPC-5V316

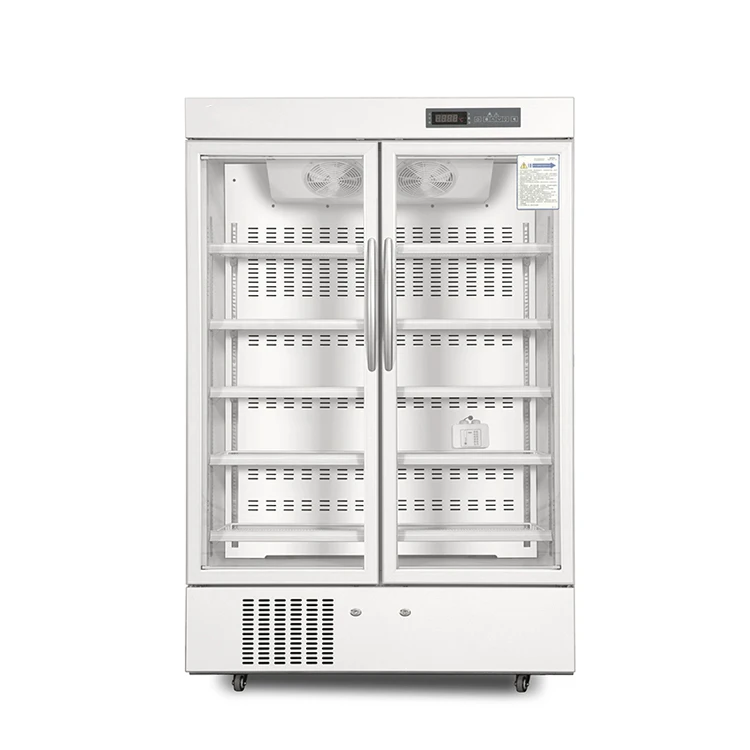

MPC-5V656
Shelf/drawer
Shelves/2
Shelves/3
Shelves/5
Shelves/10
Cooling method
Forced Air Cooling System
Forced Air Cooling System
Forced Air Cooling System
Forced Air Cooling System
Defrost
Auto
Auto
Auto
Auto
Refrigerant
R600a
R600a
R600a
R600a
Power consumption(kWh/24h)
0.84
80W
1.78
5.75
Noise（db)
50
50
50
52
Ambient temperature（℃）
10~32℃
10~32℃
10~32℃
10~32℃
Temperature range（℃）
2~8℃
2~8℃
2~8℃
2~8℃
Compressor brand/QTY
China Brand/1
China Brand/1
China Brand/1
China Brand/1
Sensor Type
NTC
NTC
NTC
NTC
Temperature controller
Microprocessor
Microprocessor
Microprocessor
Microprocessor
Display
Digital display
Digital display
Digital display
Digital display
Voltage/frequency（V/Hz)
220/50Hz
220/50Hz
220/50Hz
220/50Hz
Power（W)
72W
80W
240W
385W
Current（A)
0.59A
0.8A
1.2A
2.3A
Inside material
Color sprayed steel
HIPS
Color sprayed steel
Color sprayed steel
Outside material
Color sprayed steel
Color sprayed steel
Color sprayed steel
Color sprayed steel
Insulation
PURF
PURF
PURF
PURF
Capacity（L/cu.ft)
60/2.11
100/3.53
316/11.15
656/23.16
NT./GT.（kg)
33/37
35/38
92.5/100
166/184
Exterior size(W*D*H)(mm)
495*450*710
505*510*875
660*555*1915
1240*630*1895
Interior size(W*D*H)(mm)
410*315*560
385*356*737
540*425*1380
1100*454*1325
Package size(W*D*H)(mm)
558*510*760
580*580*940
710*640*1970
1335*710*2000
CBM
0.22
0.32
0.90
1.90
20GP/40GP/40HQ
44/92/92
40/80/80
27/54/54
12/27/27
High/low temperature
Y
Y
Y
Y
Power failure
Y
Y
Y
Y
Thermostat failure
Y
Y
Y
Y
Backup battery failure alarm
/
/
/
/
Condenser fault alarm
/
/
/
/
Ambient Temperatures
/
/
/
/
Voltage abnormality alarm
/
/
/
/
Door ajar
Y
Y
Y
Y
Foot
Y
Y
Y
/
Castor
/
Y
Y
Y
Outer door/Type
1/Glass/Low-E
1/Glass door
1/Glass /Low-E
2/Heating glass door with automatic rebound
Door Lock
1
1
1
2
Test hole QTY/diameter
1/25mm
/
1/25mm
1/25mm
Lamp
LED
LED
LED
LED
USB port
/
/
/
/
Temperature recorder
Optional
Optional
Optional
Optional
Power failure backup system(alarm)
8h
8h
8h
8h
Remote alarm port
Y
/
Y
Y
RS232/485 port
/
/
/
/








Application Field




Certifications




Company Profile




Drawell International Technology Limited is a leading company of manufacturing and selling laboratory equipment and scientific instruments, founded in year 1999 in China, then has become an joint venture company after being invested by US company since 2014.
DRAWELL is specialized in laboratory equipment and medical instruments: Face Mask, Stirrer, PCR, Spectrophotometer,
Refratometer, Chromatography, Centrifuge, Incubator, Balance, Raman, AAS, FTIR, XRF and etc. They are widely used in
Pharmaceutical &food QC, educational research, environmental science, chemical industry and other areas. Meanwhile, we are committed to explore the different markets by attending the exhibitions oversea including Arablab, PICCTON, Analytica Russia, Lab Africa, Analytica Germany , Analytica Latin America etc. Now DRAWELL already has established business relationships with customers from more than 50 countries, and has enjoyed the good reputation through reliable quality, reasonable price and professional service .


Exhibition




Logistics & payment




FAQ


Q1. Are you factory or trading company? We are a factory.

Q2. What's the MOQ ?
(1). Normally,MOQ is 1 piece. But if the items are in stock,there is no MOQ.The quantity is according to the clients requires.
(2). If there is no stock,the general MOQ are in big difference due to the different products. But the quantity still can be
negotiated.

Q3. What is your principle for the samples ?
We do not provide free sample.

Q4.Which payment can be acceptable ?
We could accept the payment by L/C, T/T, Paypal, Western Union,etc.

Q5. How about your delivery time?
Generally, it will take 7 to 15 working days after receiving your advance payment.Depend on the quantity.

Q6. Certificate & Quality.
CE and ISO certified for most products. Good quality firstly to avoid any defective products, Protective packaging to avoid
destroy during delivery.

Q7.Language.
Pure English operation panel, display , manuals ; installation & operation videos will be provided to you as a guidance

Q8.Service
We could provide Online instruction; Real-time support by video-call or voice-chat,During warranty time, we can send product accessories when you need for free;Technical guidance is free and ready forever.

Q9.Training
Your technicians can come to our factory for training , Drawell engineers can go your place for local support( installation ,
training, debugging, maintenance);Products can be customized according to your requirements; OEM service is available with customers' brand.
