Product Overview
Description
Product Description
Main Features
1)Laser carving on wood,PVC, Metal Optional
2) Cutting force Max 800g, Support Cutting force test and adjsut
3) Camera/Scanner + ARM 7.0+8MB Cache+4.3" Full Touch Screen
4) USB, U disk connection. WIFI, Mobile APP optional
5) Dual spring wheel pinch, high precision steel roller
6)Multi language, SignMaster Cut Software, Stand available
7)Support Contour cutting, Repeat Cutting, Auto Calibrating offset value
Specification for 16 inch Laser Vinyl Cutter | ||||||
Model | MM-CAH16-B-L | |||||
Acceptable media width | 500 mm | |||||
Max cutting width | 410 mm | |||||
16 inch | ||||||
Cutting head | Laser engraving head+Single vinyl cutting head | |||||
Camera/Scanner | Support | |||||
Auto Contour cutting | Fast ,automatic and high precision contour cut by using camera. | |||||
Operation | 4.3" TFT LCD Large touch screen | |||||
Interface | HD large screen full-color APP information function display | |||||
Connector | USB, U disk. WIFI Optional | |||||
Contour cutting & calibration | Easy use and high precision calibrate | |||||
Mainboard | 32bit ARM cortex M4 MCU,8M memory. Support remote one key update. | |||||
Location mode | Bound system. set origin freely | |||||
Driver | Digital DC stepper motor,microstep driving | |||||
Command | HP-GL, DMPL | |||||
Max moving speed | 750mm/s | |||||
Max cutting speed | 600mm/s | |||||
Max cutting thickness | 1mm | |||||
Force | Single head: 50g~800g ( 160 setting adjustable ) | |||||
Cutting precision | < 0.01mm | |||||
Repeat precision | 0.082mm | |||||
Power supply | AC100~240V/50Hz~60Hz | |||||
Working environment | +5℃~ +45℃，relative humidity 30%~70% | |||||
Color | White/black/red（optional） | |||||
Bracket | YES | |||||
Size | 765*307*267mm | |||||
Packing G/N weight | 9.0 / 6.9kg | |||||
Software | SignMaster Cut / Flexi / Signcut / CorelDRAW driver Available | |||||
Operation system | Windows 2000 / XP / 2003 / win7 / 2003 / win7 /win10 | |||||
MAC OSX10.2.8 or above | ||||||
Product Application
Plotter Advantages
Detailed Images
Camera/Scanner + ARM 7.0
It can Automatic Registration Mark Detection to swift Automatic Contour cutting, and Automatic Calibrating offset value, Automatic Repeat Cutting. Support remote one-key upgrading.

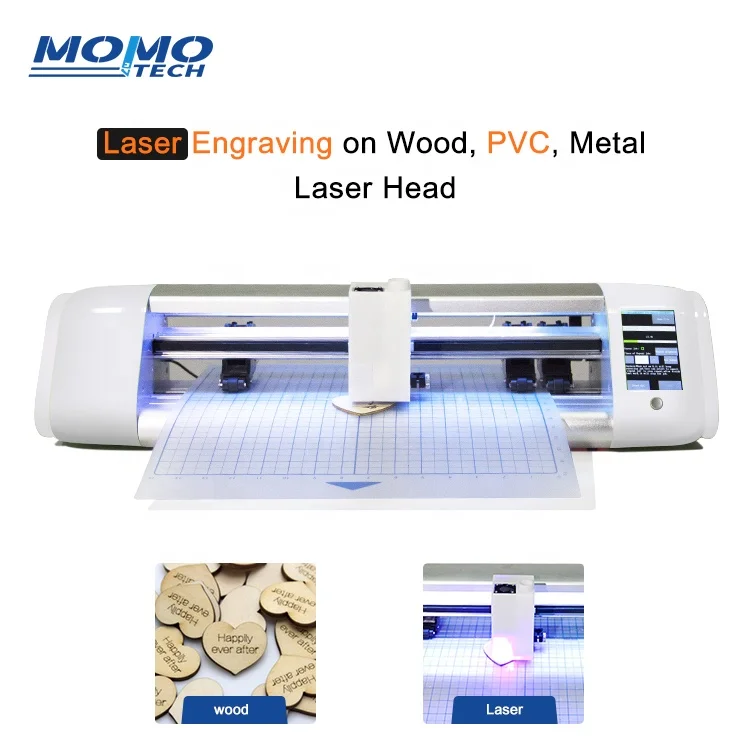

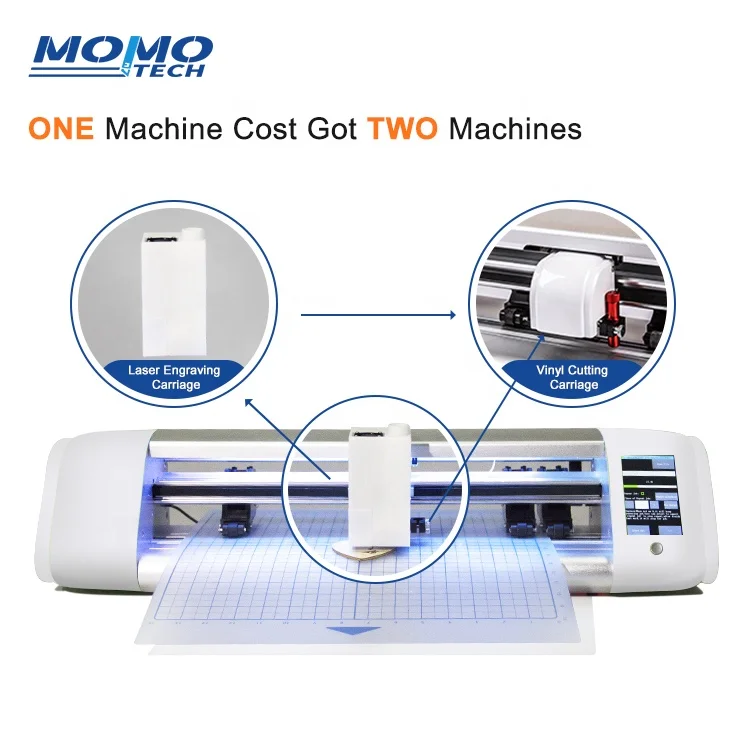

Laser Carving/Vinyl Cutting
Laser carving on wood, Metal, PVC for more material, but also support vinyl cutting machine for sticker, decals,vinyl lettering and so on. One machine bring you two machine experience.

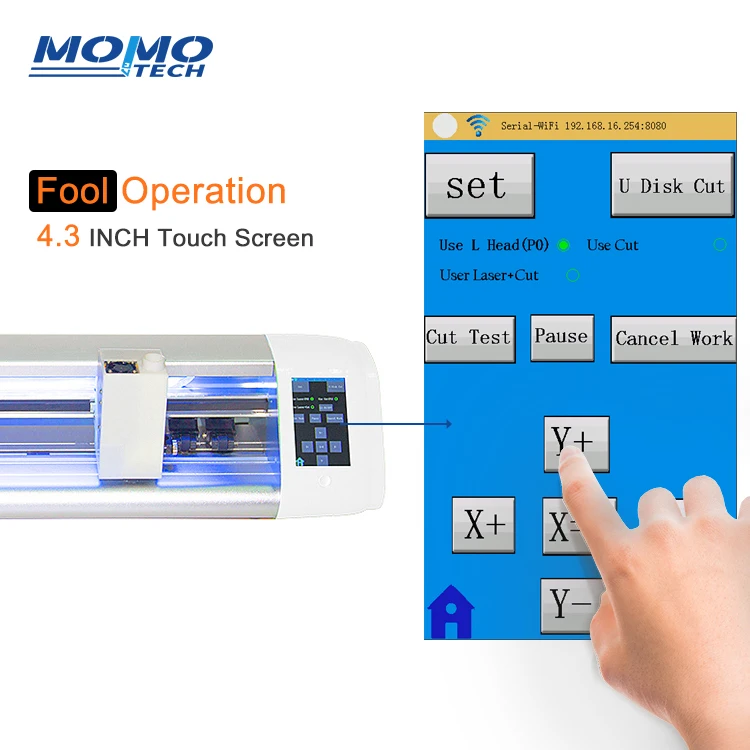

4.3 inch Large Touch Screen
Settings can be easily set up using the large 4.3-inch LCD
Usb, U disk, WIFI, Mobile App
Multi-way to meet more demand.
USB plug&play, no need USB driver
U disk support offline cutting
WIFI stable than bluetooth
Mobile App remote data transmit for cutting
