12V AC to 12V DC 5A 6A 8A 10A Converter 12VAC Convert to 12VDC Car CCTV DVR Security Camera Power Supply
- Category: >>>
- Supplier: Shenzhen Fulree Electronics Co. Ltd.
Share on (60685987124):
Product Overview
Description
12V AC to 12V DC 5A 6A 8A 10A Converter 12VAC Convert to 12VDC Car CCTV DVR Security Camera Power Supply
Hot Sale
Product Description
Product Name | ||
Brand | Fulree | |
Model No. | AD121205L/AD121206L/AD121208L/AD121210L | |
Module Properties | non-isolated module | |
Rectification | synchronous rectification | |
Input | ||
Input Voltage | AC 12V | |
Input Voltage Range | AC 12-26V DC 15-40V | |
Output | ||
Output Voltage | DC 12V | |
Output Current | 5A / 6A / 8A / 10A Max | |
Output Power | 60W / 72W / 96W / 120W Max | |
Conversion Efficiency | 85% | |
Voltage regulation | ±1% | |
Load regulation | ± 2% | |
Ripple (Full load test) | < 150mV | |
No-load current | <100mA | |
Working Temperature | -40~80℃ | |
Waterproof Rating | IP68 | |
Protection | Over-current protection | |
Overheat protection | ||
Application | Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts GPS Navigation, Monitoring, Air conditioning LED car display, DVD, LED bulb lights Wind Power System, Solar Panel Power System Electrical appliances, water pumps, industrial equipment, telecommunications and so on. | |
Certification | CE/RoHS | |
Case Material | Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on | |

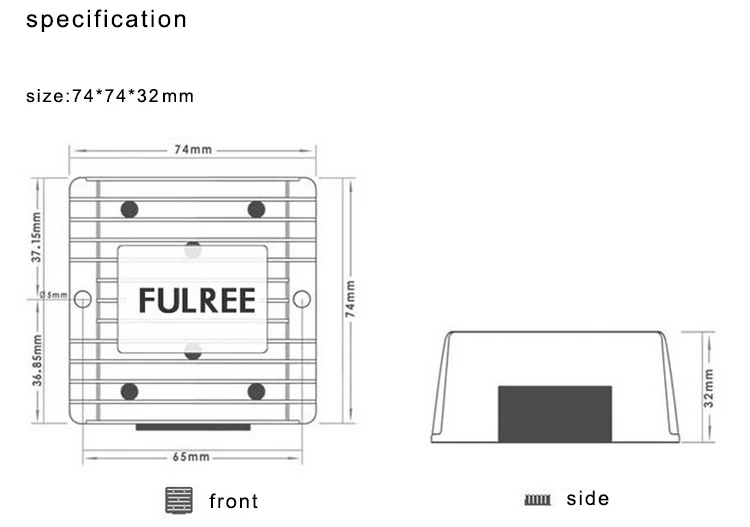

Product Size (L x W x H) | 74*74*32mm | |
Product Weight | 280g | |
Warranty | 12 months, lifetime up to 100,000 hours | |
Cooling Way | Free air convection | |
OEM&ODM Service | Accept | |

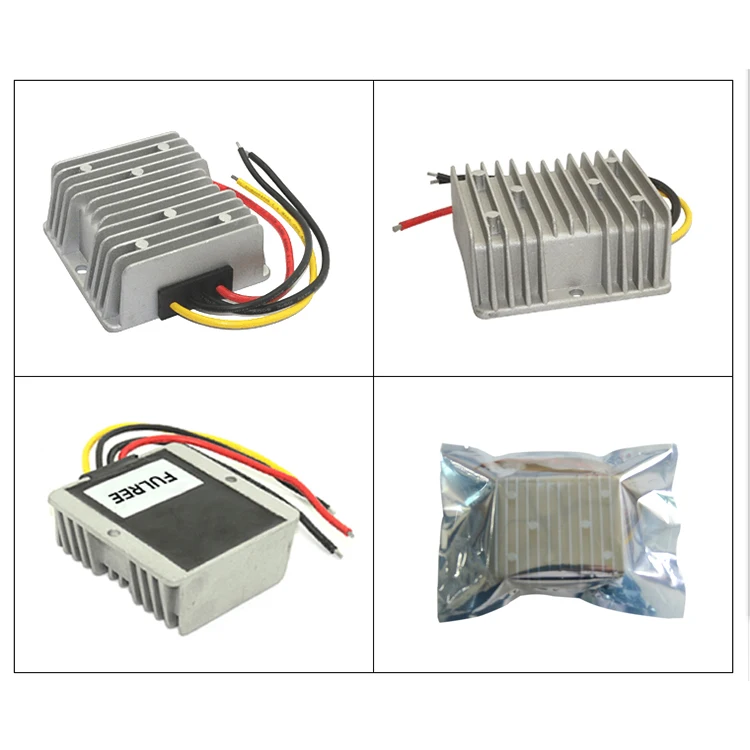

Product Picture
