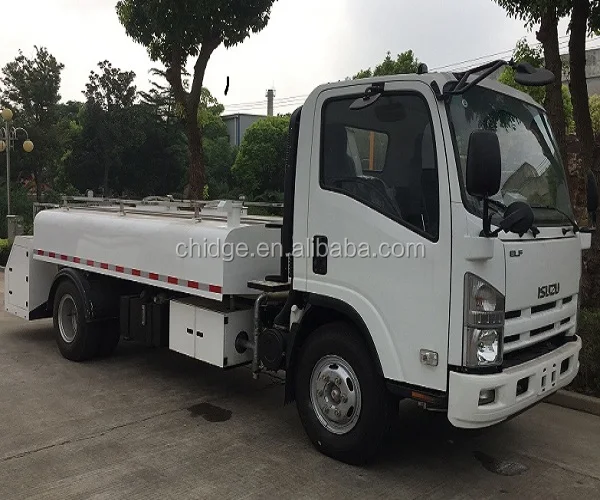

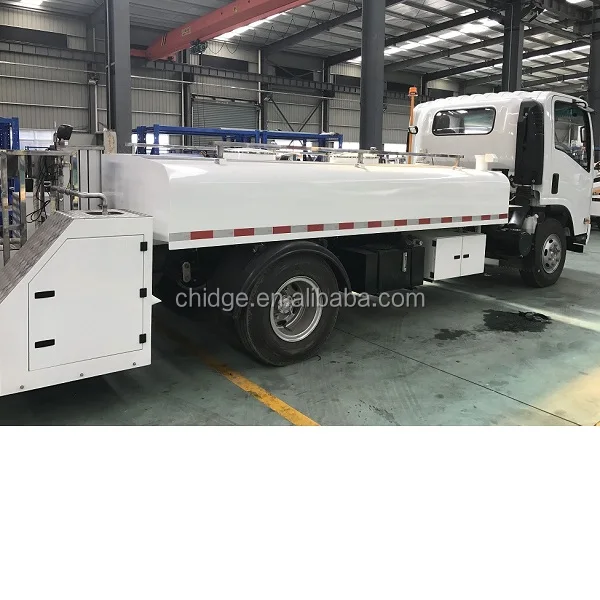

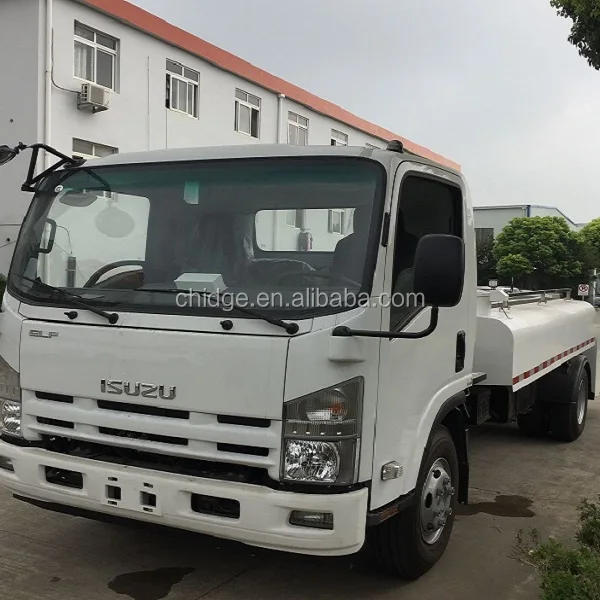

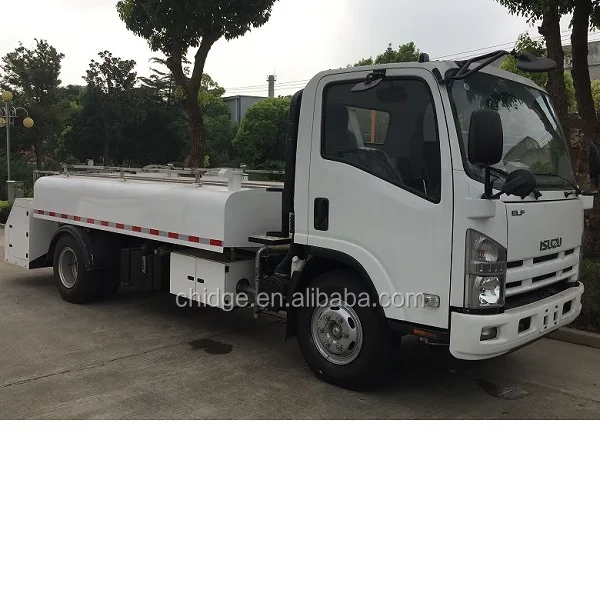

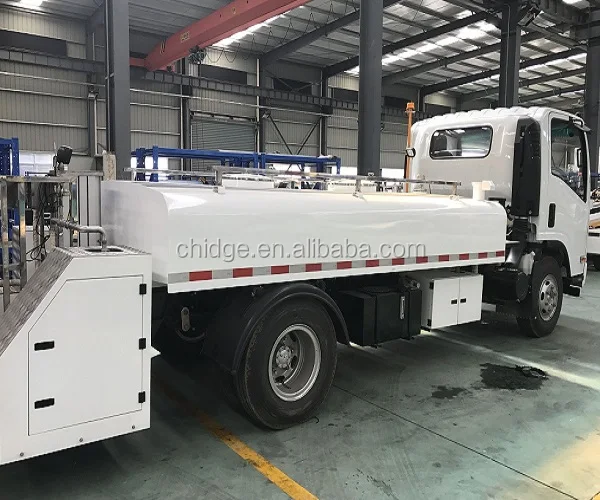

Aircraft potable water truck for ground support equipment

.CD-QS40 aircraft clean water truck is a new type water truck using Qingling QL11009KAR type chassis modifying into aircraft filling water in special for Airport . The truck is designed as a rear lifting platform with a large capacity water tank in it, wherein the night lifting lamp is arranged in the lifting platform, which is convenient for night operation. The chassis cab is flat, single row seat, two door, 3 seats; drive type is 4 * 2, water tank volume is 4000L for the water flow is 120L/min fand.

Main Features

Specification

Whole size（L×W×H）：7100×2105×2300

Tank capacity：4000L

Loading（empty loading）：4434kg

（full loading ）：8564kg

Departure angle：6.8°

Approach angle：23°

Min turning radius：7m

Min ground clearance：240mm

Water pump：Stainless corrosion resisting centrifugal pump

Speed：2900r/min

Flow：100～120L/Min

Pump lift：50m

Hydraulic pressure：5Mpa / 12Mpa

Supplying water pressure：0.25～0.35 Mpa
