Grandstream Wifi VoIP ATA HT701
- Category: >>>
- Supplier: Shanghai Kaifei International Trade Co. Ltd.
Share on (60686193548):
Product Overview
Description

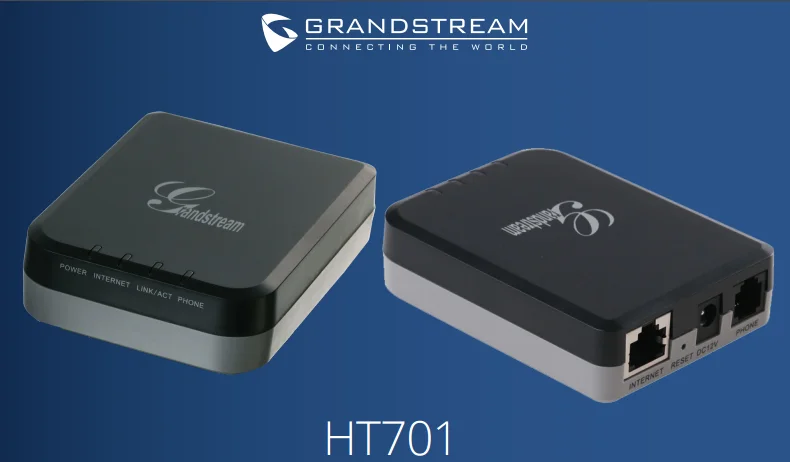

Grandstream Wifi VoIP ATA HT701
Product Description
An easy-to-use 1-line ATA
HT701
The HT701 is a 1-port analog telephone adapter (ATA) that allows users to create a high-quality and manageable IP telephony solution for residential and office environments. Its ultra-compact size, voice quality, advanced VoIP functionality, security protection and auto provisioning options enable users to take advantage of VoIP on analog phones and enables service providers to offer high quality IP service. The HT701 is an ideal single-port ATA for individual use and large scale commercial IP voice deployments.

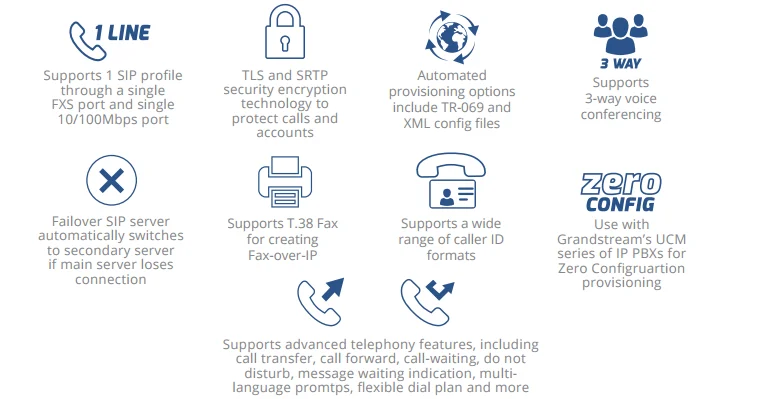

Highlights
- 1 FXS analog telephone port, 10/100 Mbps port
- Advanced telephony features include caller ID, call waiting
- Supports up to 1 SIP account
- Status LED for power, internet, LINK/ACT and phone status
- 3-way voice conference, transfer, forward, do not disturb, message indicator, multi-language voice prompts, T.38 fax, flexible dial plan and more
Specification
| Interfaces | |
| Telephone Interfaces | One (1) FXS port (RJ11) |
| Network Interfaces | One (1) 10/100Mbps auto-sensing ethernet ports (RJ45) |
| LED Indicators | Power, Internet, LINK/ACT |
| Factory Reset Button | Yes |
| Voice, Fax, Modem | |
| Telephony Features | Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference |
| Voice Codecs | G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729A/B, G.726, iLBC, OPUS, dynamic jitter buffer, advanced line echo cancellation |
| Fax Over IP | T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through |
| Short/Long Haul Ring Load | 5 REN, up to 1km on 24AWG line. |
| Caller ID | Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID |
| Polarity Reversal/Wink | Yes |
| Signaling | |
| Network Protocols | s TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, PPPoE, STUN, SIP (RFC3261), SIP over TCP/TLS, SRTP, TR069, IPV4 |
| QoS | Layer 2 (802.1Q VLAN/802.1p) and Layer 3 (ToS, Diffserv, MPLS) |
| DTMF Method | In-audio, RFC2833 and/or SIP INFO |
| Provisioning and Control | HTTP, HTTPS, TELNET, TFTP, TR-069 , secure and automated provisioning using AES encryption, syslog |
| Security | |
| Media | SRTP |
| Control | TLS/SIPS/HTTPS |
| Management | Syslog support, telnet, remote management using web browser |
| Physical | |
| Universal Power Supply | Input: 100-240VAC, 50-60Hz Output: 12V VDC/0.5A |
| Environmental | Operational: 32º – 104ºF or 0º – 40ºC Storage: 14º – 140ºF or -10º – 60ºC Humidity: 10 – 90% Non-condensing |
| Dimension and Weight | 25mm x 65mm x 86, 0.31kg |
| Compliance | FCC (Part 68 & 15B), C-Tick, AS/NZS CISPR22, CISPR24, CE, EN55022, EN55024, TBR21, EN60950, EN61000-3-2, EN61000-3-3, UL (Power supply) |
Certification -G
Kaifei
Company overview:
Shanghai Kaifei International Trade Co., Ltd. , which provides main services in terms of broadband communications and information technology industries, is a research and development, production, sales, service integration, high-tech enterprises. Our products mainly cover the optical signal transmission and access, signal transmission and access, photoelectric signal conversion and photoelectric signal and so on.
We are now the agent of well-known international brands such as HUAWEI, ZTE, CISCO, ZYXEL,
Grandstream, etc. Our customer include major national telecom carriers, as well as radio and television, electricity, mining and other industry professional network users; We have already established a long-term friendly and cooperative relations with them. In addition, the company has been actively expanding into foreign markets. The products are exported to Europe, America, Southeast Asia, the Middle East as well as Japan, Korea and other neighboring countries.
We will constantly improve our service and quality to create a win-win situation.
Please contact us to know details.
