More Lifting Weight High Floor Building Safe Concrete Crane

Share on:

Price:RUB 7,933.47 - RUB 35,700.62
Price in USD:Details


Product Overview

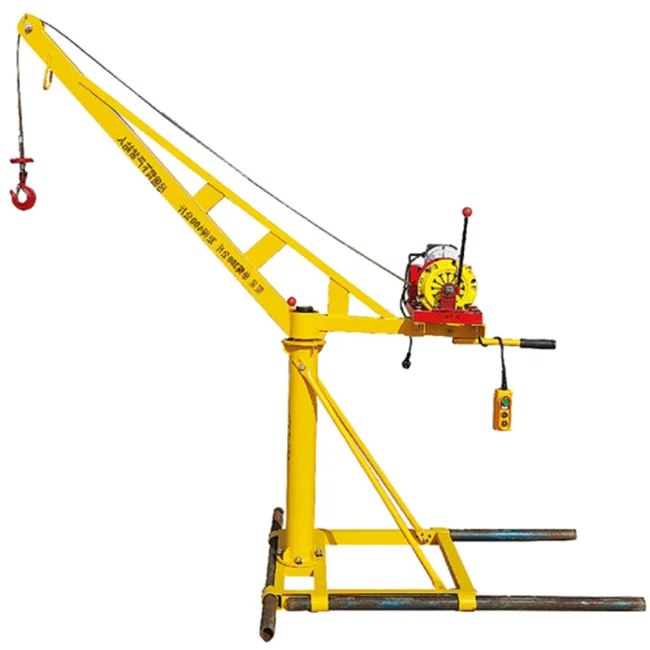

More Lifting Weight High Floor Building Safe Concrete Crane




Product Description

Product Description of Concrete Crane


This type of mini crane has the models of the 08-Type 400kg, 08-Type 600kg and 08-Type Reinforced, the advantages are as below,

1. This type can be rotated for 360 degrees which can solve the problems of the rope twisting and difficulty in rotation during the work.

2. The winching part changes the disadvantage of the short lifespan of the turbine reducer to make the electromagnetic braking motor much more powerful.

4. The electricity type is designed with the clutch device to win the fast speed when falling down to improve the efficiency.

5. The most important is that the rotation part is installed with the automatic positioning device which will be much more safe.

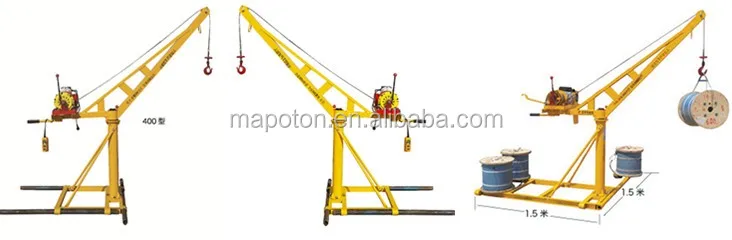

08-Type 400KG

08-Type 600KG

08-Type 400 Reinforced

Part Lifting Shelf

Detailed Specifications

Detailed Specifications

Detailed Specifications

1. Vertical Distance




2. Horizontal Distance

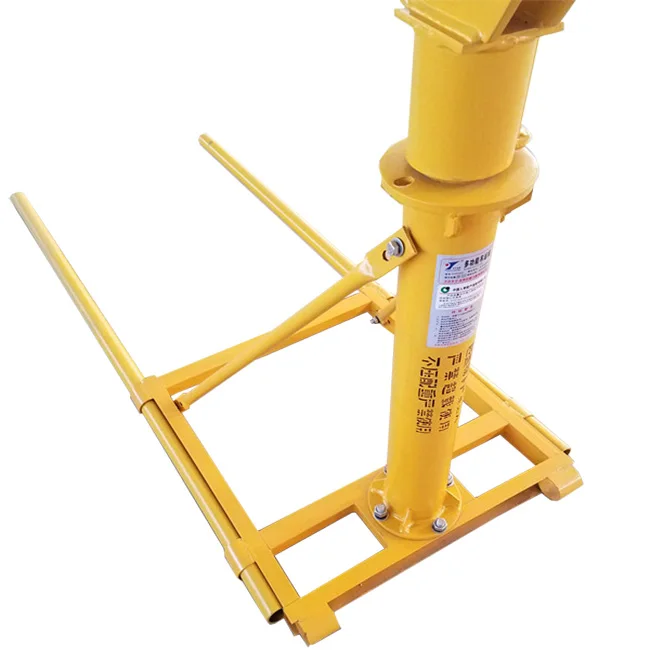

3. Bottom Frame

Welded by 75-80cm #8 national channel steel

Welded by 1m*1m #8 national channel steel

Welded by 75-150cm #8 national channel steel

4. Design Trend

Designed in 2008, adapt to different complicated working atmosphere

The rotation arm applies the national square tube 50*100*2.5cm, much more longer and wider, 1 times bigger than 400KG type

Newly designed adding a 1.5m long national loading steel tube, which acrosses the right bottom, much more safe

5. Cost Performance

Highest and the most popular type among all the outdoor lifting hoists

Much more firm and stable

1 times bigger than 400KG type

6. Round Column

National standard steel tube 110(length)*3.5(diameter)cm

Apply the national standard steel tube 130(length)*3.5(diameter)cm

National standard steel tube 110(length)*3.5(diameter)cm

7. Novel Advantage

Equipped with automatic positioning device, which can effectively prevent the left-right moving of the rotation arm to make it much more safe

8. Operation Way

Equipped with rotation handle to make it much more convenient for handle

9. Loading Weight

Standard loading weight : 400KG

Experiment loading weight: 550KG

Standard loading weight : 600KG

Experiment loading weight: 750KG

Standard loading weight : 400KG

Experiment loading weight: 550KG

10. Welding Treatment

Firm and durable for welding, no trachoma welds

11. Cover Material

Apply with the electrostatic spray kind with long lifespan. Fine workmanship.





A:Patent Platen Electric Engine With Clutch Kind

  1.jpg  2.jpg


B:Aluminum Electric Engine Without Clutch Kind


Details of Aluminum Electric Winch.jpg


A: Patent Platen Electric Engine With ClutchB: Aluminum Electric Engine Without Clutch
Power:1.35kw/1.85kw/2.3kw  50/60hzPower:1.35kw/1.85kw/2.3kw  50/60hz
Length of the Steel Rope:25m-80mLength of the Steel Rope:25m-80m
Type of Steel Wire Rope:Oily anti-rotation steel wire ropeType of Steel Wire Rope:Galvanized steel wire rope
Diameter of Steel Wire Rope:5.0mm  6.0mmDiameter of Steel Wire Rope:5.0mm  6.0mm
Loading Weight:300kg-350kg for single-ropeLoading Weight:300kg-350kg for single-rope
400kg-450kg for double-rope400kg-450kg for double-rope
Clutch:With clutchClutch:Without clutch


Why Choose Us?


Why Choose Us?



Packaging & Shipping





Customer Visit



1.Q: Are you the direct factory?

   A: Yes, we are the direct factory for 24 years even though we registered as a foreign trading company.

The address of our factory is : NO. 18 South Road, NO. 2 West Ring, Donglv Industry Zone, Qingyuan District, Baoding City, Hebei Province, China. Sincerely welcome to come and visit!

2.Q: MOQ?

   A: One set is ok.

3.Q: Can you accept payment terms?

  A: Alibaba Trade Assurance, T/T, Western Union, Credit Card, etc.

4.Q: Delivery time?

    A: If in stock,1~3 days;If not in stock,normal 5~15 days; Or according to the order.

5.Q: Warranty?

    A: One year for the electric engine. We can also provide permanent accessories repair and replacement services.

6.Q: Do your products can be customized?

  A: Yes,our all kinds of electric winch can be customized design according to each client's demands. And we can provide label and company name customized services.

7.Q: What kinds of certificates about your products?

   A: Normally,we have CE,BV,SGS,CUTR certificates,of course our products make some other certificates according to our clients' specific requirements.

8.Q: How to guarantee the quality and operation when the products leave factory?

  A: We test each parts of all products before products leave factory and guarantee the successful operation. No-test or failure-test products are prohibited leaving factory.

9.Q: We have a container in other factory or supplier, can you send cargos there?

 A: Yes, we will as long as you send us the detailed address of the place you want to send. Or it is also ok when you want to send other cargos to our factory.

10.Q: How can I get a accurate quotation?

  A: Tell and send us the product photo you want, electricity voltage, lifting height(length of the steel wire rope), lifting weight, quantities, FOB/CFR/CIF price or other detailed requirements.

11.Q: What is your HS code?

 A: 8428909090 for mini crane and aluminum electric winch; 8425110000 for mini electric hoist

12.Q: How about the installation?

 A: First, easy installation. Then, along with the cargos packages, we enclose the detailed installation and operation instructions; we can also send you the detailed installation videos.
