Product Overview
Description

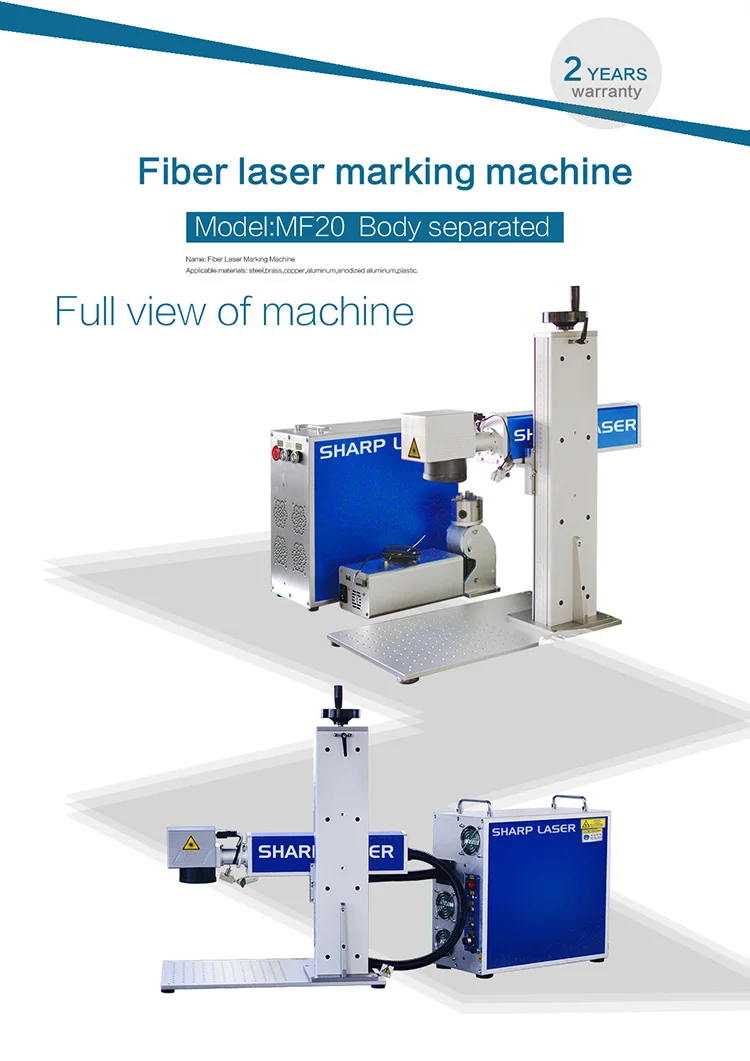

MF20 20w fiber laser marking machine
The fiber laser marking machine is portable type designed for efficient processing of marking on metal,plastics, leather,ceramic and many more. Available in different workstations sizes with several power options, these laser markinging systems provide high-quality results at maximum speed.
new type of laser marking machine innovated and developed according to the developing market needs. We use the most advanced laser marking system -- high-speed scanning galvanometer laser marking. This system has advantages of fast scanning speed, high repetition accuracy, good durability, etc., able to ensure the quality and nice look of the laser markings, especially suits for mass production and pipeline operations.
Product Description

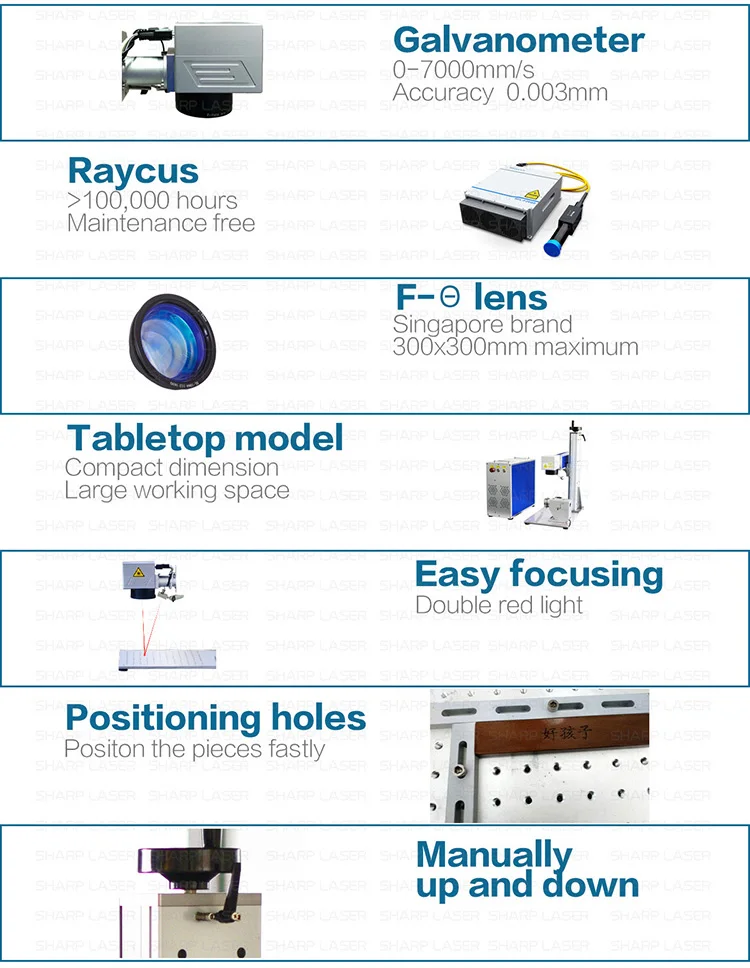

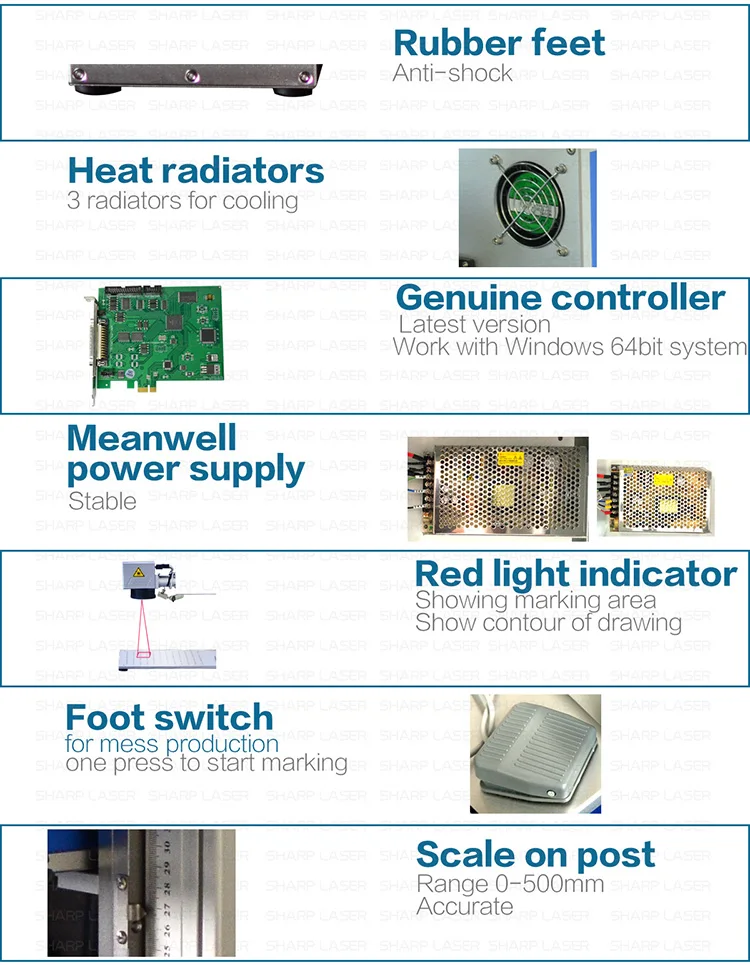

Machine features:
(1) Laser marking technology in the above mentioned applications has the following features;
(2) Better flexibility (computer programmed, free to mark a variety of graphics, texts and other kinds of information);
(3) Higher precision, consistent marking quality;
(4) Markings are permanent with high abrasion resistance;
(5) Lower use-cost, higher speed, higher production efficiency;
(6) Little pollution, environmentally friendly;
(7) Anti-counterfeiting function. Applicable materials:Gold, silver, copper, aluminum, stainless steel, hard alloy, chrome, titanium and other metals, ceramic, PVC, plastic, epoxy resin, leather and other non-metallic materials.raycus,max,ipg
| Parameter | |
| Name | Body separated Fiber laser marking machine |
| Model | MF20 MF30 MF50 |
| Laser power | 20w 30w 50w |
| Beam quality M2 | <1.5 <1.8 <1.8 |
| Pulse repetition frequency | 20-60 30-60 50-100(kHz) |
| Optical pulse width(ns) | 90-120 90-130 90-130 |
| Marking area | 70*70mm,110*110mm,150*150mm,200*200mm,300*300mm |
| Laser wavelength | 1064nm |
| Cooling ways | Air cooling |
| Engraving speed | 0-7000mm/s |
| Laser output control | 0-100% controlled by software |
| Min engraving size | English letters,0.15*0.15mm |
| Repeatability | ≤0.003mm |
| Controlling software | EZCAD software 2.14(2.5.3,2.7.6 are fake ones) |
| Format supported | DST,PLT,DXF,AI,LAS,BMP,JPG,PNG,etc |
| Software environment | Windows xp/7/8/10 64 bit |
| Compatible software | Coreldraw,Autocad |
| Applicable materials | Steel,brass,copper,aluminum,anodized alu,plastic. |
| Power supply | 110v/220v,50hz/60hz |
| Power consumption | <0.5kw |
| Laser module service life | >100,000 hrs |
| weight | 45kg |
| Dimension | 80*60*70cm |
Our Services
1, Within 7 days since your local customs clearance: if the machine’s any parts has any problems,
we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the machine parts
have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the machine parts have any problems, we can offer new machine parts
with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, email.
5, Our technician can give you remote guide online(Skype / MSN/What's app/viber/Tel/Etc) if you have any question.
6, We can record videos of operating the machine.
7, Free training course in our factory.
8,Machine will be adjusted before it is delivered , operation flash drive/CD was included.
| Materials | 20w | 30w | 50w | 100w |
| mild steel | mark&engrave | mark&engrave | mark&engrave&cut | mark&engrave&cut |
| stainless steel | mark&engrave | mark&engrave | mark&engrave&cut | mark&engrave&cut |
| aluminum | mark&engrave | mark&engrave | mark&engrave&cut | mark&engrave&cut |
| brass | mark&engrave | mark&engrave | mark&engrave&cut | mark&engrave&cut |
| copper | mark&engrave | mark&engrave | mark&engrave&cut | mark&engrave&cut |
| gold | mark&engrave | mark&engrave | mark&engrave&cut | mark&engrave&cut |
| silver | mark&engrave | mark&engrave | mark&engrave&cut | mark&engrave&cut |
| anodized aluminum | mark&engrave | mark&engrave | mark&engrave&cut | mark&engrave&cut |
| some plastic | mark&engrave | mark&engrave | mark&engrave&cut | mark&engrave&cut |

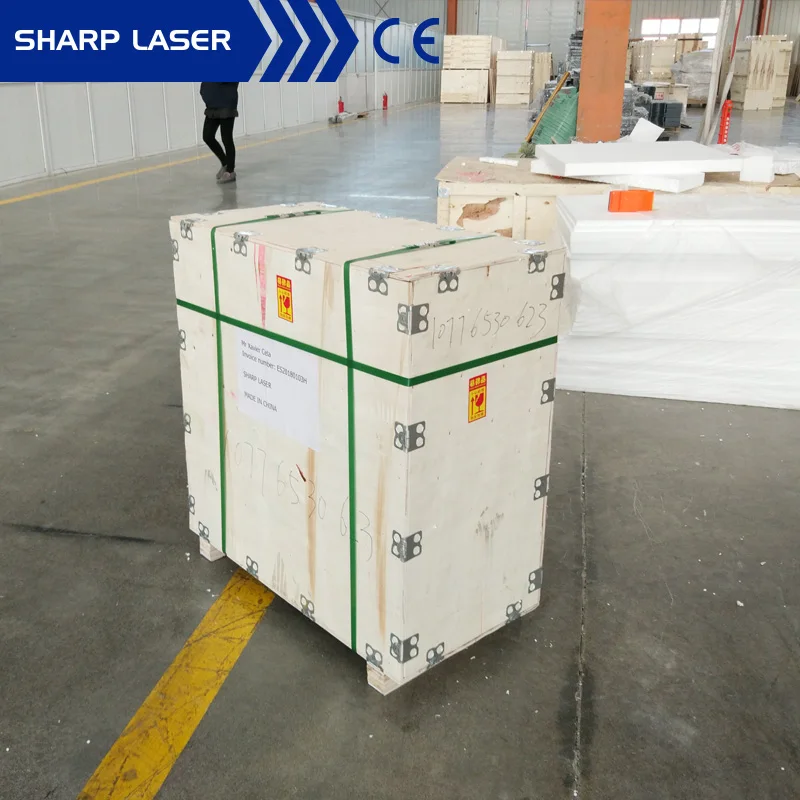

Packaging & Shipping
Applicable industries:
It is widely used in industrial bearings, gears, all kinds of auto parts, hardware tools, aerospace components, integrated circuit chips, computer accessories, watches, electronics and communication products, home appliances, wire and cable, food packaging, jewelry, tobacco and many graphic and text markings in other fields.
