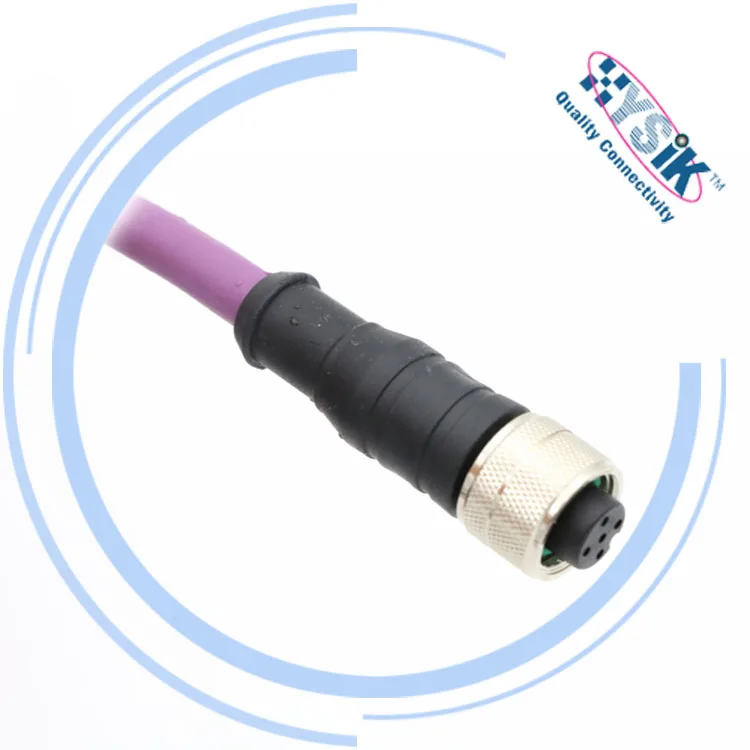

DeviceNet Cable connector M12 A Coding 5 pin Female to male with PUR jack

Share on (60686332178):


Price:

Quantity:


Product Overview

Description


Product Description

Industrial automation 4.0,We pride ourselves on delivering excellent client service, exceptional products, and reliable solutions.including M12 A B D X S Coding, If you need a custom designed solution, or perhaps you have an idea but not quite sure if it can be done, then contact us today. We can help your vision turn into reality.

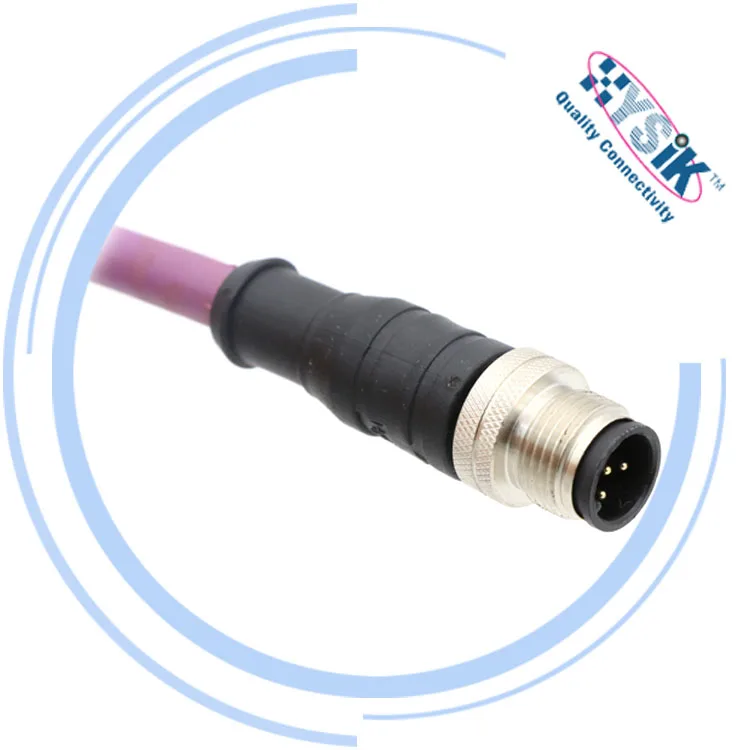

DeviceNet Cable Plug M12 5P A-Coding Male Connector Molded 24AWG x 1P + 22AWG x 1P Cable

Gender: Male to Female
Number of Contacts: 05 Pin
Coding: A-Coded
Termination: Soldering
Cable length: base on customer request
Contacts plating: Gold plated, thickness 3μ"

Cable jacket material: PUR
Wire gauge: 24AWG/0.25mm2
Overmold/ Shell: TPU
Connector contacts: Brass gold plated
Ambient temperature: -25°C ~ + 80°C
Insulation resistance: ≥100 MΩ
Contacts resistance: ≤5mΩ


\t
Electrical & Mechanical data
\t
M12 5 pin a coding male to female for DeviceNet Application
\t
Stardard
\t
IEC 61076-2-101
\t
Rated current
\t
4a
\t
Rated voltage
\t
60v
\t
Couplingg nut
\t
Brass with nikel palsted screw
\t
Cable jack color
\t
Grey or purple
\t
Insert/Housing
\t
TPU
\t
Orientation
\t
Striaght
\t
IP rating
\t
IP67
\t
Wire Termination
\t
Soldering
\t
Connector contacts
\t
Brass with gold plated
\t
Contacts resistance
\t
≤5mΩ
\t
Insulation resistance
\t
≥100 MΩ
\t
Ambient temperature
\t
40°C ~ + 85°C
Detailed Images
Packing & Delivery

 Packing:5pcs packing in a sealing bag then put in a inner box,or according to Customer's Request.
Delivery:We can not ship out on weekend or China's Holiday.
Shipping:5-7days after received the payment.
Payment Methods:
1:T/T , PAYPAL , L/C , Western Union
2:Trade Assurance on Alibaba.com

Our Service

1:Low cost with high quality products
2:Effective communication and rapid reponse
3:We test each item before shipping out ensure they are in good condition
4:Quality management according to IPC standard

Our Company

Hysik is an innovative corporation which is delcated to providing high quality connectivity products to customers,Perfetion is our constant aim and technical knowledge is the tool we use a achieve it.with this strategy,we have developed a series of standard products that comply to IEC,IEEE,most of our products are used in the INDUSTRIAL,AUTOMATION,TELECOMMUNICATION,AUTOMOTIVE,ENERGY,MARINE,LIGHTS and Fields,morever,we also are able to figure out tailor-made solution that suit the needs or our customers from the initial idea to complted product.
