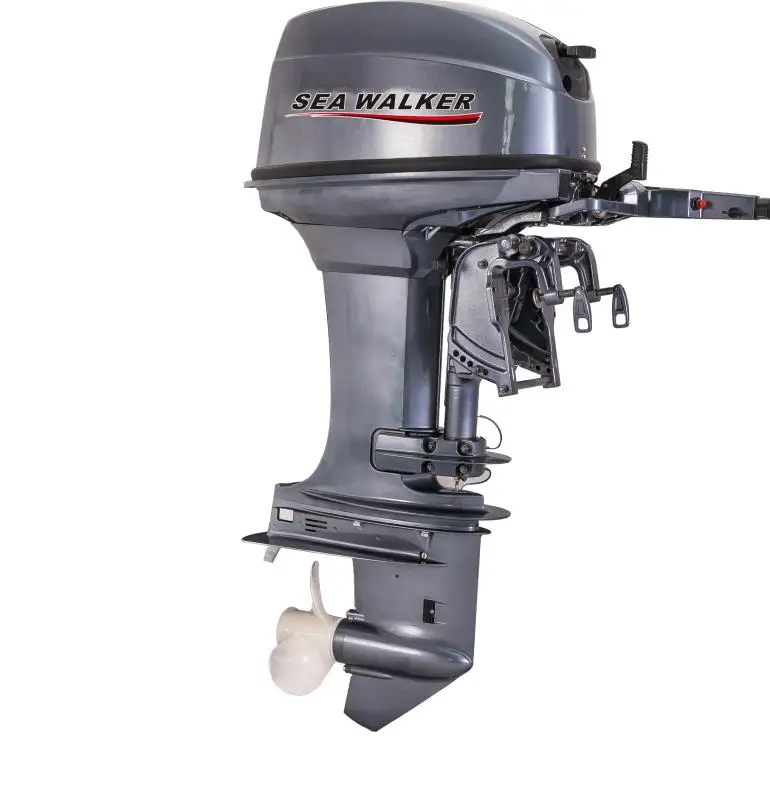

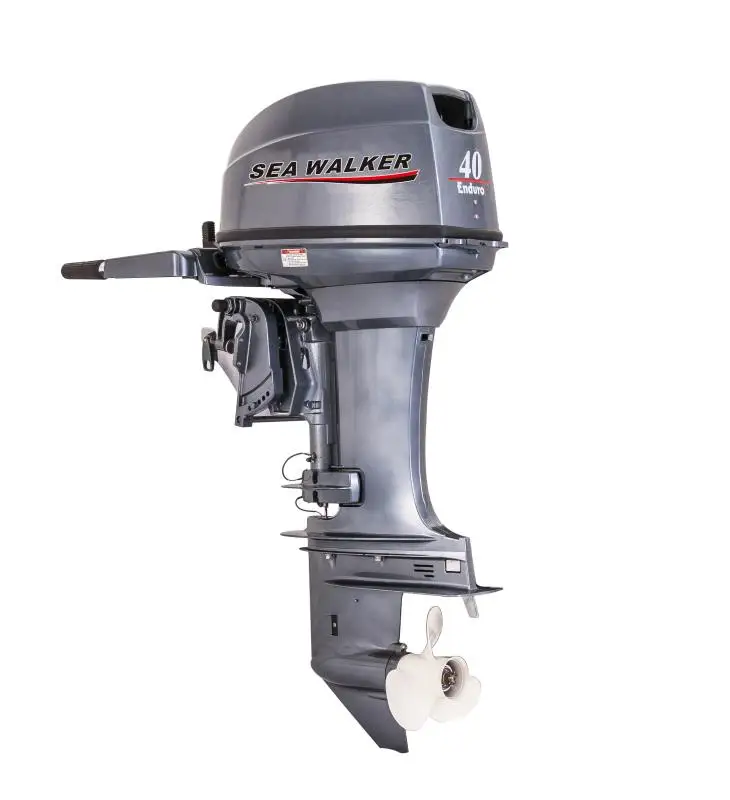

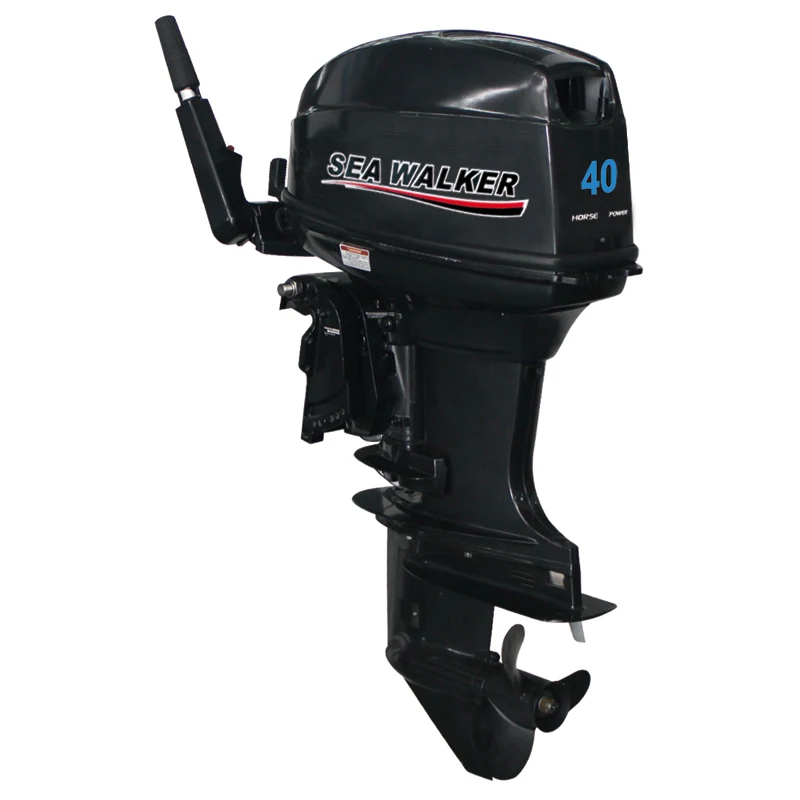

Outboard motor E40XMHL original 2Stroke 40HP marine outboard engine made in china

Product Overview

Description

1.excellent quality with cheap price

2.common used parts with main brand E40XMHL/66T

3.2 stroke and 4 stroke engine 2-60hp

4.OEM brand ok





 Company Information





Parameter	Measuring unit	T40BMS	T40BML	T40BWS	T40BWL	T40FWS	T40FWL
Length	mm(in.)	1106(43.5)		1106(43.5)		645(25.4)
Width	mm(in.)	408(16.0)		408(16.0)		372(14.6)
Height	mm(in.)	1213(47.8)	1340(52.8)	1213(47.8)	1340(52.8)	1213(47.8)	1340(52.8)
Transom height	mm(in.)	424(16.70)	551(21.70)	424(16.70)	551(21.70)	424(16.70)	551(21.70)
Net Weight	kgs	77	79	80.3	82.3	79.5	81.5
Full throttle operating range	r/min	4500~5500
Maximum output	kw(hp)@r/m	29.4(40)@5000
Idling speed	r/min	950~1050
Engine type		2 Stroke
Cylinder quanitity		2
Displacement	cm3	703
Bore×Stroke	mm(in.)	80*70(3.15*2.76)
Ignition System		CDI
Control system		Tiller				Remote Control
Starting System		Manual		Electrical /Manual
Gear positions		Forward-neutral-reverse
Gear ratio		2.0(26/13)
Trim and tilt system		Manual tilt
Fuel tank volume	L	External 24
Maximum fuel	L/h	20
Engine fuel ratio		50:1
Gear oil	ml	430
Propeller specification	in	3-11 1/8" x 13"
