Boat Sextant Navigation For Sale
Product Description
A sextant is an instrument for measuring the angle between two objects by bringing into
coincidence to the eye of the observer, rays of light received directly from one object and reflected from the other.
Its principal use is to measure the altitudes of celestial bodies above the visible sea horizon.
Available in various types. When ordering, specify telescope (magnifying & lens diameter) and

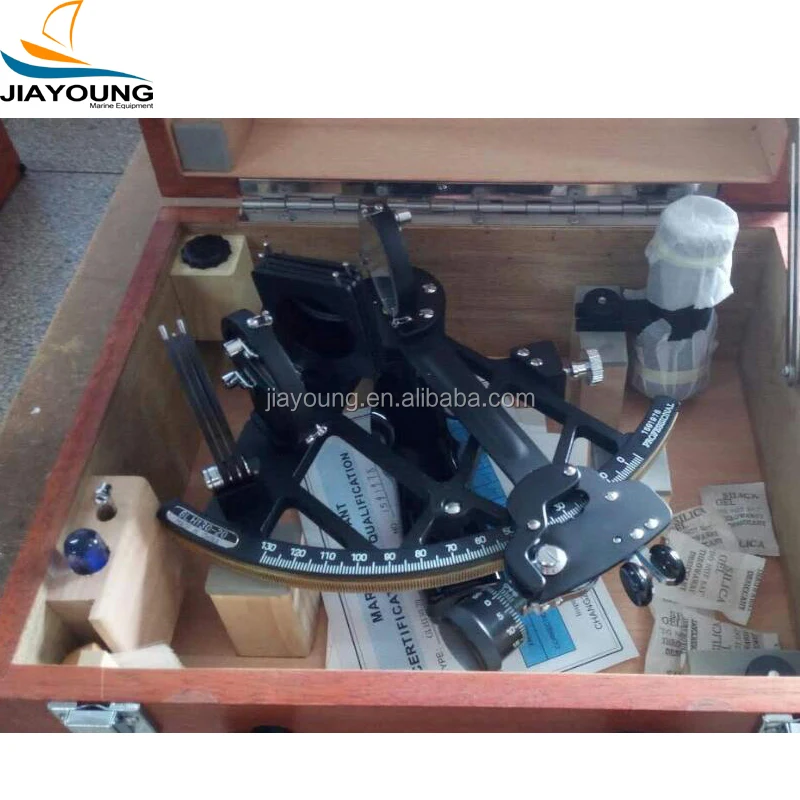

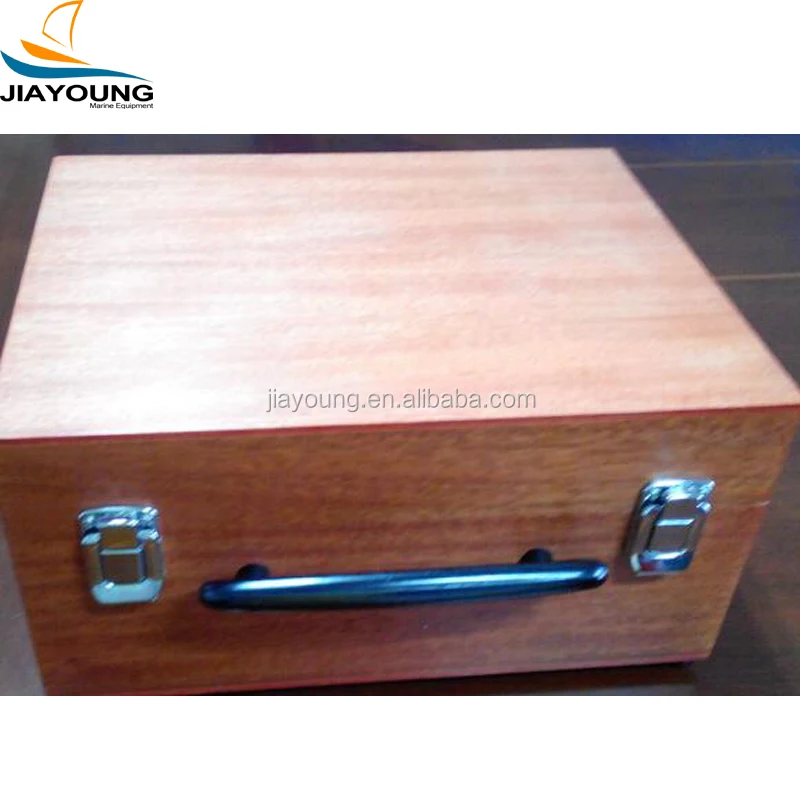

whether the sextant should be with or without illumination. Furnished with a wooden or plastic case
| Type | GLH130-40 | GLH130-20 |
| Measuring range | -5°~130° | -5°~130° |
| Accuracy | ±20’’ | ±10’’ |
| Detectability | 8.75’’ | 8.75’’ |
| Field of viewV | 5° | 5° |
| Objective the optical Diameter | 40mm | 40mm |
| Exit pupil diameter | 11mm | 11mm |
| Temperature range | -30°~+50℃ | -30°~+50℃ |
| Telescope | 3.5×40 | 3.5×20 |
| Lamp voltage | 3V | 3V |
| Net weight | 1.2kg | 1.8kg |
| Supply voltage | 12V | 12V |
| Size | 162mm | 16mm |
| Measurement Accuracy | ±20″ | ±10″ |
Name | quantity | |
Sextant Frame | 1 | |
Monocular Telescope | 1 | |
Standby Bellows | 1 | |
Spare Bulb | 1 | |
Calibration Wrench | 1 | |
Oil pot | 1 | |
Screw whorls | 1 | |
Brush | 1 | |
Flannelette | 1 | |
Instruction Material | 1 | |
Certification | 1 | |
Packaging & Shipping
Related Products

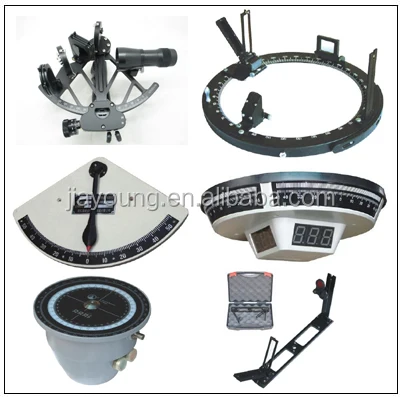

Chongqing Jiayoung Marine Co., Ltd specialized in Marine Navigation Equipment.
Including Marine Sextant, Marine Compass, Rudder Angle Indicator,Clinometer,
Azimuth Circle,etc.. We can supply CCS and CE certificate.
