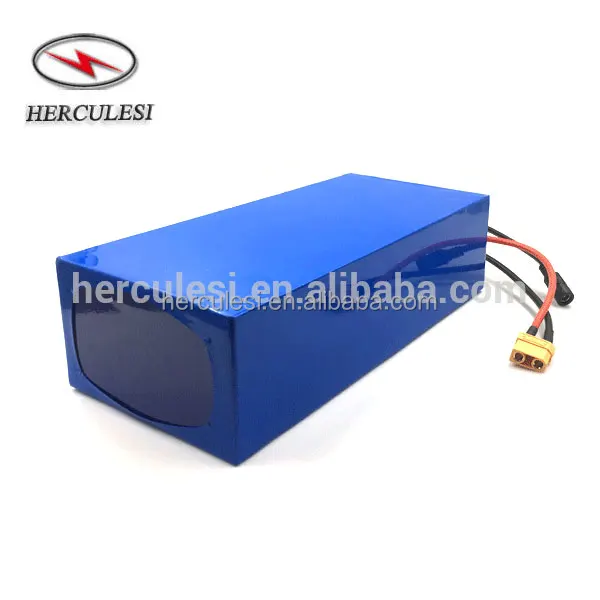

48 Volt Li NMC Akku 48V 28AH Lithium Ion Battery Deep Cycle For Electric Scooter
| Battery Type | Lithium Ion Battery | |
| Nominal Voltage | 48V | |
| Nominal Capacity | 28Ah | |
Battery Energy | 1344Wh (Approx.) | |
Cell Assembly | Sanyo NCR18650GA-3.7V 3500mah-13S8P | |
| Charge | Charge Model | CC/CV |
| Charging Time | 2A Charger: 14 Hours | |
| 5A Charger: 5.6 Hours | ||
| Charge Cut-off Voltage | 54.6V | |
| Cell Overcharge Protection Voltage | 4.2V /Cell | |
| Discharge | Max Continuous Discharge Current | 50A |
| Peak Discharge Current | 150A | |
| Discharge Cut-off Voltage | 39 +/-1V | |
| Cell Overdischarge Protection Voltage | 2.8V /Cell | |
| Working Temperature | Standard Charge | 0~45°C |
| Quick Charge | 10~45°C | |
| Standard Discharge | -20~65°C | |
| 48V 13S BMS | 50A BMS (Over-Charge/Discharge Protection, Over-Heat Protection) | |
| Cycle Life | 800-1000 times | |
| Fit for Motor | 48V 200W-2400W | |
| Dimension | 260*160*70mm (+/-5mm) | |
| Weight | around 5.5kgs | |
| Certifications | CE; UN38.3; MSDS; RoHS | |
| Application | E-bike, E-motorcycle, E-scooter etc. | |
| Warranty | 13 Months | |
| Part Includes | 1× 48V 28AH Lithium Ion Battery 1× 50A BMS System Inside 1× 54.6V 2A/ 5A Charger | |
Discharge Port: Customized | ||



As usual, we produced a batch of cells, and need do below test firstly.

After the cell is passed test, we will build the pack as below procedure.

Quality is our culture. Shenzhen HERCULESI have over 10 years since 2005 experience in green rechargeable lithium battery field, specialized in LiNMC, LiFePO4, Ni-CD, Ni-MH with highly reliable and 100% real capacity. Offering high quality after-sales service and best solution according to your requirement. OEM also warmly welcome in our factory!

-Packing: Each / Carton (with polyfoam, waterproof) Or according to the customer request
-Shipping: sample order by express (delivery within 5days upon receipt of payment)
order quantity >20pcs by air or sea (delivery time is decide on each specific matter)
Or according to customer request
