outdoor battery charging cabinet for telecom base and solar system

Product Overview

Description

Product name:outdoor battery charging cabinet for telecom base and solar system

Battery box /UPS battery cabinet /UPS battery box

 energy saving ups battery box solar

energy saving ups battery rack



Application: UPS uninterruptible backup power supply , UPS/solar/inverter system battery bank







Features of outdoor battery charging cabinet for telecom base and solar system



Battery cabinet with metal components, good mechanical properties, bearing capacity, compact and reasonable structure, interchangeability, the entire cabinet electrostatic spray, soft, abrasion resistance, corrosion resistance, good fireproof performance, insulation and durable design can be placed with a plurality of large capacity or less battery capacity. Easy transportation and installation.





Structure (main material) of outdoor battery charging cabinet for telecom base and solar system



Battery cabinet, angle steel or cold rolled steel plate. A steel structure, in full angle welding. FCL bearing frame welded, the middle frame and the side plate, the panel assembly disassembly. Chassis with casters, casters using polyurethane wheel, bearing capacity. Stereo vision but also elegant, beautiful and luxurious fcl.



C series battery box standard 6 square meters (non-standard) cell line (standard specification: assembly type)

SIZE (L*W*H)       MM	BATTERY CAPACITY	BATTERY QUAITITY	WEIGHT (kgs)
280×190×220	24AH/17AH	2/3  PCS	2.2
435×210×270	17AH/24AH/38AH 65AH/100AH	5/3/2PCS  1PCS	3.3
540×210×230	17AH/24AH/38AH	6/4/3PCS	4.5
450×470×320	17AH/24AH/38AH   65AH/100AH	10/6/4 PCS   2PCS	7
585×450×310	17AH/24AH/38AH 65AH/100AH	14/8/6 PCS 3PCS	9
450×470×615	17AH/24AH/38AH 65AH/100AH	20/12/8 PCS 4PCS	13
585×470×615	17AH/24AH/38AH 65AH/100AH	28/16/12PCS 6 PCS	18
780×470×615	17AH/24AH/38AH 65AH/100AH	44/28/20 PCS 8PCS	21
945×470×615	17AH/24AH/38AH 65AH/100AH	44/28/20 PCS 10PCS	24
780×470×910	24AH/38AH 65AH/100AH	30/24 PCS 12PCS	32
780×470×1190	24AH/38AH 65AH/100AH	40/32 PCS 16PCS	45
950×470×1190	24AH/38AH 65AH/100AH	56/40PCS 20PCS	50
1150×470×1190	65AH/100AH	24PCS	90
780×880×1190	65AH/100AH	32PCS	95

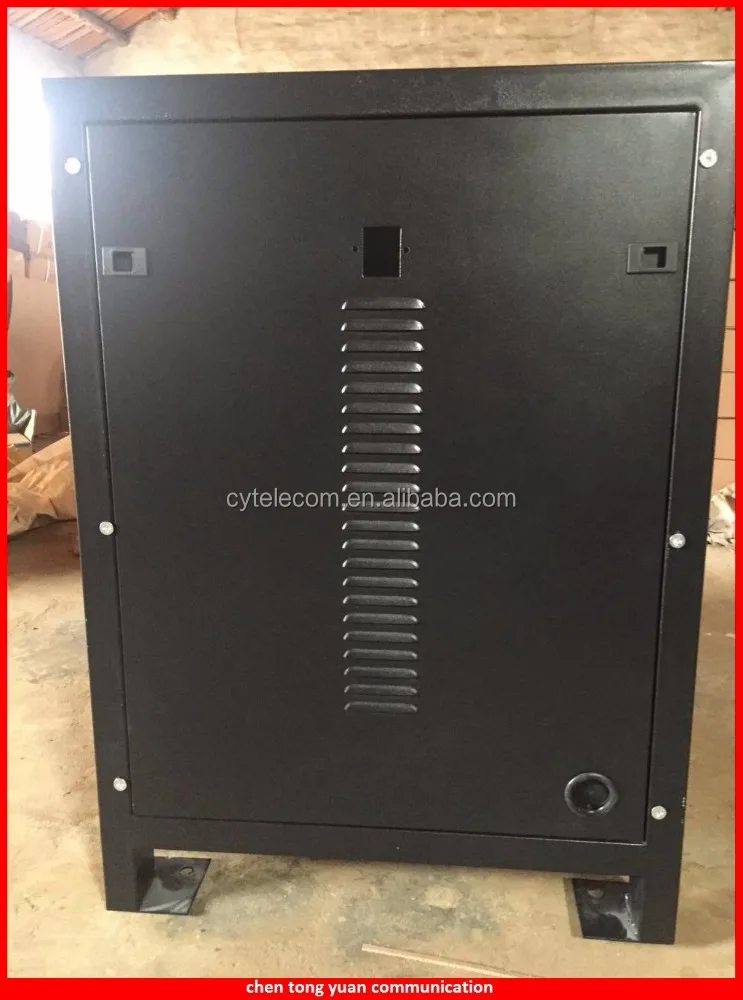

outdoor battery charging cabinet for telecom base and solar system PRODUCT PICTURE

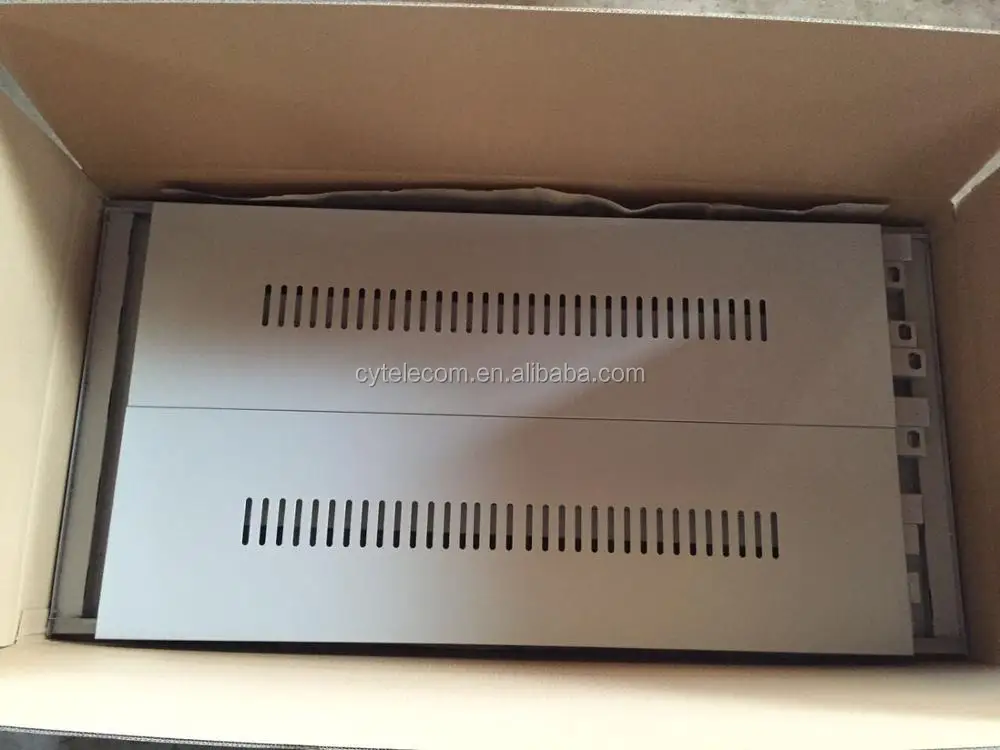

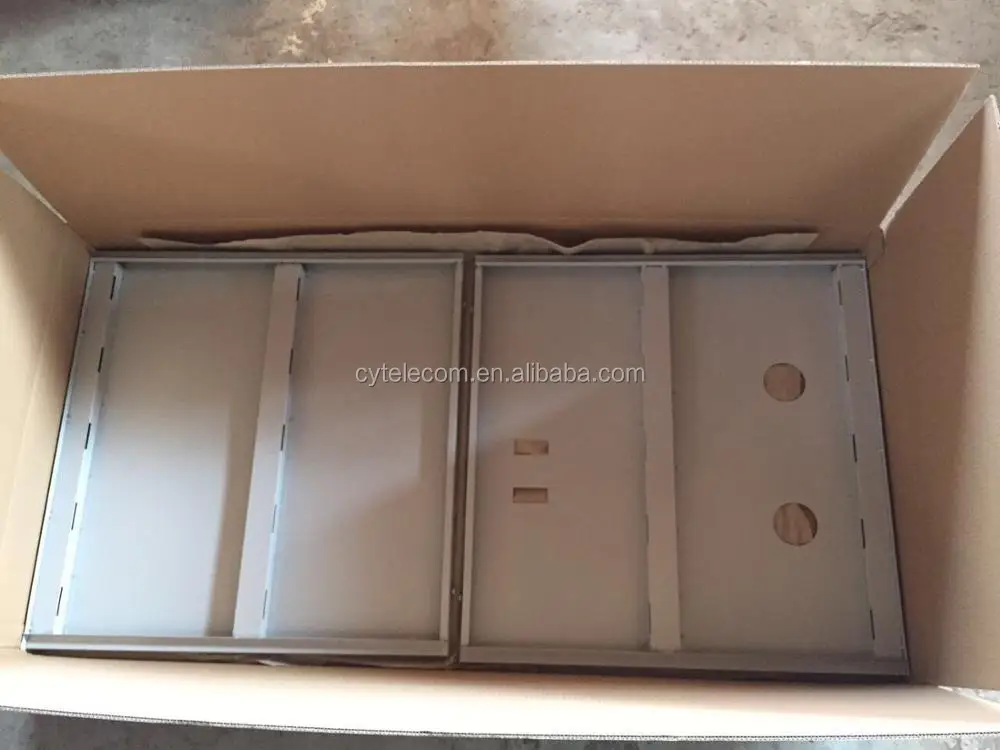

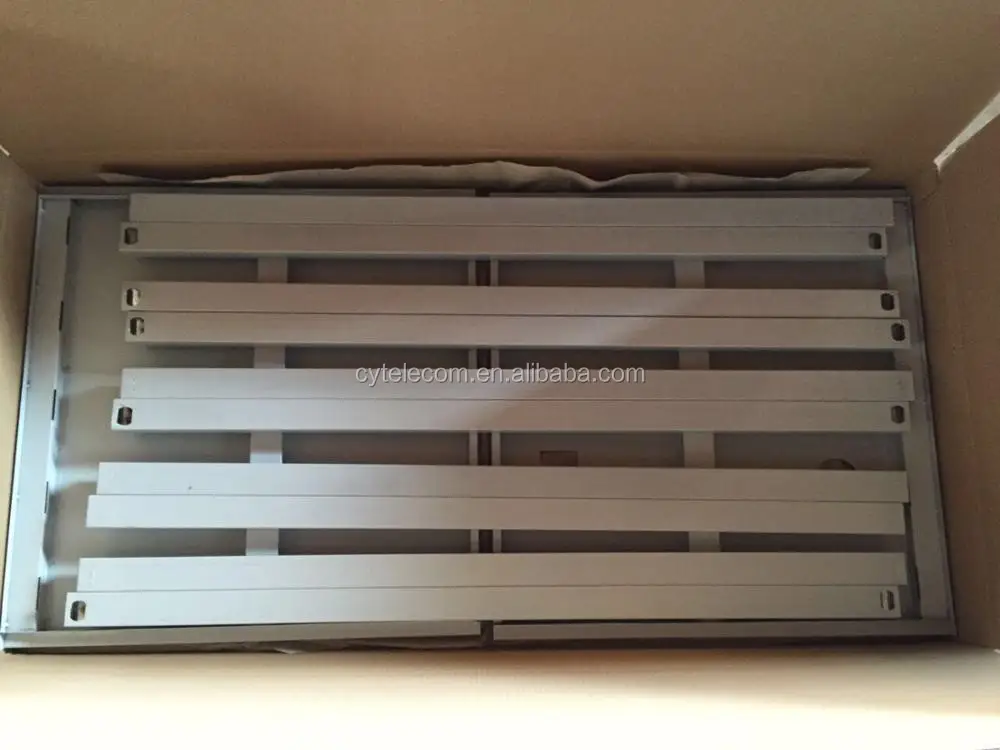

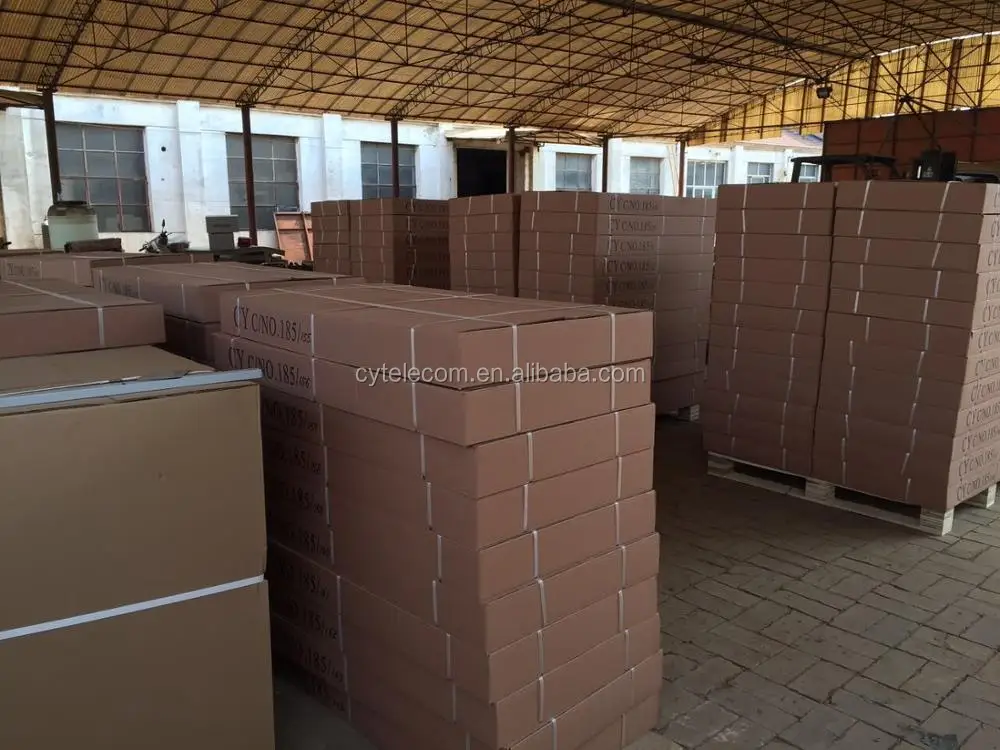

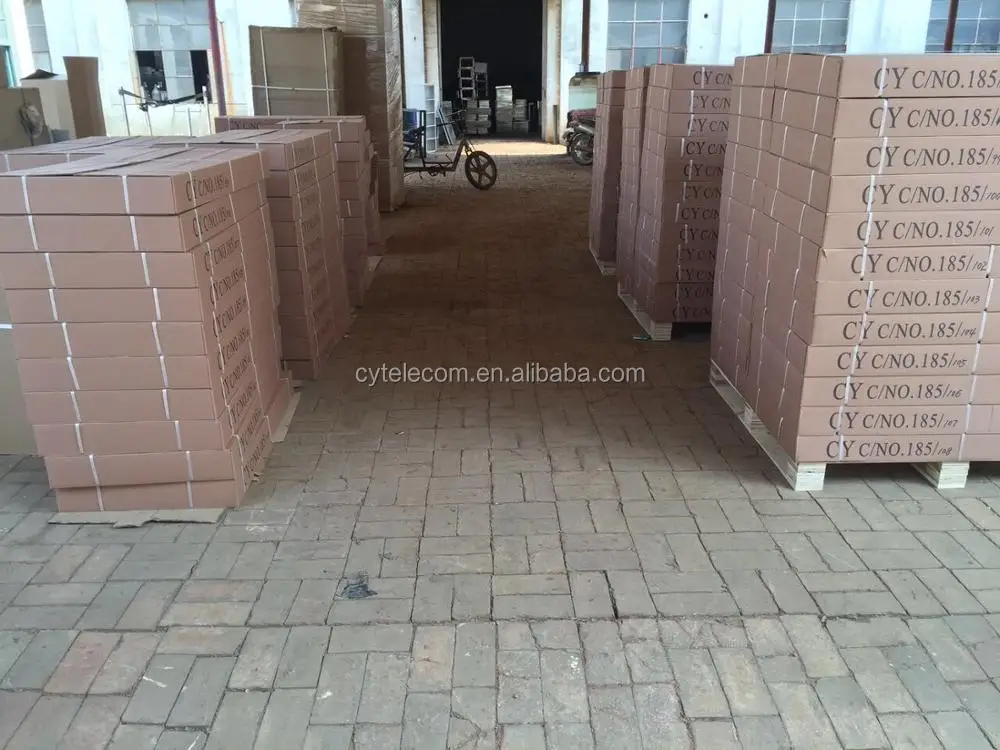

outdoor battery charging cabinet for telecom base and solar system  packing picture











Welcome your inquiry for outdoor battery charging cabinet for telecom base and solar system.
