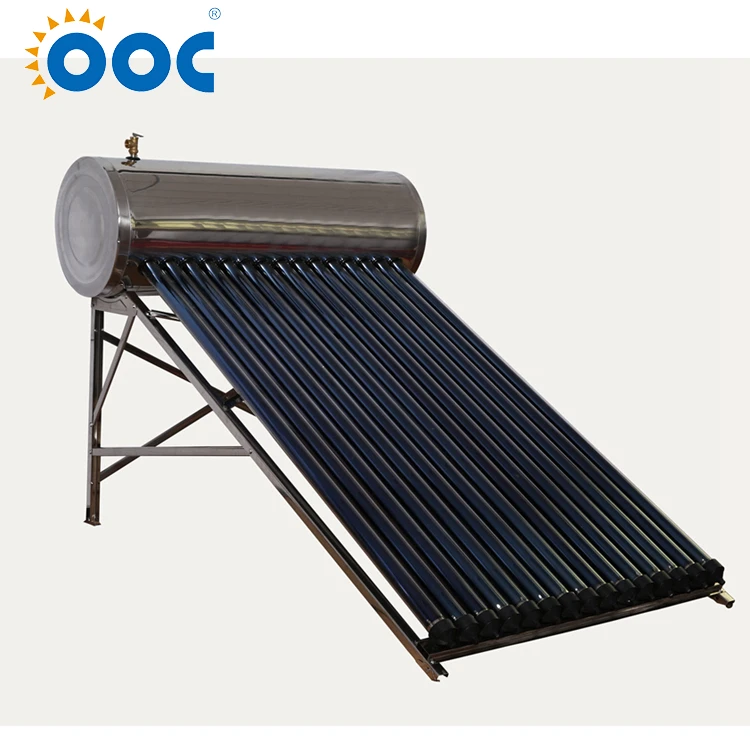

Vacuum Tube Greenhouse Heating Systems Famous Brand Solar Water Heater
- Category: Solar Water Heaters >>>
- Supplier: Haining,Yousun,Trade,Co.,Ltd.
Share on:
Product Overview
Description
| name | Integrated and pressure solar water heater |
| model | 6 tubes- 36 tubes |
| inner tank | Sus304-2B, thickness 1.2mm/ sus316 1.2mm |
| out tank | zinc steel plate 0.4mm/ stainless steel 0.4mm |
| Bracket | Zinc steel plate 1.5mm/ stainless steel 1.2mm |
| insulation | High density polyurethane foam 50mm/55mm/60mm |
| frame degree | 0 degree-45 degree. Dual-purpose frame for both flat and inclined roof |
| inner tank size | Inner tank diameter with 370mm |
| out tank size | Outer tank diameter with 470mm |
| vacuum tubes | Tri- element tubes 58*1800/47*1500 |
| capacity | 60L-300L |
| holding time | 72Hours |
| Hail resistance | 25mm |
| Max. Fluid pressure (Pa) | 0.6mpa |
| Operating fluid pressure (Pa) | 0.6mpa |
| Test pressure | 1.0mpa |
| Heat pipe | 90mm length condenser, 14mm diameter body, thickness:0.6mm |
| Dust Proof Rubber | EPDM |
FAQ
1. Packing: Standard export carton with foam or wooden box, Wooden Box Packing for Sample
2. Shipping: 3 days for sample, 10 days for 20/40 container.
3. MOQ: Sample is available
4. Warranty: 10 years guarantee for whole set solar water heater
5. Port of departure: Shanghai or Ningbo
6. Supply ability: 5000 sets per month
7.life time : more than 20 years
