AICEYI Portable Digital Leeb hardness Tester With Print Function
- Category: >>>
- Supplier: Dongguan Kuaijie Measuring Tool & Instrument Co. Ltd.
Share on (60686509738):
Product Overview
Description
Product Description

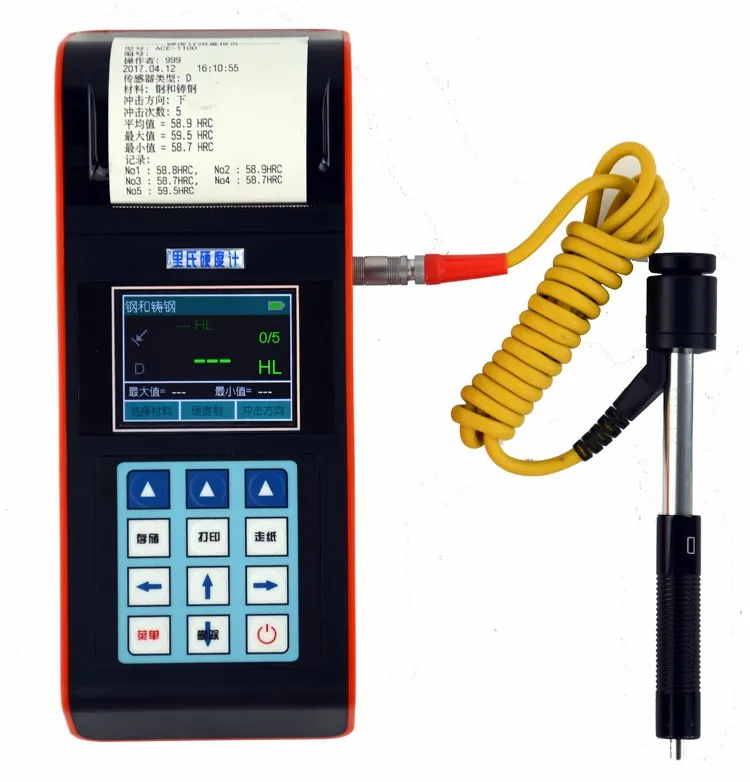

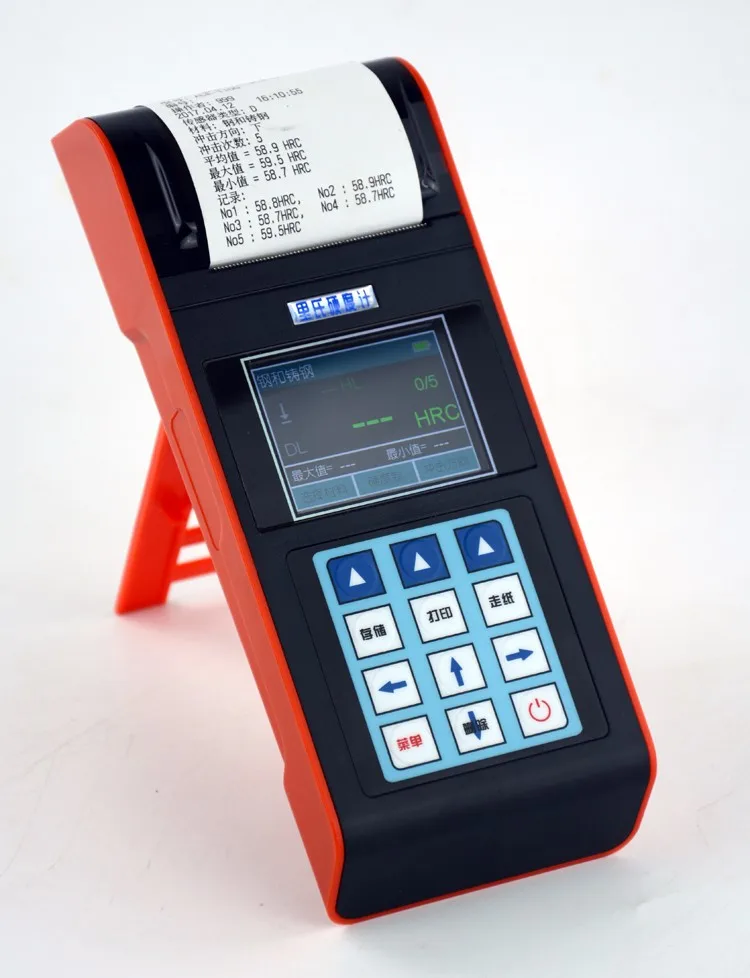

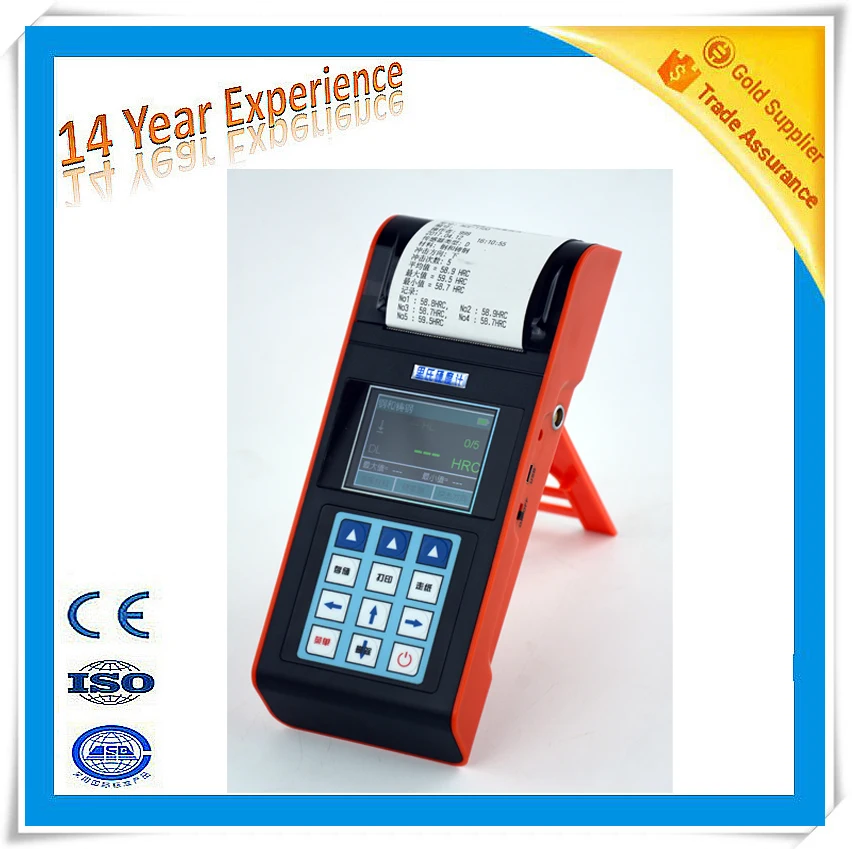

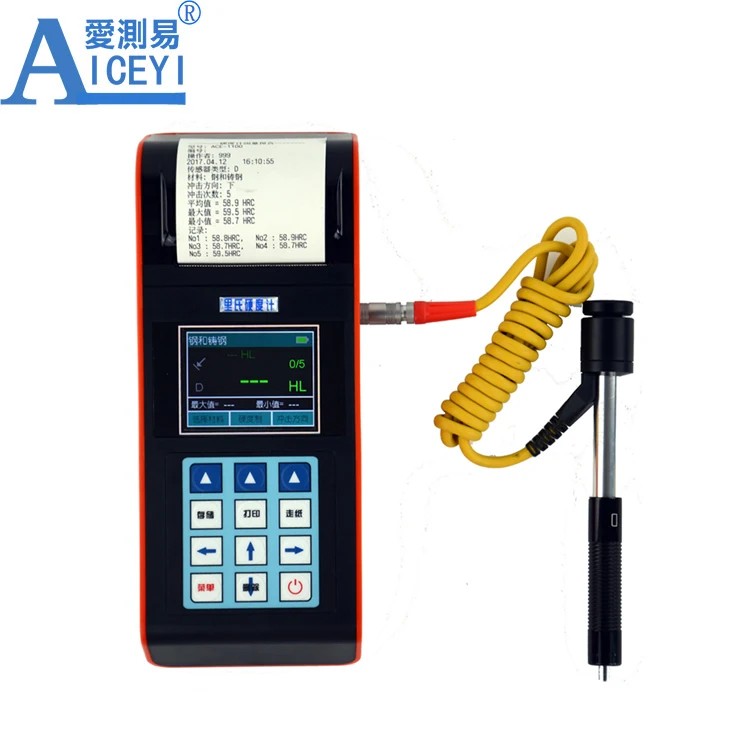

Portable Digital Leeb hardness Tester With Print Function
TECHNICAL DATA
Measuring Materials | Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), copper and tin alloy, copper (bronze), forged steel |
Measuring Range | HLD(170~960), HRC(17.9~69.5), HB(19~683), HV(80~1042), HS(30.6~102.6), HRA(59.1~88), HRB(13.5~101.7) |
Indication Error | ±6HLD (D impact device) |
Measuring Direction | 360° |
Hardness Scale | HL, HB, HRB, HRC, HRA, HV, HS |
Display | 320x240 true color TFT screen |
Data Memory | Max 600 groups (relative to impact times 1~32 adjustable) |
Power | Rechargeable li-battery |
Working Temperature | -20°C~55°C |
Size | 210x85x45mm |
Weight | 0.6kg |
MAIN FEATURE
*Built-in printer, can print testing results any time;
*Window menu style, ture color display;
*Two hardness scale dual-display in same time;
*Add customized material function, no limitation of measured materials;
*Test at any angle, even upside down, narrow space also available to use;
*Has a starting value calibration function, ensure the data is applicable and accurate in different codes and standards;
*Seven impact devices are available for special application. Automatically identify the type of impact devices;
*User calibration function;
*Battery information indicates the rest capacity of the battery and the charge status;
*Has the function of automatic alarm. Pre-set tolerance limit, beyond the range has automatic alarm, especially suitable for batch testing;
*Menu operation, information rich, intuitive, the realization of arbitrary switching material and hardness of system's key type, simple and convenient;
*Excellent after-sale service system for high quality products-two years warranty and all life maintenance. Easy to operate;
*Support OEM Service, high price performance.

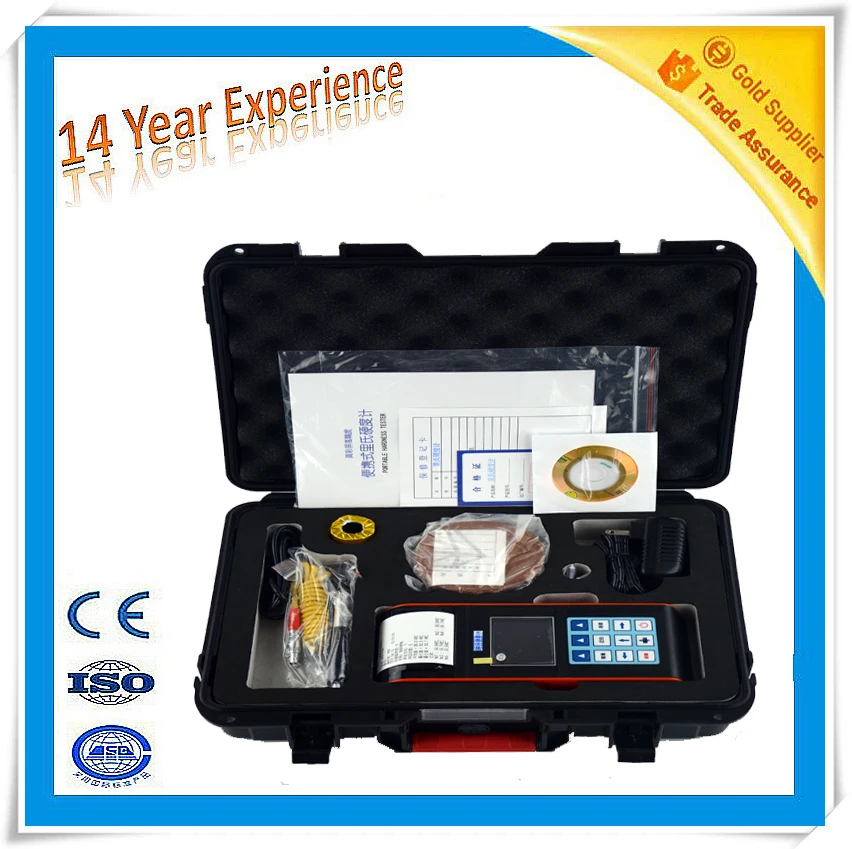

STANDARD DELIVERY
ITEM | QTY |
ACE-1100 Host | 1 PC |
Standard D Impact Device | 1 PC |
Standard Calibration Block | 1 PC |
Standard Support Ring | 1 PC |
Brush | 1 PC |
USB Cable | 1 PC |
PC Software | 1 PC |
User Manual | 1 PC |
Instrument Case | 1 PC |
Warranty | 2 Years |
Packaging & Shipping

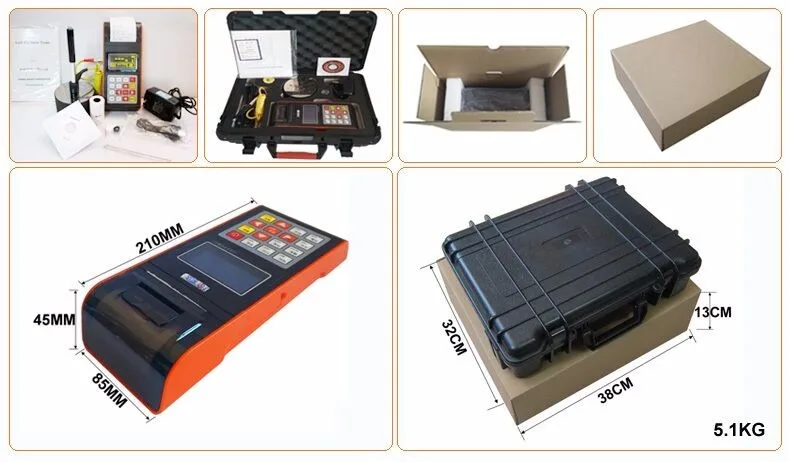

The packaging of Leeb hardness tester![FOIF3FT7`QD(N{_}K{G1]]B.jpg](http://sc02.alicdn.com/kf/HTB1YYWuQVXXXXa6aXXXq6xXFXXXx/220523248/HTB1YYWuQVXXXXa6aXXXq6xXFXXXx.jpg)
The shipping of Leed hardness tester
Company Information
Our Services
If you face any problems in future during testing process we promise we will give you a reply within 24 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video.
Pre-sale servie:
Guide customers to choose the best suitable machine model;
Offer detailed specification and competitive prices;
Contract execution:
Machine production will be arranged strictly according to the contract;
Machine photos will be sent to you for inspection during production;
Update latest news after delivery and prepare customs clearance;
After-sale service:
In time response to customers technical problems;
New products update for customers' reference
FAQ
Q. When can I get the price of the cnc spare parts?
A. We usually quote within 24 hours after we got your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
Q. How can I get the accurate price ?
A.There are some basic specs we need to know for price calculate, that are: Exact drawings, Materials, Surface treatment. Please suggest us your order quantity too.
Q. Do you accept the OEM?
A. OEM is welcome. We can custom the good according to your design.
Q. What is the shipping ?
A:By express(FedEx, UPS, DHL, TNT, EMS, etc...),By Air,by shipping.
Q. How do I pay for the order?
A.The common payments are T/T(Telegraphic Transfer),western union ,
Q. I have an idea for a new product, but don't know if it can be manufactured. Can you help?
A. Yes! We are always happy to work with potential customers to evaluate the technical feasibility of your idea or design and we can advise on materials, tooling and likely set-up costs.
