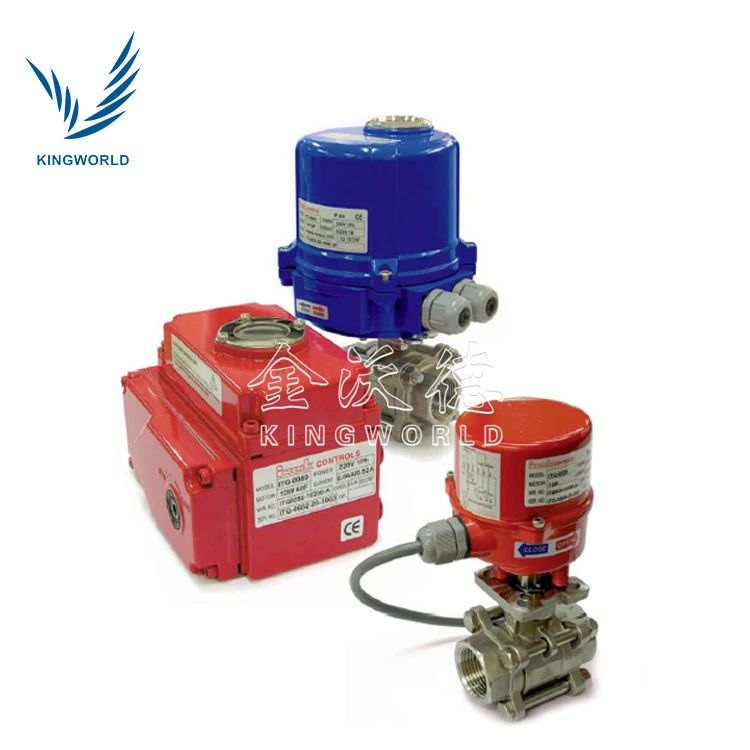

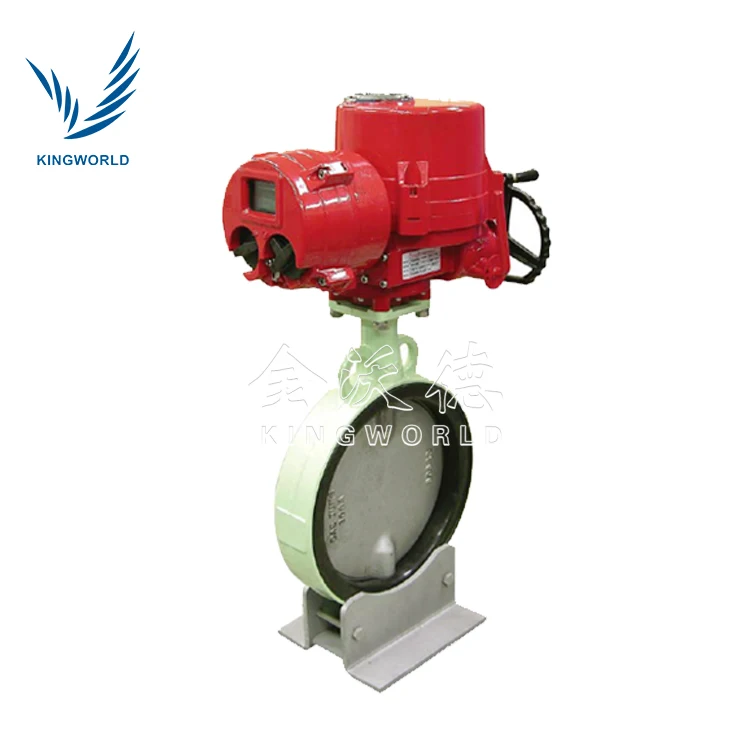

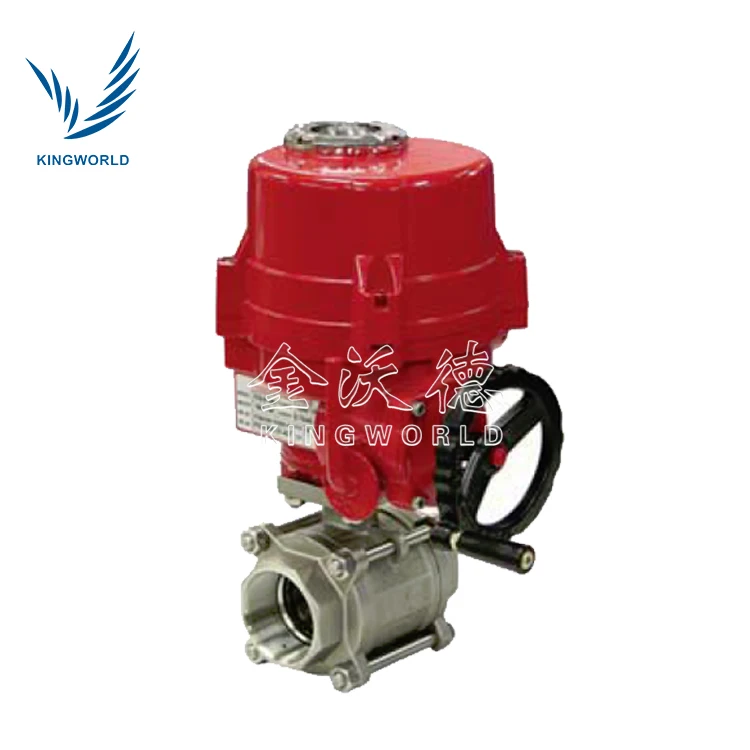

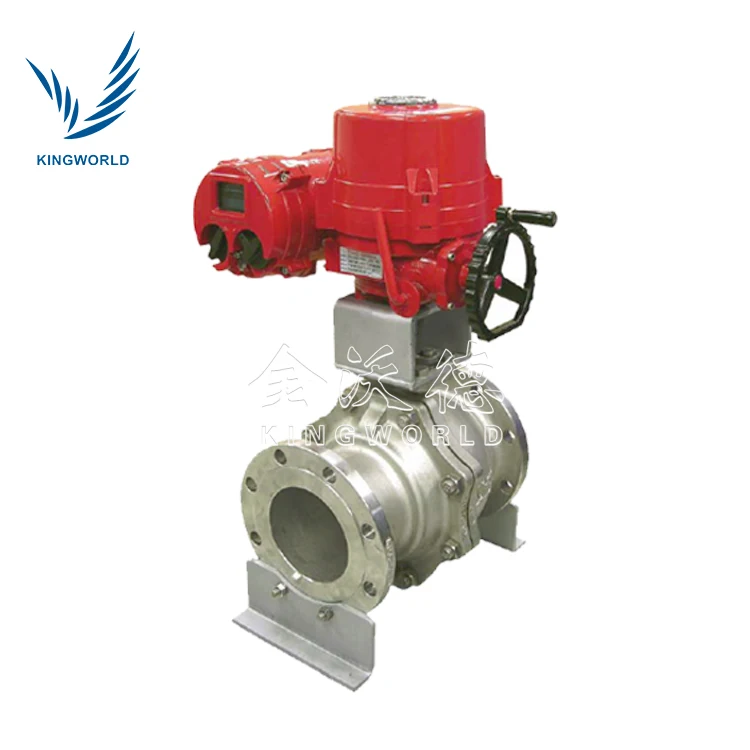

I TORK ITQ 0100 Explosion Proof Electric Valve Actuator for Butterfly Valves/Dampers Automation

General Specifications

Enclosure

Weather Proof, IP67, NEMA4 and 4X, O-ring Sealed

Power Supply

110/220V AC, 1Ph(50/60Hz) ± 10 %, 24V DC

380/440V AC, 3Ph(50/60Hz) ± 10 %

Control Power

110/220V AC, 1Ph(50/60Hz) ± 10 %

Duty Cycle (ON-OFF)

S2:Max20min

Duty Cycle (Modulating)

S4 : 30%, 800 Start/Hour

Motor

Induction Motor with Thermal Protector

(High150℃±5℃/Low97℃±15℃)

Limit Switches

4 x SPDT (2 for Close, 2 for Open), 250VAC, 16A

Torque Switches

N/A

Travel Angle

90 º ± 10 % by external adjustable mechanical stopper

Position Indication

Continuous mechanical indicator with arrow

Manual Override

De-clutchable

Self Locking

Provided by double worm gearing (no brake)

Mechanical Stopper

1 each for each travel end (open & close), external & adjustable

Terminal Block

Screw and Lever Push Type (Spring Loaded)

Cable Entries

2 - PF3/4", NPT3/4", M25X1.5

Space Heater

5W (110/220 VAC) for anti-condensation

Ambient Temperature

BasicActuator:-20~+70℃

c/w ControlOption:-10℃~+60℃

Ambient Humidity

90%RH Max (Non-Condensing)

Technical Specification

Model

ITQ0100

Rated Torque (Nm)

100Nm (10Kg.m)

Operating Time (Sec) 110/220VAC(50Hz)

21sec

Operating Time (Sec) 110/220VAC(60Hz)

18sec

Max. Bore Size (mm)

Key ( )

22mm

Square ( )

20mm

Motor Insulation Class

F

 Amp Draw

Main Power

50Hz(Running/Max)

60Hz(Running/Max)

110 Volt

0.98/1.25

1.10/1.35

220 Volt

0.52/0.72

0.58/0.75

380 Volt

0.43/0.85

0.33/0.65

440 Volt

0.59/0.98

0.42/0.84

24VDC

2.8/4.5

No. of Handwheel

10

ISO 5211 Mounting Flange

ISO F07 flange

Weight ( Kg )

7Kgs
