Ксеноновая световая лампа низкой интенсивности авиационная препятственная лампа/навигационный свет для предупреждения о препятствиях

Product Overview

Description

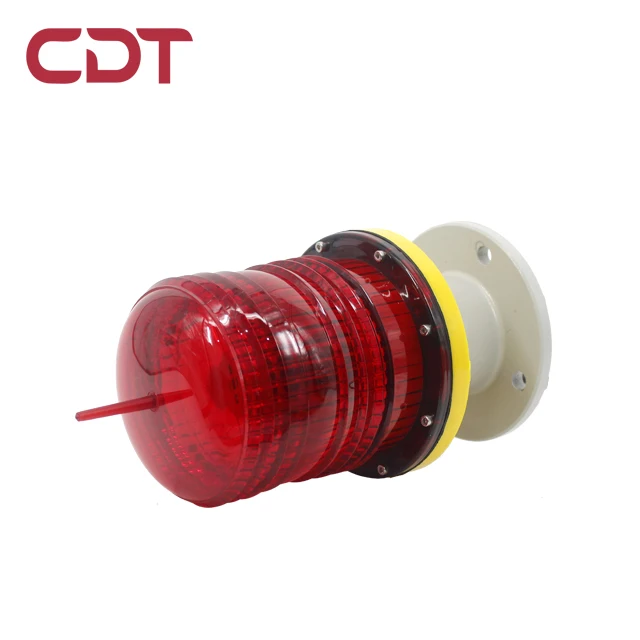

Xenon light source low intensity aviation obstruction lamp/navigation light for obstacle warning

Xenon light source low intensity aviation obstruction lamp/navigation light for obstacle warning



Specifications  For LED Obstruction light:Item CM-012LR

ITEM	Parameter
Model	CM-012LR
Operating voltage	AC90-260V(other available)
Power consumption	5W
Flashing frequency	20~60times/min.
Light intensity	≥32.5cd
Light source	RED
Lifespan	≥500000 hours
Emitting color	White
Beam angle	360° horizontal beam angle  ≥3° vertical beam spread
Overall size(mm)	∅156mm×228mm
Installation Size(mm)	∅120mm×4-M10
Ingress protection	IP65
Lightning protection level	10KA
Light controlled sensitivity	100lux
Operating temperature	-55℃~55℃
Net weight	1.5kg
Wind load	80m/sec



















































Instructure Drawing















Key  Feature for Aircraft warning light

1. Lamp shade of the light adopts PC with anti-UV which is high efficiency light transmission up to 90%,

    quite high impact resistance and fit the bad environment very well.

2. House of the light is made of aluminum alloy and steel, painted by spraying plastic, the structure

    is high strength ,resistance to corrosion

3. Using Parabolic reflector optical design, range further

4. Light source adopts LED with long lifespan ,lower power consumption and high efficiency

5. Based on the single chip computer control , automatic identification syncsignal ,do not distinguish

    the main light and auxiliary light ,and also could be controlled by controller

6. Same power supply voltage with synchronous signal , integrate in power supply cable ,eliminate

    the damage by error installation caused

7. Used the photosensitive probe fit for the natural light spectrum curve, automatic control light intensity level.

8. The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5 times,

    Imax 15KA so that the light is suitable to harsh environment

9. Integral structure, protection lever of IP65.

10. Ignitability rate UL-94V0, fit for all kinds of industrial situation , GPS synchronizing function
