63mL hydraulic double gear pump CBQT with high pressure
- Category: >>>
- Supplier: Hefei Changyuan Hydraulic Co. Ltd.
Share on (60686614522):
Product Overview
Description
Product Description

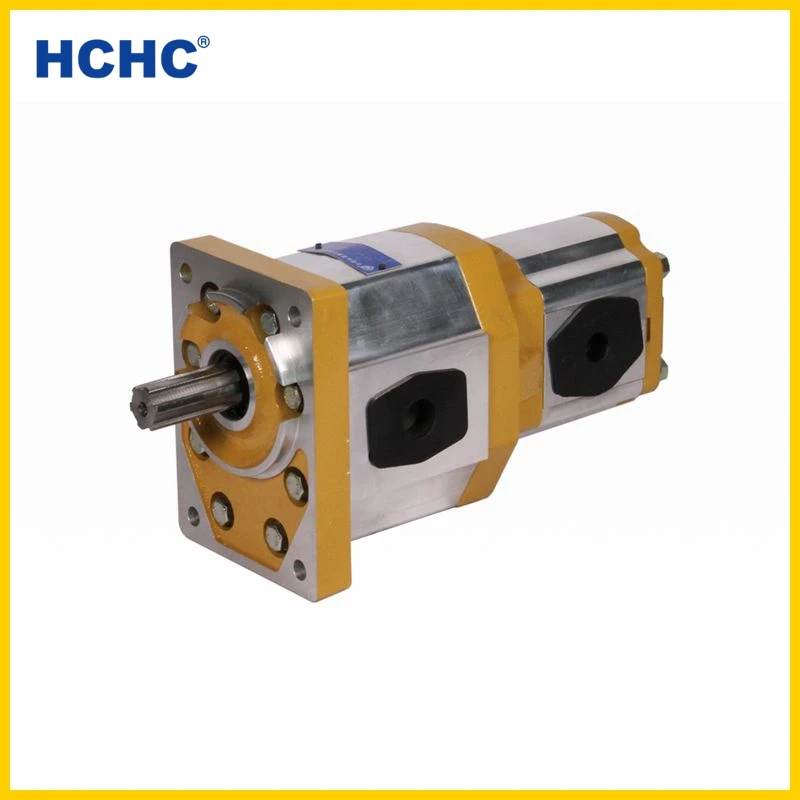

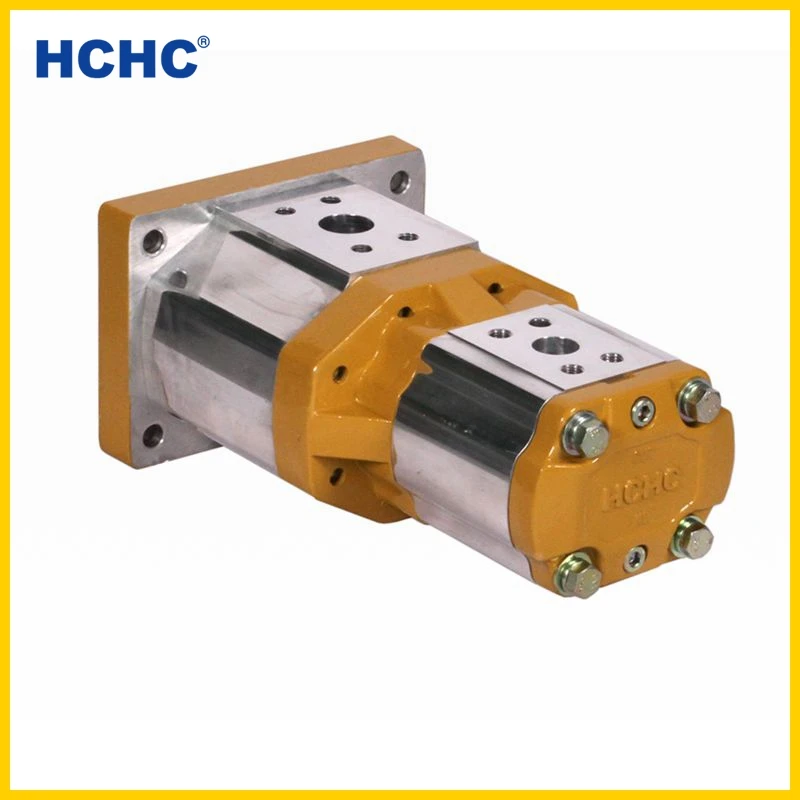

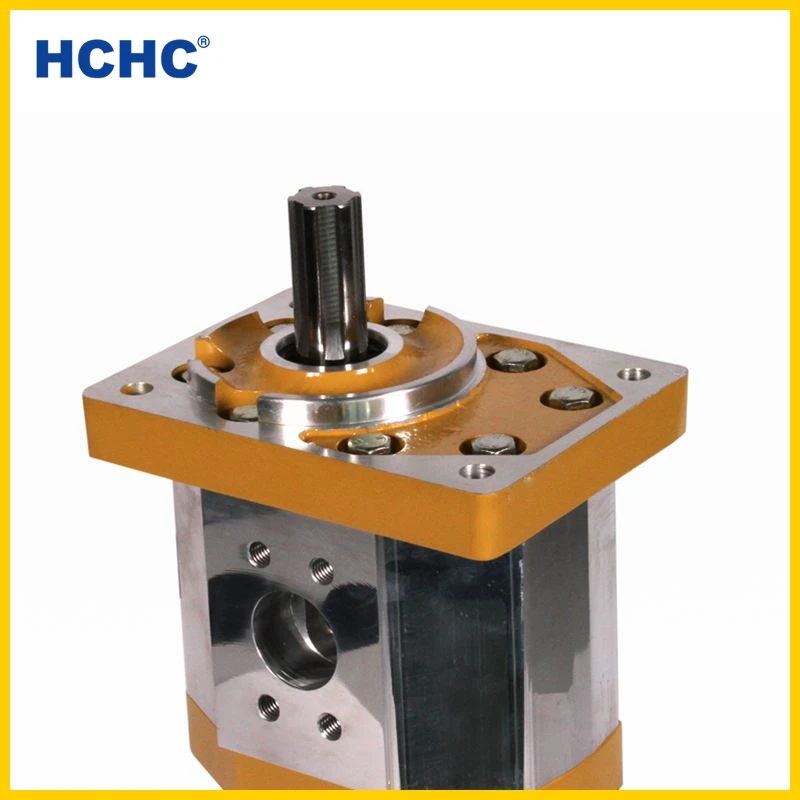

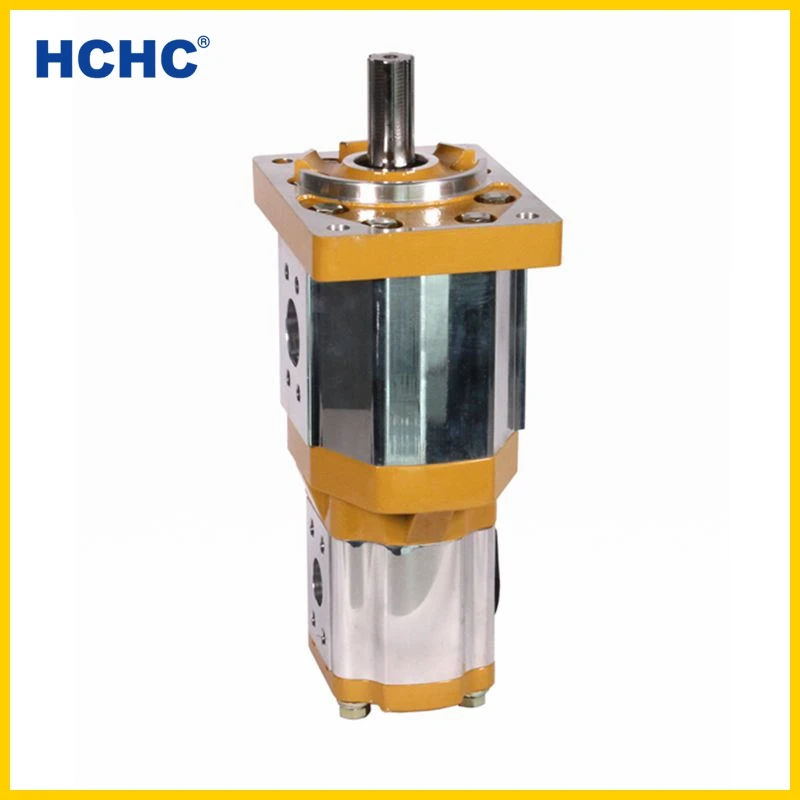

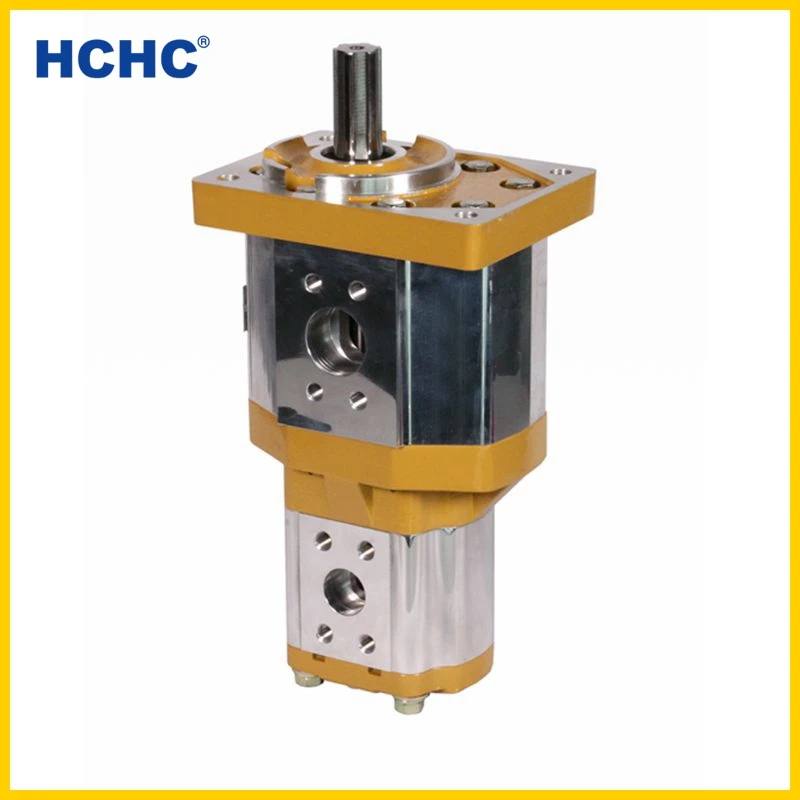

63mL hydraulic double gear pump CBQT with high pressure
Performance Character:
1.\tThe high strength aluminum alloy material, light and easy to install.
2.\tThe combination of 2 gear pumps with different modulus is suitable for various combination of large and small displacement.
3.\tThe shaft extension type: Plain key(P), rectangle spline(H), involute spline.
4.\tThe joining type of inlet/outlet position is flange (F) or thread (L).
5.\tThe auto-compensation unit of axial clearance ensures the high volumetric efficiency.
Specification
①\tProduct model
②\tPressure
③\tGear modulus
④\tNominal displacement of front pump
⑤\tNominal displacement of rear pump
⑥\tMounting type
⑦\tJoining port type
⑧\tShaft extension type
⑨\tRotation direction
Model | Nominal displacement Front/rear pump (ml/r) | Pressure Front/rear pump （bar） | Speed (r/min) | Volumetric efficiency (≥%) | Weight (kg) | ||||||
Rated | Max. | Min. | Rated | Max. | |||||||
CBQT-E563/F410-*F** | 63/10 | 20/25 | 2000 | 2500 | 92/91 | 11.2 | |||||
CBQT-E563/F416-*F** | 63/16 | 11.4 | |||||||||
CBQT-E563/F420-*F** | 63/20 | 600 | 11.6 | ||||||||
CBQT-E563/F425-*F** | 63/25 | 11.9 | |||||||||
CBQT-E563/F432-*F** | 63/32 | 92/92 | 12.1 | ||||||||
CBQT-F550/F410-*F** | 50/10 | 2500 | 92/91 | 10.1 | |||||||
CBQT- F550/F416-*F** | 50/16 | 10.3 | |||||||||
CBQT- F550/F420-*F** | 50/20 | 10.5 | |||||||||
CBQT- F550/F425-*F** | 50/25 | 10.9 | |||||||||
CBQT- F550/F432-*F** | 50/32 | 92/92 | 11.1 | ||||||||
CBQT-F540/F410-*F** | 40/10 | 92/91 | 9 | ||||||||
CBQT- F540/F416-*F** | 40/16 | 9.3 | |||||||||
CBQT- F540/F420-*F** | 40/20 | 9.4 | |||||||||
CBQT- F540/F425-*F** | 40/25 | 9.7 | |||||||||
CBQT- F540/F432-*F** | 40/32 | 92/92 | 10 | ||||||||
CBQT-F532/F410-*F** | 32/10 | 92/91 | 8 | ||||||||
CBQT- F532/F416-*F** | 32/16 | 8.2 | |||||||||
CBQT- F532/F420-*F** | 32/20 | 8.4 | |||||||||
CBQT- F532/F425-*F** | 32/25 | 8.7 | |||||||||
CBQT- F532/F432-*F** | 32/32 | 92/92 | 8.9 | ||||||||
CBQT-F525/F410-*F** | 25/10 | 91/91 | 7.1 | ||||||||
CBQT- F525/F416-*F** | 25/16 | 7.4 | |||||||||
CBQT- F525/F420-*F** | 25/20 | 7.7 | |||||||||
CBQT- F525/F425-*F** | 25/25 | 7.9 | |||||||||

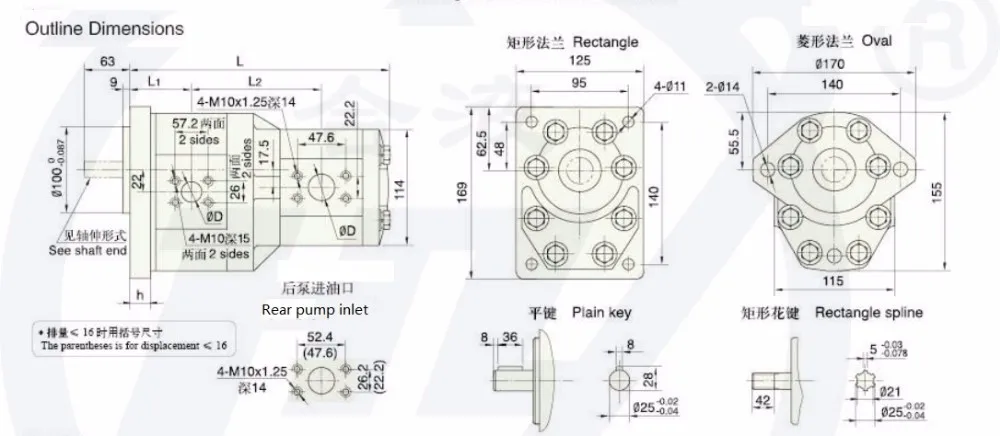

Outline Dimension
Production Process
\t\t\t\t\t\t\t\t\tApplication \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tOur Company \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tPacking and Shipping \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tFAQ & Contacts \t\t\t\t\t\t\t
