Полностью автоматический цыпленок перо муки завод по переработке
- Category: Feed Processing Machines >>>
- Supplier: Shandong Tinwing Machinery Manufacturing Co. Ltd.
Share on (60686722128):
Product Overview
Description
Product Description
Full Automatic chicken feather meal processing plant
Our Machine's Introduction:Our poultry waste rendering machine has the characters as followed: full-automatic control, stable running, good sterilizing effect, environmental protection, no second pollution. The final product will bring high profit both in the society and economy. It’s the most popular to process animal waste internationally.
Work-flow
→crush
→cook and dry→press
→dry
→cool
→pack
Simple process introduction
Crush animal to be about 50mm pieces, and then go to cooker to be cooked and dried. The raw material (carcass or animal waste) is in batch cooker with high temperature ≥140℃ and high pressure ≥ 0.5MPa for about 3-4 hours. Cooked material go to press to get meal cake and oil. Waste air goes to condenser, washing tower and other treatments to be cleaned.
Bin
When the truck sends the material in front of the bin door, the bin door will open automatically. Then the raw material will slide
into the bin. The raw material will be sent into the pre-breaker through screw conveyor .And the dead animal will be crushed into
less than 50mm material
into the bin. The raw material will be sent into the pre-breaker through screw conveyor .And the dead animal will be crushed into
less than 50mm material
Pre-breaker
The Pre-breaker is especially designed for reducing animal size, such as horses, pigs and all sorts of offal and bones from
slaughterhouses. The pre-breaker is installed as the first stage of a rendering plant , all knives and anvils are hard faced alloy
.
slaughterhouses. The pre-breaker is installed as the first stage of a rendering plant , all knives and anvils are hard faced alloy
.

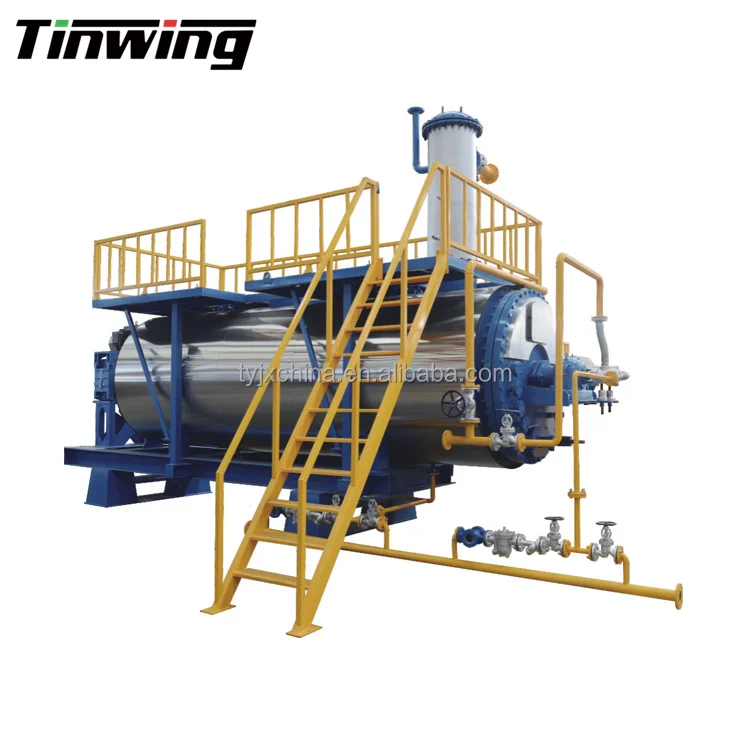

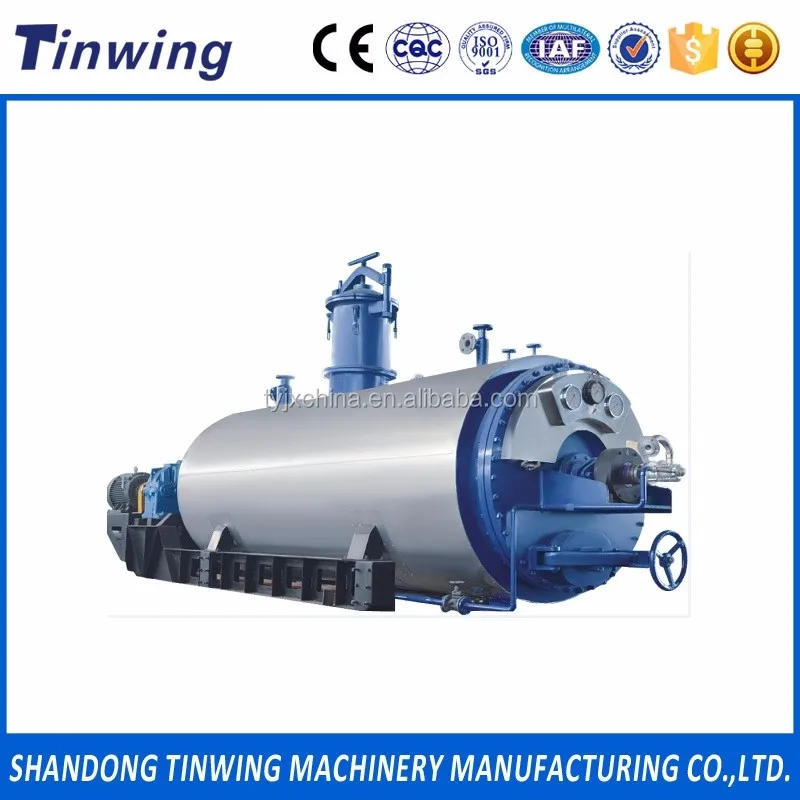

Batch Cooker
The Batch Cooker is designed to sterilize and dry animal by-products . The batch cooker is one of the most important parts of rendering plant.
Oil Press
With thick steel plate , more durable , suitable for different processing capacity. Large capacity, small work area . Low power consumption , easy operation and maintenance, Low residual oil press cake , good oil quality , the processed cake is loose and not fragile .
Cooker type | Capacity(kg/batch) | ||||||
Mixed meat offal,bones | Raw blood | Wet feathers | Mixed poultry offal | ||||
XBC5000 | 3000 | 2000 | 2700 | 3000 | |||
XBC6500 | 4000 | 2500 | 3500 | 4000 | |||
XBC8500 | 5000 | 3400 | 4600 | 5000 | |||
XBC10000 | 6000 | 4000 | 5400 | 6000 | |||
XBC16000 | 10000 | 7000 | 9000 | 10000 | |||
Other auxiliary equipment
Packing&Shipping
Package: standard package for sea
We usually pack our products by standard sea package. We always choose the best and safe packaging material to make sure your product won't be damaged during delivery.
We usually pack our products by standard sea package. We always choose the best and safe packaging material to make sure your product won't be damaged during delivery.
Company Introduction
Tinwing is a comprehensive research and development machinery manufacturer of fish meal and animal feed machine, with government A2 pressure vessel, owns a modern factory with over 20000 square meters, have 16 professional senior engineers, one UK technical adviser. Absorbing advanced technologies from Denmark, the company has gained thirteen patents. Meanwhile, the company has passed ISO certificate, CE certificate, ASME certificate, SGS certificate.We establish a long-term cooperation relation with companies of South Korea, USA, Germany, Russia, Thailand, Malaysia, Philippines etc.
Our Workshop
Our Customer
Certifications
FAQ
1. What are the payment terms?
T/T,L/C and trade assurance are acceptable,T/T will be more appreciated,30% deposit before production,70% balance before shipment.
2.What is the delivery time?
At least 2 month after the deposit for most machines
3.How to pack the machine?
Standard packaging
4.How to install after the machines arriving destination?
Our engineer will go to customers site if you need,but need to pay installation fee according to the contract.
5.What's the capacity you can do?
We always produce any capacity depend on customers' requirement.
T/T,L/C and trade assurance are acceptable,T/T will be more appreciated,30% deposit before production,70% balance before shipment.
2.What is the delivery time?
At least 2 month after the deposit for most machines
3.How to pack the machine?
Standard packaging
4.How to install after the machines arriving destination?
Our engineer will go to customers site if you need,but need to pay installation fee according to the contract.
5.What's the capacity you can do?
We always produce any capacity depend on customers' requirement.
