Four sided moulder woodworking planing machine polishing machine wood planing machine

Mainly use to solve problems about: wood floor, door frame, picture frame, wood chip mouldings, wood block. four sides planer
How to choose a four sides moulder?
According to different working width choose machine. Such as 130mm MB4013). 150mm(MB-4015), 160mm, 180mm, 200mm, 230mm
According to different requriement choose : 4 spindles, 5 spindles, 6 spindles.
In single surface the more spindles it means the more depth it will cut .
According to different wood product, adjust machine's motor power

The shortest(mm)	250mm	(kw) First bottom spindle	2.2kw	Feeding power	1.5kw
Working width(mm)	20-130mm	(kw) Right side spindle	2.2kw	Up/down	0.75kw
Working thickness(mm)	8-100mm	(kw) Left side spindle	3kw	Total power	14kw
Feeding speed(m/min)	8-24m/min	(kw) First top spindle	4kw	First diameter	100mm
Spindle speed(r/min)	6000r/min	(kw) Second top/bottom	/	Other diameter	90-125mm
Other	MB4013D-K		150mm
	MB4013D-H		12-33m/min

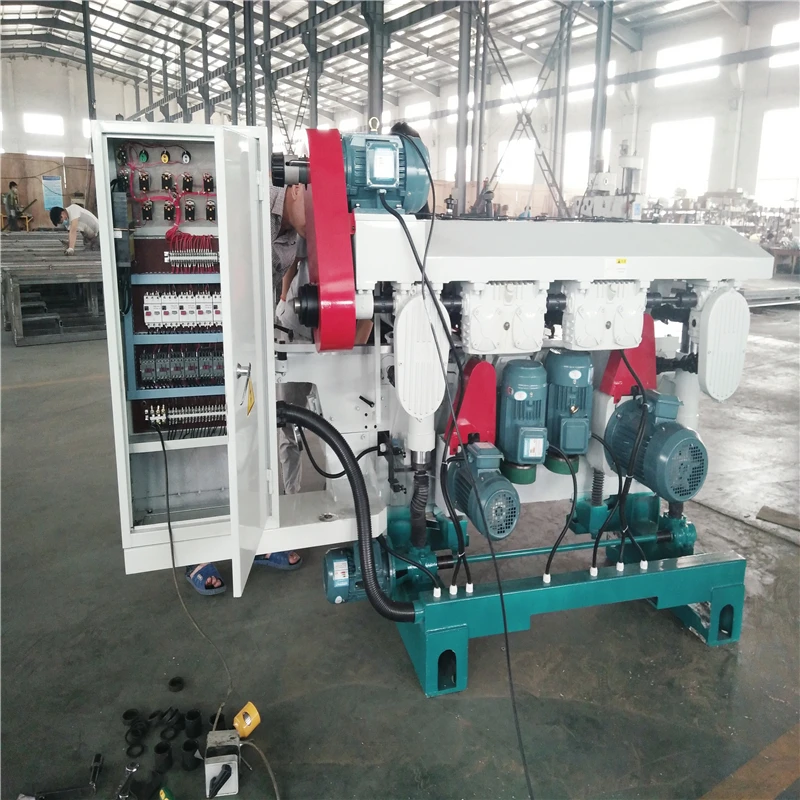

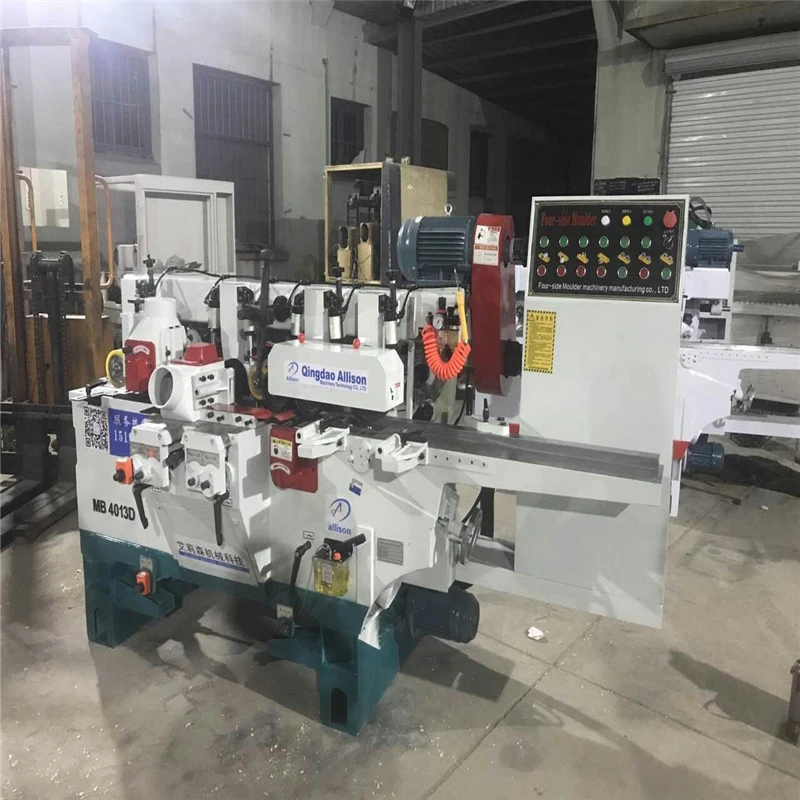

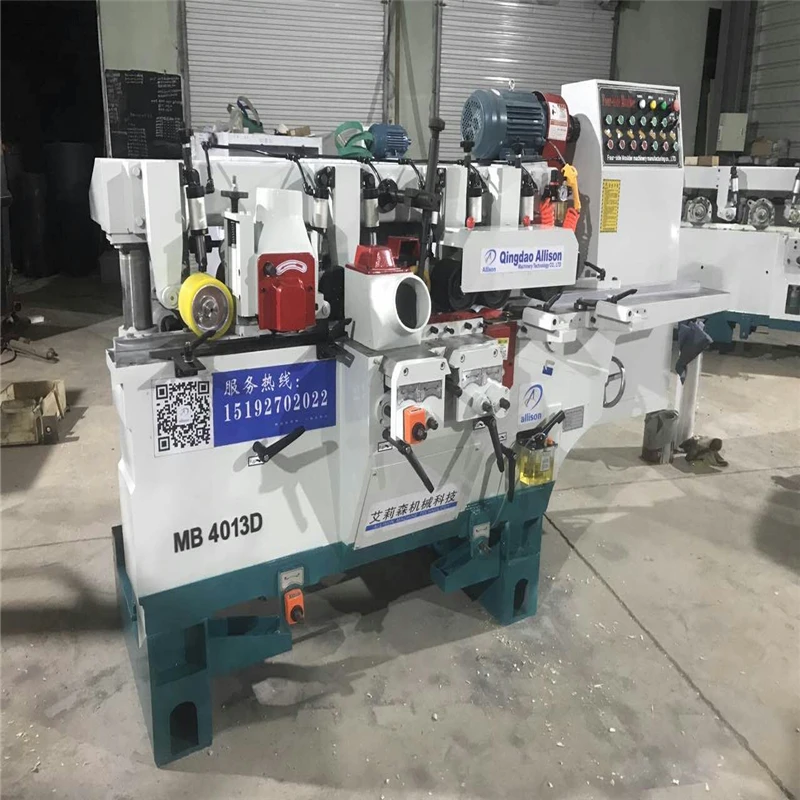

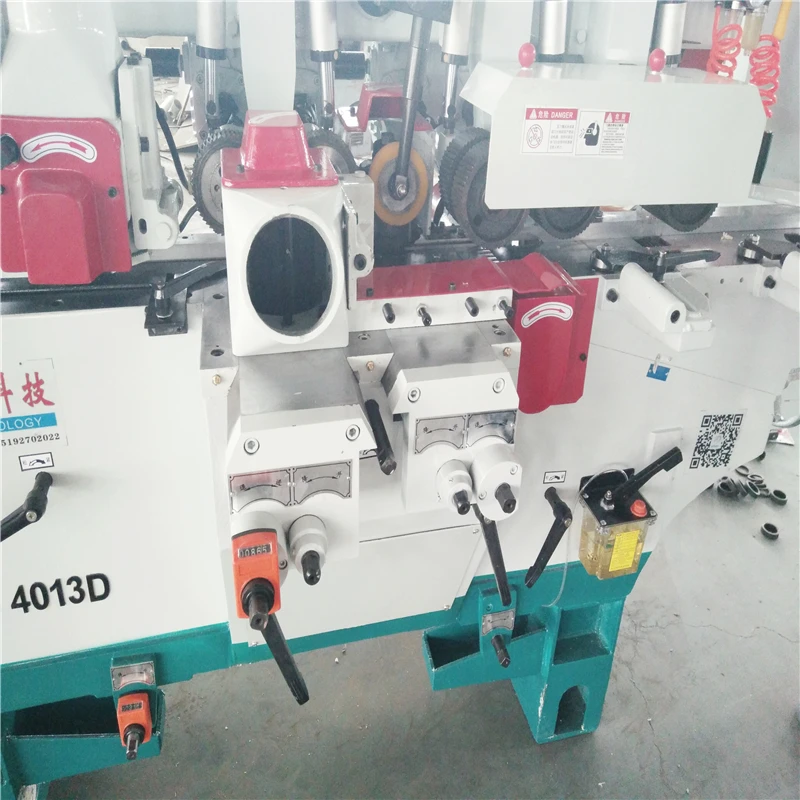

Detailed Images

Packing & Delivery

Our Company

Why choose Allison?

1.Professional: We have more than ten years experiences in high quality woodworking machinery, especially Sanding Machine,Planing Wood Sangding Machine,Lock Jointing Machine,Cold Press Series,Hot Press Series,Frame Combination Machine Series,etc.

2.Excellent: Established in 2007, ISO9001 certificated.

3.Economial: We offer the good price with great quality because we do high-volume production manufacturer

4 .Location: One hour reach Qingdao port

Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
