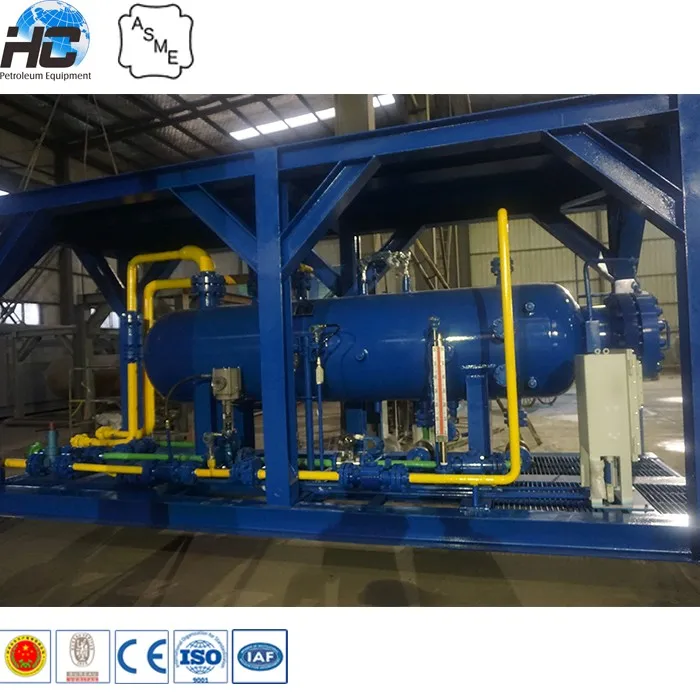

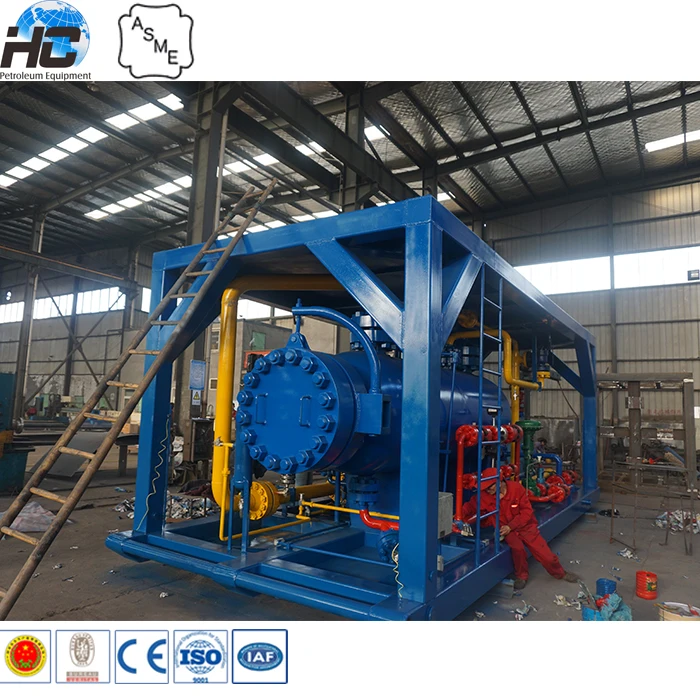

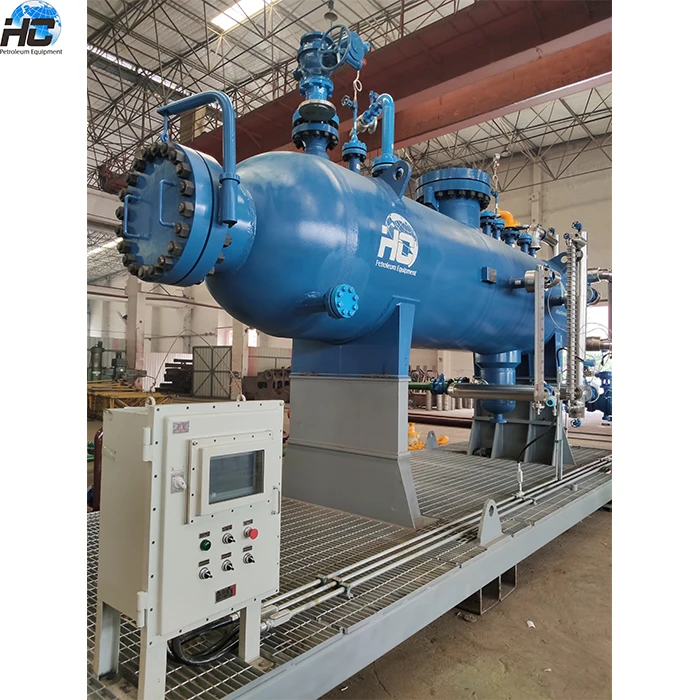

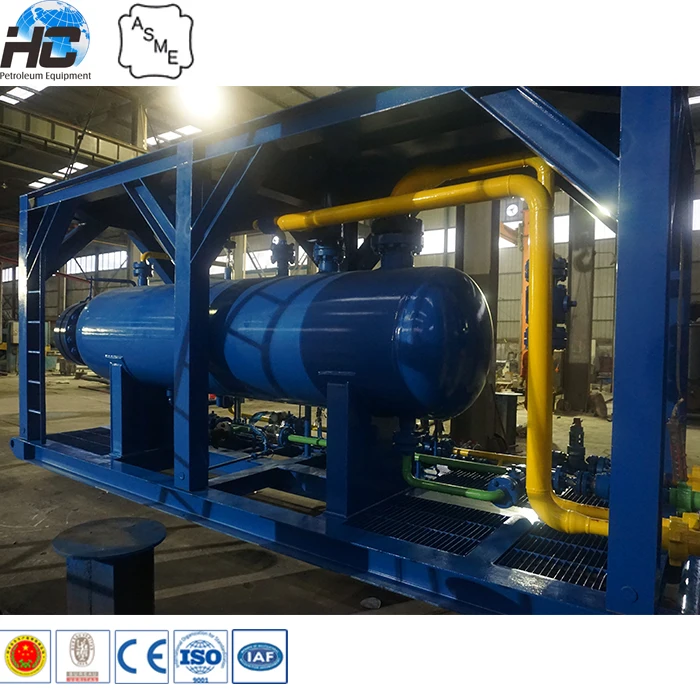

Oilfield well effluent separator vessel / 3 phase gas liquid separator / gravity filter separator
Product Description
Gas oil water separator is a technically advanced instrumented pressure vessel designed to efficiently separate well effluent into oil, gas and water,and accurately measure the flowrate of them separately.
Model | HCS30/100 |
Description | Oilfield well effluent separator vessel / 3 phase gas liquid separator / gravity filter separator |
Dimension | 7.6×2.2×2.4m |
Total Weight | 12.5t |
Monitoring mode | IPC control |
Structure | Integrated |
Gas processing capacity | 50 (×104 N m³/day) |
Liquid processing capacity | 150(m³/day) |
Design pressure max | 9.8MPa(1400psi) |
Normal operating pressure max | <9.0MPa |
Design temperature max | 80℃ |
Liquid process capacity | ≤300m³/d |
Inlet pressure | 32.0MPa(4640psi) |
Inlet temperature | ≥10℃(50°F) |
Processing medium | Crude oil, water, associated gas mixture |
Safety valve set pressure | 7.5MPa(HP)(1088psi),1.3MPa(LP)(200psi) |
Rupture disk set pressure | 9.4MPa(1363psi) |
Gas flow measure precision | ±1% |
Liquid content in gas | ≤13mg/Nm³ |
Oil content in water | ≤180mg/L |
Water content in oil | ≤0.5% |
Power supply | 220VAC,100W |
Crude oil physical property | viscosity (50℃); 5.56Mpa·S; crude oil density(20℃):0.86; |
Gas-Oil Ratio | >150 |
Features of 3 phase gas liquid separator / gravity filter separator as below:
• Accurate, safe separation and measurement of oil,gas and water from well effluent.
• Uninterrupted operation from begginning to end.
• High automation and high measurement precision.
• Electronic data acquisition, accurate data details.
• Double safety devices:rupture disk and spring safety valve.
• The parameters alarms by sound and light
• Automatically generate reports

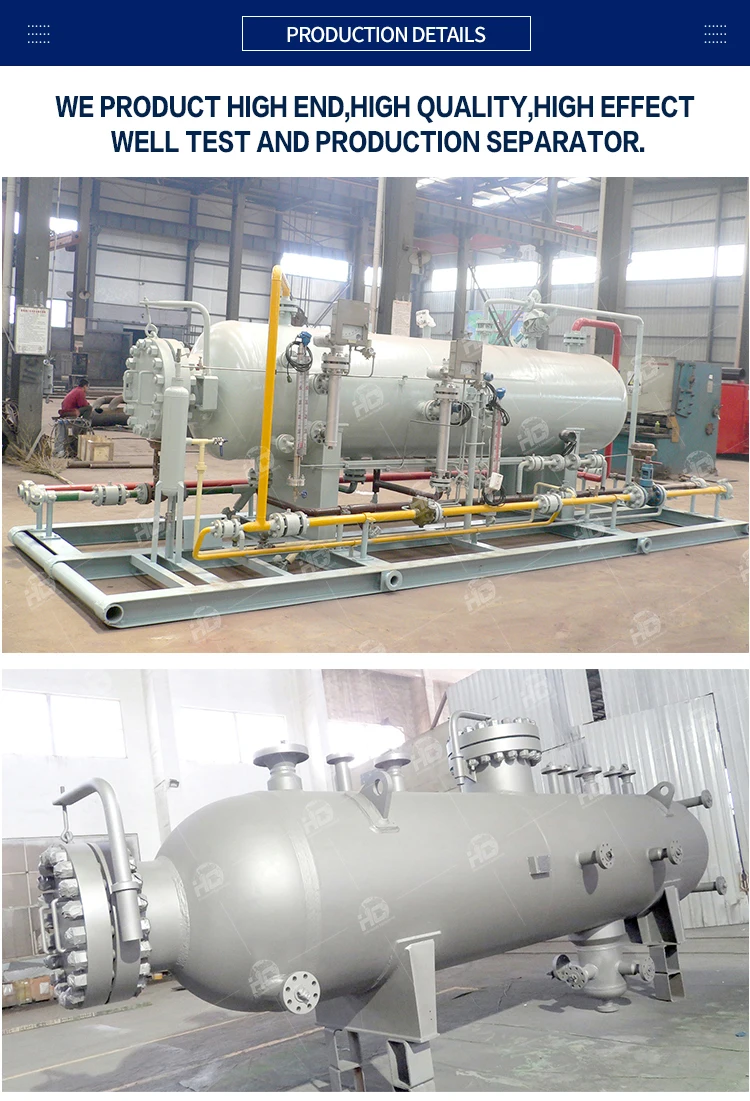

Production Details
