Product Overview

Description

Product Features

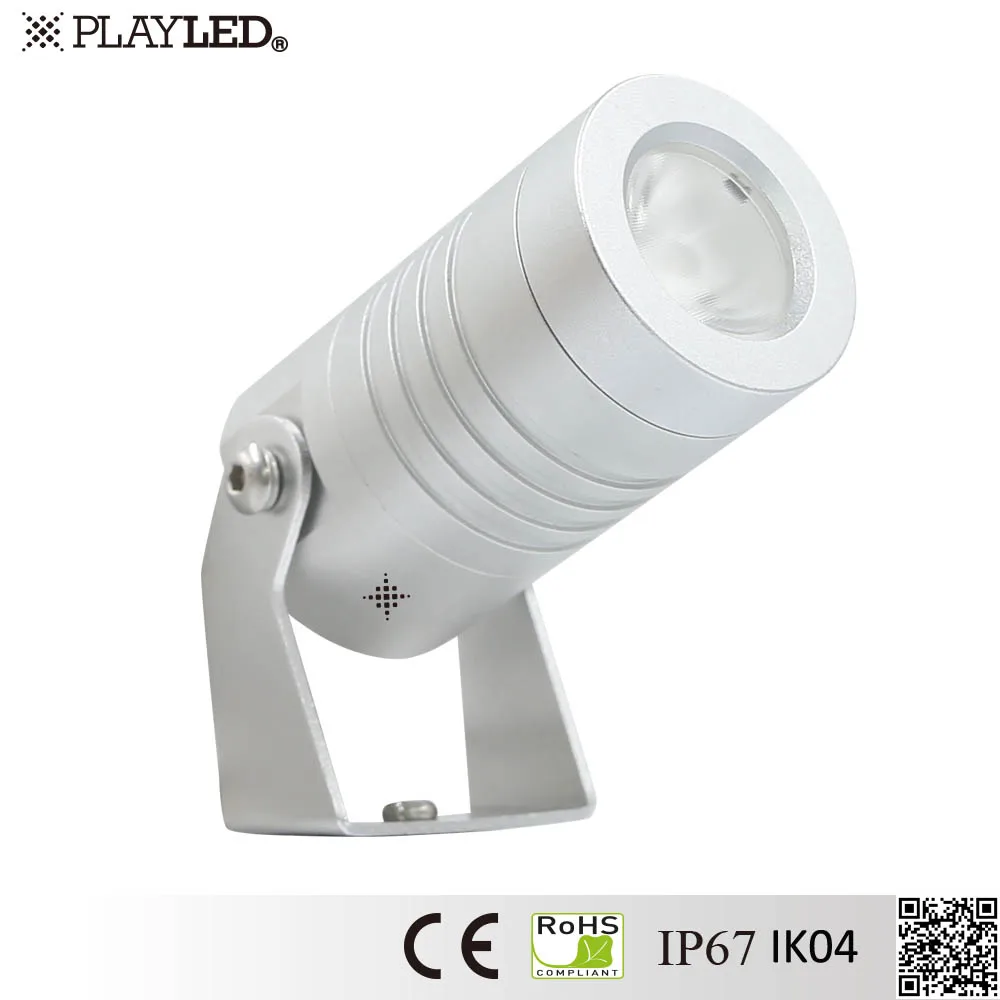

3W Narrow beam IP67 outdoor landscape lighting spike lights 3W led garden light

.1 PC 3W CREE XPE LED
.Small housing but with powerful lighting lumen output
.Beautiful appearance housing design
.20~25 um thickness passivated anti-corrosion protection film that won't be fading even after 2 to 3 years
. With anti-glare shield (hood) , PVC spike for ground installation, round base for wall mounted installation as options

.Lamp housing and spike color is Silver color as standard, and Dark grey color, Black color  as options.
.10°, 25°, 40° beam angle as options
.110~130 l m high luminous flux output
.IP67 waterproof
. 3 years warranty
.8~10 years professional sales and technicians to serve you

Data Sheet
General Data
Item No.
UL-1010A
Power
3 Watts
LED type
1 PC 3W CREE XPE LED
Luminous flux
110~130 l m
CCT
2700K,3000K, 4000K, 6000K
CRI
80+
Beam angle
10°, 25°, 40°
Dimension
Φ42 x 75 (mm) Diameter x Height
Cut out
/
Net weight
0.29 kgs
Warranty
3 years
Certifications
CE, RoHS
Electrical Data
Input voltage
AC95-265V

Insulation class
Class I
Cable
1PC rubber cable 1.5M H05RN-F 3x0.75mm square
Driver
Built-in high voltage constant current driver with transformer
Construction Data
IP rating
IP67 Waterproof
IK rating
IK04
Housing
Solid Passivated (Anodizing) Aluminum CNC machined
Protection finishing
20~25μm thickness anodized film for housing .Silver color as standard, and Dark grey color, Black color as options.
Trim
Passivated (Anodizing) Aluminum
Glass
Step tempered Glass.T=3mm.
Loading capacity
220 kgs
Cable Gland
PG7 IP67
Gasket
O-ring PMQ silicone seal
Accessories
Spike
With Aluminium spike as spike spot lights (Standard)
Round base
With SS304 round base for wall mounting (optional)
Shield-46
Aluminium Anti-glare Shield (Snoot / Hood) optional, finishing in silver color or dark grey color as options.  (optional)

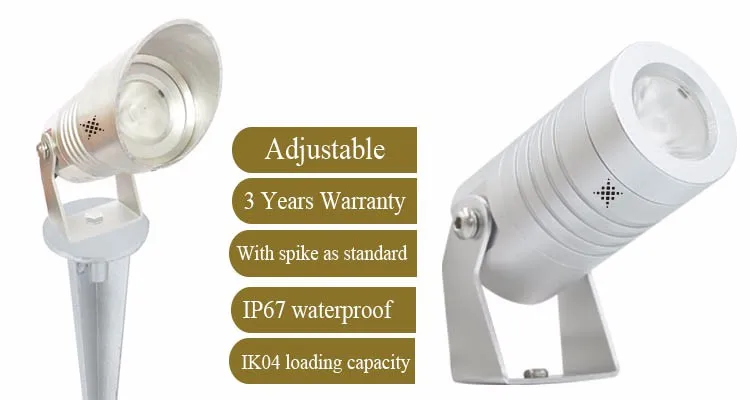

Detailed Pictures

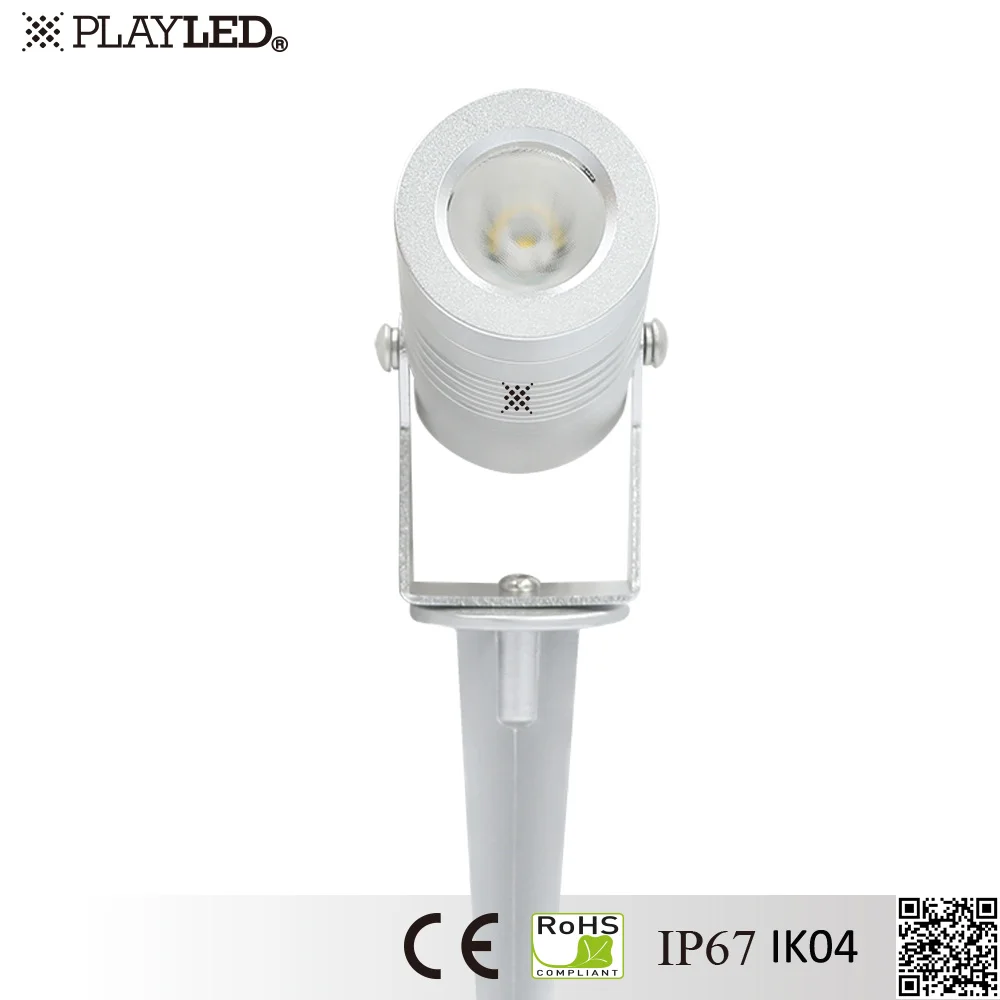

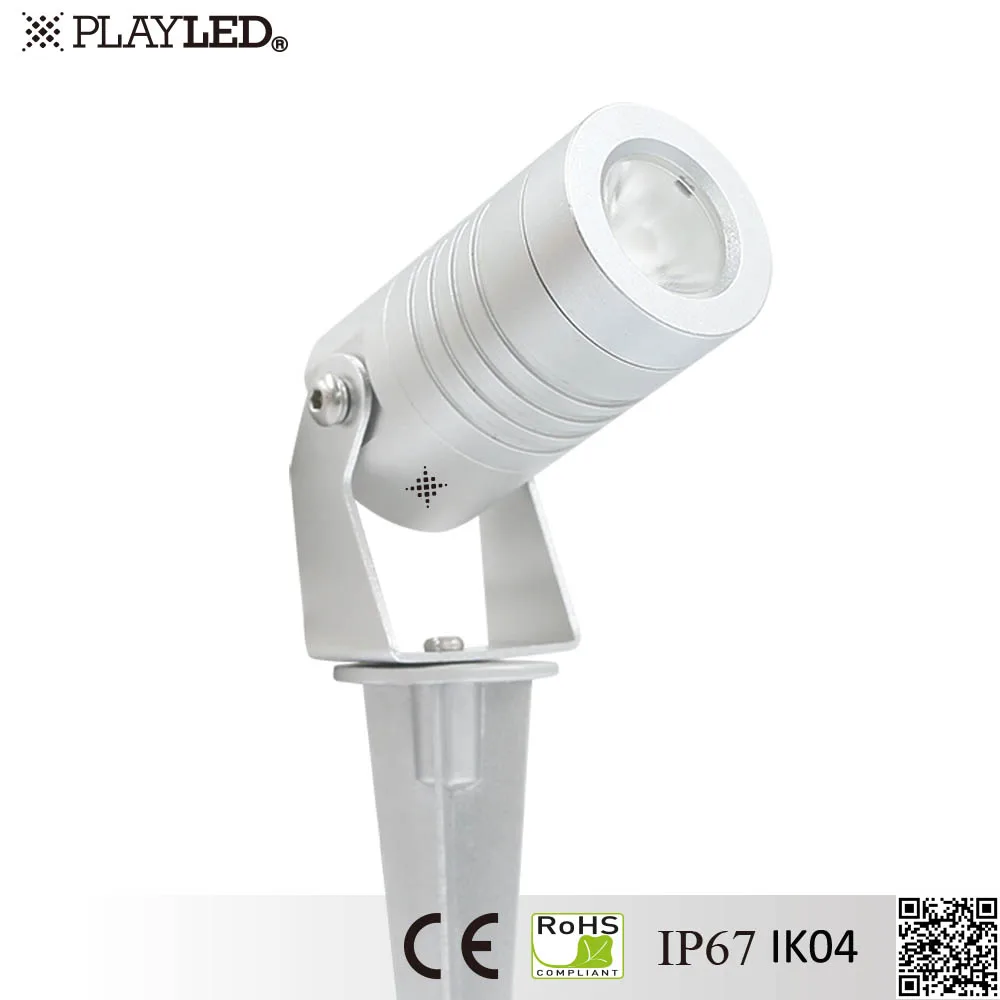

This LED spike light is with PVC spike as standard for outdoor garden lighting, landscape lighting application, and with waterproof IP67 instead of IP65 deign, IK04 loading capacity.

The LED garden light is with imported high quality LED for long life landscape garden light application.

Passivated (Anodizing) Alumnium housing CNC machine that won't be fading even after 2 to 3 years.

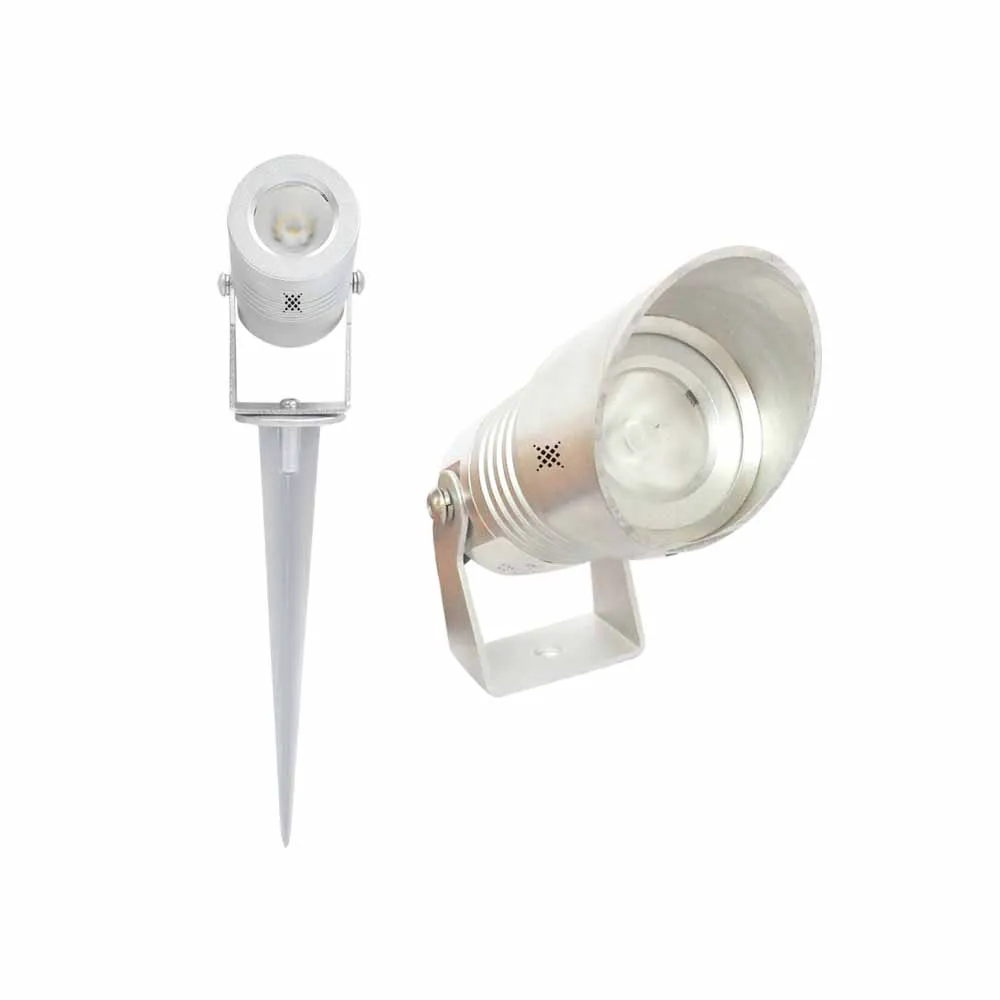

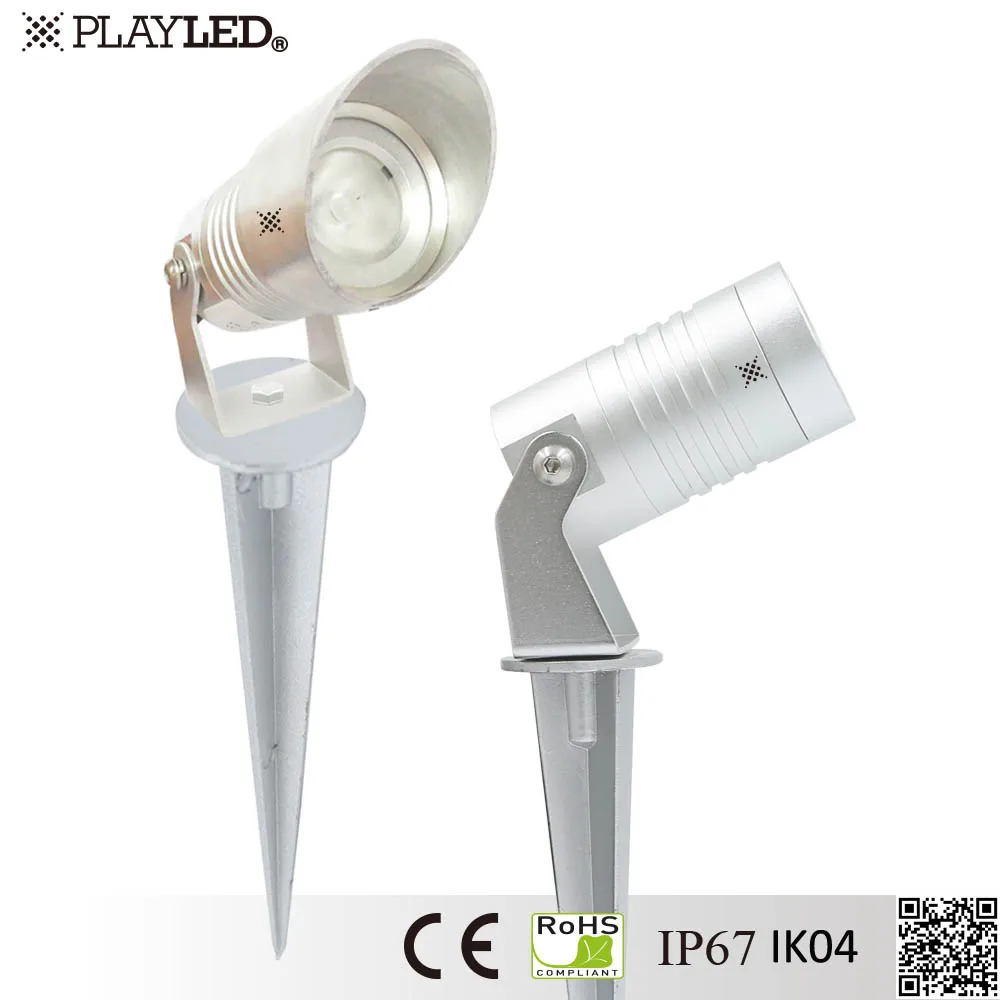

With anti-glare shield (hood) design as options.

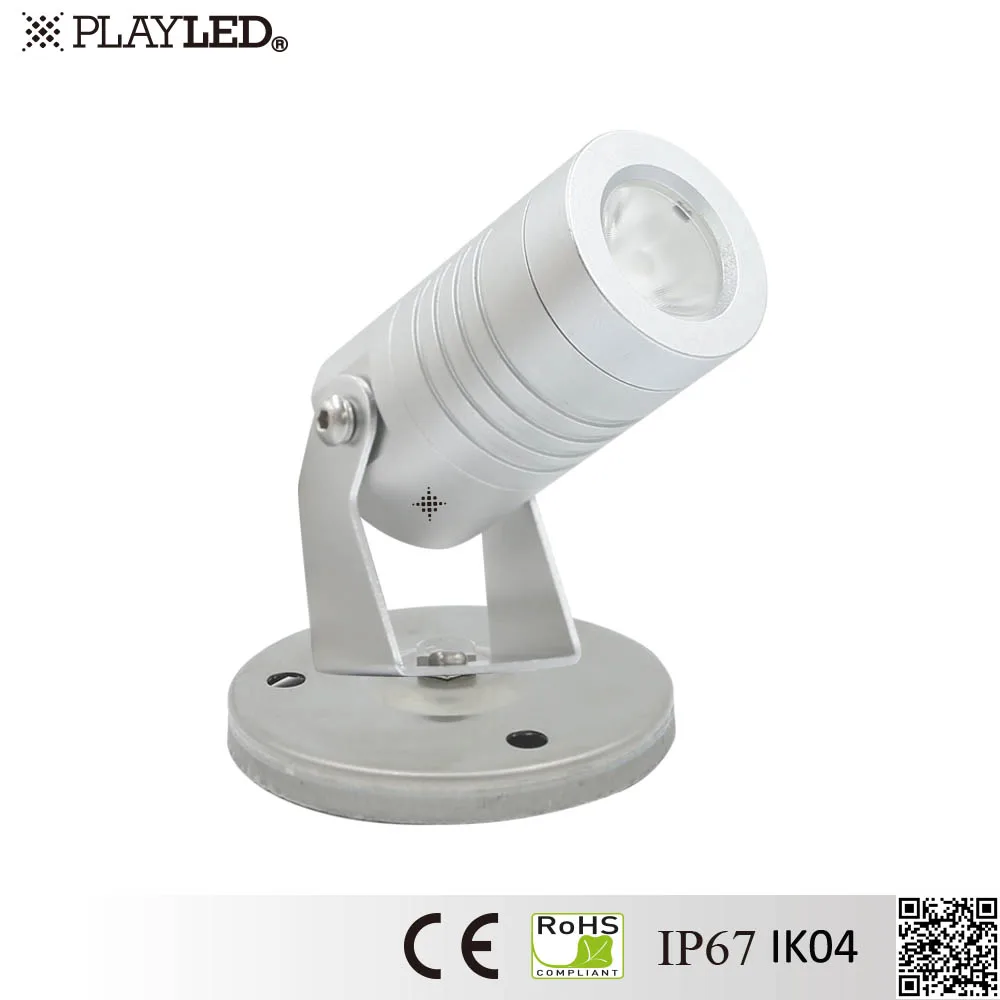

With stainless steel 304 round base for wall mounted as exterior wall lights as options.

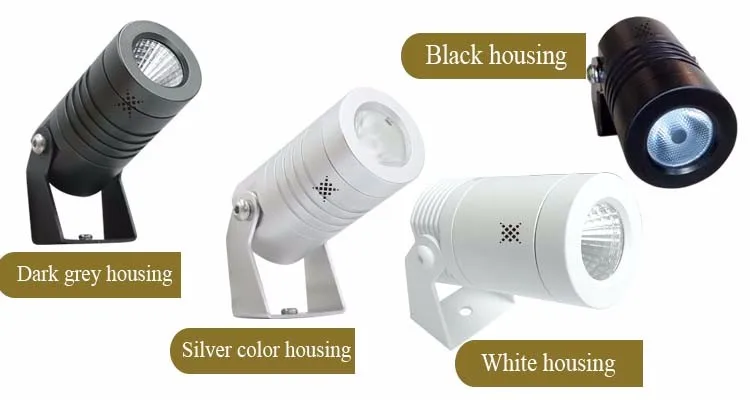

Dark grey color housing as standard,and silver color,black color,white color housing as options for LED garden light.




Illumination picture showcase

It's with CCT 3000K,and 25 degrees beam angle.
We have our own IES photometrical machine to make the IES test.

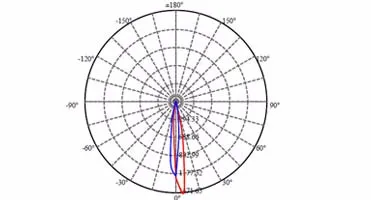

Light distribution cureve

Lux distance curve

Dimension
Related products
Please click the picture to check this landscape led spike light outdoor garnden lighting series !

Please click the below picture to check our main products series or send me the Email info5(@)pyledlight.com for the PDF file E-catalogue to check our whole range products . (Pls remove "()")

Application Pictures

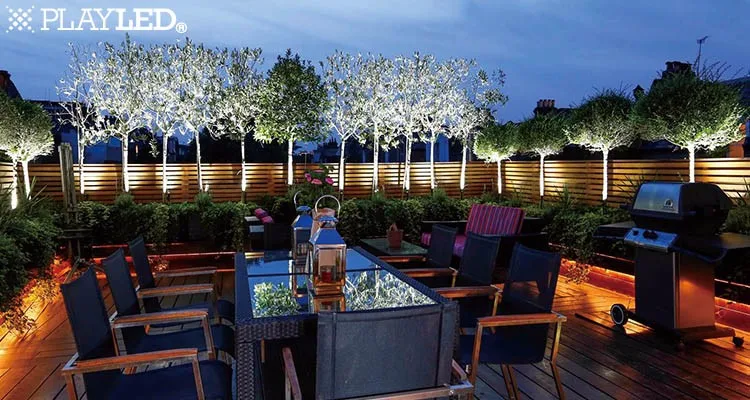

Exterior garden lighting for landscape, trees,flowers,statue,lawn etc.
