2.4G 5G internal PCB dual IPEX/U.fl/MHF4 wifi antenna

Product Overview

Description

2.4G 5G internal wifi PCB dual IPEX/U.fl/MHF4 antenna





Specification:



Electrical Specifications
Frequency Range	2.4G/5G/5.8G, dual band
Material of Radiator	PCB
Gain	3dBi
VSWR	<= 2.0
Impedance	50 (Ω)
Maximum Input Power	50 W
Operating Temperature	-40℃ to+65℃
Storeage Temperature	-40℃ to+80℃
Mechanical Specifications
Antenna type	IPEX antenna
Antenna material	PCB

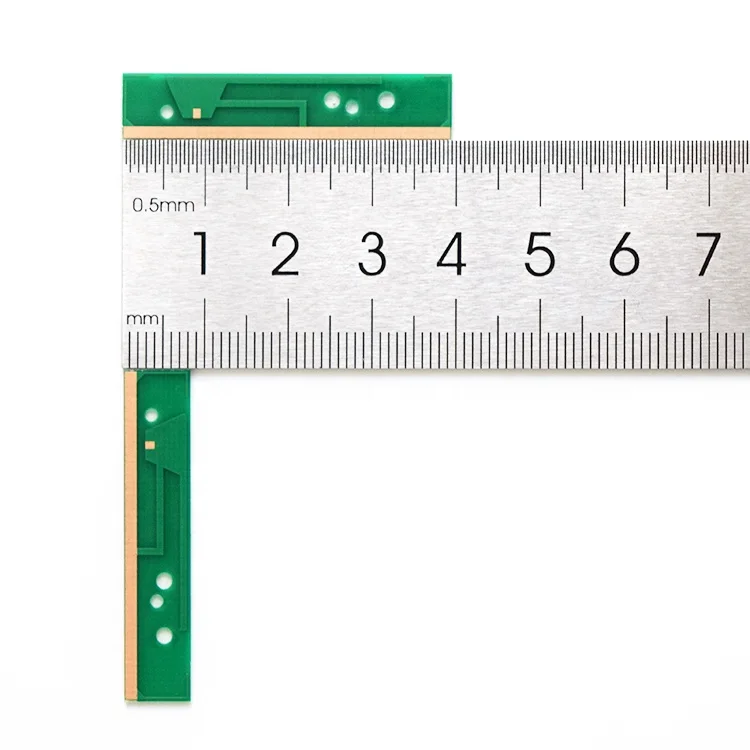

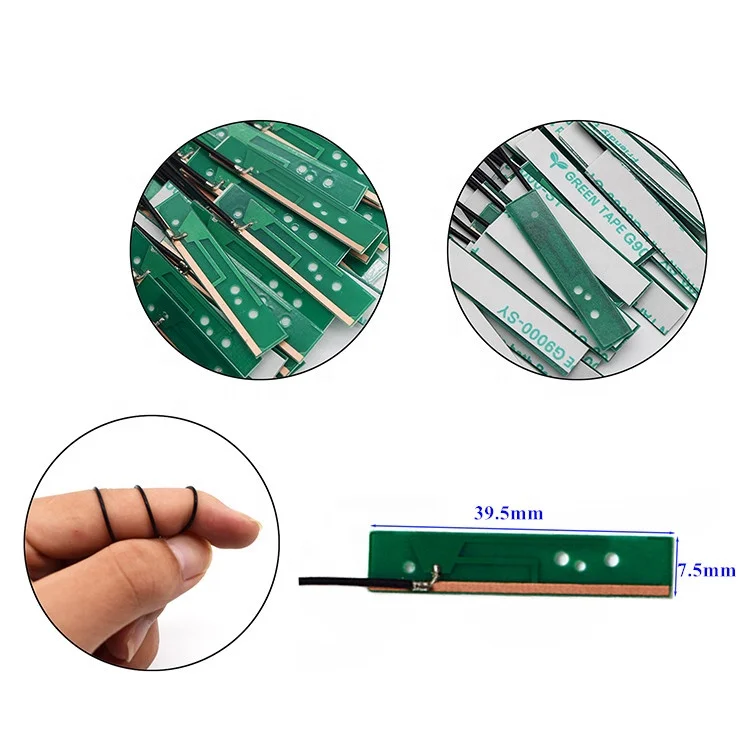

PCB Size	39.5mm*7.5mm*0.6mm
Cable type	0.81/RG113/OEM
Cable Length	120/200mm/OEM

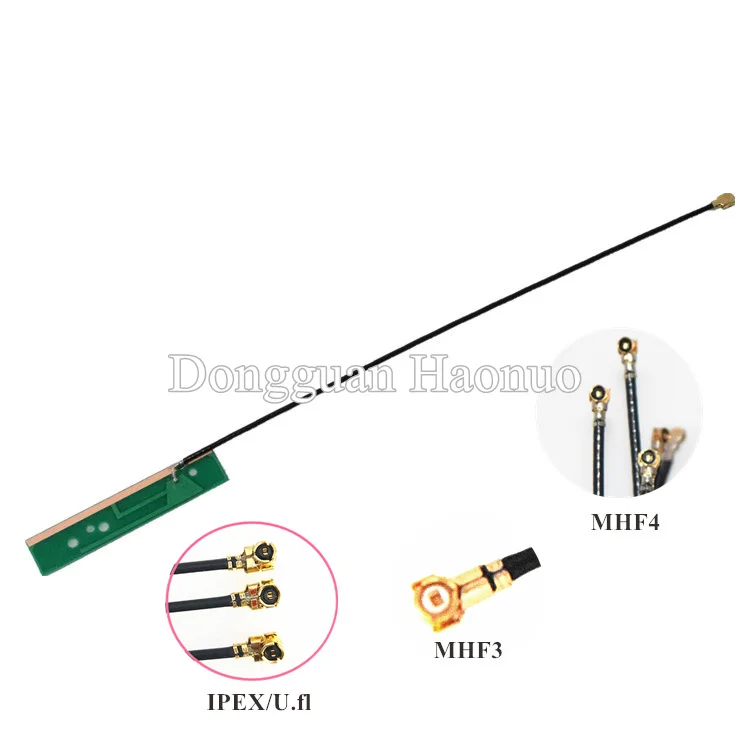

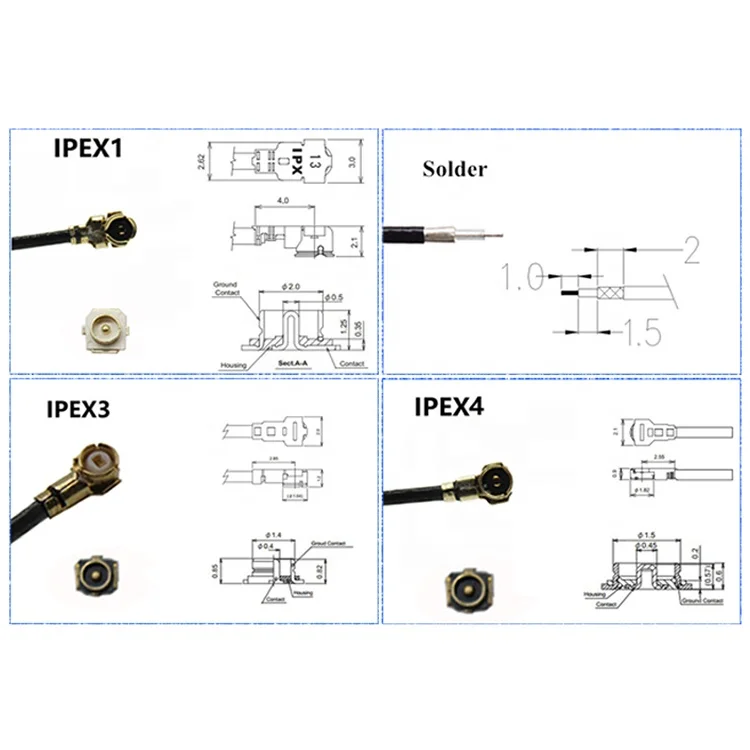

Connector Type	IPEX/U.fl/MHF4/OEM
Color	green



If you need PCB dual band antenna with other cables, or other connector or different cable length, welcome to contact us.

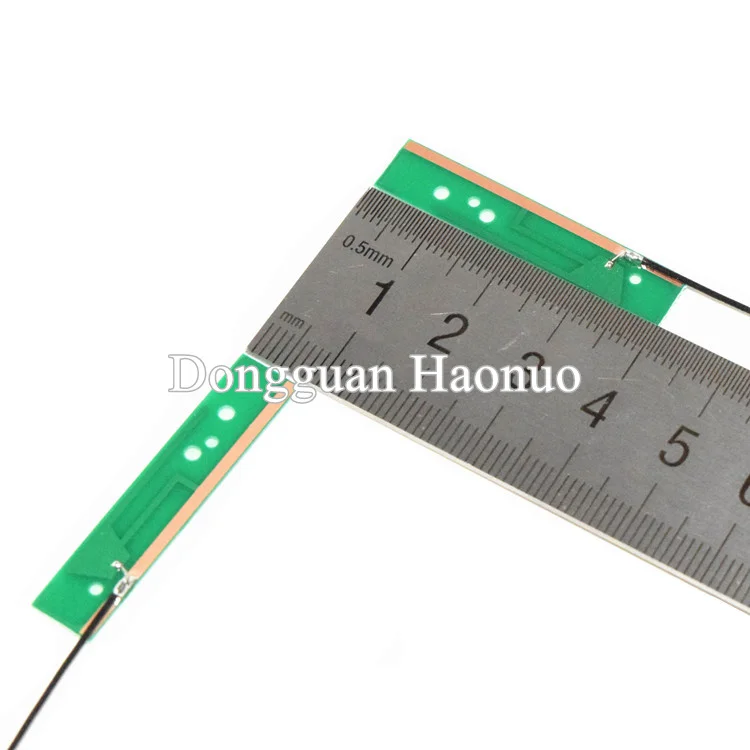

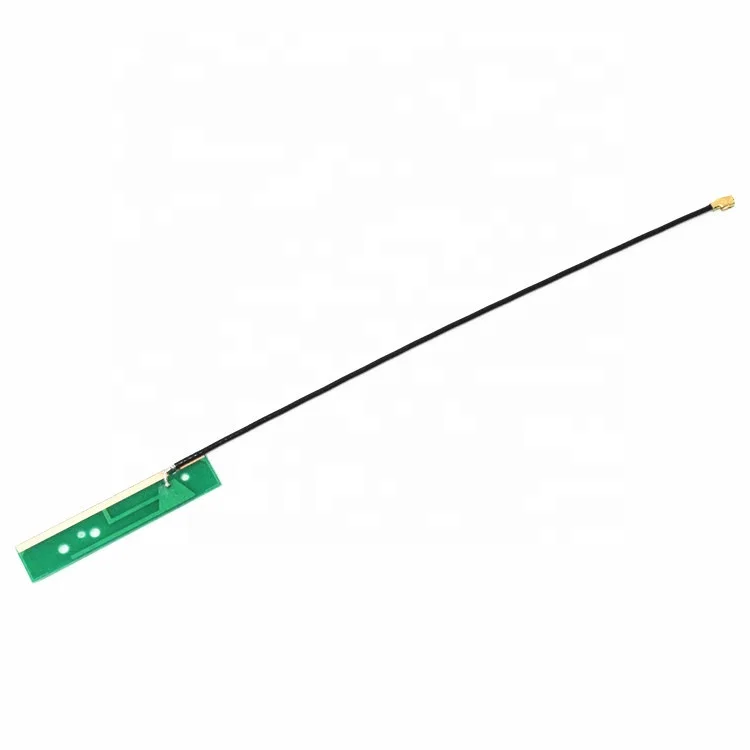

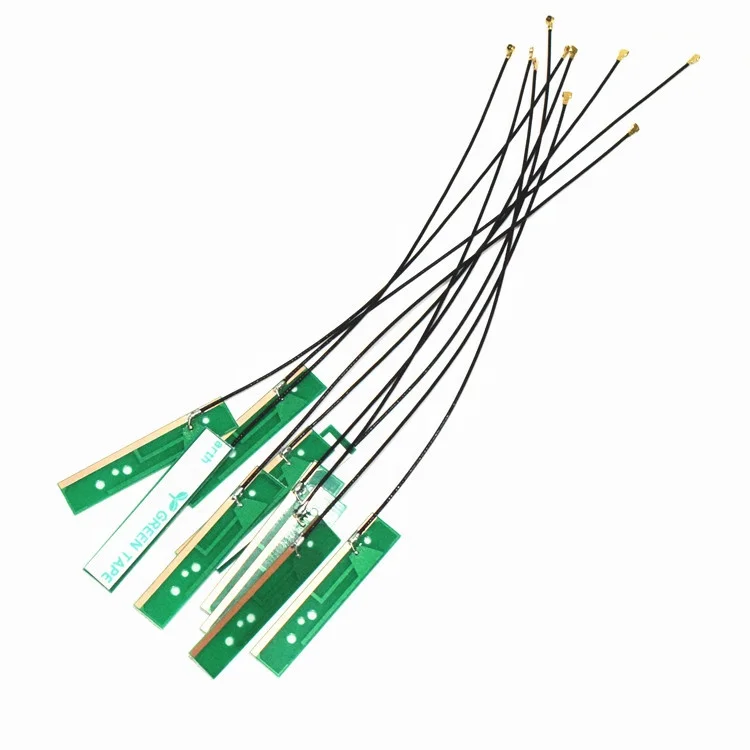

Product:







Packing and shipping:



Pack: 100 pcs per bag. OEM pack is workable



Shipping: by Sea/Airplance/Express

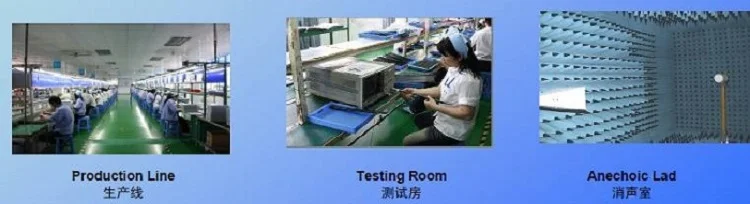

Company Info:
