Black Plastic Nylon Push Rivets Fastener for PC Support Locking Standard SR4050
- Category: >>>
- Supplier: Dongguan City Zhaoming Hardware Co. Ltd.
Share on (60686893877):
Product Overview
Description

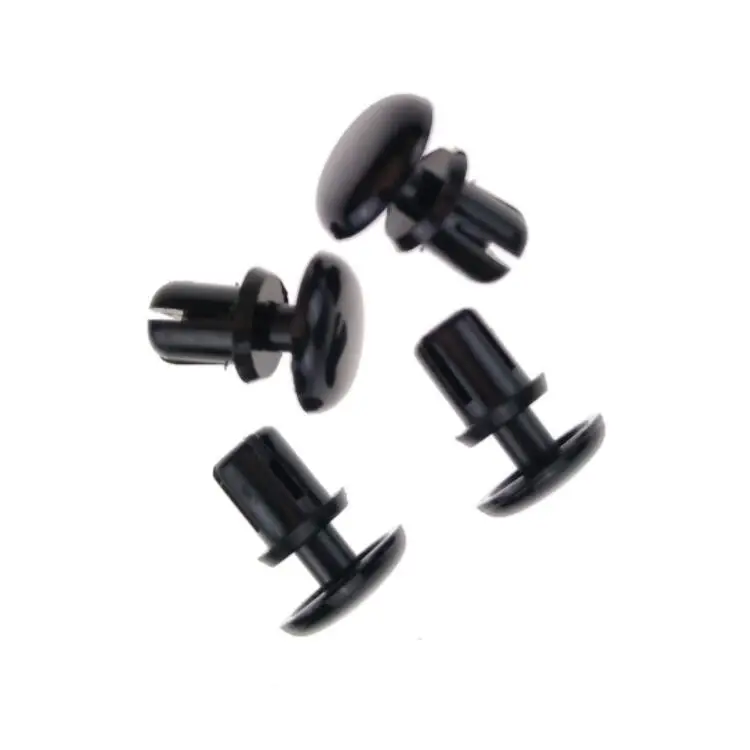

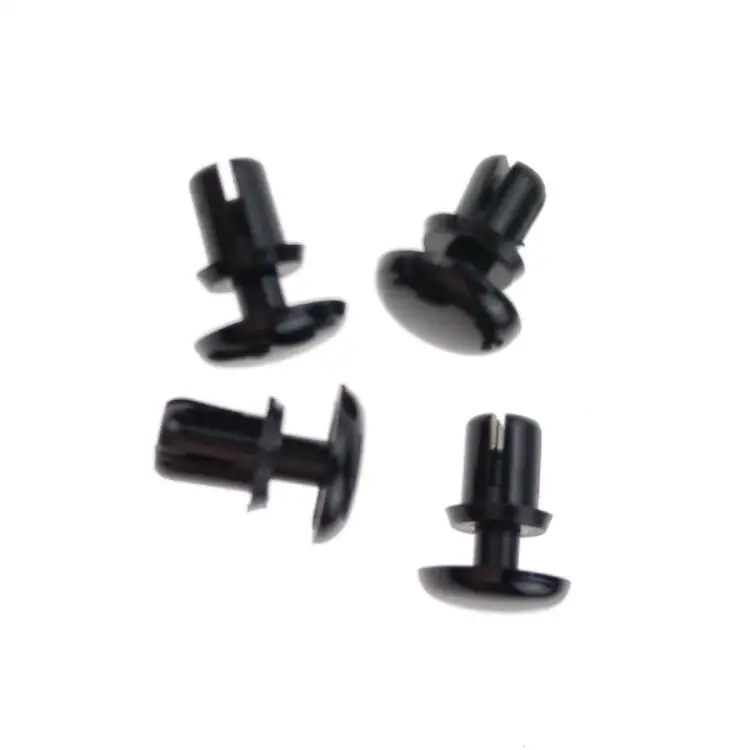

Black Plastic Nylon Push Rivets Fastener for PC Support Locking Standard SR4050
General Description
Plastic nylon push rivets are also known as push-in rivets , they are made from nylon grade 66 with resistant fire grade UL94V-2 , they are normaly used to electronics for replacement of screws .
There are two different styles for push rivets , one is rivet with two locking segments , and another one is with four locking segments , they are designed to lock panels .
Technical Data
Material
Plastic nylon
Physical Properties
| Tensile strength MPa | 70 |
| Elongation at break % | 40 |
| Bending strength MPa | 90 |
| Modulus of elasticity for tension MPa | 3160 |
| Compressive strength MPa | 127 |
| Shearing strength MPa | 67 |
| Fatigue MPa | 35 |
| Hardnee ( HR ) | 94 |
Specification
Diameter | 4 | |
Length | 5.0 |

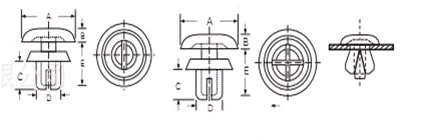

Optional Sepcifications
| Specification | A | B | C | D | E |
| SR3045 | 6.4 | 1.6 | 4.5 | 3 | 6.1 |
| SR3055 | 6.4 | 1.6 | 5.5 | 3 | 6.1 |
| SR3065 | 6.4 | 1.6 | 6.5 | 3 | 7.1 |
| SR3075 | 6.4 | 1.6 | 7.5 | 3 | 9 |
| SR3080 | 6.4 | 1.6 | 8 | 3 | 9 |
| SR3090 | 6.4 | 1.6 | 9 | 3 | 11 |
| SR3010 | 6.4 | 1.6 | 10 | 3 | 11 |
| SR3023 | 6.4 | 1.6 | 23 | 3 | 24 |
| SR3535 | 6.4 | 1.6 | 3.5 | 3.5 | 5.1 |
Unshowed specifications , pls refer to us for details .
Product Features
1 . Resistant corrosion
Plastic push rivets are not rusted .
2 . Fire proof
Plastic nylon rivets are meet UL 94V-2 requirements
3 . Resistant water
Nylon rivets are not dissolved to water
4 . Resistant wear
5 . Resistant high temperature
Nylon push rivets are resistant of 120 degree or more .
6 . Perfect insulation
Applications
Plasic nylon push rivets are often used for fixing PC panel or thin metal sheets with light duty .
Tips for Use
1 . Different dimensions for different panel thickness ( pleas refer to us for details )
2 . Far from fire for longer service
Packing Details
 |  |  |
| Bulk ( Bags + Carton )
kg / Bag : 3 Kg / CTN : 18 L X W X H : 25 X 20 X 15 cm | Boxes ( Boxes + Carton )
Kg / Box : 1 Kg / CTN : 12 L X W X H : 25 X 25 X 20 cm | Pallets
Kg / Pallet : 1500
L X W X H : 1 X 1 X 2 m |
Remark : Custom packing is acceptable . Above packings are reference only , items showed in the pictures maybe not described one .
Our Services
We are one of hardware spare parts manufacturers in China , we provide various metal and non-metal parts with standards and customizations , eg. Fastener Screws ( including Stainless steel screws ) , Spacers Washers , Fastener Nuts bolts , Fastener Pins , Fastener Rivets , Metal Stamping Parts , Metal Machined Parts , Plastic Injection molding Parts . and Fastener Tools . We trade with buyers , wholesalers and retailers from different countries . We accept OEM and ODM service as well . Please contact us if you have any enquiry .
FAQ's
Q What is your production capacity ?
A. We are able to finish up to 2000 tons raw material every year , generally , one full 20 feet container ( about 20 tons) can be done in 20- 25 days .
Q.How long I can get samples for approval before placing order ?
A. Just in one week for new samples that need to be done in new tools , and we can deliver samples within 24 hours for exsiting samples once received your request .
Q.What are your popular payement menthods ?
A. T/T is our prior choose for all , of course , we are also accept L/C , Westunion , paypall .
Q. What products you produce ?
A. We are proudce different hardware spare parts , stamping part , plastic injeciton molding parts and fasteners like screws , bolt , nuts , pins , rivets and spacers washers etc
