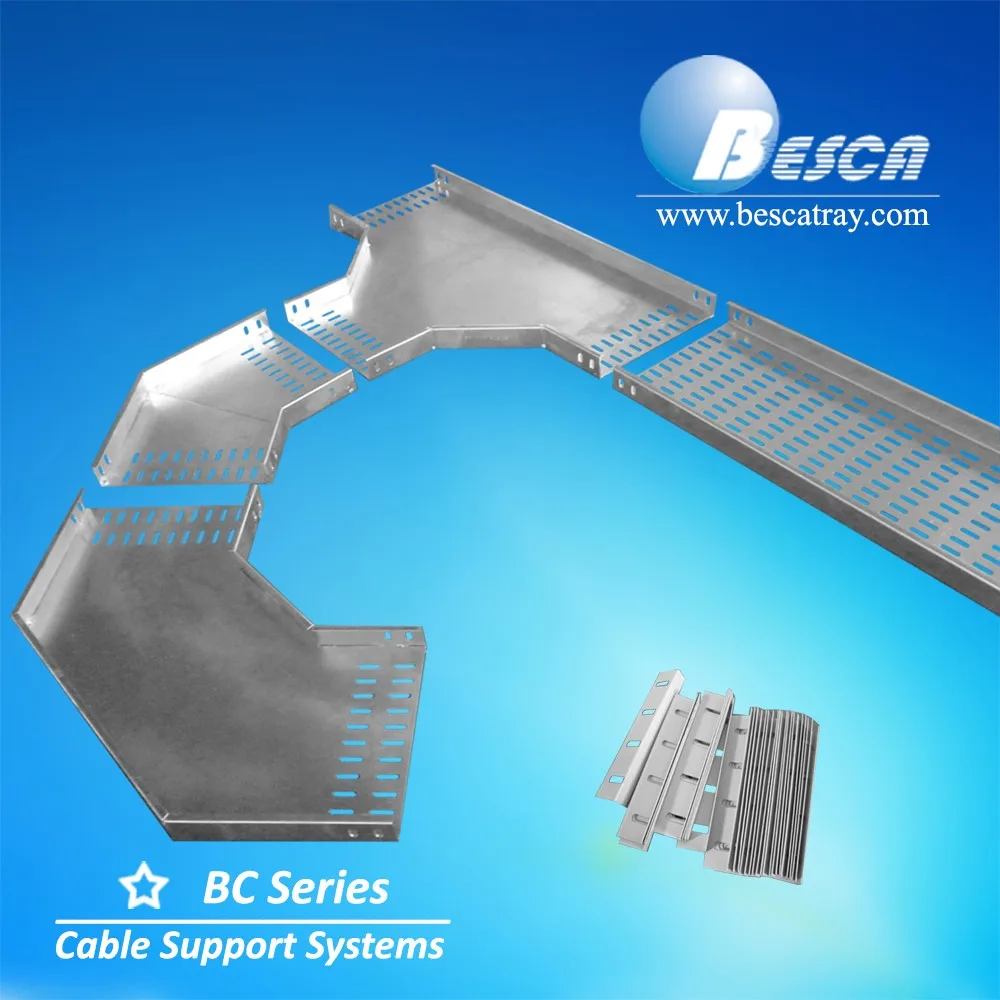

hot dip galvanized steel Cable Tray with Elbow

Product Overview

Description

Company Introduction of  Cable tray

Shanghai Besca Industrial Co., Ltd. is a self-support import & export industrial company, with a factory located in Jiangsu Province, we focus on cable support systems
more than 15 years, BESCA TRAY passed CE and NEMA Ve1 and UL/cUL, our UL/cUL number is E359562, our company also successfully obtain ISO9001:2008 management systems.
Based on our quality and service, BESCA TRAY has already exported to over 30 countries and regions, obtain a very good reputation from our clients. (Most of them are
the wholesalers of cable tray). We supply our clients not only our standard cable tray, also provide OEM service.





Details of Cable Tray

EN 10142:2000 Hot Dip Galvanized Heavy Weight Loading Cable Tray with Accessories

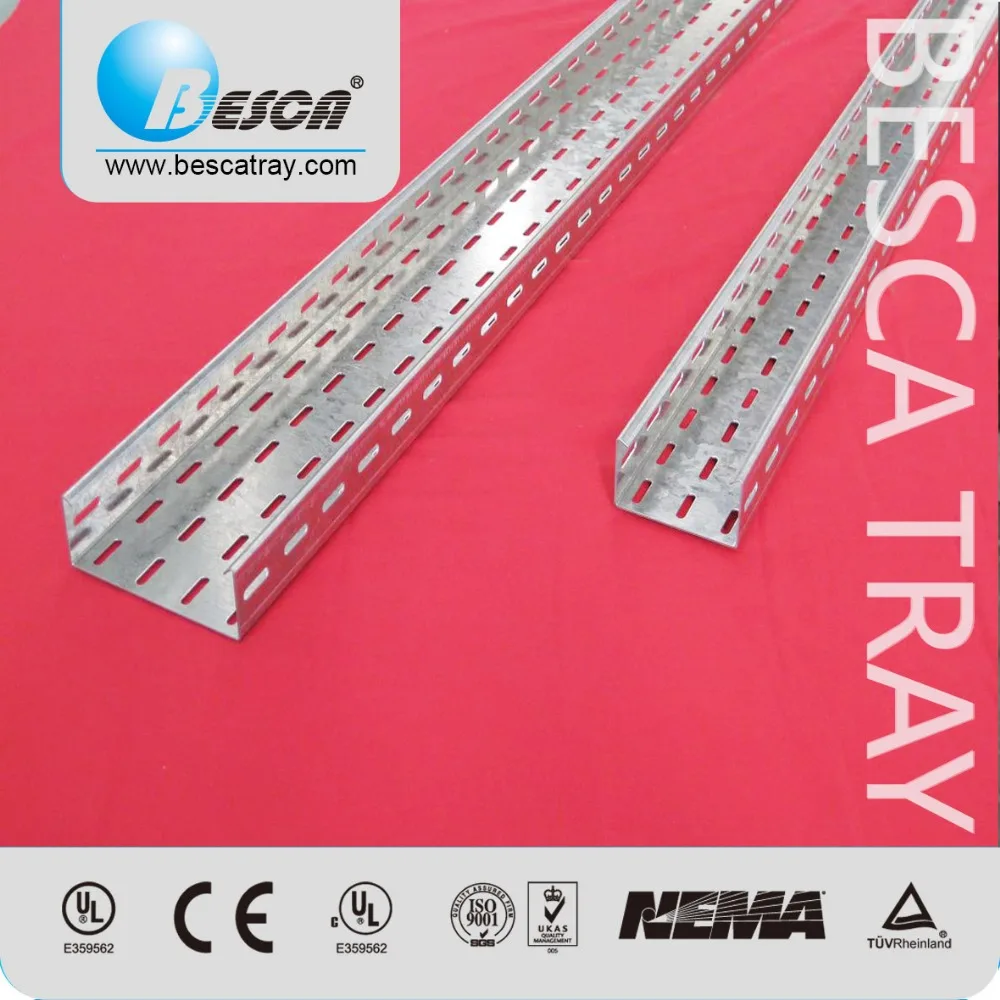

Hot dipped galvanized Cable Tray:

Electro zinc plated Cable Tray:

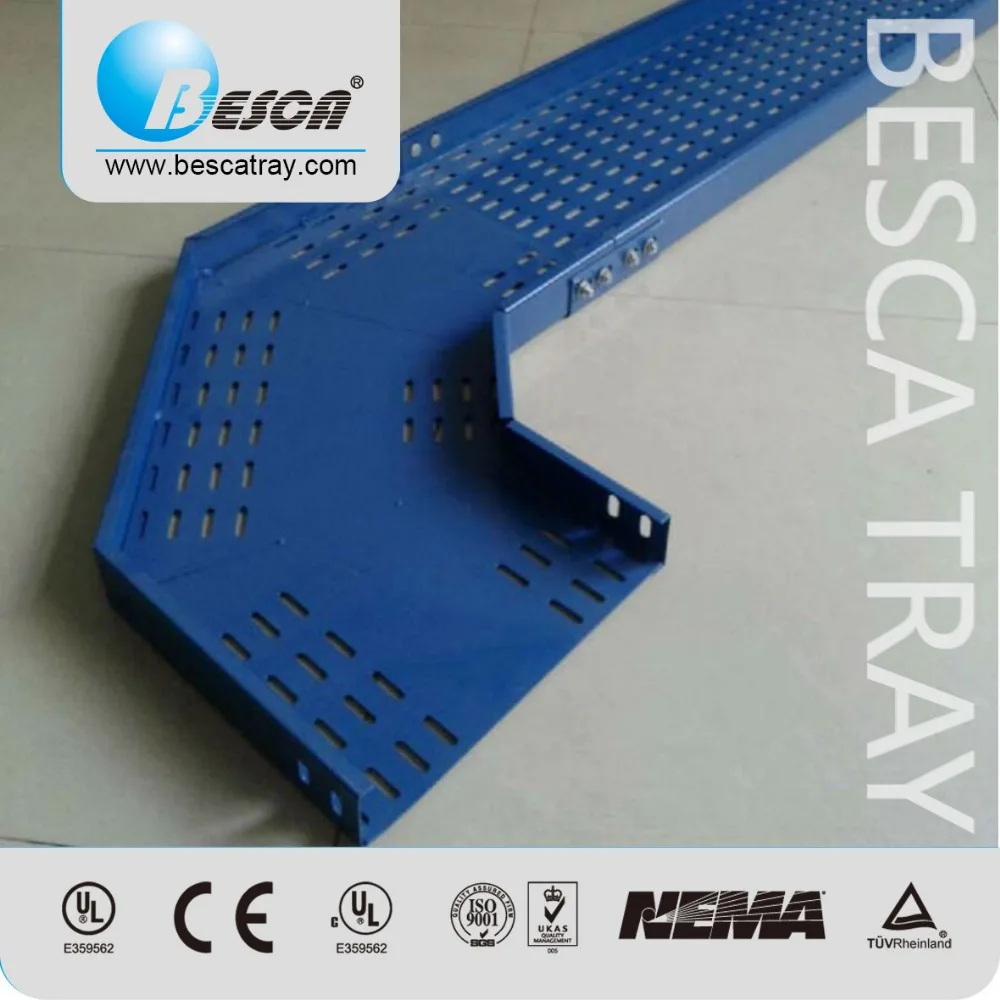

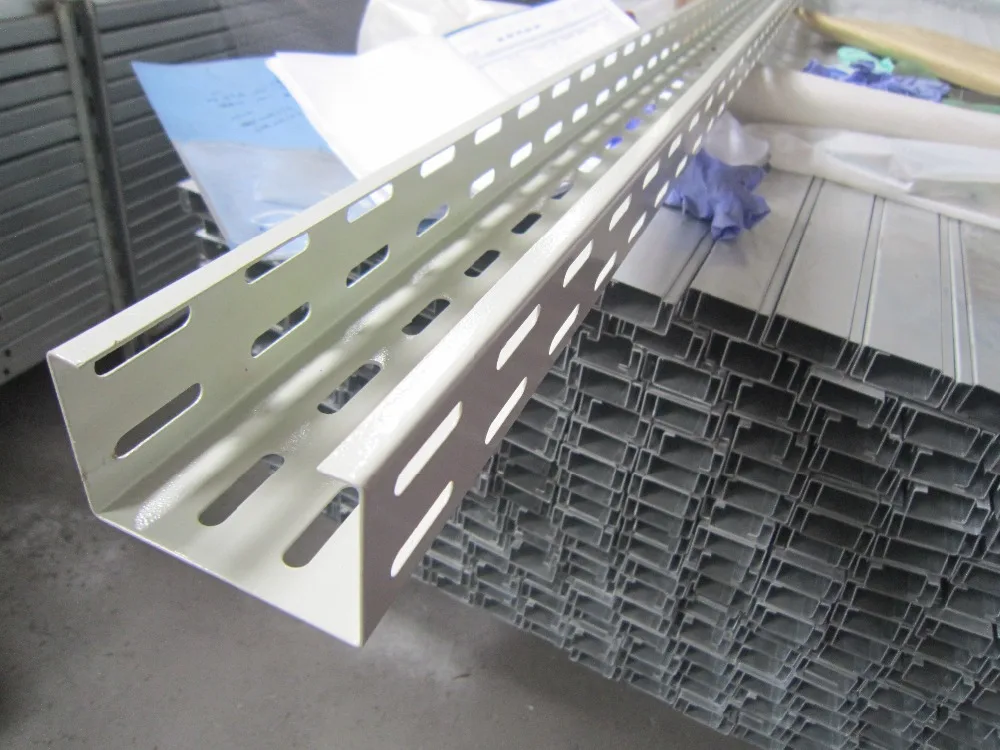

Powder Coated Cable Tray:





Aluminum Cable Tray:





Stainless Steel Cable Tray:

Dimension of Cable Tray

We also sell various kinds of cable tray according to the drawing or picture and requirements of customers

No.	Product Name	Size (mm)
		W X H X L
1	Cable Tray	50X50X3000
2		100X50X3000
3		150X50X3000
4		200X50X3000
5		300X50X3000
6		400X50X3000
7		500X50X3000
8		600X50X3000
9		100X100X3000
10		200X100X3000
11		300X100X3000
12		400X100X3000
13		500X100X3000
14		600X100X3000







Material of cable tray

Q235B Steel (Chinese standard steel), SS304, SS316, Aluminium





Surface Finish of Cable tray:



Electro zinc plated – for indoor use to BS EN 12329-2000, 12microns thick.



Hot Dipped Galvanized – for outdoor use to BS EN 1461-1999, between 60 and 80 microns thick



Electrolytic Polishing – for stainless steel use



Certificates of Cable Tray:







The advantages of our Galvanized Cable Tray :



1. Low cost, significant cost savings compared to standard traditional tray products.



2. Light in weight, wide range of sizes.



3. Fast heat dispersion.



4. Strong enough to withstand short circuits. Provides strength, rigidity without additional hardware.



5. Adapts to difficult architectural designs to accommodate changes in direction and elevation of cable runs.



6.Flexible, easy and fast installation. Design allows cable exit or entry at any point.



7. Cables can be secured to clamps or ties.



8.Various hardware accessories available to fix, support and install.



9. Safe smooth edge design to protect cable.



10.Easy for line check and cleaning , easy maintained.







All sharp ends are cut off to protect cables. Weight loading capacity is 27% stronger than traditional cable trays and cable ladders.







If you are interested in our product, please feel free to tell me and we hope can contact with you further in both English or Spanish.
Hope we could cooperate with each other, the best support and service will be provided to you from BESCA.
