Genyu 128x64 Graphic lcd display Small Size 0.96 inch LCD screen With driver IC FPC
- Category: Graphic Display >>>
- Supplier: Shenzhen Genyu Optical Co. Ltd.
Share on (60687035382):
Product Overview
Description

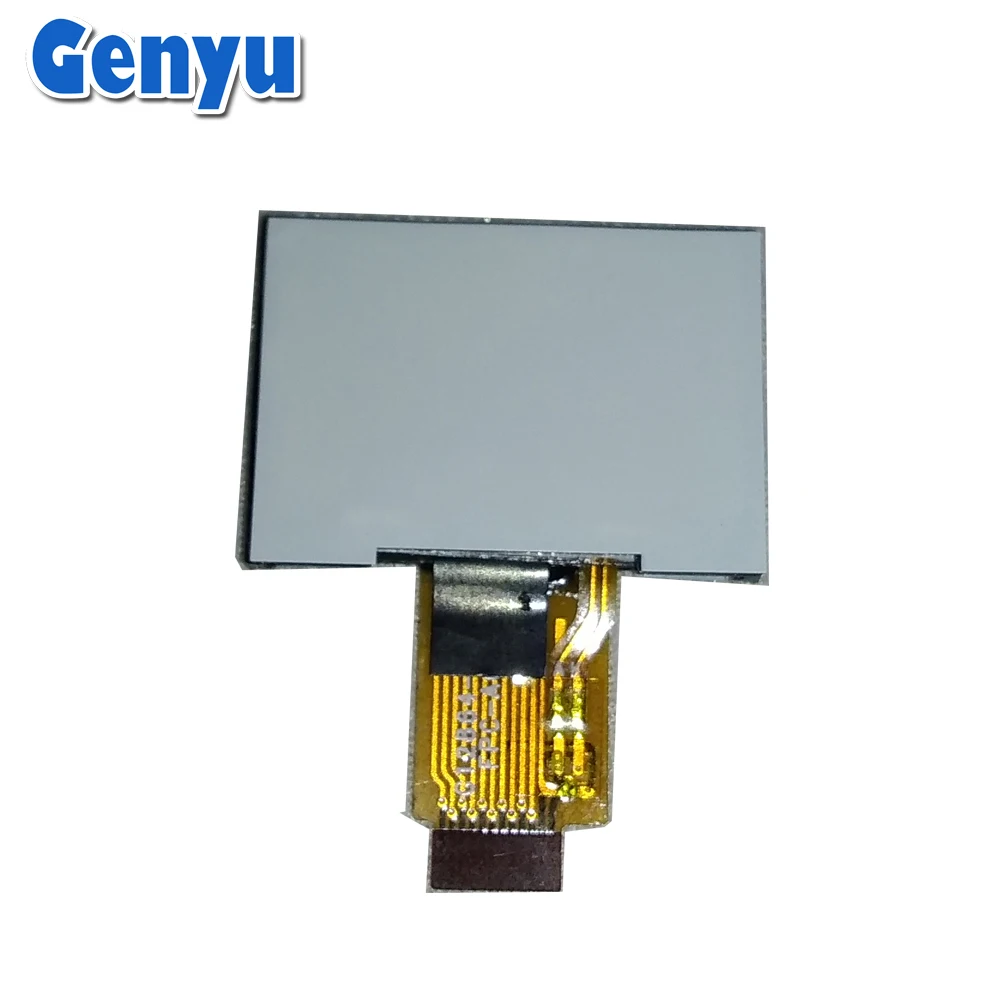

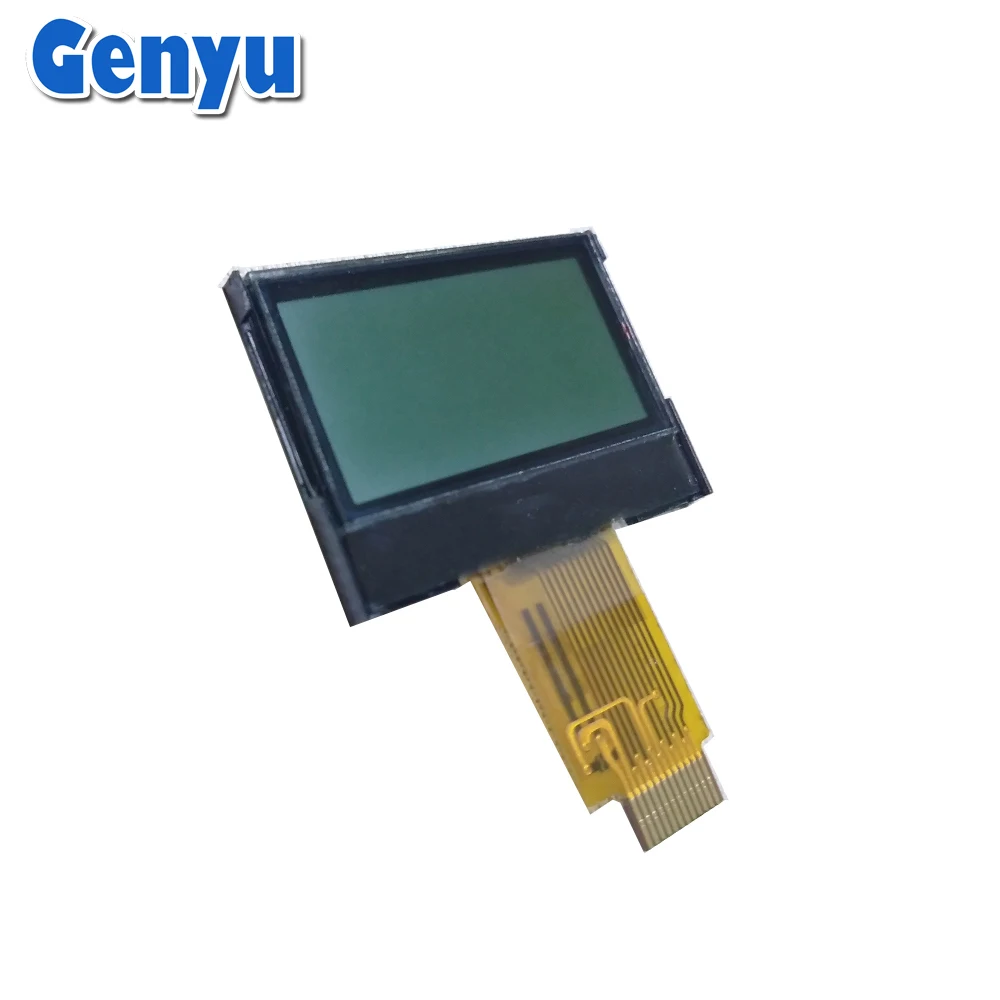

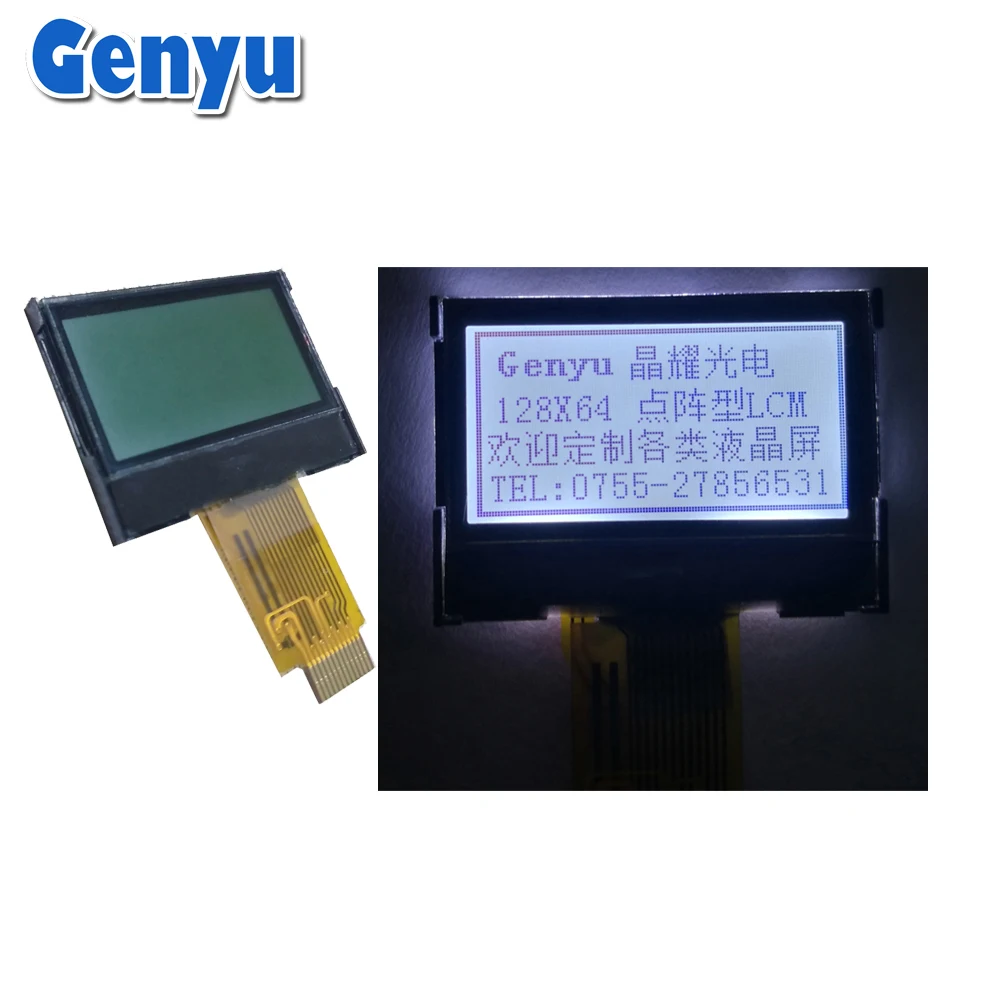

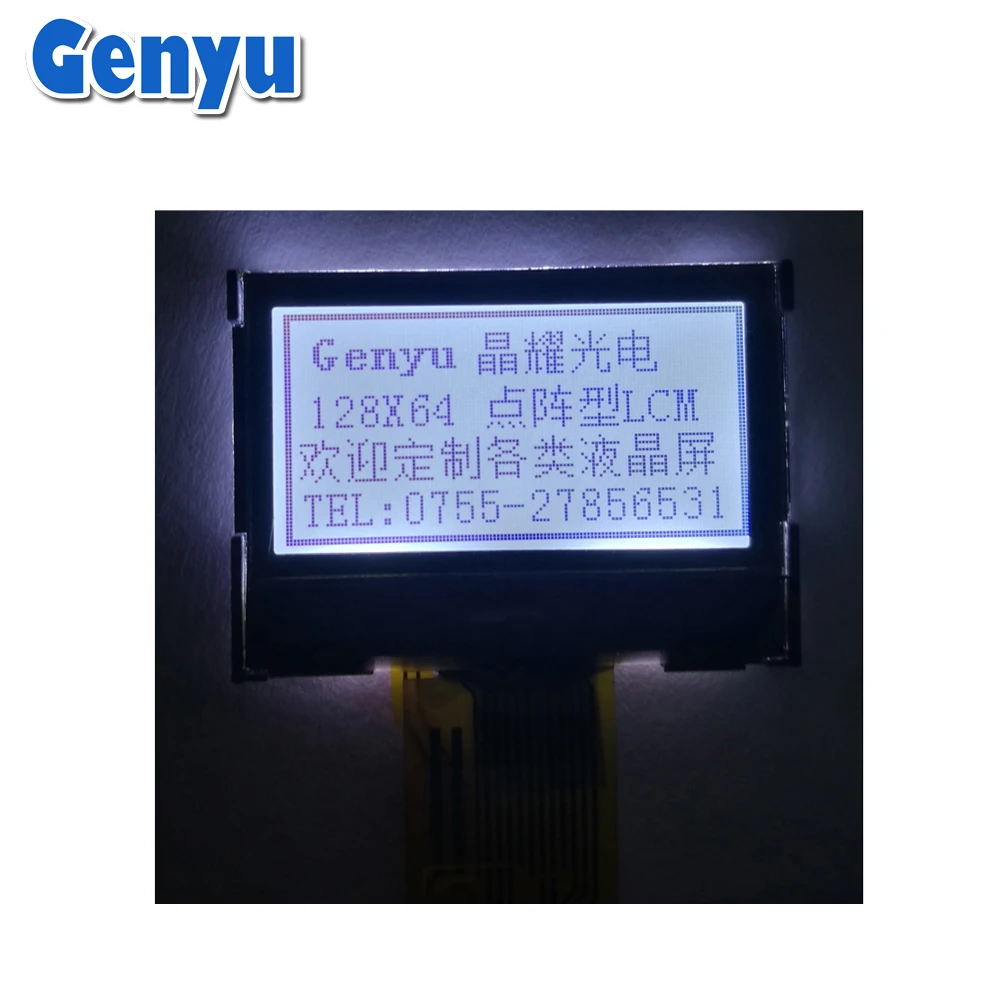

Genyu 128x64 Graphic lcd display Small Size 0.96 inch LCD screen With driver IC+FPC
Product Description
| Featur: | |
| 1.Display Mode | FSTN,Positive |
| 2.Polarizer | Transmissive |
| 3.Viewing angle | 6 O’Clock |
| 4.Operating temp | -20°C~70°C |
| 5.Storage temp | -30°C~80°C |
| 6.Operating voltage | 5.0V |
| 7.Driving condition | 1/65Duty,1/9Bias |
| 8.Connector IC | COG ST7567S |
| 9.ROHS compliant | |

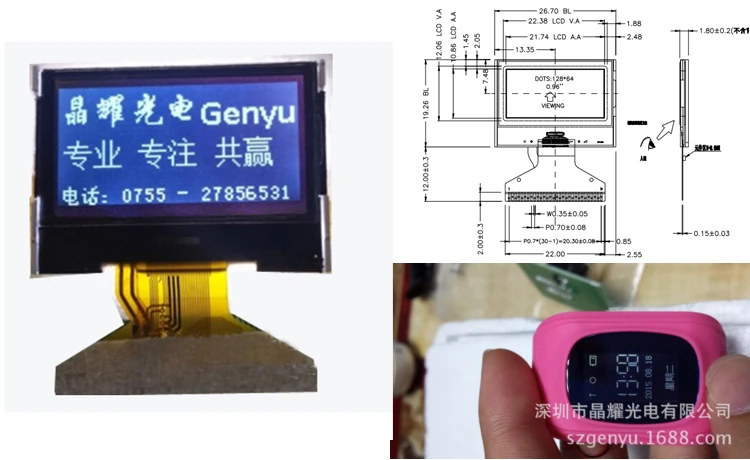

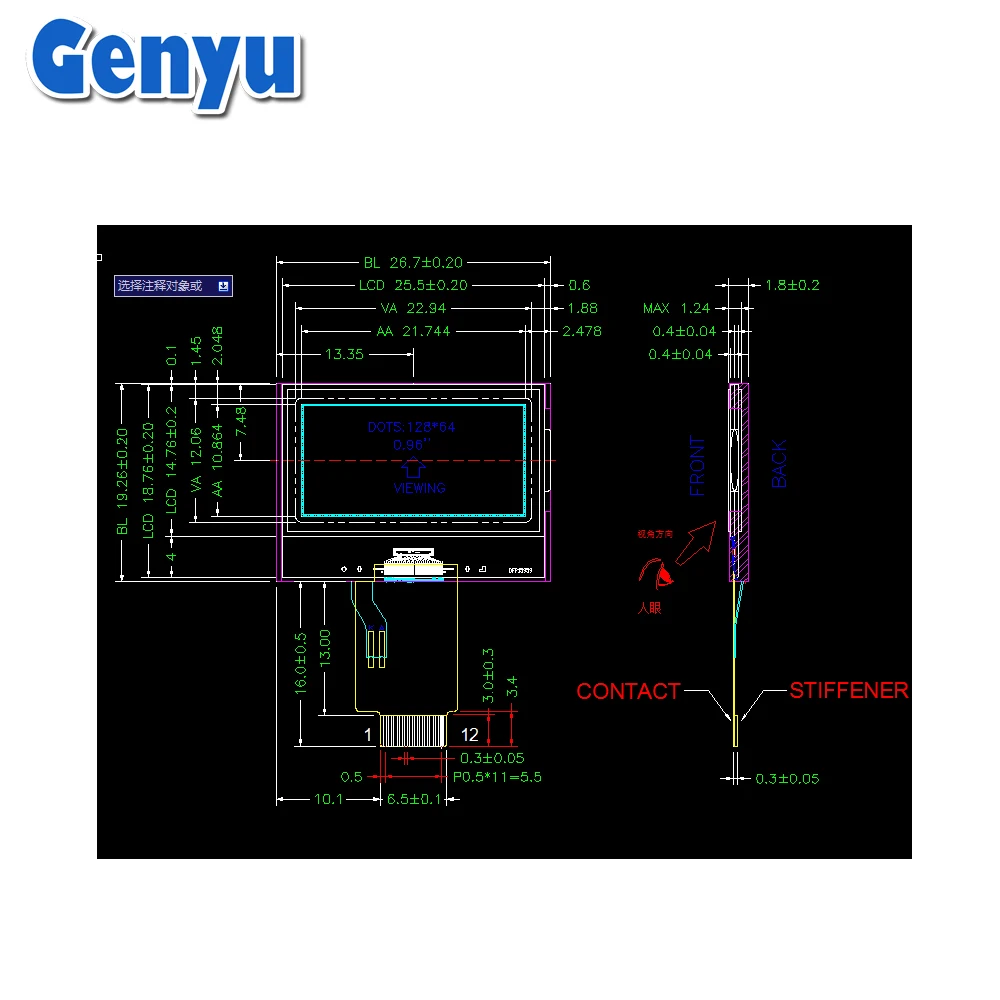

| Mechanical Parameters: | |
| Item | Description |
| External size | 26.7*19.26*1.8 |
| Viewing Area | 22.43*12.06 |
| Pin assignment: | |
| Pin No. | Symbol |
| 1 | LEDA+ |
| 2 | LEDA- |
| 3 | VG |
| 4 | XV0 |
| 5 | V0 |
| 6 | VSS |
| 7 | VDD |
| 8 | SDA |
| 9 | SCLK |
| 10 | A0 |
| 11 | REST |
| 12 | CSB |
Want more ?
We can customize the size, color, backlight, driver IC, connection mode ...
Please tell us your request, can be customized.
Contact us , my friend, just click here!

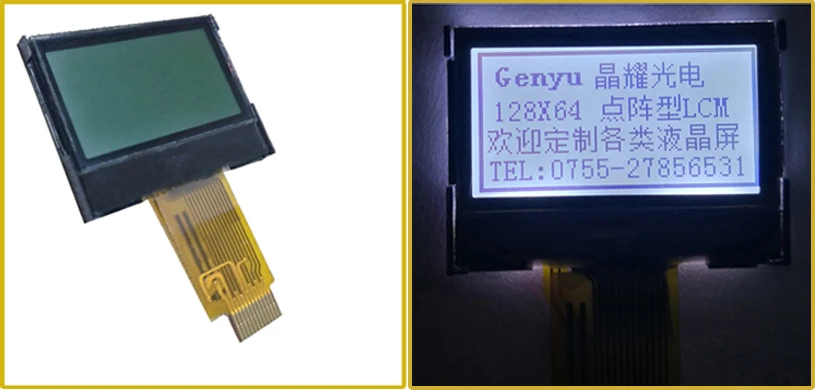

0.96 inch lcd FSTN Negative Transmissive
0.96 inch lcd FSTN Positive Transmissive
