Black Harden Spring Steel Clip Nuts for Sheet Metal Tapping Screws M3 Fastener Speed Nuts
- Category: Nuts >>>
- Supplier: Dongguan City Zhaoming Hardware Co. Ltd. [Guangdong China]Dongguan
Share on (60687081734):
Product Overview
Description

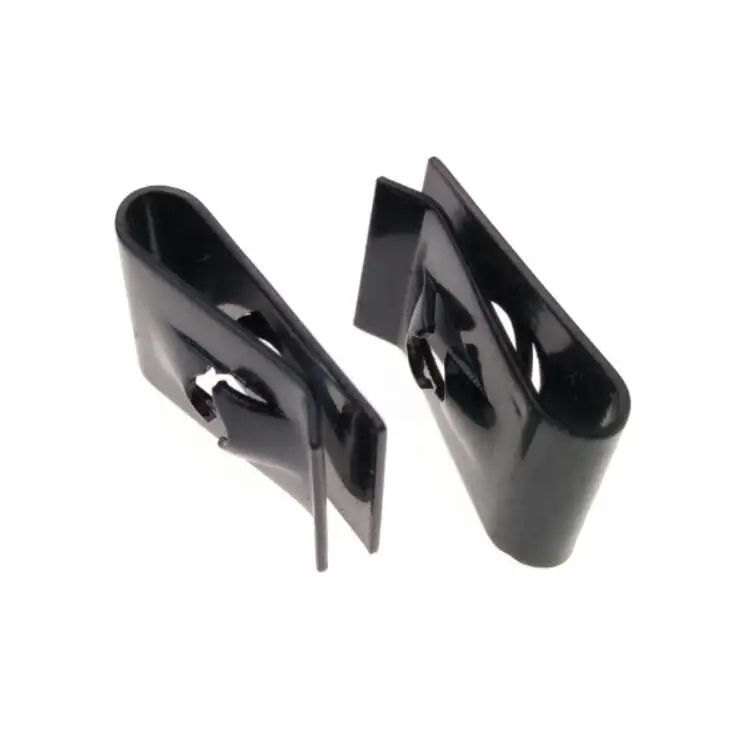

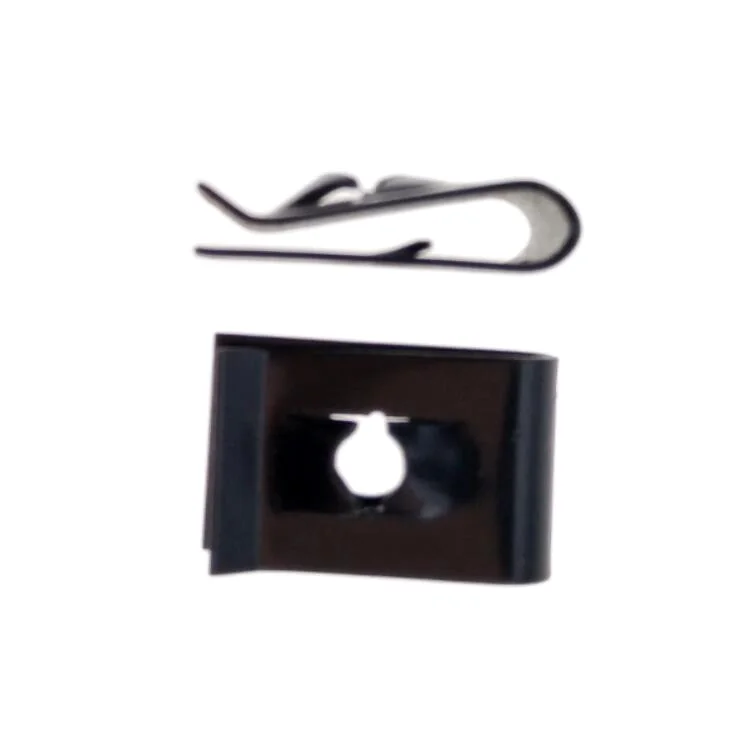

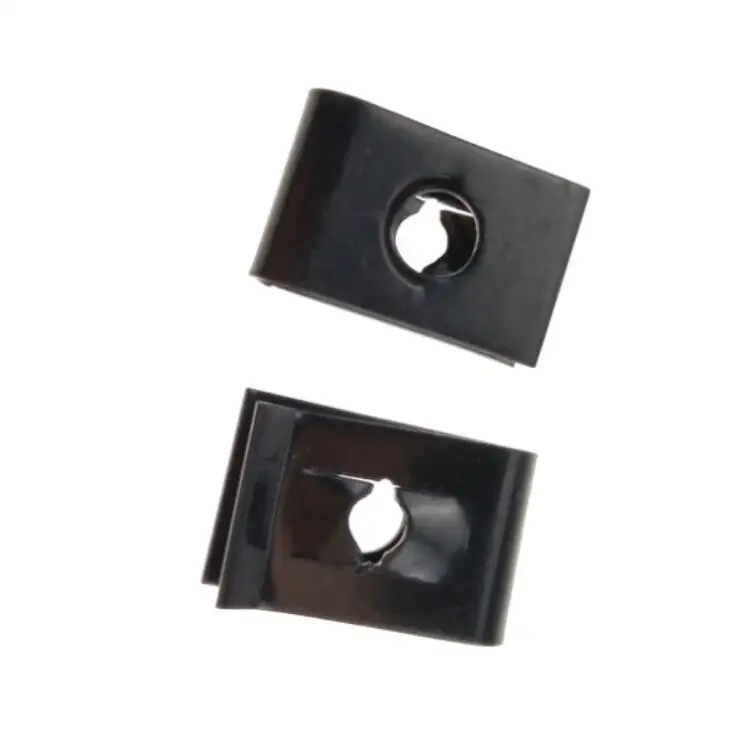

Black Harden Spring Steel Clip Nuts for Sheet Metal Tapping Screws M3 Fastener Speed Nuts
General Description
Black spring steel clip nuts are known as Sheet Metal Nuts or clip-on Nuts or captive nuts or speed nuts , a square belt is bended into a U shape and both ends are gone to one direction , a though hole with slot in the centre for tapping screws to clip nuts onto sheet metal
Clip nuts are normally made from spring steel as it is flexible and good elongation performance .
Technical Data
Material
Spring Steel 1065
Physical Properties
Hardness ( HV ) | 45 | Yield Strength ( Mpa ) | 784 | Elongation ( % ) | 8 |
Tensile Strength ( Mpa ) | 980 | Torque | NA | Reduction Area ( % ) | 30 |

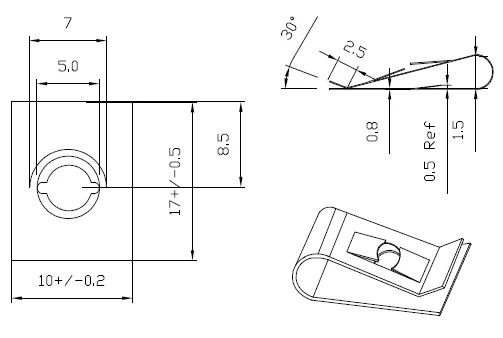

Specification
| Width | 10 | |
Length | 17 | |
Thickness | 0.85 | |
Hole for screws | M3 | |
Thread type | Tapping | |
Drive | NA |
Note
Sizes for clip nuts can be customized
Finish
Type | Thickness (um) | Salty Spray Hours | RoHS / REACH |
Oxide | 3 | 8 | RoHS |
Note
1. Optional finishs including zinc , nickel , chrome , tin and painting etc .
2. Finish colors are assorted .
Product Features
1 . Perfect flexibilty
2 . Good locking security purpose
Clip nuts can prevent objects from loosing after installed .
3 . Easy to be operated
Can be operated by a simple screwdriver .
4 . Not easy to be broken
Clip nuts with high tensile strength and good enlongation .
5 . Enviroment friendly
6 . Perfect stability
7 . Harden material
Hardness for cilp nuts up to HRC 45
Applications
Steel clip nuts are used for securing plastic or metal sheets on car , houseing appliances and other industrial items for clipping purpose .
Tips for Use
1 . Put screw through centre hole in clip nut before installation .
2 . Drive Screw into cliped object till screw head go to surface of clip nut .
3 . Clip nuts can be reused .
Packing Details
 |  |  |
| Bulk ( Bags + Carton )
Pcs / Bag : 3 Kgs / CTN : 15 L X W X H : 25 X 20 X 15 cm | Boxes ( Boxes + Carton )
Kgs / Bag : 1 Kgs / CTN : 10 L X W X H : 25 X 25 X 20 cm | Pallets
Kgs / pallet : 1800
L X W X H : 1 X 1 X 2 m |
Remark : Custom packing is acceptable . Above packings are reference only , items showed in the pictures maybe not described one
Our Services
We are one of hardware spare parts manufacturers in China , we provide various metal and non-metal parts with standards and customizations , eg. Fastener Screws ( including Stainless steel screws ) , Spacers Washers , Fastener Nuts bolts , Fastener Pins , Fastener Rivets , Metal Stamping Parts , Metal Machined Parts , Plastic Injection molding Parts . and Fastener Tools . We trade with buyers , wholesalers and retailers from different countries . We accept OEM and ODM service as well . Please contact us if you have any enquiry
FAQ's
Q What is your production capacity ?
A. We are able to finish up to 2000 tons raw material every year , generally , one full 20 feet container ( about 20 tons) can be done in 20- 25 days .
Q.How long I can get samples for approval before placing order ?
A. Just in one week for new samples that need to be done in new tools , and we can deliver samples within 24 hours for exsiting samples once received your request .
Q.What are your popular payement menthods ?
A. T/T is our prior choose for all , of course , we are also accept L/C , Westunion , paypall .
Q . Can you provide custom service ?
A . Yes , we provide standard and custom service for all our products .
Q. What products you produce ?
A. We are produce different hardware spare parts , stamping part , plastic injeciton molding parts and fasteners like screws , bolt , nuts , pins , rivets and spacers washers etc
