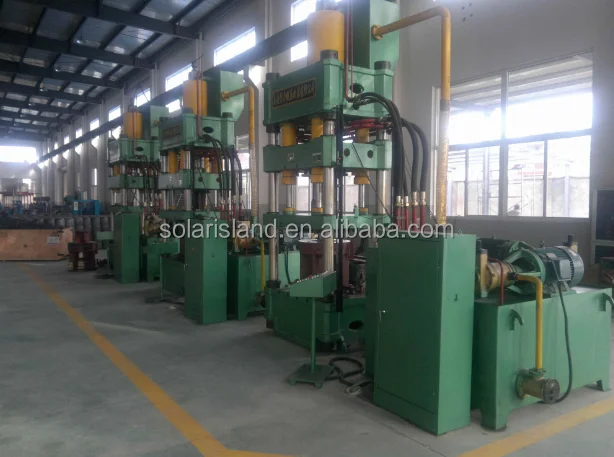

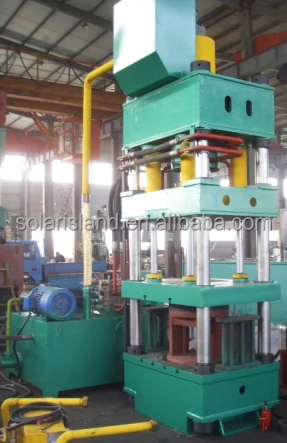

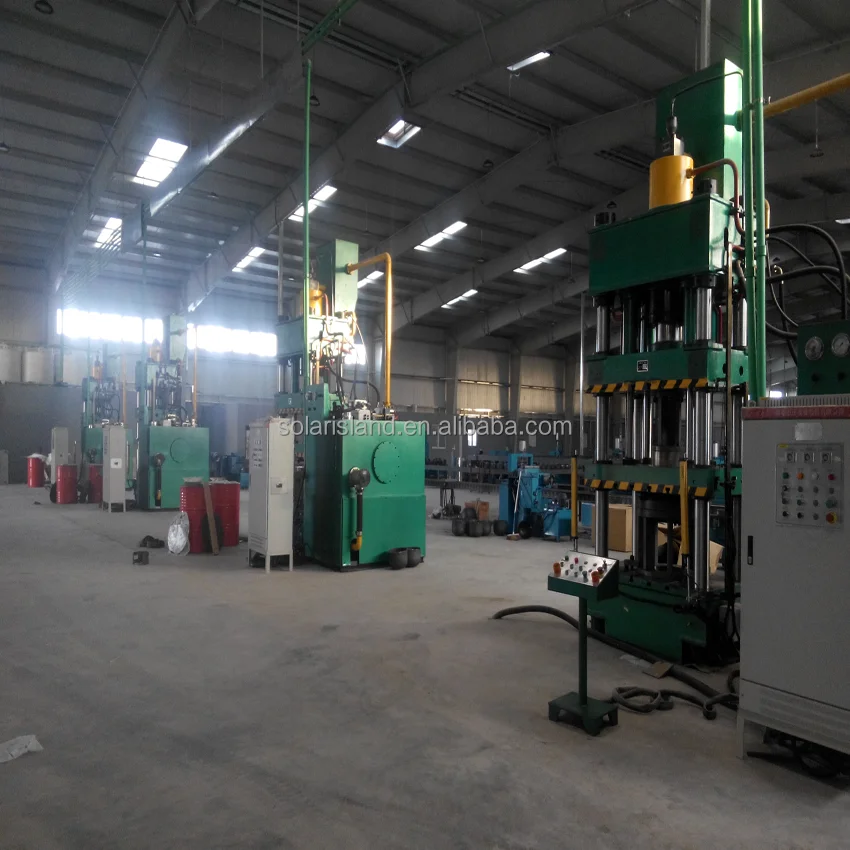

LPG Cylinder Hydraulic Deep Machine Drawing Press Machine
LPG Cylinder Hydraulic Deep Machine Drawing Press Machine
LPG Cylinder Hydraulic Deep Machine Drawing Press Machine
LPG Cylinder Hydraulic Deep Machine Drawing Press Machine
LPG Cylinder Hydraulic Deep Machine Drawing Press Machine

LPG Cylinder Hydraulic Deep Machine Drawing Press Machine

Share on (60687217465):


Price:$5,000.00

Quantity:


Product Overview

Description


Product Description
LPG Cylinder Hydraulic Deep Machine Drawing Press Machine
\t
LPG Cylinder Hydraulic Deep Machine Drawing Press Machine
\t
1. Nominal force
\t
3000KN
\t
2. Drawing force
\t
2000KN
\t
3. Blank holder force
\t
250×4KN
\t
4. Max. fluid working pressure
\t
25MPa
\t
5. Stroke of drawing slide
\t
700mm
\t
 6. Stroke of blank-holder slide
\t
400mm
\t
7. Max. daylight of drawing slide
\t
1400mm
\t
8. Max. daylight of blank-holder slide
\t
900mm
\t
9. Slide stroke speed
\t
speedy down 100mm/s, pressing speed 12mm/s,return speed 80 mm/s.
\t
10. Size of drawing slide
\t
1000 mm X 900 mm
\t
11. Size of blank-holder slide
\t
1120 mm X 720 mm
\t
12. Motor power
\t
2X18.5KW
Our Service
* Inquiry and consulting support.
* Sample testing support.
* View  Factory.
* Training how to install and use the machine.
* Engineers available to service machinery overseas.
Related Products

Circumferential Welding Machine


     Electrostatic Painting Line

   Longitudinal Welding Machine


\t
Other LPG/LNG  Cylinder Production machines
\t
Item
\t
Model No.
\t
Unit
\t
Quantity
\t
Hydraulic press
\t
500T
\t
Set
\t
1
\t
Blanking line
\t
XL-2
\t
Set
\t
1
\t
Deep drawing/Stretching machine
\t
200/300
\t
Set
\t
2
\t
Trimming machine
\t
QK-7
\t
Set
\t
2
\t
Necking machine
\t
SK-4
\t
Set
\t
1
\t
Cleaning / Polishing machine
\t
QL-5
\t
Set
\t
2
\t
Bung Hole punching machine
\t
CY-2
\t
Set
\t
1
\t
Valve seat automatic welding fixture
\t
FH-3
\t
Set
\t
2
\t
Foot ring automatic welding fixture
\t
TH-1
\t
Set
\t
2
\t
Collar automatic welding fixture
\t
DH-1
\t
Set
\t
2
\t
Cogas protective welder
\t
350
\t
Set
\t
6
\t
Assemblly machine
\t
ZZ-1
\t
Set
\t
2
\t
Circumferential seam welding fixture
\t
HH-2
\t
Set
\t
4
\t
Cogas protective welder
\t
500
\t
Set
\t
4
\t
Heat treatment unit
\t
RCL-2/12m
\t
Set
\t
1
\t
Hydraulic pressure testing unit
\t
SY-6
\t
Set
\t
2
\t
Shot blasting machine
\t
PQ-4
\t
Set
\t
1
\t
Spraying/Painting production line
\t
JP-1
\t
Set
\t
1
\t
Angle valve fixing machine
\t
JA-2
\t
Set
\t
2
FAQ

Q: Can your machine be customized ?
A: Yes, we are a professional manufacturer specialized in automatic welding
equipment more than 25 years, we have a strong design & technical team,
we can design and manufacture as your requirements.

Q: How to get an accurate quotation ?
A: Please provide us the detail of the workpiece such as drawings or daily out put

Q: What's the shipping cost from China to your country ?
A: We can send machine to your port by sea . Customers specify freight forwarders or negotiable shipping methods.

Q: Payment terms, MOQ, warranty, FOB...
A: Payment terms: 30% down payment against order
Minimum order quantity: 1 set
Delivery time: 2-4 months after receipt of formal order
Warranty: 12 months following delivery. We offer online service 24 hours all day long, Skype, Email etc. You can contact us any time.
