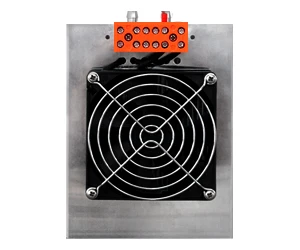

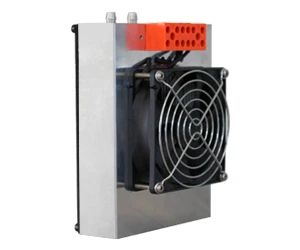

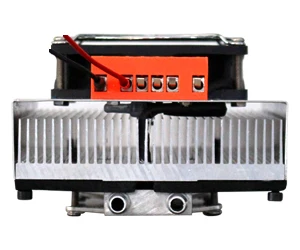

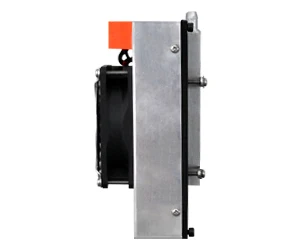

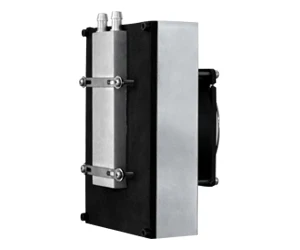

Peltier Thermoelectric Cooling Water Cooler

Product Description

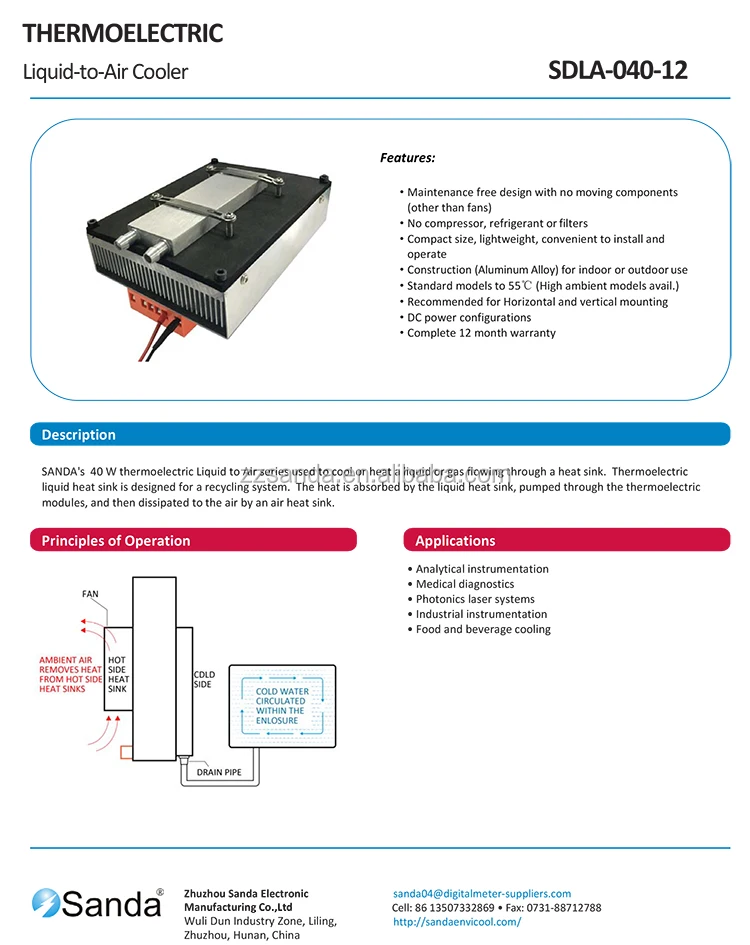

SANDA's 40 W thermoelectric Liquid to Air series used to cool or heat a liquid or gas flowing through a heat sink. Thermoelectric liquid heat sink is designed for a recycling system. The heat is absorbed by the liquid heat sink, pumped through the thermoelectric modules, and then dissipated to the air by an air heat sink.

Peltier air to water cooler application:

Analytical instrumentation           • Medical diagnostics          • Photonics laser systems
• Industrial instrumentation            • Food and beverage cooling

Thermoelectric Cooling.jpg

Thermoelectric Cooling.jpg

Thermoelectric Cooling.jpg

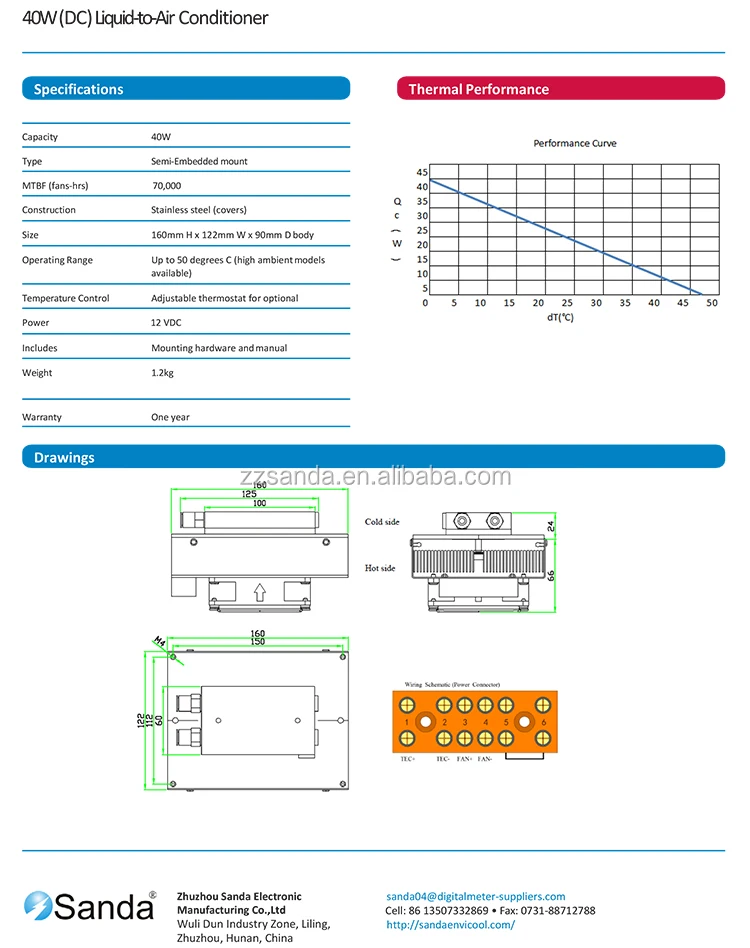

Peltier air to water cooler Specifications:

Peltier Thermoelectric Cooling Water Dispenser Cooler
Capacity40WTypeSemi-Embedded mount
ConstructionStainless steel (covers)MTBF (fans-hrs)70,000
Operating RangeUp to 50 degrees C (high ambient models available)Size160mm H x 122mm W x 90mm D body
Temperature ControlAdjustable thermostat for optionalPower12 VDC
IncludesMounting hardware and manualWeight1.2kg
