Product Overview

Description



Product Description

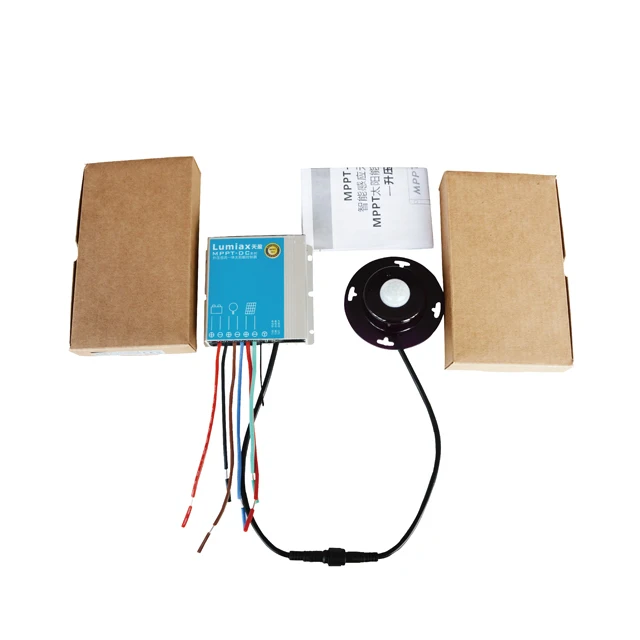

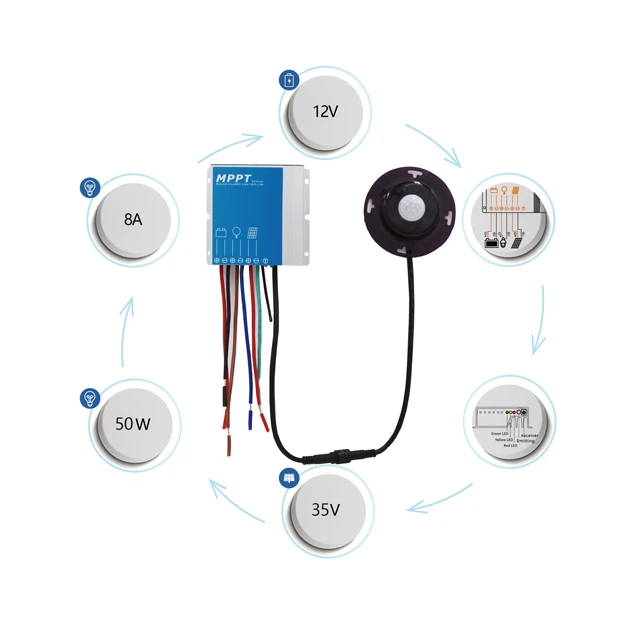

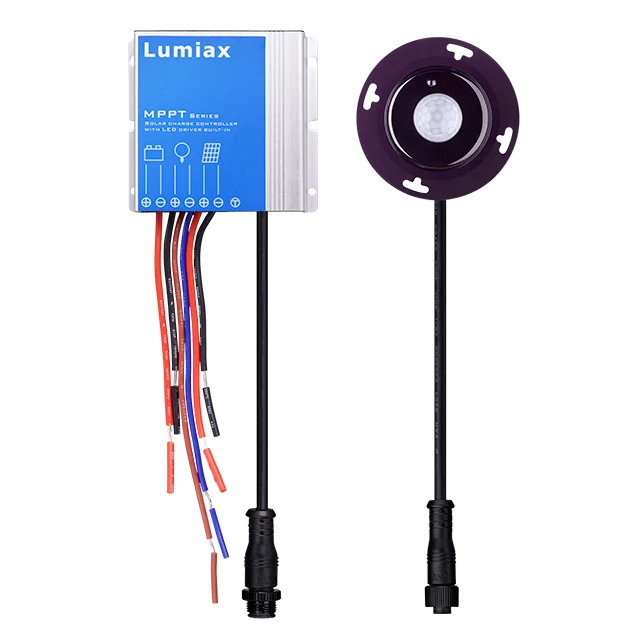

8A 12V MPPT Solar Street Light Controller
PIR motion sensor
Suit for Lithium Battery; Lead acid battery type optional
Support max. 50W 60W LED




Innovative Max Power Point Tracking(MPPT) technology, tracking efficiency >99.9%
High charge conversion efficiency up to 97.5%,
discharge efficiency up to 96.5%
Constant current output, voltage boost type (output current can be set).
5 stages timer and dimming setting
External temperature sensor, automatic temperature compensation

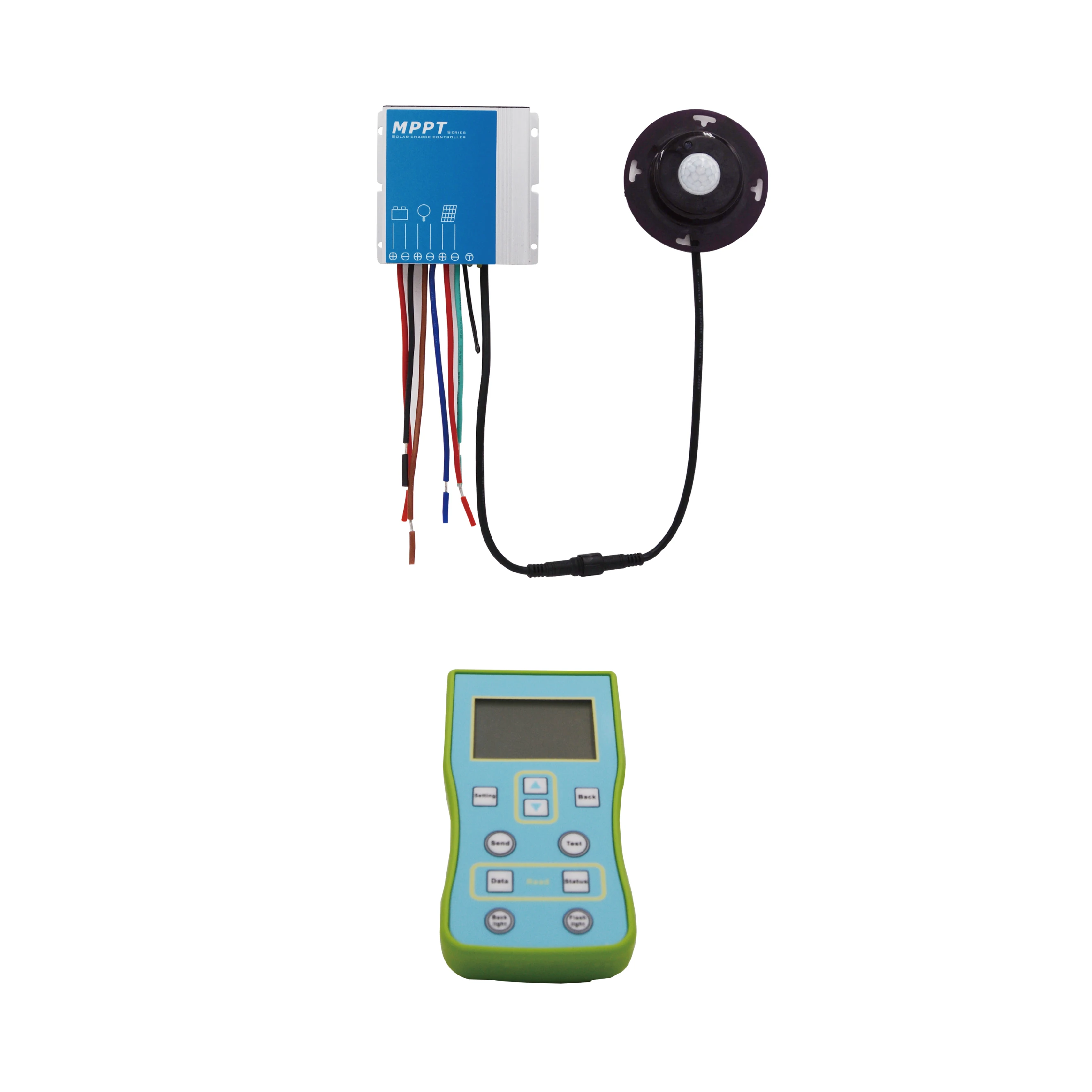

LCD type remote control, can read and set parameters by infrared
Current-limiting charging protection while the PV power exceeds the range.
Aluminium case, IP67


PCB Design
Capacitor Brand : SAMYOUNG
MOSFET brand: IR
TVS Brand:Littelfuse

Protection:
PV Over Voltage · PV Short Circuit · PV Reverse Polarity · Reverse Current
Battery Reverse Polarity · Battery Over voltage ·Battery Short Circuit · Battery Over discharge

Load Over Current Protection · Load Short Circuit Protection · Load Reverse Polarity · Load Low Voltage Protection
Over Temperature Protection


Specification


MPPT0850-DCLiR
MPPT0875-DCLiR
Ampere
8A
System Voltage
12V
Mppt Charging Voltage
< charging voltage target
Charging voltage target
10.0~17.0V(Programmable)
Charging voltage recovery
9.2~16.8V(Programmable)
Low voltage disconnect
9.0~15.0V (Programmable)
Low voltage reconnect
9.6~16.0V(Programmable)
Battery Type
Lithium
Max PV input Power
100W~120W
100W~120W
Max PV input Voltage
35V
60V
Dusk/Dawn detect volt
3.0~8.0V (Programmable)
Output Power
1~50W
1~60W
Output Voltage
(Battery voltage+2V)~35V
(Battery voltage+2V)~58V
Output Current
0.15A~3A
Min current
100mA（Dimming）
Max Tracking Efficiency
>99.9%
Max Charge Conversion
96%
Max LED driver efficiency
95.5%
Dimensions
85.8 * 63 * 23.1 mm
85.8 * 81 * 23.1 mm
Weight
300g
350g
Protection degree
IP67


Packing & Delivery


Pacakging: carton
Contain: 15pcs/carton
Weight: 8.7kg/carton
Dimmension: 44*31*19 cm
Shipping:
Air transport & Sea transport
International Express：DHL, FEDEX, TNT, UPS
If choose international express, we recommend to place order > 20kg, will get discount




Company Profie


Registered as “Lumiax”, Qingdao Skywise Technology Co., Ltd. was established in 2007, and located in Qingdao Hi-tech park area. Due to many years devoted to researching and developing, now we have been the world-leading solar charge controller manufacturer with over 1.5 million controllers exported to 100 countries. Certificates that we have possessed of ISO9001 Quality Management System, ISO14001Environmental Management System, CQC Golden Sun Certificate, CE and ROHS. Also with IEC61000, IEC62509,FCC,SASO,CISPR certificates for some models.Products major including two parts: solar 24 hours universal system controller and solar street light controller. Weclome to visit and inquiry.
